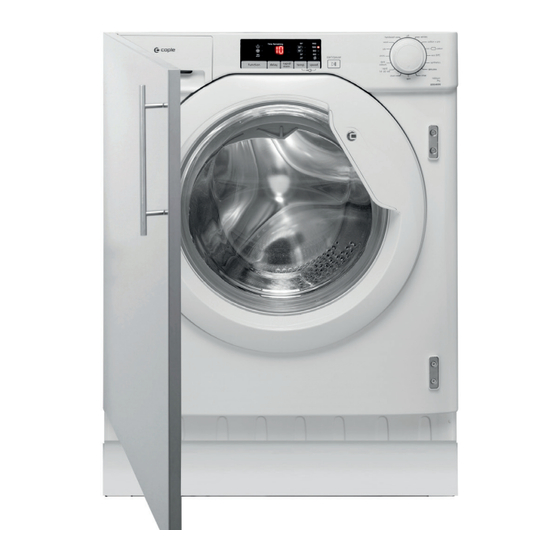

Integrated washing machine
Hide thumbs Also See for WMI4000:

Advertisement

Quick Links

Download this manual
I n t e g r a t e d W a s h i n g M a c h i n e
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
WMi4000 Intergrated Washing Machine.indd 1
WMi4000 Intergrated Washing Machine.indd 1
I n s t r u c t i o n M a n u a l
WM I400 0
25/02/2020 09:15
25/02/2020 09:15

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMI4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caple WMI4000

Summary of Contents for Caple WMI4000

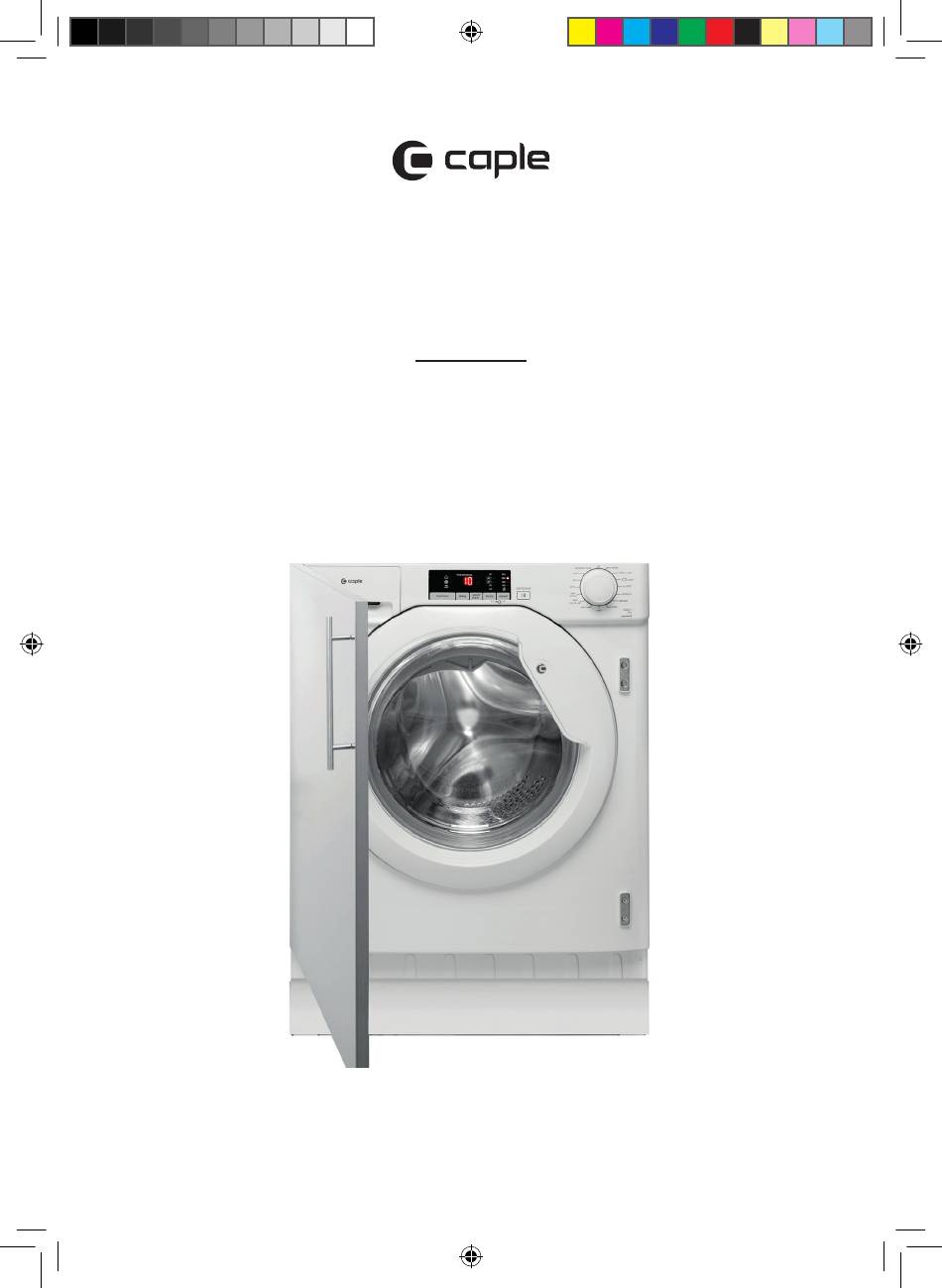

  • Page 1 I n s t r u c t i o n M a n u a l WM I400 0 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk WMi4000 Intergrated Washing Machine.indd 1 WMi4000 Intergrated Washing Machine.indd 1...

  • Page 2: Table Of Contents

    Washing Programmes Table Of Programmes Cleaning And Maintenance Troubleshooting Care Symbols Technical Data Caple Contact Details Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 2 WMi4000 Intergrated Washing Machine.indd 2 25/02/2020 09:15 25/02/2020 09:15...

  • Page 3: Warnings

    (do not reuse old hose-sets). - Water pressure must be between 0.05 MPa and 0.8 MPa. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 3 WMi4000 Intergrated Washing Machine.indd 3 25/02/2020 09:15 25/02/2020 09:15...
  • Page 4 - Take care that power voltage and frequency shall be identical to those of washing machine. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 4 WMi4000 Intergrated Washing Machine.indd 4 25/02/2020 09:15 25/02/2020 09:15...
  • Page 5 › Staff kitchen areas in shops, offices and other working environments. › Bed and breakfast type environments. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 5 WMi4000 Intergrated Washing Machine.indd 5 25/02/2020 09:15 25/02/2020 09:15...
  • Page 6 - Transport bolts shall be reinstalled to the machine by a competent person. - The accumulated water shall be drained out of the machine. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 6 WMi4000 Intergrated Washing Machine.indd 6 25/02/2020 09:15 25/02/2020 09:15...
  • Page 7 - In the event of fault and / or malfunction, turn off the washing machine, close the water tap and do not tamper with the appliance. Immediately contact Caple service and only use original spare parts. Failure to observe these instructions may jeopardise appliance safety.

  • Page 8: Environmental Protection

    (found inside the door opening). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.
  • Page 9 A C C E S S O R I E S Transport Inlet pipe Corrugated sound proofing sheet Transport Inlet pipe Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 9 WMi4000 Intergrated Washing Machine.indd 9 25/02/2020 09:15 25/02/2020 09:15...

  • Page 10: Installation

    10 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 10 WMi4000 Intergrated Washing Machine.indd 10 25/02/2020 09:15 25/02/2020 09:15...
  • Page 11 3. Lock the foot, screwing in the nut, until it tightens against to the bottom of the washing machine. Plug in the appliance. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 11 WMi4000 Intergrated Washing Machine.indd 11 25/02/2020 09:15 25/02/2020 09:15...

  • Page 12: Built In Installation

    WARNING: Contact Caple Service should the power cord need replacement. WA R N I N G : Installation faults are not covered by the manufacturers warranty. Contact Caple Service should the power cord need replacement. WARNING: Contact Caple Service should the power cord need replacement.
  • Page 13 Instruction manual WMI4000 Please keep this instruction manual for future reference Instruction manual WMi4000 Please keep this in Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 13 WMi4000 Intergrated Washing Machine.indd 13 25/02/2020 09:15 25/02/2020 09:15...

  • Page 14: Operation

    Chemical (solvent-based) cleaning agents can cause severe damage to the washing machine. Do not use solvent-based cleaning agents in the machine. 14 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 14 WMi4000 Intergrated Washing Machine.indd 14 25/02/2020 09:15 25/02/2020 09:15...
  • Page 15 (heavy duty) that contains bleaching agents that at medium/ high temperatures provide excellent results. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 15 WMi4000 Intergrated Washing Machine.indd 15 25/02/2020 09:15 25/02/2020 09:15...
  • Page 16 Some detergents are not designed for use in the dispenser drawer but are supplied with their own dispenser that is placed in the drum directly. 16 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 16 WMi4000 Intergrated Washing Machine.indd 16 25/02/2020 09:15 25/02/2020 09:15...

  • Page 17: Quick User Guide

    For any type of wash, see the program table and follow the operating sequence as indicated. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 17 WMi4000 Intergrated Washing Machine.indd 17 25/02/2020 09:15 25/02/2020 09:15...

  • Page 18: Control Panel

    Kg Load Indicator Light Key Lock Indicator Light Temperature Selection Indicator Lights Spin Speed Indicator Lights 18 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 18 WMi4000 Intergrated Washing Machine.indd 18 25/02/2020 09:15 25/02/2020 09:15...
  • Page 19 45°C. If these conditions are met, wait for the light to switch off before opening the door. DOOR LOCKED Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 19 WMi4000 Intergrated Washing Machine.indd 19 25/02/2020 09:15 25/02/2020 09:15...
  • Page 20 20 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 20 WMi4000 Intergrated Washing Machine.indd 20 25/02/2020 09:15 25/02/2020 09:15...
  • Page 21 If you want carry out a cold wash all the indicators must be off. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 21 WMi4000 Intergrated Washing Machine.indd 21 25/02/2020 09:15 25/02/2020 09:15...

  • Page 22: Temperature Selection

    The key lock can be simply cancelled by pressing the two buttons simultaneously again or turning off the appliance. 22 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 22 WMi4000 Intergrated Washing Machine.indd 22 25/02/2020 09:15 25/02/2020 09:15...
  • Page 23 At the end of the cycle turn the programme selector to Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 23 WMi4000 Intergrated Washing Machine.indd 23 25/02/2020 09:15...
  • Page 24 This show the spin speed of the selected programme, you can reduce or omit by the relevant button. 24 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 24 WMi4000 Intergrated Washing Machine.indd 24 25/02/2020 09:15 25/02/2020 09:15...

  • Page 25: Washing Programmes

    It is used for rinsing any type of fabric, for example after a wash carried out by hand. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 25 WMi4000 Intergrated Washing Machine.indd 25 25/02/2020 09:15 25/02/2020 09:15...
  • Page 26 Programme for hand wash only clothes, the program ends with 3 rinses and a slow spin. 26 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 26 WMi4000 Intergrated Washing Machine.indd 26 25/02/2020 09:15...

  • Page 27: Table Of Programmes

    W O O L 40˚C • • H A N D W A S H 30˚C • • Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 27 WMi4000 Intergrated Washing Machine.indd 27 25/02/2020 09:15 25/02/2020 09:15...
  • Page 28 28 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 28 WMi4000 Intergrated Washing Machine.indd 28 25/02/2020 09:15 25/02/2020 09:15...

  • Page 29: Cleaning And Maintenance

    Repeat the previous steps in reverse order to reassemble all parts. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 29 WMi4000 Intergrated Washing Machine.indd 29 25/02/2020 09:15 25/02/2020 09:15...
  • Page 30 Faults caused by handling, installation or misuse are not covered and may incur a charge for any repair visit to resolve. 30 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 30 WMi4000 Intergrated Washing Machine.indd 30 25/02/2020 09:15 25/02/2020 09:15...

  • Page 31: Troubleshooting

    If the error occurs again contact an Authorised Customer Service Centre directly. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 31 WMi4000 Intergrated Washing Machine.indd 31 25/02/2020 09:15 25/02/2020 09:15...
  • Page 32 Make sure there are no foreign objects inside the drum (coins, hinges, buttons, etc). 32 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 32 WMi4000 Intergrated Washing Machine.indd 32 25/02/2020 09:16 25/02/2020 09:16...
  • Page 33 In this case, do not re-rinse to eliminate these effects: it will not help at all. We suggest conducting a maintenance wash using a proprietary cleaner. If the problem persists or more help is required, please contact our Caple service team on or via email 0117 938 7420 SERVICE@CAPLE.CO.UK...

  • Page 34: Care Symbols

    The label and sign on the fabric can help you to choose the best way to launder your clothes. 34 Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 34 WMi4000 Intergrated Washing Machine.indd 34 25/02/2020 09:16...
  • Page 35 Attained for 60 °C cotton at full and partial load or the 40°C at partial whichever is higher.\n6) Based on washing and spinning phases for the standard 60°C cotton programme at full load. Instruction manual WMi4000 Please keep this instruction manual for future reference WMi4000 Intergrated Washing Machine.indd 35 WMi4000 Intergrated Washing Machine.indd 35 25/02/2020 09:16 25/02/2020 09:16...
  • Page 36 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk WMi4000 Intergrated Washing Machine.indd 36 WMi4000 Intergrated Washing Machine.indd 36 25/02/2020 09:16 25/02/2020 09:16...
  • Page 37 Drawing not to scale - please refer to printed template supplied with your appliance. FRONT REAR USE THIS SIDE TO INSTALL HINGES TO LEFT SIDE OF APPLIANCE USE THIS SIDE TO INSTALL HINGES TO RIGHT SIDE OF APPLIANCE 45mm Magnet Magnet 45mm 19mm...
