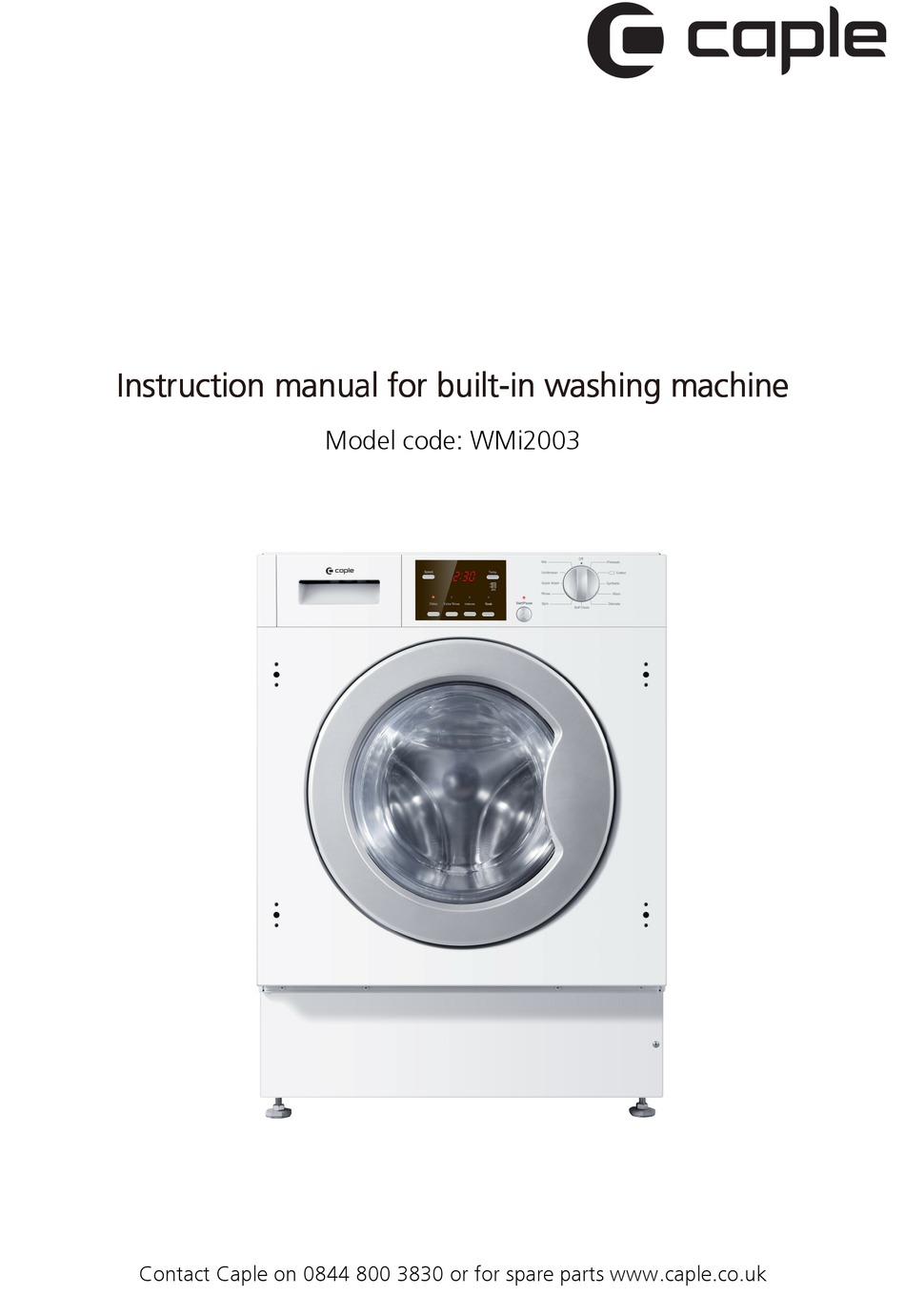

  • Page 1 - - - in in in in washing machine washing machine Instructio Instructio n manual for n manual for built built washing machine washing machine Model code: WMi2003 Contact Caple on 0844 800 3830 or for spare parts www.caple.co.uk...
  • Page 2 CONTENTS WIRING CIRCUIT...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 6: Installation

    INSTALLATION REMOVE THE TRANSPORTATON BOLTS The transportation bolts are designed for clamping anti-vibration components inside of the washing machine during the transportation process. Remove the back cover. Remove the four bolts on the rear side and take out the synthetic stabilisers from within the machine.

  • Page 7: Inlet Hose

    The washing machine requires the following space: INLET HOSE 1. Connect the nut on the inlet hose to the connector on the water valve. 2. Apply inlet hose to a water tap with cold, fresh water. Note: Use the hose-set supplied with the appliance. Old hose-sets should not be reused.

  • Page 8: Control Panel

    CONTROL PANEL mixed prewash speed temp. underwear cotton °C quick wash synthetic °C °C rinse wool start/pause spin delicate delay extra rinse intense soak self clean WMI2003...
  • Page 9 1 to 5,9 to 11 NOTE: The delay time selected must be longer than the duration of the wash cycle, if not it will begin to wash immediately the icon will switch off, showing the function is cancelled and the machine will continue to run.
  • Page 10 Prewash Cotton Synehetic Wool Delicates Selfclean Spin Rinse Quick Underwear...
  • Page 11 The standard 40° and 60° cotton programs are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumption . T he actual water temperature may differ from the declared cycle temperature. WMI2003 220 - 240V~/50Hz Quic 0.03≤P ≤1...

  • Page 12: Washing Methods

    WASHING METHODS PLEASE NOTE This washing machine is for domestic use only. If the machine is use for commercial purpose the guarantee will not be valid anymore.Do not use it for purposes other than that for which it was designed. Follow the instructions given on the label of each garment and wash only machine-washable garments.

  • Page 13: Selecting A Program

    Gently push the drawer back (refer to the instructions on the drawer). SELECTING A PROGRAM mixed prewash speed temp. underwear cotton SELECTING A FUNCTION °C quick wash synthetic °C °C rinse wool start/pause spin delicate delay extra rinse intense soak self clean WMI2003...
  • Page 14 Speed Temp. Delay Extra Rinse Intense Soak Temp. Speed Delay Extra Rinse Intense Soak Speed Temp. Delay Extra Rinse Intense Soak Turn off the water supply and unplug the power cord. Open the washer door to prevent formation of water and odours. We recommend leaving the door open when not in use. 1 - Collect clothes for a full wash load.
  • Page 15 CARE TABLE Resistant material Bleachable in cold water Don't dry clean Delicate fabric Do not bleach Dry fl at Washable at 95 °C Iron at 200 °C Hung to dry Washable at 60 °C Iron at 150 °C Dry on clothes hanger Washable at 40 °C Iron at 100 °C Tumble dry, normal heat...

  • Page 16: Cleaning And Care

    CLEANING & CARE AFTER WASHING Turn off the water supply and pull out plug after each wash. Open the washer door to prevent formation of moisture and odours. If the washing machine is left idle for a long period, drain the water in the machine and replace the drain hose.
  • Page 17 If the washing machine is not to be used for a long period of time, remove the plug from the electrical supply and turn off the water supply. Leave the washer door open to help prevent a build up of moisture and odours. Intense Underwear pre-wash...
  • Page 18 1.In case washing 1 piece of laundry(carpet, bed sheet,table sheet,ect) Washing machine has an unbalanced load make it symmetrical inside the drum. protection function.When unbalanced weight is 2.Lower the wet weight of laundry pieces by wringing manually and greater than allowable maximum,the washing placing them back in the drum in symmetrical position.

  • Page 19: Troubleshooting

    TROUBLESHOOTING The following circumstances do not constitute problems. Do not contact the Service Center until the problem has been confirmed. O I T Washing machine fails to ¬ Poor connection to the power supply. _ Check connection to the power supply. operate.

  • Page 20: Wiring Circuit

    WIRING CIRCUIT Motor--------------Motor PCB----------------Printed Circuit Board MR------------------Door Lock R---------------------Heating Element PS-------------------Drainage Pump EVF,EVP-----------Water Inlet Magnetic Valve P----------------------Pressure Switch FA---------------------Interference Suppresser NTC------------------Temperature Sensor...

  • Page 21: Product Fiche

    PRODUCT FICHE WMI2003 Rated capacity ( on 60° full load) (kg) Energy efficiency class Energy consump on (kWh/annum)* Water consump on (L/annum)** 11003 Spin-drying efficiency class Noise (Washing) (dB(A)) Noise (Spinning) (dB(A)) Max spin speed (rpm)*** 1200 Remaining moisture content (%)*** Energy cons (co on 60°...
  • Page 24 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
