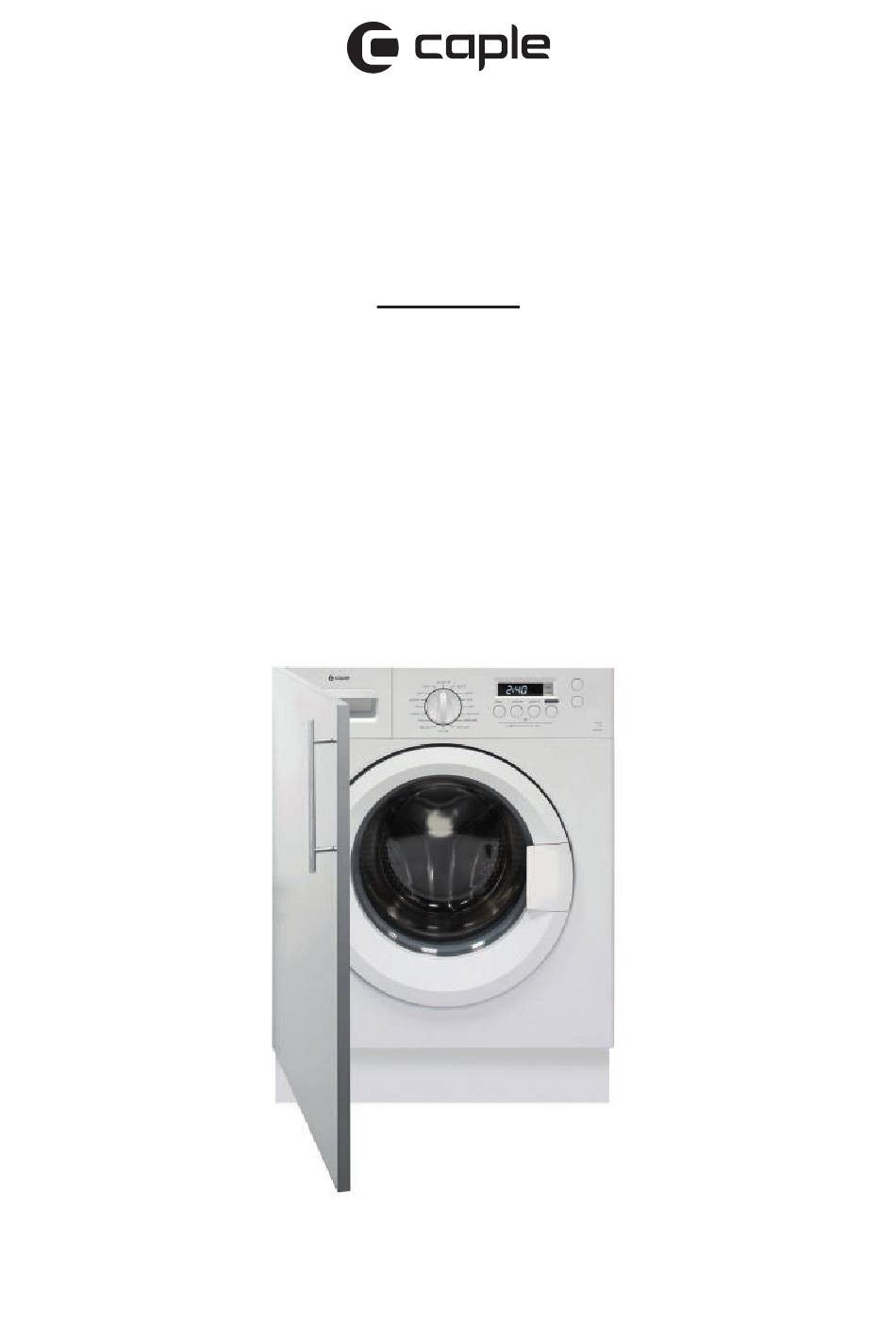

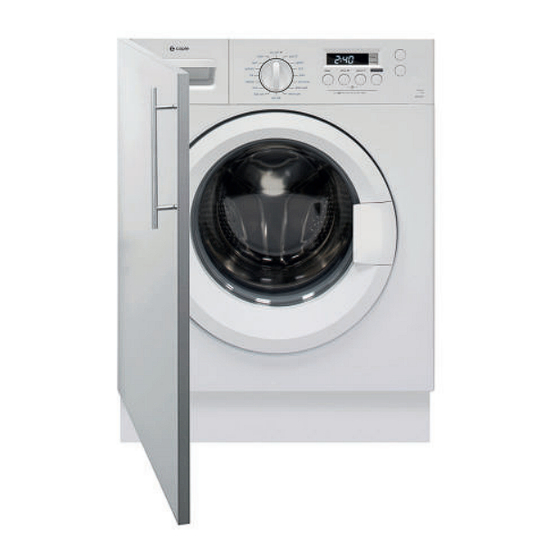

- Page 1 I n t e g r a t e d W a s h i n g M a c h i n e I n s t r u c t i o n M a n u a l W MI3 00 7 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Technical Fiche Warranty Product Overview Installation Built In Installation Operation Detergent Drawer Quick User Guide Control Panel Programmes Table Of Programmes Cleaning And Maintenance Troubleshooting Product Specifications Caple Contact Details Instruction manual WMi3007 Please keep this instruction manual for future reference... -
Page 3: Warnings
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. - Children should be supervised to ensure that they do not play with the appliance. Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 4 - Pull out its plug from the power socket and turn off the water tap before cleaning or maintenance. - Make sure that all pockets are emptied. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 5 Please keep all packing materials (plastic bags, foams etc) far away. - Washing machines shall not be installed in bathrooms or wet rooms as well as in the rooms with explosive or caustic gases. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 6 - Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc shall not be used as detergents. Please only select the detergents suitable for machine washing. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 7 - Do not expose the washing machine to rain, direct sunlight or other weather elements. Protect from possible freezing. - The use of converters, multiple sockets or extension cords is strongly advised against. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 8 - In the event of fault and / or malfunction, turn off the washing machine, close the water tap and do not tamper with the appliance. Immediately contact Caple service and only use original spare parts. Failure to observe these instructions may jeopardise appliance safety.
-
Page 9: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 10: Product Overview
Transport hole plug Supply hose Owner’s manual hole plug water (optional) cold water hole plug (optional water (optional) cold water (optional water (optional) (optional cold water P.07 10 Instruction manual WMi3007 Please keep this instruction manual for future reference P.07... -
Page 11: Installation
During the removal of the bolts, spacer tubes fall inside the product. These can be removed by tilting the product forward and recovering them from the floor or inside the base of the machine. Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 12 Check the washing machine is steady using a spirit level or by pressing the four corners on top of the appliance in sequence. The 4 legs allow the height of the washing machine to be adjusted from 825mm to a NOTE: maximum of 835mm. 12 Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 13 The drain hose can be connected in three different ways: 1. Connect it to a drain pipe 2. Attach it to a sink 3. Connect it to the sink drain pipe Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 14 When installing outlet hose, fit it properly with rope. WA R N I N G Contact Caple Service should the power cord need replacement. Installation faults are not covered by the manufacturers warranty. 14 Instruction manual WMi3007...
-
Page 15: Built In Installation
When installing the appliance into the kitchen, if possible, ensure the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from being kinked or trapped. Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 16 580mm Install Steps Install Steps Install Steps Install Steps 4. Pencil 600mm Install Steps 600mm 600mm 600mm 600mm Install Steps Install Steps 580mm 16 Instruction manual WMi3007 Please keep this instruction manual for future reference 580mm 580mm 580mm 580mm 600mm...
- Page 17 Cut door template paper Paste on the door Paste on the door xed position paper on the door. (the door on the right) (the door on the left) Instruction manual WMi3007 Please keep this instruction manual for future reference 35mm...
- Page 18 The appliance is designed with magnetic closure of the door. To enable correct operation of this device, it is necessary to screw the counter-magnet into the inner side of the door. 18 Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 19 The furniture door should not exceed 9kg Hinges are to be fixed to the door by hand only. Do not use a power tool/electric drill as this will prevent the possibly of damaging the threads. Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 20: Operation
Curtains: Remove lead weights first or place in a laundry bag. Underwiring and collar stiffeners: Any loose wiring in bras, shirt collar stiffeners, etc. should be removed or sewn in. 20 Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 21 Normal powders are suitable for “white” or colour fast fabrics with high soiling, while liquid detergents or “colour protecting” powders are suitable for coloured fabrics with light levels of soiling. Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 22: Detergent Drawer
• Jeans • Mixed • Eco 40-60 • Synthetic • Steam Wash • Sports • Rinse & Spin Cotton • Spin Only • Detergent must be added Optional 22 Instruction manual WMi3007 Please keep this instruction manual for future reference... -
Page 23: Quick User Guide
› At the end of the programme, the washing machine will make a sound to signify the end of the cycle. will show on the display › Close the water tap › Turn off the washing machine Instruction manual WMi3007 Please keep this instruction manual for future reference... -
Page 24: Control Panel
B U T TO N O P E R AT I O N Programme Selector On/Off Button Start/Pause Button Function Button Spin Speed Button Temperature Selection Button Delay Start Button Digital Display 24 Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 25 It is possible to cancel the delay start by pressing the Delay button until 0H appears on the display. If the programme has already started, press the button. ON/OFF Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 26 Rinse & Spin Cotton Spin Only Optional N OT E : Each press of the button will allow you to select either Prewash, FUNCTION Extra Rinse or both. 26 Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 27 1000 Cotton Spin Only 1000 N OT E : The higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 28 M Y C Y C L E My Cycle memorises a certain programme and its customised settings. To save a programme and its settings to My Cycle, Hold the button for SPEED 3 SECONDS. 28 Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 29 3 ) KEY LOCK INDICATOR LIGHT The indicator light show that the keys are locked. 4 ) FUNCTION The relevent indicator light is illuminated when the function is selected. Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 30: Programmes
For washing items made of cotton, linen and synthetics or blended fabrics. Suitable for lightly soiled laundry. 2 0 ° C Ideal for lightly soiled clothes as well as washing and protecting brightly coloured textiles. 30 Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 31 S T E A M W A S H This programme utilises steam at the start of the cycle before reducing in temperature for the main wash, ensuring a deep clean and increased washing performance. Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 32: Table Of Programmes
3:18 Sports 0:47 Cotton 3:39 N OT E : The most efficient programmes in terms of energy consumption, are those that perform at lower temperatures and longer duration. 32 Instruction manual WMi3007 Please keep this instruction manual for future reference... -
Page 33: Cleaning And Maintenance
C L E A N I N G T H E I N L E T F I L T E R If there is insufficient or no water when the tap is opened, the inlet filter must be cleaned as follows: Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 34 › Clean the drawer and inside the recess with running water and a brush. › Reinsert the drawer into its housing. › R the drawer to its 34 Instruction manual WMi3007 er dryer Please keep this instruction manual for future reference...
- Page 35 › › Repeat the previous steps in reverse order to reassemble all parts. WARNING: The filter must be cleaned periodically to ensure the normal operation of the washing machine. Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 36 The manufacturers warranty only covers faults within the product of a mechanical or electrical nature. Faults caused by handling, installation or misuse are not covered and may incur a charge for any repair visit to resolve. 36 Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 37: Troubleshooting
Drum not spinning Unbalanced load. Load is too small been put in the drum. Remove excess clothing correctly or too big. or add more clothing to balance the load. Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 38 In this case, do not re-rinse to eliminate these effects: it will not help at all. We suggest conducting a maintenance wash using a proprietary cleaner. If the problem persists or more help is required, please contact our Caple service team on or via email 0117 938 7420 SERVICE@CAPLE.CO.UK...
- Page 39 B L E A C H I N G Any oxidising bleaching agent can be used Only use an oxygen based bleach or a non-chlorine bleach Do not bleach Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 40: Product Specifications
W M I 3 0 0 7 Washing Capacity 8.0kg Dimensions (W* D* H) 595* 540* 825 Rated Power 1950W Power supply 220-240V~,50Hz MAX. Current Standard Water Pressure 0.05MPa~1MPa 40 Instruction manual WMi3007 Please keep this instruction manual for future reference... - Page 41 N OT E S Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 42 N OT E S 42 Instruction manual WMi3007 Please keep this instruction manual for future reference...
- Page 43 N OT E S Instruction manual WMi3007 Please keep this instruction manual for future reference...
-
Page 44: Caple Contact Details
Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
