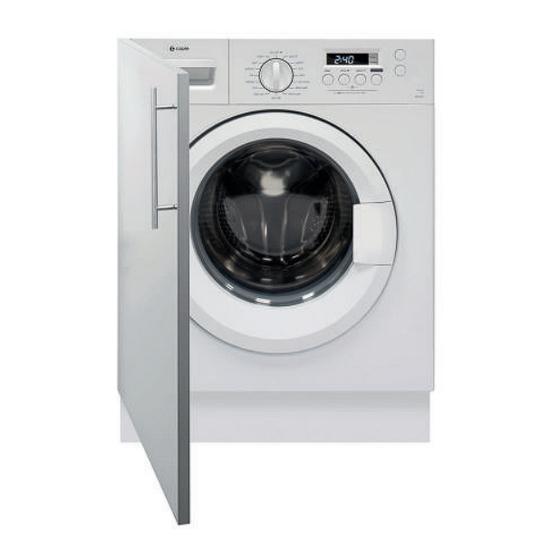

Caple WMI3007 Technical Manual

Caple WMI3007 Technical Manual

Integrated washing machine 1400rpm
Hide thumbs Also See for WMI3007:

Advertisement

Quick Links

Download this manual
WMI3007
Caple Integrated Washing Machine 1400rpm
Technical Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMI3007 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple WMI3007

Summary of Contents for Caple WMI3007

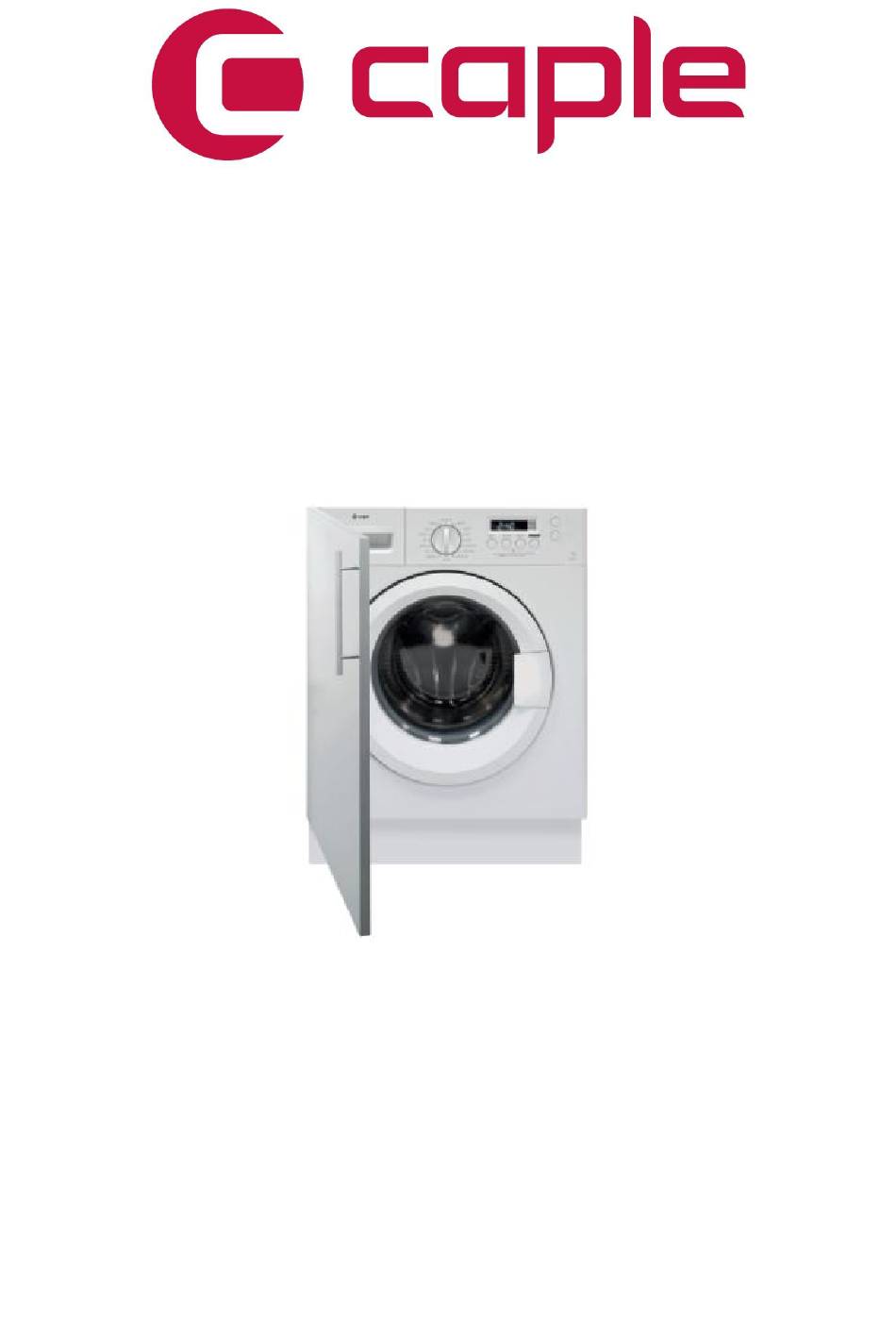

  • Page 1 WMI3007 Caple Integrated Washing Machine 1400rpm Technical Manual...
  • Page 2 WMI3007 Caple Integrated Washing Machine 1400rpm...
  • Page 3 WMI3007 Caple Integrated Washing Machine 1400rpm Item Part Number Description Quantity 12238100001250 Sheet metal Top Cover 12238100002053 Rear Cover 17438100000550 European Standard Power Cord 12938100000062 Shipping Screw Assembly 12600501000908 Up Drain Hose Assembly 12138100003094 Drain Hose Catch 17438100001348 Water Level Sensor...
  • Page 4 WMI3007 Caple Integrated Washing Machine 1400rpm Item Part Number Description Quantity 17438100006805 Internal Wire Assembly 12138100002987 Damper Pin 12938100000466 Damper 12738100000008 Lower Counterweight 12638100000441 Door Gasket 12938100000016 Door Gasket Clamp 12138100029447 Front Tub 12138100019040 Rear Tub Assembly 12638100000278 Tub Water Inlet Hose Assembly...
  • Page 5 WMI3007 Wiring Diagram...
  • Page 6 WMI3007 Service Manual...

  • Page 7: Table Of Contents

    Contents 1 PRECAUTION………………….………………..…………………………………………………. 3 1.1 Safety Precautions 1.2 Servicing Precaution 1.3 Cautions For Safety 2 FACTORY PATTEN DETECTION …………….………………………………………………. 7 3 UNPACKING WAYS OF MAIN PARTS……………………………………………………… 11 4 MALFUNCTIONS CODES AND EXPLANATIONS ……………………………………… 19 5 TROUBLESHOOTING …………………………………………………………………………… 24 5.1 Maintenance non-heating malfunction 5.2 Door non-locked &...

  • Page 8: Precaution

    1 Precaution When performing troubleshooting and part replacement during servicing, note the following safety precautions: 1.1 Safety Precautions 1.1.1 Use Genuine Parts The components of the washing machine have safety features such as non-combustibility and voltage with standing. Therefore, always use the same part as suggested by the maker. In particular be sure to use only designated parts in case of major safety parts identified by the marker.

  • Page 9: Cautions For Safety

    1 Precaution 1.3 CAUTIONS FOR SAFETY • Please observe the following notes for safety. • The symbols indicate as follows. Symbol Meaning Indicates possibility of death or serious injury of a repair technician and a person nearby through the misconducted WARNING work , or of a user by a defect of the product after the work performed by the technician.
  • Page 10 1 Precaution WARNING After repair, measure insulation resistance between the charging part(power cord plug) and the non-charging metallic part (ground) with an insulation resistance meter (500V).The resistance shall be 10M or more. CHECK INSULATION Failing to check the insulation resistance may cause a short RESISTANCE circuit, electric shock or other diseases to the customer.
  • Page 11 1 Precaution WARNING Do not touch the laundry before the spin basket stops completely. The laundry entangles your hand causing an injury even if DO NOT TOUCH the basket rotates slowly. Pay special attention to children. Ask an electric work shop to install the product. Install the product securely and safely according to the electrical equipment technical standard and the wiring INSTALL...

  • Page 12: Factory Patten Detection

    2 FACTORY PATTEN DETECTION 2.1 Service mode Before entering into service mode, make sure no water remains in the inner drum, if not, select drain only program to drain them out. Turn on the machine and take turns [K2] [K4] [K2] [K4] buttons in 30s. Press [K1] or [K2] to select test program.

  • Page 13: Check Method

    2 FACTORY PATTEN DETECTION 2.1 Service mode Check Check Method Check Item Target Display The whole LED UI Checking Press [K6] button display flashes Press [K6] button to drain out all the Drain-pump remaining water. If all water drained out, LED LED displays “PPt”...
  • Page 14 2 FACTORY PATTEN DETECTION 2.1 Service mode Check Check Method Check Item Target Display Press [K6] button, inner drum rotates in Rotating 45r/m clockwise for 15s and stop for 10s then LED displays checking rotates counterclockwise for 15s, over and over “tUB”...

  • Page 15: Marketing-Show (No-Water Testing)

    2 FACTORY PATTEN DETECTION 2.2 Self-check Push the buttons of function and pre-washing without loosening, in the meantime screw the program knob to the position of cotton and keep 3s, then the program will be in the state of self test. When the buzzer toots, all the indicating lights glitter 3 times ( pushing 0.5s, the 0.5s light is on and off), then the lights are on all the time.

  • Page 16: Unpacking Ways Of Main Parts

    3 UNPACKING WAYS OF MAIN PARTS 3. UNPACKING WAYS OF MAIN PARTS 1. Undo the back cover 2. Undo top cover 3. Undo the control panel 4. Undo the lower panel 5. Undo the door lock 6. Undo the front plate 7.

  • Page 17: Operation

    3 UNPACKING WAYS OF MAIN PARTS Operation Picture 1. Undo the back cover Undo four screws fit between back plate and cabinet, and then pull out. 2. Undo the top cover I.Undo 6 screws on the Cabinet. II.take it down. 3.
  • Page 18 3 UNPACKING WAYS OF MAIN PARTS 4.Undo the door assembly Undo the door I.Open the door of washing machine. II.Take the outer gasket III.Remove two screws on the door and take down the door . Undo the door gasket I.Remove the outer gasket clamp between the door seal and the front plate.
  • Page 19 3 UNPACKING WAYS OF MAIN PARTS 7. Undo the detergent box I.Release the hose clamp and pull out the inlet hose. II.Release the hose clamp and pull out the detergent box hose, and then take out the detergent box. 1. IIII.Undo 2 screws between cabinet and inlet valve.
  • Page 20 3 UNPACKING WAYS OF MAIN PARTS 9. Undo the drain pump I.Pull out the terminal behind the drain pump. II.Nip out clamp between drain hose and the drain pump, and then pull out the drain hose. III.Loosen the screws fitted on the drain pump, and then pull out the drain pump.
  • Page 21 9 UNPACKING WAYS OF MAIN PARTS 11. Undo the absorber pin from the cabinet Use pliers to pinch the absorber pin’s protuberance, and knock the absorber pin out from back lightly; in the same way, remove the other one 12.Undo the drum tub assembly Undo the upper and façade counterweight...
  • Page 22 9 UNPACKING WAYS OF MAIN PARTS Undo the drum tub Remove the screws fixing the pulley, and th V.Remove the screws fixing the front and rear tub, and then remove the tub. VI.Remove the inner drum kit. 13. Undo the absorber from the drum I.Lift out the outer tub kit.

  • Page 23: Malfunctions Codes And Explanations

    4. MALFUNCTION CODES AND EXPLANATIONS Error Unit Causes Explanation Code Action If the washer fills very slowly, the water Low Water pressure from the house might be too low. Pressure from If the water inlet valve isn't leaking and House Supply there are no other symptoms this problem does not need to be corrected.
  • Page 24 4. MALFUNCTION CODES AND EXPLANATIONS Error Unit Causes Explanation Code Action Some time just restart the unit can solve Restart the problem. Water inlet valve (The voltage on If the washer is overflowing, the water the water inlet inlet valve has failed. Replace it. valve is normal) Unit will close valve and stop...
  • Page 25 4. MALFUNCTION CODES AND EXPLANATIONS Error Unit Causes Explanation Code Action Unit will close valve and stop Check the pump or the and the inner wire Pump Pump open circuit with Error code of the pump display If the washer won't drain water check the drain hose.
  • Page 26 4. MALFUNCTION CODES AND EXPLANATIONS Error Unit Causes Explanation Code Action If the door won‘t latch, the door lock assembly might be defective. If the door Door Lock won’t latch ,check the door to see if the door is closed before replace it. Try 6 times，not Washer Door lock...
  • Page 27 4. MALFUNCTION CODES AND EXPLANATIONS Error Unit Causes Explanation Code Action Water level sensor E33 means the unit can’t detect the Unit will close Signal of Water level sensor. valve and stop Water level sensor control switch CHECK THE WATER LEVERL SENSOR with Error code error (No voltage on the...

  • Page 28: Troubleshooting

    5 TROUBLESHOOTING Fault tree 1. Maintenance non-heating malfunction Non-heating Whether NTC is short or open Change NTC circuit Whether the connection is Reliable connection correct Whether the heater Change the heater is well Change the control panel...

  • Page 29: Door Non-Locked & Its Maintenance

    5 TROUBLESHOOTING 2. Door non-locked & its maintenance Door non-locked Close the door Whether the door correctly is closed correctly Whether the inner wire Connect the PCB and between the PCB and door lock correctly the door lock is correct Check the door lock is well，or Change the door lock...
  • Page 30 5 TROUBLESHOOTING 3. No water inlet or water inlet overtime No water inlet or water inlet overtime Whether the tap is Open the tap open Whether the water Wait the water pressure pressure is between meet the standard 0.05MPa~1MPa Whether the Drain Hose is hung up Hang up the drain hose beyond the height...
  • Page 31 5 TROUBLESHOOTING 4. Over heating Over heating circuit open circuit Whether NTC is well Change the NTC Change the control panel...

  • Page 32: Maintenance Of Non-Drain Or Drain Exceed The Setting Time

    5 TROUBLESHOOTING 5. Maintenance of non-drain or drain exceed the setting time Non-drain or overtime drain Whether the pump is Clean the filter blocked Whether the Change the pump is well drain pump Change the control panel...

  • Page 33: Water Inlet Overflow Malfunction Maintenance

    5 TROUBLESHOOTING 6. Water inlet overflow malfunction maintenance Water inlet overflow whether the inlet Change the inlet valve valve is well Whether the Change pressure pressure switch is switch well Change the control panel...

  • Page 34: Drum Non-Rotating Malfunction Maintenance

    5 TROUBLESHOOTING 7. Drum non-rotating malfunction maintenance Drum non-rotating Whether the belt is Installed the belt installed correctly correctly Whether the inner wire connection is Reliable the connection correct Shut down the power, open the door and Rotate the drum . The drum is blocked check the drum rotate flexibly or not.
  • Page 35 5 TROUBLESHOOTING 8. Maintenance water inflow and drain off water at the same time Water inflow and drain off water at the same time Whether the drain hose is hung up Hang the hose well too low Whether the washer is Normal phenomenon disposing the foam in the drum...
  • Page 36 5 TROUBLESHOOTING Malfunction and solution Description Solution The washing machine Close the washing machine's door. does not work Water leakage Correctly connect the inlet water pipe. The speed of the clothes is Reload and distribute the laundry evenly in the drum. abnormal There is the peculiar smell Run a Self clean(Drum clean) cycle without any clothes.
  • Page 37 5 TROUBLESHOOTING Level the washing machine. Level the washing machine. Vibration of the washing Fasten the footing. machine To check if the internal packing for the transportation have all been removed. Check if the detergent is excessive, if it is the specialized detergent for the cylinder washing machine.

  • Page 38: Check Point Of Circuit

    6. CHECK POINT OF CIRCUIT Before repairing, use multimeter to judge circuit stand of fail Parts Picture Test Description Parameter Remarks 1.Measuring two Water straight line terminals Break over after blow- Level 2.Measuring two PASS Switch vertical terminals 2 seconds after the power supply can automatically locked Door...

  • Page 39: Service Tools

    7 SERVICE TOOLS...
