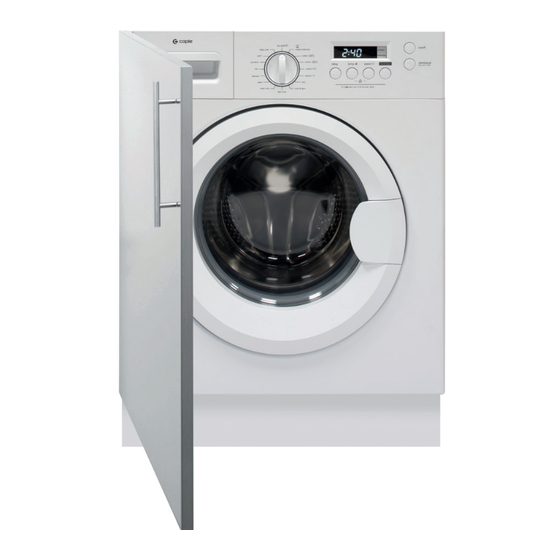

- Page 1 Integrated Washing Machine instruction manual WMI3000 / WMI3005 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Table Of Contents
CONTENTS Safety Warnings Overview of Washing Machine Installation Operation Control panel Table of washing procedures Cleaning and Maintenance Troubleshooting Care symbols Product specifications Product Fiches Built-In Installation Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... -
Page 3: Safety Warnings
Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... - Page 4 - To ensure your safety, the power cord plug must be inserted into an earthed three-pole socket. Check carefully and make sure that your socket is properly and reliably earthed. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 5 - Staff kitchen areas in shops, offices and other working environments. - Bed and breakfast type environments. - By clients in hotels, motels and other residential type environments. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 6 - Please do not close the door with excessive force. If it is found difficult to close the door, please check if the excessive clothes are put in or distributed well. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 7 - Handle the machine carefully. Never hold each protruded part on the machine while lifting. Machine door cannot be used as the handle during the conveyance. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 8 CE DECLARATIONS OF CONFORMITY This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC). Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 9: Overview Of Washing Machine
Detergent Box Detergent Box Detergent Box Accessories Accessories Accessories Accessories Transport Inlet pipe hole plug Transport Inlet pipe Transport hole plug Inlet pipe hole plug Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005 P.07 P.07... -
Page 10: Installation
Please keep this instruction manual for future reference 2.After positioning the washing machine, press four corners on top cover of washing machine in Instruction manual WMi3000 / WMi3005 sequence. If the washing machine is not stable... - Page 11 Steps 1~3 are repeated to make the bottom legs closely against the ground and the nuts shall be locked tightly. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 12 There are two ways to place the end of outlet hose: 1.Put it inside the sink bowl as shown 1. Put it inside the sink bowl as shown 1.Put it inside the sink bowl as shown P.09 P.09 P.09 P.09 Instruction manual WMi3000 / WMi3005...
- Page 13 Instruction manual WMi3000 / WMi3005 - Do not connect and pull out plug with wet hand. - Do not connect and pull out plug with wet hand.
- Page 14 Washing machine shall be operated in a circuit separate from other electrical appliances. Otherwise, power protector may be tripped or fuse may be burned out. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 15: Operation
(e.g. buttons) are protected from cleaning agent. Chemical (solvent-based) cleaning agents can cause severe damage to the washing machine. Do not use solvent-based cleaning agents in the machine. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... - Page 16 Please confirm the maximum washing quantity according to the following table. Fiber Type Maximum loading Capacity WMI3000 - 6.0kg WMI3005 - 8.0kg Cotton 6.0kg 8.0kg Synthetics 3.0kg 4.0kg Wool 2.0kg 2.0kg Delicate 2.5kg 2.5kg Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 17 - After washing, the washing machine will make a sound to signify the end of a cycle - Close the water tap; - Press the On/Off and pull out the power plug. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 18: Control Panel
Pre Wash, Extra Rinse Notes: function. - The Control panel line chart is for reference only, Please refer to real product as standard. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... - Page 19 (for example: shirts, pajamas; slightly stained white 60 ℃ linen 40 ℃,30 ℃, Please keep this instruction manual for future reference Normally soiled articles (for example: synthetic and wool) 20 ℃, Cold water Instruction manual WMi3000 / WMi3005...
- Page 20 You can select this programme to wash every day clothes. The washing period is quite long with intensive washing. It is recommended to wash the daily cotton articles such as: bed sheets, quilt covers, pillowcases, gowns, underwear, towles etc. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 21 Wash”. Please select the appropriate washing temperature according to the label on the articles to be washed. Furthermore, the proper detergent shall be selected for wool textiles. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 22 Cancel the Delay function :Press the Delay button until the display will be 0H . It should be pressed before starting the program. If the program already started, press the On/Off button. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 23 Bubble Check Function: Redundant bubbles will occur when there is excessive detergent, which will affect wash and rinse effects. The procedure will check automatically and remove any excess bubbles when they are detected Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 24: Table Of Washing Procedures
Operation TABLE OF WASHING PROCEDURES Table of Washing Procedures Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005 P.22... -
Page 25: Cleaning And Maintenance
The energy class is A++(WMI3000 - 6.0kg), A+++(WMI3005 - 8.0kg) Energy test program: Cotton 60/40 C, Speed: the highest speed; Other as the default. Half load for 6.0/8.0Kg machine:3.0/4.0Kg. “Cotton 60/40 C” are the “standard Cotton 60/40 C” programme and the... - Page 26 5. Reconnect inlet pipe to the tap and check whether inlet and outlet are working normally. NOTE: when the washing machine is reused, make sure the ambient temperature is above 0 Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 27 4. Reconnect the inlet pipe to tap. Remove the remaining water in drain pump P.23 WARNING - To avoid burning, it shall be done after the hot water inside the machine cools down. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 28 2. Pull out the filter with long nose pliers and reinstall it back after being washed. 3. Reconnect the inlet pipe. 4. Open the tap and make sure there is no water leakage. 5. Close the tap. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005 P.24 P.24...
- Page 29 The pump should be inspected if the machine does not empty and/or spin; The machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 30 Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely tightend. P.25 Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 31: Troubleshooting
If cabinet is installed on the solid and level floor. Check if there are any barrettes or metal articles inside. Check if the legs in the washing machine are adjusted level. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... -
Page 32: Care Symbols
Caple service team on 0117 938 7420 or via email service@caple.co.uk your clothes. your clothes. If a problem persists, or more help is required, please contact our Caple If a problem persists, or more help is required, please contact our Caple CARE SYMBOLS service team on 0117 938 7420 or via email service@caple.co.uk... - Page 33 Normal temperature Power Supply Rated Power Rated Power Power Supply Power Supply Instruction manual WMi3000 / WMi300 Instruction manual WMi3000 / WMi300 Instruction manual WMi3000 / WMi300 MAX.Current Instruction manual WMi3000 / WMi300 Instruction manual WMi3000 / WMi300 Power Supply Instruction manual WMi3000 / WMi300 MAX.Current...
-
Page 34: Product Specifications
Dimension(W* D* H) 595* 540* 825 595* 540* 825 Net Weight 57kg 63kg Rated Power 2000W 2000W Power Supply 220-240V~,50Hz 220-240V~,50Hz MAX.Current Standard Water 0.05MPa~1MPa 0.05MPa~1MPa Pressure Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... - Page 35 - To ensure your safety, power plug shall be inserted into an earthed three-pole socket. Carefully check and ensure that your socket is properly and reliably earthed. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 36: Product Fiches
Left-on mode power consumption:1.0W Airborne acoustical noise (washing):57 Airborne acoustical noise (spinning):74 NOTES: The airborne acoustical noise emissions during washing/spinning for the cotton 60° C programme at full load. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005... - Page 37 Left-on mode power consumption:1.0W Airborne acoustical noise (washing):57 Airborne acoustical noise (spinning):76 NOTES: The airborne acoustical noise emissions during washing/spinning for the cotton 60° C programme at full load. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
-
Page 38: Built-In Installation
The appliance is prearranged for the assembly of a door opening from right to left or from left to hoses from becoming kinked or trapped. right. Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005 Door opening from left to right Door opening from right to left... - Page 39 Door opening from left to right Door opening from right to left Door opening from left to right Door opening from right to left P.33 Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 40 1. Make the mark on the door according to the cupboard and washing machine height. Door template Door template Door template Door template Door template Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005 P.34 P.34 P.34...
- Page 41 ST4*12 screws. The hinges can be adjusted to compensate for possible uneven thickness of the door. Please keep this instruction manual for future reference P.35 Instruction manual WMi3000 / WMi3005 P.35...
- Page 42 Installing the door Installing the door Installing the door NOTE: The furniture door should not exceed 9kg Please keep this instruction manual for future reference P.36 Instruction manual WMi3000 / WMi3005 P.36...
- Page 43 Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
- Page 44 Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual WMi3000 / WMi3005...
