OPERATING INSTRUCTIONS – TIRES (DIGITAL)
1. Choose which power source to use:
12V DC POWER USE
- DC1. Start engine, for best results and inflator performance.
- DC2. Plug the square-ended DC power cord into the inflator's square power receptacle.
- DC3. Plug the round plug end into the vehicle's 12V power outlet, rated 15 amp or higher.
120V AC POWER USE
- AC1. Plug the oval-ended AC power cord into the inflator's oval-shaped power receptacle.
- AC2. Plug the 2-pronged power cord into a 120v @60hz outlet.
NOTE: Review extension cord guidelines, if one is needed.
2. Use the +/- buttons to set the desired air pressure and the "R" button to switch between PSI,
Bar, and Kg/cm2.
3. Press the locking air chuck completely over the tire's valve stem threads with the locking lever in
the up position (Fig. 1).
4. Press locking lever down to lock the air chuck onto the tire's valve stem.
5. The digital pressure gauge will automatically activate and show the tire's current air pressure.
6. Press tire ON/OFF power button. Compressor will start running.
7. Inflator will automatically stop, once the preset pressure is reached.
8. Press tire ON/OFF power button to turn off.
9. Uncouple the locking air chuck and unplug the power cord from the outlet.
OPERATING INSTRUCTIONS – INFLATABLES
1. Select the appropriate adapter for the application, making sure it fits snuggly into the ball or
inflatable's fill valve.
2. Insert the adapter into the locking air chuck,
with the locking lever in the up position (Fig. 1).
3. Press locking lever down to lock the air
chuck onto the adapter.
4. Choose which power source to use:
12V DC POWER USE
- DC1. Start engine, for best results and
inflator performance.
- DC2. Plug the square-ended DC power cord into the inflator's square power receptacle.
- DC3. Plug the round plug end into the vehicle's 12V power outlet, rated 15 amp or higher
120V AC POWER USE:
- AC1. Plug the oval-ended AC power cord into the inflator's oval-shaped power receptacle.
- AC2. Plug the 2-pronged power cord into a 120v @60hz outlet.
NOTE: Review extension cord guidelines, if one is needed.
5. Insert the appropriate inflation accessory into the inflatable object (tire, football, raft, etc.).
6. Press tire ON/OFF power button and inflate to the manufacturer's recommended air pressure.
7. Once the recommended air pressure is reached, press tire ON/OFF power button and
remove adapter from the inflatable.
8. Uncouple the locking air chuck and unplug the power cord from the outlet.
9. Remove the adapter and return it to the storage compartment.

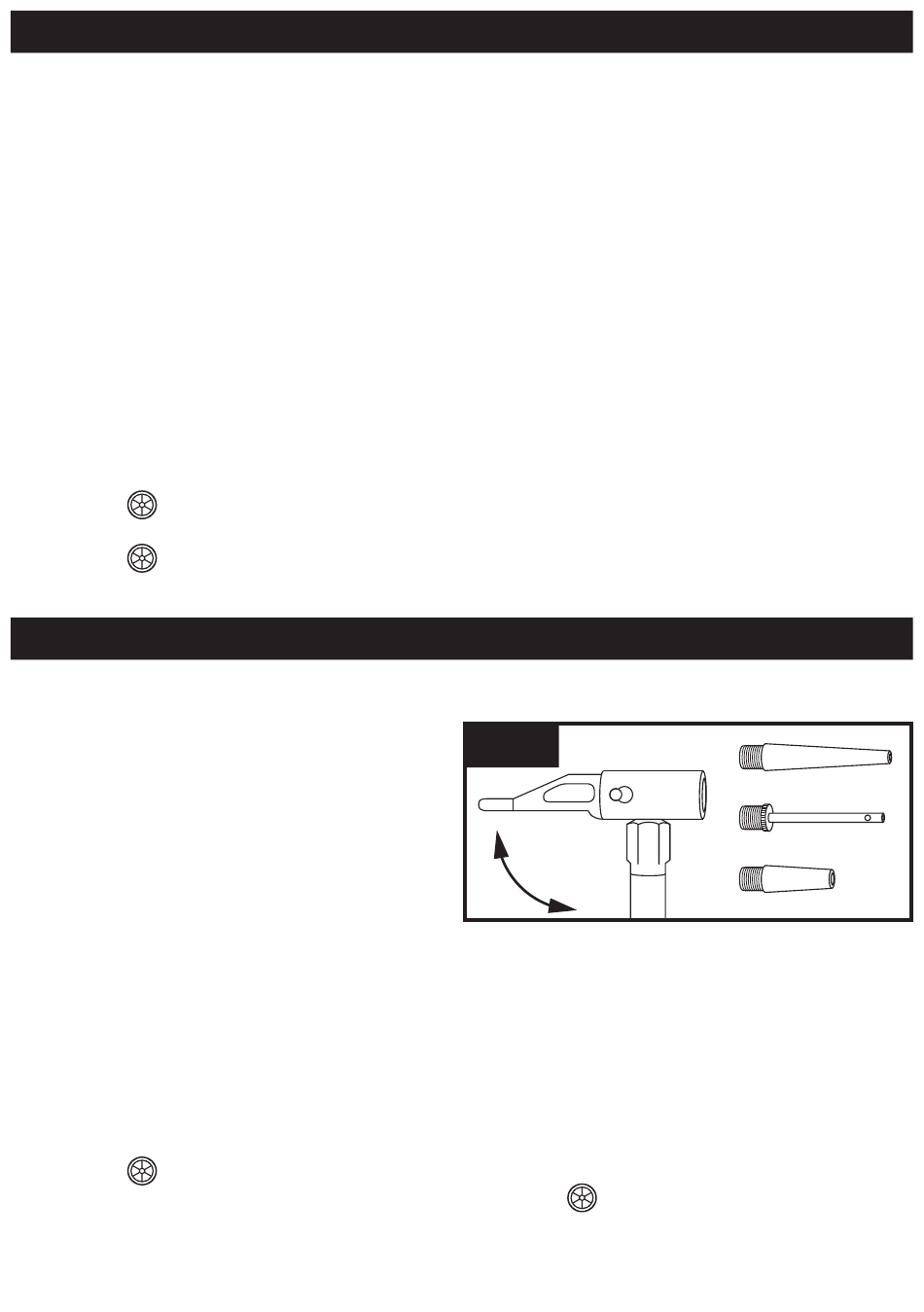

Fig. 1
UNLOCK
LOCK
