Specifications Are Subject To Change Without Notice - Performance Tool Vortex W7904/E00005 Manual

- If an extension cord is used, make sure the conductor size is large enough to prevent excessive
voltage drop which will cause loss of power and possible motor damage.
- The chart (shown below) shows correct size to use depending on extension cord length. If in
doubt, use the next heavier gauge.
- Only UL listed extension cords should be used with this product
NOTE: The smaller the gauge number, the heavier the cord.
RECOMMENDED EXTENSION CORD SIZES FOR USE WITH PORTABLE ELECTRIC TOOLS
AMP 25 Ft.
0-2A 18 GA
2-3A 18 GA
SPECIFICATIONS:
Power Input ............................................................................................. 12V DC or 120V AC @ 2A
12V DC Cord Length . ............................................................................................................... 10 ft.
120V AC Cord Length ................................................................................................................ 3 ft.
Maximum Pressure ................................................................................................................100 PSI
Gauge Type ........................................................................................................... Digital, 0-100 PSI
Hose Length ...................................................................................................... 24 in. Braided Hose
Time To Inflate Tire* (0-35 PSI) . .......................................................................................<5 Minutes
Time To Inflate Tire* (25-35 PSI) . .................................................................................... 45 Seconds
CFM w/ no pressure .......................................................................................................... 0.71 CFM
Replacement Fuse . ..................................................................................................................... 15A
Duty cycle (mins) ......................................................................................................... 15 On/15 Off
Weight .....................................................................................................................................2.2 lb.
* Performance: based upon 195/65/R15 tire

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

After opening the carton, unpack your new product and related parts and accessories. Please
inspect it carefully for any damage that may have occurred during transit. Please check it against
the photograph on carton.
If you have any questions, or require assistance with damaged or missing parts, please contact our
customer service department at 1-800-497-0552. Please have the serial number, model number,
and date of purchase available for reference when calling.

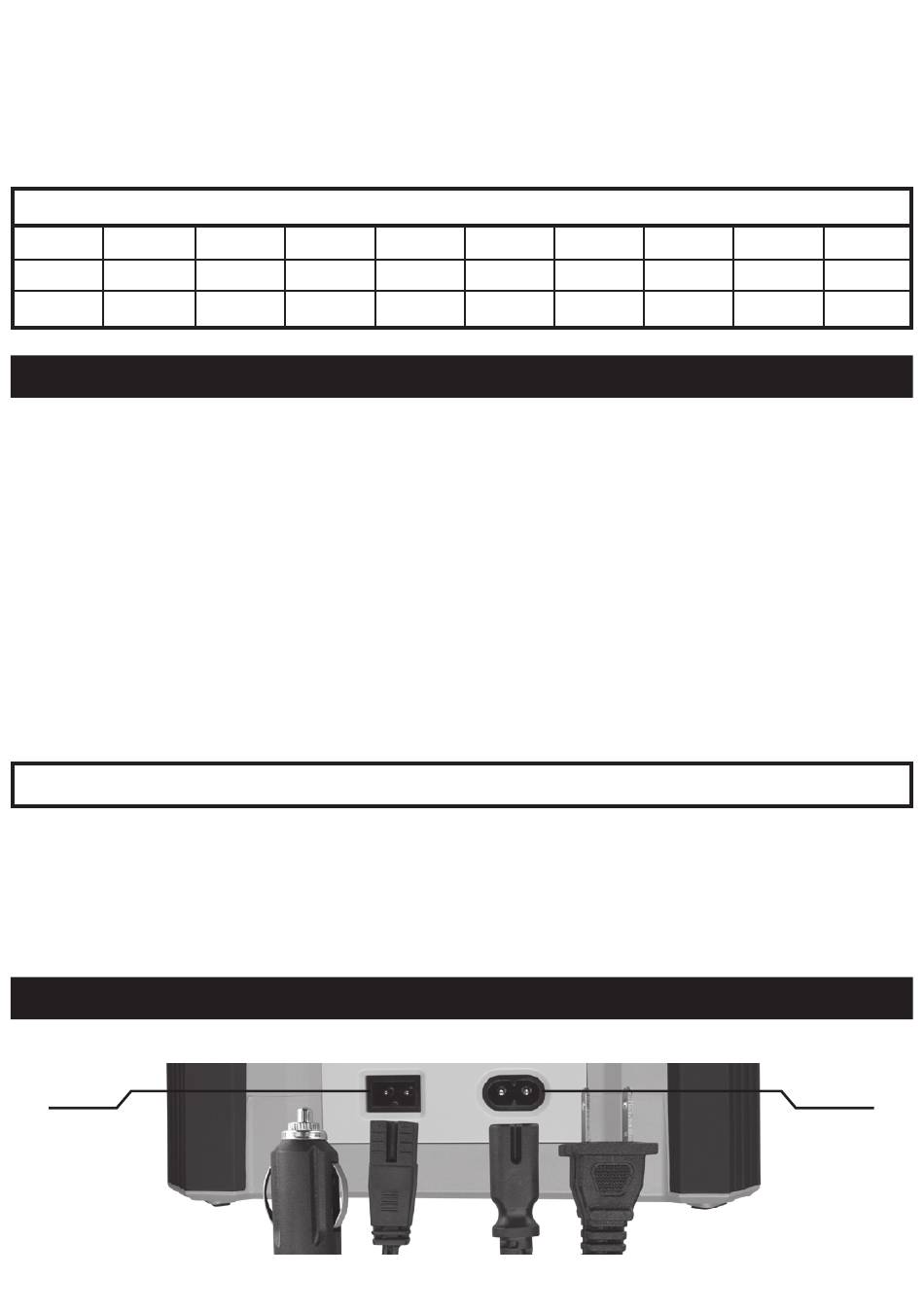

OPERATING INSTRUCTIONS – CONNECTING TO AC/DC POWER SOURCE
This inflator is specially designed to operate using EITHER 12V DC or 120V AC power sources.
12V DC
WARNING: Only connect 1 power source at a time. Connecting both, AT THE SAME TIME, can
cause damage to the inflator's electronics.
50 Ft. 100 Ft.
18 GA 18 GA
18 GA 16 GA
150 Ft. 200 Ft.
16 GA 16 GA
14 GA 14 GA
250 Ft. 300 Ft.
14 GA 14 GA
12 GA 12 GA
400 Ft. 500 Ft.
12 GA 12 GA
10 GA 10 GA
120V AC
