Axis C3003-E User Manual

Network speaker
Hide thumbs Also See for C3003-E:

Advertisement

Quick Links

Download this manual

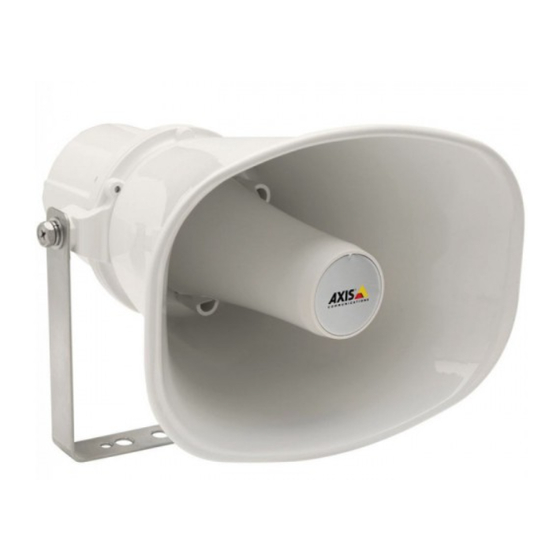

AXIS C3003-E Network Speaker
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the C3003-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis C3003-E

Summary of Contents for Axis C3003-E

  • Page 1 AXIS C3003-E Network Speaker User manual...

  • Page 2: Table Of Contents

    Play audio when a camera detects motion ......Set up audio in AXIS C3003-E Network Speaker ..... . .

  • Page 3: Product Overview

    AXIS C3003-E Network Speaker Product overview Product overview Bracket Horn Microphone Microphone disable switch Network connector Status LED indicator Control button Protective earth terminal 10 Gasket...

  • Page 4: Connectors And Buttons

    • Resetting the product to factory default settings. See . • Connecting to an AXIS Video Hosting System service. See . To connect, press and hold the button for about 3 seconds until the Status LED flashes green. • Connecting to AXIS Internet Dynamic DNS Service. See . To connect, press and hold the button for about 3 seconds.

  • Page 5: How To Access The Product

    Most routers are pre-configured to stop attempts to access the private network (LAN) from the public network (internet). If the Axis product is located on an intranet (LAN) and you want to make it available from the other (WAN) side of a NAT (Network Address Translator) router, turn on NAT traversal.

  • Page 6: How To Set Up The Product

    How to set up the product How to set up the product The Axis product can be configured by users with administrator rights. Go to Setup > Basic Setup > 1 Users to administer users. • Administrators have unrestricted access to all settings.

  • Page 7: Audio

    AXIS C3003-E Network Speaker Audio Audio The audio settings can be used to adjust audio quality. You can configure the following: • Overview. See . • System settings. See . • Device settings. See . • Clips. See . Overview This page provides an overview of the leader audio device and the audio devices added to the zone.

  • Page 8: Device Settings

    It is also possible to run the Auto Speaker Test by pressing the control button. See . Once the Axis product is calibrated, the Auto Speaker Test can be run at any time: 1. Go to Setup > Audio > Audio Settings.

  • Page 9: Audio Channels

    There is no echo cancellation; if feedback loops appear, try moving the microphone or the speaker. • Simplex – Speaker only - Audio is transmitted from a client to the Axis product. This is the default audio mode. • Simplex – Microphone only - Audio captured by the product microphone is transmitted from the Axis product to one or more clients.

  • Page 10: Clips

    Audio Clip List Audio clips can be played when an event occurs. Audio clips are created by uploading a sound file to the Axis product. To add, play, download, modify or remove audio clips, go to Audio > Audio Clips. For more information see the online help.

  • Page 11: Detectors

    Audio Alarm Level Event types in the Axis product can be set to use this level as a trigger. Each individual event type can be configured to trigger if the sound level rises above, falls below or passes the set value.

  • Page 12: Voice Over Ip (Voip)

    The sessions can include voice and video elements. See . Before the Axis product can be used to make and receive calls, you need to configure the SIP settings. This includes enabling SIP, configuring the ports, and setting the rules for Network Address Translation (NAT) traversal.

  • Page 13: Sip Setup Assistant

    NOTICE TICE TICE Allowing incoming calls enables the AXIS product to accept calls from any device connected to the network. It is recommended to disable incoming calls for products that are accessible from public networks or the Internet. Note Even if you choose to not enable SIP, you can configure the SIP settings. But remember that when SIP is disabled, you cannot make or receive calls.

  • Page 14: The Account Settings Page

    AXIS C3003-E Network Speaker Voice over IP (VoIP) Session Traversal Utilities for NAT (STUN) Session Traversal Utilities for NAT (STUN) is a client-server network protocol that enables the product to ask a STUN server on the Internet for a mapped public IP address. The STUN server response includes this IP address and port so that the client can use them in its SIP messages to other hosts and clients.
  • Page 15 • User ID – User ID is typically the extension or phone number assigned to the Axis product at the SIP server. It is also possible to use a SIP URI as a User ID if required by the SIP server.

  • Page 16: Make Test Calls

    AXIS C3003-E Network Speaker Voice over IP (VoIP) • Secondary SIP Server – The Axis product will try to register on the secondary SIP server if registration on the primary SIP server fails. Incoming SIP Calls • Auto answer: Select to automatically answer an incoming call. If unselecting Auto answer it is recommended to setup...
  • Page 17 The domain name or registrar address (IPv4 address) of the receiving device. Important The Axis product’s VoIP functionality does not include support for IPv6. For more information about SIP, SIPS, and TLS, see and . For more information about registrar addresses and domains, see .

  • Page 18: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 19 AXIS C3003-E Network Speaker Applications Add music and announcements to the library 1. Go to MUSIC. 2. Drag-and-drop files or browse files to add music to the library. Note All audio files are stored on the SD card. Create a playlist 1.

  • Page 20: Set Up Rules For Events

    If multiple conditions are defined, all of them must be met to trigger the action. The following example describes how to set up an action rule to play an audio file when the Axis product receives an input signal from a video management system.

  • Page 21: How To Add Recipients

    • System System Ready – Triggers an action rule when the system is in state ready. For example, the Axis product can detect the system state and send a notification when the system has started. Select Yes to trigger the action rule when the product is in state ready. Note that the rule will only trigger when all necessary services, such as the event system, has started.

  • Page 22: Recipient Types

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see . How to create schedules To create a new schedule: To use the schedule in an action rule, select the schedule from the Schedule drop-down list in the Action Rule Setup page.

  • Page 23: How To Set Up Recurrences

    AXIS C3003-E Network Speaker Set up rules for events How to set up recurrences Recurrences are used to trigger action rules repeatedly, for example every 5 minutes or every hour. To set up a recurrence: 1. Go to Events > Recurrences and click Add.

  • Page 24: Integration

    Integration Integration Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites • The Axis audio device and Axis network camera are located on the same network.
  • Page 25 Add an Axis network audio device to AXIS C3003-E Network Speaker and associate it with an Axis network camera. • Create a button in the camera’s live view in AXIS C3003-E Network Speaker, that makes the audio device play an audio clip. NOTICE...
  • Page 26 4.13 Enter a Name for the rule and click Finish. In the camera’s live view in AXIS C3003-E Network Speaker, there is now a button labelled Staff to till. When you click the button, the audio device plays the audio clip.

  • Page 27: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 28: System Options

    IP Address Filter IP address filtering is enabled on the page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.

  • Page 29: Date & Time

    3. Under Settings, select the EAPOL version and provide the EAP identity associated with the client certificate. 4. Check the box to enable IEEE 802.1X and click Save. Note For authentication to work properly, the date and time settings in the Axis product should be synchronized with an NTP server. See . Certificates Note •...

  • Page 30: Network

    Basic TCP/IP Settings IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.

  • Page 31: Advanced Tcp/Ip Settings

    To disable, clear the Enable AVHS box. Always - The Axis product will constantly attempt to connect to the AVHS service over the Internet. Once registered, the product will stay connected to the service. This option can be used when the product is already installed and it is not convenient or possible to use the one-click installation.
  • Page 32 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 33 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Page 34: Ports & Devices

    To use SNMP v3, HTTPS must be enabled, see . To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see . UPnP ®...

  • Page 35: Support

    See also . System Overview Logs & Reports The page generates logs and reports useful for system analysis and troubleshooting. If contacting Axis Support, please provide a server report with your query. System Log - Provides information about system events.

  • Page 36: Plain Config

    Plain Config is for advanced users with experience of Axis product configuration. Most parameters can be set and modified from this page. To open Plain Config, go to System Options > Advanced > Plain Config. Axis Support does not provide assistance with this feature. Reset to factory default settings Important Reset to factory default should be used with caution.

  • Page 37: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.
  • Page 38 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has changed by DHCP been changed, use AXIS IP Utility or AXIS Device Manager to locate the product on the network. Identify the product using its model or serial number, or by the DNS name (if the name has been configured).If required, a static IP address can be assigned manually.

  • Page 39: Specifications

    AXIS C3003-E Network Speaker Specifications Specifications...

  • Page 40: Safety Information

    AXIS C3003-E Network Speaker Safety information Safety information Hazard levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 41 User manual Ver. M9.2 AXIS C3003-E Network Speaker Date: September 2024 © Axis Communications AB, 2015 - 2024 Part no. T10046205...
