Intermec IV7 Instructions Manual

Vehicle-mount reader
Hide thumbs Also See for IV7:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Instructions
IV7 Vehicle-Mount
Reader

Advertisement

Table of Contents
loading

Related Manuals for Intermec IV7

Summary of Contents for Intermec IV7

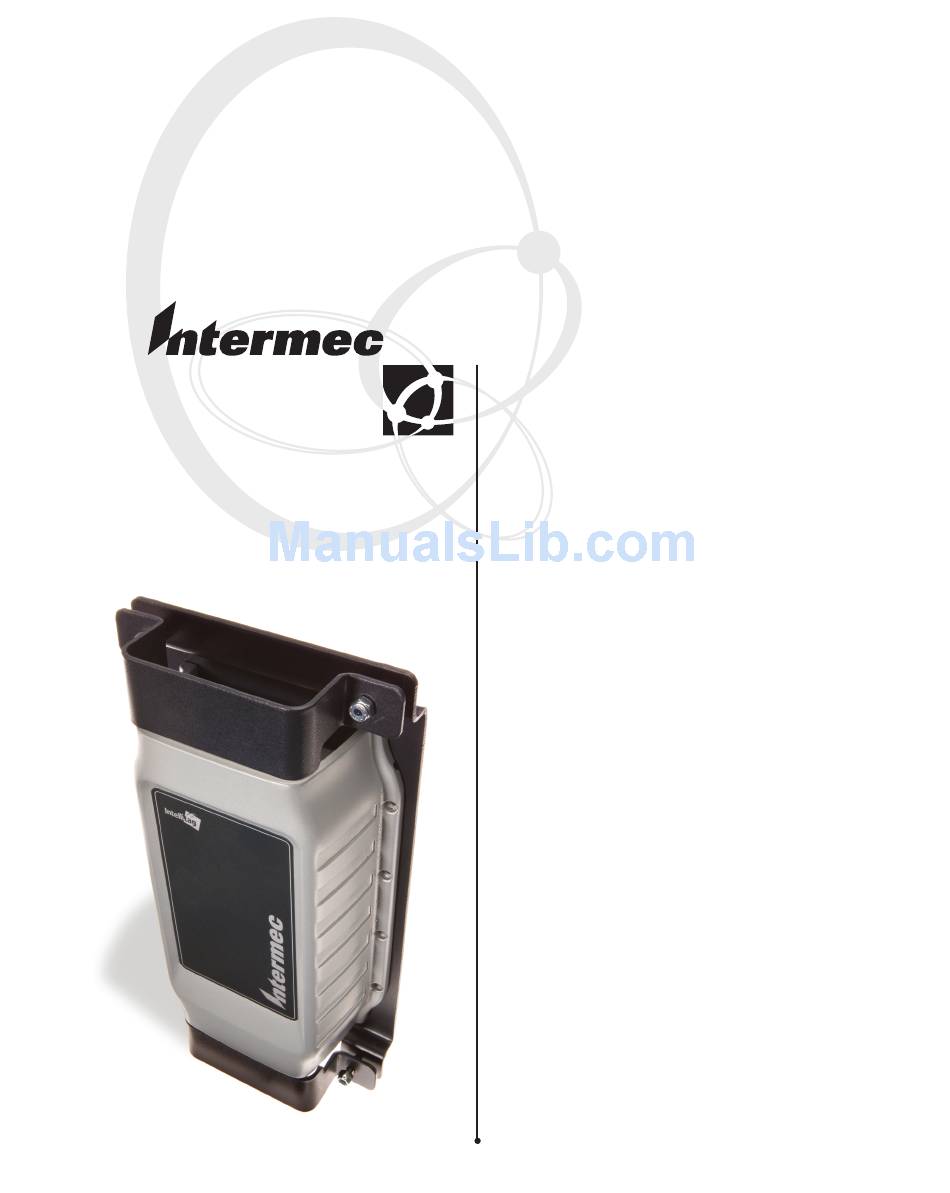

  • Page 1 Instructions IV7 Vehicle-Mount Reader...

  • Page 2: Table Of Contents

    About the IV7 Vehicle-Mount Reader ........

  • Page 3: About The Iv7 Vehicle-Mount Reader

    About the IV7 Vehicle-Mount Reader The IV7 is a rugged RFID tag reader designed to be mounted on a vehicle for mobile use. This IV7 includes mounting brackets for installing the IV7 on an adaptable load back rest on a forklift.

  • Page 4: What You Need

    What You Need To install the IV7, you also need these items, which are purchased separately: • IV7 DC Power Cable Kit (P/N 203-713-002 with right-angle connector, or 203-713-003 with straight connector) • Data cable (choose one): • 20-pin connector to 9-pin serial and 25-pin D-sub connectors, 5 ft (P/N 236-089-001) •...

  • Page 5: Understanding The Ports

    Understanding the Ports Connect the IV7 data port to a host PC for serial communications. You can also use the data port to access the IV7 general purpose input/output (GPIO) interfaces. For data port pin assignments, see page 13. Connect the IV7 power port to a DC power source. For power port pin assignments, see page 14.

  • Page 6: Choosing A Mounting Location

    Choosing a Mounting Location The IV7 can be positioned in the center or end channels of the load back rest for best performance and operator visibility. Intermec RFID antennas designed to be mounted on the load back rest can also be positioned in the center or end channels, as seen in the next illustrations.
  • Page 7 Alternate Mounting Location Example: In this illustration, the IV7 is mounted in the end channel and the antenna is placed in the center channel. Choose mounting locations for the IV7 and antennas that allow the best possible visibility for the forklift operator.

  • Page 8: Following Cable Safety Guidelines

    Following Cable Safety Guidelines The IV7 requires power, data, and antenna cables to connect it to your vehicle-mounted RFID system. Keep these cable safety guidelines in mind: • Make sure that the cable routing does not interfere with other equipment or vehicle controls.

  • Page 9: Installing The Iv7

    To PC serial port and GPIO devices 3 Position the IV7 in its mounting location on the back side of the load back rest. The IV7 label should face forward. 4 From the front of the load back rest, slide the mounting brackets onto the bolts on the IV7 baseplate.
  • Page 10 (4 places) IV7 Mounting Location: This illustration shows the installation viewed from the front with the IV7 mounted in the center channel of the load back rest. Cables omitted for clarity. 6 Route the power and data cables as needed. If necessary, use adhesive tiedowns and the removable wire way on the load back rest to manage the cables.
  • Page 11 12 Connect the IV7 data cable to the vehicle-mounted computer. 13 Connect the IV7 power cable to the DC power source. The power indicator turns green. The IV7 is now ready to use. IV7 Vehicle-Mount Reader Instructions...

  • Page 12: Sending Commands To The Iv7

    Sending Commands to the IV7 You send commands to the IV7 from a host PC using the Basic Reader Interface (BRI) protocol. For more information on BRI commands, see the Basic Reader Interface Programmer’s Reference Guide (P/N 937-000-xxx). To develop RFID applications you can use the Intermec RFID Resource Kit, which is part of the Intermec Developer Library.

  • Page 13: Iv7 Data Port Pin Assignments

    IV7 Data Port Pin Assignments IV7 Data Port Data Port Pin Assignments Description Description TXD from IV7 GPIO Return 1 RXD to IV7 GPIO Return 2 Ground GPIO Return 3 CTS from IV7 GPIO Return 4 RTS to IV7 GPIO Return 5...

  • Page 14: Iv7 Power Port Pin Assignments

    PDF versions of our current manuals. To order printed versions of the Intermec manuals, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Central) at intermec.custhelp.com to review technical information or to request technical support for your Intermec product. IV7 Vehicle-Mount Reader Instructions...

  • Page 15: Specifications

    6,288,629; 6,360,208; 6,384,712; 6,404,325; 6,429,775; 6,486,769; 6,501,807; 6,525,648; 6,639,509; 6,645,327; 6,677,852; 6,768,414; 6,784,789; 6,816,063; 6,830,181; 6,838,989; 6,859,190; 6,906,615; 6,919,793; 6,944,424; 7,075,413; 7,103,087; 7,106,196; 7,117,374; 7,121,467; 7,123,129; 7,158,046; 7,158,091. There may be other U.S. and foreign patents pending. IV7 Vehicle-Mount Reader Instructions...
  • Page 16 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2007 Intermec Technologies Corporation. All rights reserved. IV7 Vehicle-Mount Reader Instructions *943-100-002* P/N 943-100-002...
