Dahua TPC-BF1241-T-B3F4-DW-S8 Web Operation Manual

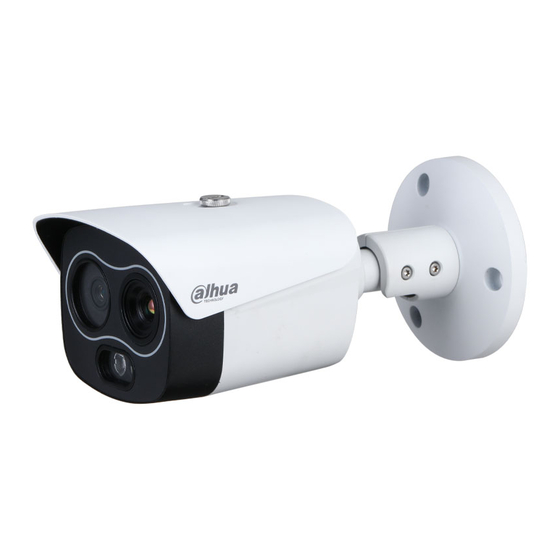

Thermal network bullet camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Thermal Network Bullet Camera
Web Operation Manual
V2.0.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPC-BF1241-T-B3F4-DW-S8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua TPC-BF1241-T-B3F4-DW-S8

Summary of Contents for Dahua TPC-BF1241-T-B3F4-DW-S8

  • Page 1 Thermal Network Bullet Camera Web Operation Manual V2.0.0...

  • Page 2: Foreword

    Foreword General This manual introduces the characteristics, basic configurations, daily operation and maintenance of the thermal camera (hereinafter referred to as "the Camera"). Read carefully before using the device, and keep the manual safe for future reference. Ports The Manual is mainly about on the web page, how to operate your Camera. For description of ports such as ports connection and ports debugging, contact technical staffs.

  • Page 3: About The Manual

    Version Revision Content Release Time ● Updated "Configuring Network". ● Updated "Setting Alarm- in". ● Updated "Configuring Disarming". March 2024 ● Updated "Configuring V1.0.1 IVS". ● Updated "Configuring Heat Warning". ● Added "Configuring Auto Upload". ● Added "Configuring PTZ". V1.0.0 First release.

  • Page 4: Statement

    Statement About the Manual To simplify the description, the following conventions are made in this manual for common functions, names, and more. ● This manual is suitable for multiple models of products, and functions and pages vary from models. This manual uses the hybrid camera for example. The monocular camera does not support the functions of the visible channel.

  • Page 5: Table Of Contents

    Table of Contents Foreword ........................................I Statement ........................................III 1 Product Introduction ..................................1 1.1 Overview ......................................1 1.2 Features ......................................1 1.3 Functions ....................................... 1 2 Configuration Flow ....................................6 3 Device Initialization .................................... 7 3.1 Initialing Device ..................................7 3.2 Changing IP Address ................................
  • Page 6 4.5 Subscribing Alarm ................................... 29 4.5.1 Alarm Types ..................................29 4.5.2 Subscribing Alarm Information ..........................30 5 AI ..........................................32 5.1 Configuring Event ................................... 32 5.1.1 Configuring Alarm Linkage ............................. 32 5.1.1.1 Setting Alarm-in ..............................32 5.1.1.2 Alarm Linkage ..............................33 5.1.1.2.1 Adding Schedule .............................
  • Page 7 5.2.8 Isotherm .................................... 57 5.3 Configuring IVS ..................................59 5.3.1 Installation Requirements on Perimeter Protection ................... 60 5.3.1.1 Site Selection ................................ 60 5.3.1.2 Typical Scenes ..............................60 5.3.1.3 Scene Confirmation ............................61 5.3.2 Configuration Flow ..............................63 5.3.3 Enabling Smart Plan ..............................63 5.3.4 Configuring Intelligent Rules ..........................
  • Page 8 7.1.2 Downloading Picture ..............................88 7.2 Setting Snapshot Parameters ............................89 7.3 Setting Snapshot Plan ................................90 7.4 Setting Storage ..................................90 8 Settings ........................................91 8.1 Configuring Local Parameters ............................91 8.2 Configuring Camera Parameters ............................. 92 8.2.1 Configuring Image Parameters ..........................92 8.2.1.1 Configuring Visible Channel ........................
  • Page 9 8.3.5 Email ....................................119 8.3.6 UPnP ....................................121 8.3.7 SNMP ....................................122 8.3.8 Bonjour ................................... 124 8.3.9 Multicast ..................................124 8.3.10 Register ..................................125 8.3.11 QoS ....................................126 8.3.12 Platform Access ................................ 126 8.3.12.1 P2P ..................................126 8.3.12.2 ONVIF ................................. 127 8.3.12.3 RTMP ...................................
  • Page 10 8.7 Viewing Log ..................................... 144 8.7.1 Log ..................................... 144 8.7.2 Remote Log ................................... 145 9 Security ......................................... 146 9.1 Security Status ..................................146 9.2 System Service ..................................147 9.2.1 802.1x ....................................147 9.2.2 HTTPS ....................................148 9.3 Attack Defense ..................................149 9.3.1 Firewall ....................................

  • Page 11: Product Introduction

    1 Product Introduction 1.1 Overview Thermal Network Bullet Camera is based on requirements such as temperature measurement, fire prevention, safety protection and night vision. This product can help you view videos, videotape an object, test temperature, warn the potential fire, track a cold/hot spot and analyze a special behavior. This product is widely used in energy industry, transportation, building, power system, public security, government, enterprises, and other fields (such as science, education, culture and health).
  • Page 12 Function Description For cameras with voice intercom function, you can talk indoors with a Voice intercom person near the outdoor monitor to facilitate problem solution. During live view, you can capture an abnormal image for further check and Snapshot handling. During live view, you can record abnormal images for further check and Local recording handling.

  • Page 13: Account Management

    Account Management Table 1-3 Function description Function Description ● Add, edit or delete an account group. Management of user group ● Manage user permissions based on user groups. ● Add, edit or delete a user account. User management ● Set the user permissions. ONVIF User Add, edit or delete an ONVIF user account.
  • Page 14 Function Description ● Grasp temperature of every pixel on thermal images. Thermal map acquisition ● You can export the heat map Event Table 1-5 Function description Function Description ● Motion detection and video tampering detection. Video detection ● When an alarm is triggered, the system performs linkages such as recording, alarm output, sending email, and snapshot.
  • Page 15 Function Description ● When temperature satisfies the alarm conditions of temperature testing rules, an alarm is triggered. Temperature ● When there is an alarm, the system performs linkage actions such as alarm linkage video recording, alarm output, sending email, PTZ operation and capturing images.

  • Page 16: Configuration Flow

    2 Configuration Flow For the device configuration flow, see Figure 2-1. For details, see Table 2-1. Configure the device according to the actual situation. Figure 2-1 Configuration flow Table 2-1 Description of flow Configuration Description Reference Open IE browser and enter IP address to log in to the web page, "4.1 Introduction to Login...

  • Page 17: Device Initialization

    3 Device Initialization 3.1 Initialing Device Device initialization is required for the first-time use. This manual is based on the operation on the web page. You can also initialize device through ConfigTool, NVR, or platform devices. ● To ensure the device safety, keep the password properly after initialization and change the password regularly.
  • Page 18 Figure 3-2 Time zone setting Step 3 Configure the time parameters, and then click Next. Figure 3-3 Password setting Step 4 Set the password for admin account. Table 3-1 Description of password configuration Parameter Description Username The default username is admin. Password The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, number,...

  • Page 19: Changing Ip Address

    Parameter Description Enter an email address for password resetting, and it is selected by default. Reserved email When you need to reset the password of the admin account, a security code for password resetting will be sent to the reserved email address. Step 5 Click Next, and then P2P page is displayed.
  • Page 20 Figure 3-5 TCP/IP Table 3-2 Description of TCP/IP parameters Parameter Description Host Name Enter the host name, and the maximum length is 15 characters.
  • Page 21 Parameter Description Click to enable ARP/Ping to set IP address service. Get the camera MAC address, and then you can change and configure the device IP address with ARP/ping command. This is enabled by default. During restart, you will have no more than 2 minutes to configure the device IP address by a ping packet with certain length, the server will be turned off in 2 minutes, or it will be turned off immediately after the IP address is successfully configured.

  • Page 22: Changing Ip Addresses In Batches

    Parameter Description IP Version Select IPv4 or IPv6. IP Address When you select Static in Mode, enter the IP address and subnet mask that you need. Subnet Mask ● IPv6 does not have subnet mask. Default Gateway ● The default gateway must be in the same network segment with the IP address.

  • Page 23: Logging In To Web Page

    ● DHCP mode: When there is a DHCP server in the network, set the Mode as DHCP and the Camera obtains IP addresses from the DHCP server automatically. ● Manual mode: Set Mode as Static and enter Starting IP, Subnet Mask and Gateway. Then, IP addresses of Cameras are incrementally modified from the start IP address.

  • Page 24: Resetting Password

    Related Operations Click Logout on the upper right corner to exit the page. 3.4 Resetting Password When you need to reset the password for the admin account, there will be a security code sent to the entered email address which can be used to reset the password. Prerequisites You have enabled password resetting service.
  • Page 25 Figure 3-9 Reset the password Step 4 Click Next. Step 5 Enter a new password and confirm it. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, number, and special character (excluding ' " ; : &).

  • Page 26: Daily Operation

    4 Daily Operation 4.1 Introduction to Main Page Procedure Step 1 Open Chrome browser, enter the IP address of the camera (192.168.1.108 by default) in the address bar and press the Enter key. Figure 4-1 Login Step 2 Enter the username and password, and then click Login. ●...

  • Page 27: Live

    Table 4-1 Description of main page Name Description Displays the main page. Subscribe alarm. For details, see "4.5 Subscribing Alarm". Set the skin. Set the language. ● Select Restart, and the camera restarts. ● select Logout to go to the login page. The system will sleep automatically after idling for a period of time.

  • Page 28: Setting Encode

    Figure 4-3 Live Table 4-2 Description of function bar Function Description Displays all channels. You can select the channel as needed Channel list and set the stream type. Adjustment operations in live viewing. For details, see "4.2.4 Image adjustment Window Adjustment Bar". Live view Displays the real-time monitoring image.

  • Page 29: Live View Function Bar

    4.2.3 Live View Function Bar For the live view function bar, see Table 4-3. Table 4-3 Description of live view function bar Icon Function Description Click to select the pen color, and then click to mark a Mark target on the video image . Display alarm sound state.

  • Page 30: Image Adjustment

    Figure 4-5 Zoom and focus Table 4-5 Description of zoom and focus parameter Parameter Description Changes the focal length of the camera to zoom in or out the image. 1. Set the speed value. The Zoom Speed is the adjustment range in one Zoom Speed click.

  • Page 31: Real-Time Spot Temperature Monitoring

    Figure 4-6 Image adjustment ● (Brightness adjustment): Adjusts the overall image brightness, and changes the value when the image is too bright or too dark. The bright and dark areas will have equal changes. ● (Contrast adjustment): Changes the value when the image brightness is proper but contrast is not enough.

  • Page 32: Configuring Ptz

    Figure 4-7 Real-time spot temperature monitoring 4.3 Configuring PTZ You can go to the PTZ page through two ways. ● Log in to the main page, and click PTZ. ● Log in to the web page, click , and then select PTZ. 4.3.1 Configuring Protocol If you want to control the external PTZ by the Camera, you need to set the PTZ protocol first and then connect PTZ to the Camera.

  • Page 33: Configuring Ptz Functions

    Figure 4-8 PTZ configuration Table 4-6 Parameter description Parameter Description Protocol Matches with the PTZ protocol. Enter the corresponding camera address. Address The address must be the same with the address configured on the PTZ; otherwise the Camera cannot control the PTZ. Baud rate Configure camera baud rate.

  • Page 34: Configuring Tour Group

    Figure 4-9 Preset Step 2 Set the speed, and then click the direction button to move the camera to the surveillance direction that you need. Step 3 Click Add Preset to set the current position as a preset. The added preset is displayed in the list. Step 4 Click the preset name to edit the name.

  • Page 35: Configuring Scan

    Figure 4-10 Tour group Step 2 Click Add Tour Group, and then you can click the group name to edit the name. Step 3 Select the tour group, and then click Add Preset to set the current position as a preset. Repeat the operation to add more presets.

  • Page 36: Configuring Pattern

    Figure 4-11 Scan Click Add Scan, and then click the scan name to edit the name. Step 2 Step 3 Set the left and right border. 1) Through the direction button, move the camera to the left border that you want and click in Left Limit.

  • Page 37: Controlling Ptz

    Figure 4-12 Pattern Click Add Pattern, and then click the pattern name to edit the name. Step 2 Step 3 Click , and then adjust the direction and speed as needed. Step 4 Click to stop recording. Step 5 Click to start the pattern.

  • Page 38: Calling Ptz Function

    Table 4-7 Description of PTZ control functions Function Description Control device toward eight directions, including up, down, left, right, left up, right up, left down and right down. Click , and then select an area in the monitor frame, the PTZ will rotate and zoom quickly to the specified area.

  • Page 39: Viewing Report

    Parameter Description Configure horizontal angle, vertical angel and zoom. Click Go to to pinpoint to a Go to point. 4.4 Viewing Report The report displays the average temperature change of the selected spot, line, and area. This function is only available on cameras supporting temperature measurement. Prerequisites You have configured temperature measurement rules.

  • Page 40: Subscribing Alarm Information

    Alarm Type Description Preparation Abnormal audio detection is An alarm is triggered when there Audio Detection enabled. For details, see "5.1.4 is audio connection problem. Configuring Audio Detection". Enable IVS, call detection, smoking An alarm is triggered when AI Event detection, and other intelligent intelligent rule is triggered.
  • Page 41 Figure 4-15 Alarm (subscription) Step 2 Click next to Alarm. Step 3 Select alarm type according to the actual need. For details, see "4.5.1 Alarm Types" . The system prompts and records alarm information according to actual conditions. When the subscribed alarm event is triggered and the alarm subscription page is not displayed, a number is displayed on , and the alarm information is recorded to view the details in the alarm list.

  • Page 42: Configuring Event

    5 AI 5.1 Configuring Event You can go to the Event page through two ways. ● Log in to the main page, and click Event. ● Log in to the web page, click , and then select Event. 5.1.1 Configuring Alarm Linkage 5.1.1.1 Setting Alarm-in When an alarm is triggered by the device connected to the alarm-in port, the system performs the defined alarm linkage.

  • Page 43: Alarm Linkage

    ● Arming/Disarming: When the camera is directly connected to a third-party alarm platform, and the alarm-in port generates an alarm signal, the system automatically activates one-click disarming. 1. Select an alarm-in port and sensor type. next to Arming/Disarming to enable the arming/disarming mode. 2.

  • Page 44: Record Linkage

    Figure 5-3 Add schedule 2) Click the selected period, enter the specific time in the text box of start time and end time. Figure 5-4 Set specific time 3) (Optional) Click Copy, select the days, and then click Apply to copy the current plan to the selected days.

  • Page 45: Snapshot Linkage

    Setting Record Linkage On the Alarm page, select Event Linkage > Record to enable record linkage, select the channel as needed, and set Post-Record to set alarm linkage and record delay. After Post-Record is configured, alarm recording continues for an extended period after the alarm ends.

  • Page 46: Audio Linkage

    Figure 5-8 Email linkage 5.1.1.2.6 Audio Linkage When an alarm is triggered, the system can automatically produce audio for warning. On the Alarm page, select Event Linkage > Audio Linkage to enable alarm-out linkage, and then set the play count and audio file. Figure 5-9 Alarm-out linkage 5.1.1.2.7 Warning Light When an alarm is triggered, the system can automatically produce light for warning.

  • Page 47: Configuring Network Exception

    Figure 5-11 SD card exception Step 3 Set alarm linkage actions. For details, see "5.1.1.2 Alarm Linkage". Step 4 Click Apply. 5.1.2.2 Configuring Network Exception In case of network abnormality, the system performs alarm linkage. The event types include Offline and IP Conflict.

  • Page 48: Configuring Video Detection

    Figure 5-13 Burn alarm Step 4 Set alarm linkage actions. For details, see "5.1.1.2 Alarm Linkage". Step 5 Click Apply. 5.1.3 Configuring Video Detection Check whether there are considerable changes on the video by analyzing video images. In case of any considerable change on the video (such as moving object, fuzzy image), the system performs an alarm linkage.
  • Page 49 Figure 5-14 Motion detection Step 4 Set the detection area. 1) Click Setting next to Area. 2) Select a color and set the region name. Select an effective area for motion detection in the image and set sensitivity and threshold. ●...

  • Page 50: Configuring Scene Changing

    Step 6 Click Apply. 5.1.3.2 Configuring Scene Changing The system performs alarm linkage when the image switches from the current scene to another one. > Event > Video Detection > Scene Changing. Step 1 Select Step 2 Select the channel. ●...

  • Page 51: Configuring Audio Detection

    Figure 5-17 Video tampering Step 3 Set arming periods and alarm linkage actions. For details, see "5.1.1.2.1 Adding Schedule" and "5.1.1.2 Alarm Linkage". Step 4 Click Apply. 5.1.4 Configuring Audio Detection The system performs alarm linkage when vague voice, tone change, or rapid change of sound intensity is detected.

  • Page 52: Configuring Disarming

    Figure 5-18 Audio detection Step 3 Set arming periods and alarm linkage actions. For details, see "5.1.1.2.1 Adding Schedule" and "5.1.1.2 Alarm Linkage". Click Apply. Step 4 5.1.5 Configuring Disarming After configuring disarming, the system will not perform any linkage actions, but alarm records will still be generated.

  • Page 53: Configuring Auto Upload

    Figure 5-19 Disarming Step 3 (Optional) Enable disarming by period and set the disarming period. Step 4 (Optional) Set arming periods. For details, see "5.1.1.2 Alarm Linkage". If the exiting schedules cannot meet the scene requirement, you can click Add Schedule to add a new schedule.

  • Page 54: Configuring Temperature Measurement

    Step 4 Configure the server parameters. Figure 5-20 Auto upload Table 5-1 Parameters description Parameters Description IP/Domain Name Enter the IP address of the server where the third-party client is located. Enter the port number of the server where the third-party client is Port located.

  • Page 55: Configuring Thermal Channel

    5.2.3 Configuring Thermal Channel Configure a specific scenario where you use the camera, including indoor scenario, outdoor scenario, and adaptive scenario. You can choose a scenario you need, and configure and check the scenario. Step 1 Select > Camera > Image > Image. Step 2 Select 2 in Channel.
  • Page 56 Parameter Description Add color to the thermal image and use color to indicate the temperature. "White glow" is the default color. ● White glow: Lighter when the temperature is higher in gray image. ● Black glow: Lighter when the temperature is lower in gray image.
  • Page 57 Table 5-3 Advanced parameter description Classification Parameter Description Change the overall image brightness through linear Brightness mode. The bigger the value is, the brighter the image will be, and the smaller the darker. Changes the contrast of the image. The higher the value is, the more the contrast will be between bright and dark areas, and the smaller the less.
  • Page 58 Classification Parameter Description Displays the image with the gray scale information of the visible channel, and marks temperatures with color palettes, which makes the image of the thermal channel clearer. ● Original: Displays the image of the thermal channel. ● Warm Color: Combines the data of the visible channel and the thermal channel, and displays the image in warm color.

  • Page 59: Configuring Burn Alarm

    Classification Parameter Description Click Do FFC to trigger the shutter correcting for this time. Do FFC Step 6 Click Apply. 5.2.4 Configuring Burn Alarm When the lens aims directly to the sun and will be burnt, an alarm is triggered. Step 1 Select >...
  • Page 60 Figure 5-24 Configuring parameters Step 2 Select the drawing tools, including spot, line, polygon, rectangle, and ellipse. After selecting the tool, the corresponding rule is displayed in Measurement Rule. Click the name, and you can edit it; click to disable the corresponding rule. Step 3 Draw then rules.
  • Page 61 Table 5-4 Description of relay-out parameter Parameter Description The display items of temperature. ● Select Measurement Items as Spot, and average temperature and temperature slope will be displayed. ● Select Measurement Items as Line, Rectangle, Ellipse or Polygon, and maximum/minimum/average temperature, temperature slope and temperature difference are displayed.

  • Page 62: Configuring Temperature Contrast

    Parameter Description Set the alarm condition: Alarm result + alarm condition + Alarm threshold temperature/temperature slope. ● Alarm result: The display items of temperature. ◇ Select spot as the drawing tool, and average temperature and temperature slope will be displayed. ◇...

  • Page 63: Configuring Shield Area

    Figure 5-25 Temperature contrast Step 2 Click Add to add a temperature comparison group. Step 3 Click to enable the temperature comparison group, and then configure the parameters. The temperature comparison group is enabled by default. Table 5-6 Temperature comparison group Parameter Description Temp Different...

  • Page 64: Configuring Global Configuration

    ● You can add 12 shield area at most. ● Click to delete the shield area. Step 3 Double-click the name to modify the shield name. Step 4 Set the mode. ● Manual: Select Manual as the mode, and then set the begin time and end time. The shield time is valid during the configured time.
  • Page 65 Figure 5-27 Global configuration Table 5-7 Global configuration Parameter Description Temperature Enable the temperature measurement function. Temperature Unit Includes °C and °F。 Relative humidity of environment, and it ranges from 0 RH– Relative Humidity 100 % RH. Temperature of the environment, and it ranges from –50 °C to Atmosphere Temperature 327.7 °C.

  • Page 66: Configuring Temperature Alarm

    Parameter Description ● When gain mode is under low-temperature mode, value ranges from –40°C to 160 ℃ . Saturation Temperature ● When gain mode is under low-temperature mode, value ranges from –40 °C to 600 °C. Enable this function, and a color code will be displayed on the Color Code right side of the image.

  • Page 67: Isotherm

    Figure 5-29 Alarm (subscription) Step 2 Click next to Alarm. Step 3 Select alarm type according to the actual need. For details, see "4.5.1 Alarm Types" . The system prompts and records alarm information according to actual conditions. When the subscribed alarm event is triggered and the alarm subscription page is not displayed, a number is displayed on , and the alarm information is recorded to view the details in the alarm list.
  • Page 68 The Camera is equipped with a color palette. Different from the traditional palette, the palette can correspond to the temperature, and different colors correspond to different temperature ranges. Different temperature ranges are displayed in different colors, thus realizing the isotherm display function.

  • Page 69: Configuring Ivs

    Figure 5-31 Isotherm palettes For example, you have configured temperature limit for the target, all areas with temperature exceeding this configured threshold will be highlighted with specific colors. After receiving the alarm, you can quickly determine the alarm source through the isotherm image. Figure 5-32 Isotherm 5.3 Configuring IVS This section introduces the requirements of scene selection, global configuration and rule...

  • Page 70: Installation Requirements On Perimeter Protection

    height. ● The brightness difference of the target and the background should be no less than 10 gray levels. ● The target should be continuously present in the image for no less than 2 seconds, and the moving distance should be larger its width and no less than 15 pixels (CIF image) at the same time.

  • Page 71: Scene Confirmation

    Figure 5-34 Typical scene (2) ● When there are obstructions (such as trees and vegetation) around the perimeter, and wire netting on the perimeter, install a vertical pole separately. Keep the pole 1 m from the perimeter, and 1 m higher than the perimeter (installation height 3 m-5 m). Figure 5-35 Typical scene (3) 5.3.1.3 Scene Confirmation Table 5-8 Scene Confirmation...
  • Page 72 Item Standard Example ● The monitoring scene should be with a wide view. Wide view and ● No obstructions, such as trees, obstructions vegetation, and wire netting in the Not suitable. The target is blocked. (×) detection area. ● In scenes with complex background, the target is hard to be...

  • Page 73: Configuration Flow

    5.3.2 Configuration Flow Figure 5-36 Configuration flow 5.3.3 Enabling Smart Plan You need to enable smart plan before intelligent rules function. We recommend white hot for IVS. For details, see "8.2.1.2 Configuring Thermal Channel". Step 1 Select AI > AI Config > Smart Plan. next to IVS to enable IVS of the corresponding channel.
  • Page 74 Figure 5-37 Tripwire Step 3 Click to draw rule line in the image. Right-click to finish drawing. For requirements of drawing rules, see Table 5-10. After drawing rules, drag corners of the detection area or detection line to adjust the area range. Figure 5-38 Draw rules Table 5-10 Description of IVS analysis Rule...
  • Page 75 proportionally from far to near. This function is only available on the thermal channels. 1. Select Normalized Size Filter in Size Filter. 2. Select Width Or Height or Width And Height, click , and then press and hold the left mouse button to draw rectangle 1; click , and then press and hold the left mouse button to draw rectangle 2.

  • Page 76: Configuring Global Setup

    Parameter Description ● For abandoned object, the duration is the shortest time for triggering an alarm after an object is abandoned. ● For missing object, the duration is the shortest time for triggering an Duration alarm after an object is missing. ●...

  • Page 77: Configuring Call Detection

    ● Select the exclusion area, and then click to delete the exclusion area. ● An exclusion area takes effect only when it has been drawn in the detection area ● Multiple exclusion areas can be drawn in the detected area. Step 4 Select the detection mode.
  • Page 78 Procedure Click the Rule Config tab. Step 1 Step 2 Click to enable the call detection function. Step 3 Click to draw a detected area on surveillance image. The whole image is the detection area by default, drag corners of the detection area to adjust the area. Step 4 (Optional) Click other icons at the right side of the image to filter targets in the image.

  • Page 79: Configuring Global Setup

    5.4.4 Configuring Global Setup Configure global rules for call detection. You can draw the detection area and exclusion areas. When the configured rules are triggered in the detection areas (out of the exclusion areas), an alarm will be triggered. Step 1 Click the Global Config tab.
  • Page 80 Step 4 Click the Rule Config tab. Step 5 Click to enable the call detection function. Step 6 Click to draw a detected area on surveillance image. The whole image is the detection area by default, drag corners of the detection area to adjust the area. Step 7 (Optional) Click other icons at the right side of the image to filter targets in the image.

  • Page 81: Configuring Global Setup

    5.5.4 Configuring Global Setup Configure global rules for smoking detection. You can draw the detection area and exclusion areas. When the configured rules are triggered in the detection areas (out of the exclusion areas), an alarm will be triggered. Background Information Smoking detection and IVS cannot be enabled at the same time.

  • Page 82: Configuring Heat Warning

    Figure 5-45 Cold hot spot 5.7 Configuring Heat Warning Configure the heat warning, including heat warning rule, smoke detection rule, and smoke and fire detection mode. 5.7.1 Configuring Heat Warning Rule When the camera detects a heat point, an alarm is triggered and then system performs linkages such as recording, alarm output, sending email, audio, alarm light, and snapshot.
  • Page 83 Figure 5-46 Heat warning Step 5 Select the heat warning mode as needed. ● Anti-jamming: Detects suspected heat several times. The detection accuracy is higher, but the detection speed is lower. ● High Response: Detects heat quickly, but the detection accuracy is lower. Step 6 Select the detection mode.

  • Page 84: Configuring Smoke Detection Rule

    Step 9 Set the anti-dither period. The camera only records one alarm event during the anti-dither period. Step 10 Set arming periods and alarm linkage actions. For details, see "5.1.1.2.1 Adding Schedule" and "5.1.1.2 Alarm Linkage". Step 11 Click Apply. To view alarm information on the alarm subscription tab, you need to subscribe relevant alarm event.

  • Page 85: Configuring Smoke And Fire Detection Mode

    Step 5 Click Add, draw the detection area on the image, and then set eh sensitivity. When the camera detects smoke in the detection areas, the target box flashes, which will stop the PTZ operation. ● Only one detection area can be added. ●...

  • Page 86: Configuring Pip

    ● Fire or smoke: Enable heat detection and smoke detection at the same time. When either of the two is triggered, an alarm is triggered. ● Fire only: When heat detection is triggered, an alarm is triggered. ● Smoke only: When smoke detection is triggered, an alarm is triggered. ●...
  • Page 87 Figure 5-50 Thermal map acquisition Step 3 Configure the parameters. ● Frame: The frame of the thermal map that you can acquire. ● Get Mode ◇ Single Frame: Acquires thermal map by single frame. There is interval between the previous frame and next frame. ◇...

  • Page 88: Record

    6 Record This section introduces the functions and operations of video playback. 6.1 Playback 6.1.1 Playing Back Video This section introduces the operation of video playback. Prerequisites ● This function is available on the camera with SD card. ● Before playing back video, configure record time range, record storage method, record schedule and record control.
  • Page 89 Figure 6-2 Video playback Table 6-1 Description of video playback page Function Description Displays all searched recorded video files. Click any files to play back it. Recorded video list Click Back at the upper-left corner to go to the Search Video page.

  • Page 90: Clipping Video

    Function Description Controls the sound during playback. ● : Mute mode. Sound ● : Vocal state. You can adjust the sound. Click to capture one picture of the current image, and it will be saved to the configured storage path. Snapshot About viewing or configuring storage path, see "8.2 Configuring Camera Parameters".

  • Page 91: Downloading Video

    Step 5 Click Start Download. The playback stops and the clipped file is saved in the configured storage path. For details of storage path, see "8.2 Configuring Camera Parameters". 6.1.3 Downloading Video Download videos to a defined path. You can download a single video, or download them in batches. ●...

  • Page 92: Setting Record Control

    see "8.2 Configuring Camera Parameters". 6.2 Setting Record Control Set parameters such as pack duration, pre-event record, disk full, record mode, and record stream. Step 1 Click Record in the main page, and then click the Record Control tab. Figure 6-7 Record control Step 2 Set parameters.
  • Page 93 Figure 6-8 Time plan Step 2 Set record plan. Green represents normal record plan (such as timing recording); yellow represents motion record plan (such as recording triggered by intelligent events); red represents alarm record plan (such as recording triggered by alarm-in). Select a record type, such as Normal, and directly press and drag the left mouse button to set the time period for normal record on the timeline.

  • Page 94: Setting Storage

    When holiday schedule setting is not the same as the general setting, holiday schedule setting is prior to the general setting. For example, with holiday schedule enabled, if the day is holiday, the system snapshots or records as holiday schedule setting; otherwise, the system snapshots or records as general setting.
  • Page 95 ● FTP Figure 6-11 FTP Table 6-4 Description of FTP parameters Parameter Description Server IP The IP address of the FTP server. Port The port number of the FTP server. Username The username to log in to the FTP server. Password The password to log in to the FTP server.
  • Page 96 Parameter Description Urgently store to Click , and when the FTP server does not work, all the files are local saved to the internal SD card. ● NAS Figure 6-12 NAS Table 6-5 Description of NAS parameters Parameter Description Server IP The IP address of the NAS server.

  • Page 97: Picture

    7 Picture This section introduces the related functions and operations of picture playback. 7.1 Playback 7.1.1 Playing Back Picture This section introduces the operation of picture playback. Prerequisites ● This function is available on the camera with SD card. ● Before playing back picture, configure snapshot time range, snapshot storage method, snapshot plan.

  • Page 98: Downloading Picture

    Figure 7-2 Picture playback Table 7-1 Description of playback page Function Description Displays all searched snapshots. Click any files to play back it. Snapshot list Click Back at the upper-left corner to go to the Picture Query page. ● Click to display the previous snapshot in the snapshot list.

  • Page 99: Setting Snapshot Parameters

    Figure 7-3 Selecting picture file Click Download. Step 4 Step 5 Select the download format and storage path. Figure 7-4 Downloading picture Step 6 Click Start Download. The downloaded pictures are saved in the configured storage path. For details of storage path, see "8.2 Configuring Camera Parameters".

  • Page 100: Setting Snapshot Plan

    Figure 7-5 Snapshot Table 7-2 Description of snapshot parameters Parameter Description You can select from Scheduled and Event. ● Scheduled: Capture images in configured period. For details, see ● Event: Capture images when configured event is triggered, such as Motion Detection, Video Tamper and Scene Changing. Type Make sure that you have enable the corresponding event detection and the snapshot function.

  • Page 101: Settings

    8 Settings 8.1 Configuring Local Parameters You can select protocol and configure the storage path for live snapshot, live record, playback snapshot, playback download, and video clips. Step 1 Select > Local. Figure 8-1 Local Step 2 Click Browse to select the storage path for live snapshot, live record, playback snapshot, playback download, and video clips.

  • Page 102: Configuring Camera Parameters

    Parameter Description to the account being The downloaded video of playback page. used. Playback The default path is Download C:\Users\admin\WebDownload\PlaybackRecor The clipped video of playback page. Video Clips C:\Users\admin\WebDownload\VideoClips. The snapshot of live page. Live Snapshot The default path is C:\Users\admin\WebDownload\LiveSnapshot.

  • Page 103: Configuring Working Mode

    Figure 8-2 Image-Visible 8.2.1.1.1 Configuring Working Mode Select the working mode as needed, including self-adaptive mode and customized scene mode. Step 1 Select > Camera > Image > Image Step 2 Select the working mode. ● Self-adaptive: The camera will adjust the image according to the environment. If you select Self-adaptive, skip to Step5.

  • Page 104: Configuring Image Parameters

    the period to use general profile. For Day and night, the operations are the same. Day profile is set by default, click Delete or Clear, and then configure the time plan as needed. 3) (Optional) Click Copy, select months, and then click Apply. The configured time plan is copied to the selected months.

  • Page 105: Configuring Exposure Parameters

    Parameter Description Sharpness The bigger the value, the stronger the sharpness suppression. Suppression Changes the image brightness and improves the image dynamic range in a Gamma non-linear way. The higher the value is, the brighter the image will be, and the smaller the darker.
  • Page 106 Table 8-3 Description of exposure parameters Parameter Description You can select from 50 Hz, 60 Hz and Outdoor. ● 50 Hz: When the electric supply is 50 Hz, the system adjusts the exposure according to ambient light automatically to ensure that there is no stripe appears.

  • Page 107: Configuring Backlight Parameters

    Parameter Description Works with multi-frame (no less than 2 frames) images and reduces 3D NR noise by using the frame information between previous and latter frames. This configuration is available only when the 3D NR is enabled. Level The higher the level is, the better the result will be. Step 3 Click Apply.

  • Page 108: Configuring White Balance Parameters

    8.2.1.1.5 Configuring White Balance Parameters WB function makes the image color display precisely as it is. When in WB mode, white objects would always display white color in different environments. Step 1 Select > Camera > Image > WB. Step 2 Configure WB parameters.

  • Page 109: Configuring Illuminator Parameters

    Figure 8-8 Day/Night Table 8-6 Description of day and night parameters Parameter Description Select the type from Electronic and ICR. ● ICR: Switch day and night through a light filter. Type ● Electronic: Switch day and night through the image processing methods.

  • Page 110: Configuring Defog Parameters

    Table 8-7 Description of illuminator parameters Parameter Description Adjust the brightness of illuminator manually, and Manual then the system will supply illuminator to the image accordingly. Mode The system adjusts the illuminator intensity Auto according to the ambient lighting condition. Step 3 Click Apply.
  • Page 111 Step 4 Select the scene type, profile and colorization. The image is for reference only, and might differ from the actual page. Figure 8-11 Image (thermal) Table 8-9 Description of defog parameters Parameter Description Select the duplicate frame and set the frequently used video parameter as the user-defined scene.
  • Page 112 Parameter Description Add color to the thermal image and use color to indicate the temperature. "White glow" is the default color. ● White glow: Lighter when the temperature is higher in gray image. ● Black glow: Lighter when the temperature is lower in gray image. ●...
  • Page 113 Classification Parameter Description Changes the contrast of the image. The higher the value is, the more the contrast will be between bright and dark areas, and the smaller the less. If the value is Contrast set too big, the dark area would be too dark and bright area easier to get overexposed.
  • Page 114 Classification Parameter Description Displays the image with the gray scale information of the visible channel, and marks temperatures with color palettes, which makes the image of the thermal channel clearer. ● Original: Displays the image of the thermal channel. ● Warm Color: Combines the data of the visible channel and the thermal channel, and displays the image in warm color.

  • Page 115: Correcting Defective Pixels

    Classification Parameter Description Method of correcting the shutter. ● Auto: According to the switch period that you have configured, the shutter will be corrected FFC Mode regularly. ● Manual: Correct the shutter by yourself. FFC Settings You can configure this parameter only when FFC Mode is set to be Auto.

  • Page 116: Parameter Description

    The monocular camera does not support channel selection. Step 3 Configure encode parameters. Figure 8-12 Encode Table 8-11 Description of encode parameters Parameter Description Click to enable sub stream, it is enabled by default. Sub Stream You can enable multiple sub streams simultaneously. Select encode mode.

  • Page 117: Configuring Overlay

    Parameter Description The bit rate control type during video data transmission. You can select bit rate type from: ● CBR (Constant Bit Rate): The bit rate changes a little and keeps close to the defined bit rate value. Bit Rate Type ●...

  • Page 118: Configuring Channel Title

    Step 4 Click next to Enable. Click Add, and then drag the block to the area that you need to cover. Step 5 ● You can draw four blocks at most. ● Click Clear to delete all the area boxes; you can also just select one block, and click to delete it.

  • Page 119: Configuring Time Title

    8.2.3.2.3 Configuring Time Title You can enable this function when you need to display time on the image. > Camera > Encode > Overlay. Step 1 Select Step 2 Select the channel. ● Select 1 in Channel to set the parameters of visible channel. ●...

  • Page 120: Configuring Font Properties

    Click to add the text overlay, and you can add 13 lines at most. Step 6 Move the text box to the position that you want in the image. Figure 8-16 Location Step 7 Click Apply. 8.2.3.2.5 Configuring Font Properties You can enable this function if you need to adjust the font size on the image.

  • Page 121: Configuring Voltage Information

    Step 3 Click the Picture Overlay tab. Step 4 Click next to Enable. Click Upload, and then select the picture to be overlaid. Step 5 The picture is displayed on the video image. Step 6 Move the overlaid picture to the position that you want in the image. Figure 8-18 Picture overlay Step 7 Click Apply.

  • Page 122: Configuring Roi

    8.2.3.3 Configuring ROI Select ROI (region of interest) on the image and configure the image quality of ROI, and then the selected image is display at defined quality. Step 1 Select > Camera > Encode > ROI. Step 2 Select the channel. ●...

  • Page 123: Setting Alarm Tone

    requirements of the application scenario. Step 3 Configure audio parameters. Table 8-12 Description of audio parameters Parameter Description You can select audio input type from: ● LineIn: Requires external audio device. Audio Input Type ● Mic: Not require external audio device. You can select audio encode mode from PCM, G.711A, G.711Mu, and AAC.

  • Page 124: Configuring Network

    Figure 8-21 Add alarm tone Related Operations ● Play audio file Click to play the file name. ● Download audio file Click to download the file name. 8.3 Configuring Network 8.3.1 TCP/IP You can configure IP address and DNS (Domain Name System) server and so on according to network planning.
  • Page 125 Table 8-13 Description of TCP/IP parameters Parameter Description Host Name Enter the host name, and the maximum length is 15 characters. Click to enable ARP/Ping to set IP address service. Get the camera MAC address, and then you can change and configure the device IP address with ARP/ping command.

  • Page 126: Port

    Parameter Description The mode that the camera gets IP: ● Static Configure IP Address, Subnet Mask, and Default Gateway manually, and then click Save, the login page with the configured Mode IP address is displayed. ● DHCP When there is DHCP server in the network, select DHCP, and the camera acquires IP address automatically.
  • Page 127 Table 8-14 Description of port parameters Parameter Description The max number of users (web client, platform client or mobile Max Connection phone client) that can connect to the device simultaneously. The value is 10 by default. TCP Port Transmission control protocol port. The value is 37777 by default. UDP Port User datagram protocol port.

  • Page 128: Pppoe

    8.3.3 PPPoE Point-to-Point Protocol over Ethernet, is one of the protocols that device uses to connect to the internet. Get the PPPoE username and password from the internet service provider, and then set up network connection through PPPoE, the camera will acquire a WAN dynamic IP address. Prerequisites ●...

  • Page 129: Email

    Step 3 Configure DDNS parameters. Figure 8-25 DDNS Table 8-15 Description of DDNS parameters Parameter Description Type The name and web address of the DDNS service provider, see the matching relationship below: ● CN99 DDNS web address: www.3322.org Server Address ●...
  • Page 130 Figure 8-26 Email Table 8-16 Description of email parameters Parameter Description SMTP Server SMTP server address The port number of the SMTP Port server. For details, see Table 8-17. Username The account of SMTP server. Password The password of SMTP server. Anonymous Click , and the sender's information is not displayed in the email.

  • Page 131: Upnp

    Table 8-17 Description of major mailbox configuration Mailbox SMTP server Authentication Port Description smtp.gmail.c You need to enable SMTP service gmail in your mailbox. Step 4 Click Apply. 8.3.6 UPnP UPnP (Universal Plug and Play) is a protocol that establishes mapping relation between local area and wide area networks.

  • Page 132: Snmp

    8.3.7 SNMP SNMP (Simple Network Management Protocol), which can be used to enable software such as MIB Builder and MG-SOFT MIB Browser to connect to the camera and manage and monitor the camera. Prerequisites ● Install SNMP monitoring and managing tools such as MIB Builder and MG-SOFT MIB Browser. ●...
  • Page 133 Table 8-18 Description of SNMP parameters Parameter Description SNMP Port The listening port of the software agent in the device. The read and write community string that the software agent supports. Read Community, Write Community You can enter number, letter, underline and dash to form the name.

  • Page 134: Bonjour

    8.3.8 Bonjour Enable this function, and the OS and clients that support Bonjour would find the camera automatically. You can have quick visit to the camera with Safari browser. Bonjour is enabled by default. Procedure Step 1 Select > Network > Bonjour. Step 2 Click , and then configure server name.

  • Page 135: Register

    Figure 8-30 Multicast Table 8-19 Description of multicast parameters Parameter Description The multicast IP address of Main Stream/Sub Stream is 224.1.2.4 by Multicast Address default, and the range is 224.0.0.0–239.255.255.255. The multicast port of corresponding stream: Main Stream: 40000; Sub Port Stream1: 40016;...

  • Page 136: Qos

    8.3.11 QoS You can solve problems such as network delay and congestion with this function. It helps to assure bandwidth, reduce transmission delay, packet loss rate, and delay jitter to improve experience. 0–63 means 64 degrees of priority; 0 for the lowest and 63 the highest. Step 1 Select >...

  • Page 137: Onvif

    Figure 8-33 P2P ● When P2P is enabled, remote management on device is supported. ● When P2P is enabled and the device accesses to the network, the status shows online. The information of the IP address, MAC address, device name, and device SN will be collected.

  • Page 138: Wi-Fi

    ● RTMP can be configured by admin only. ● RTMP supports the H.264, H.264 B and H.264H video formats, and the AAC audio format only. > Network > Platform Access > RTMP. Step 1 Select Step 2 Click Make sure that the IP address is trustable when enabling RTMP. Step 3 Configure RTMP parameters.
  • Page 139 Step 3 Connect the Camera to wireless network. ● Search SSID: 1. Click Search SSID. 2. Click the network than you want to connect to. Figure 8-36 Wi-Fi configuration 3. Enter the password. Click OK if password is not required. Figure 8-37 Connect to Wi-Fi 4.

  • Page 140: Basic Service

    Figure 8-38 Add SSID 3. Enter the password. Click OK if password is not required. Figure 8-39 Connect to Wi-Fi 4. Click OK. Click Refresh to get the connection status. Step 4 8.3.14 Basic Service Configure the IP hosts (devices with IP address) that are allowed to visit the device. Only the hosts in the trusted sites list can log in to the web page.
  • Page 141 Figure 8-40 Basic service Table 8-23 Description of basic service parameters Function Description You can enable SSH authentication to perform safety management. Enable this function, and then when multiple users are viewing the Multicast/Broadcast device video image simultaneously through network, they can find Search your device with multicast/broadcast protocol.

  • Page 142: Managing Storage

    Step 3 Click Apply. 8.4 Managing Storage Displays the information of the local SD card. You can set it as read only or read & write; you can also hot swap and format SD card. Functions might vary with different models. >...

  • Page 143: Date & Time

    Table 8-24 Description of general parameters Parameter Description Name Enter the device name. Video Standard Select video standard from PAL and NTSC. Click Apply. Step 3 8.5.1.2 Date & Time You can configure date and time format, time zone, current time, DST (Daylight Saving Time) or NTP server.

  • Page 144: Positioning System

    Parameter Description Enable DST as needed. , and configure start time and end time of DST with Date or Click Week. Click Apply. Step 3 8.5.1.3 Positioning System Enter the camera’s location information (longitude, latitude, altitude, and installation height) to remind you where your camera locates.

  • Page 145: User

    8.5.2.1 User 8.5.2.1.1 Adding User You are admin user by default. You can add users, and configure different authorities. Procedure Step 1 Select > System > Account > User. Click Add. Step 2 Figure 8-45 Add user (system)
  • Page 146 Figure 8-46 Add user (Restricted Login) Step 3 Configure user parameters. Table 8-26 Description of user parameters (1) Parameter Description Username User’s unique identification. You cannot use existed user name. Password Enter password and confirm it again. The password must consist of 8 to 32 non-blank characters and contain at least two types of characters among upper case, lower case, number, and Confirm Password special character (excluding ' "...

  • Page 147: Resetting Password

    Parameter Description Set the PC address that allows the defined user to log in to the camera and the validity period and time range. You can log in to web with the defined IP in the defined time range of validity period. ●...

  • Page 148: Adding User Group

    Figure 8-47 User Step 4 Click Apply. 8.5.2.2 Adding User Group You have two groups named admin and user by default, and you can add new group, delete added group or edit group authority and memo. Procedure Step 1 Select >...

  • Page 149: Onvif User

    8.5.2.3 ONVIF User You can add, delete ONVIF user, and change their passwords. Procedure Step 1 Select > System > Account > ONVIF User. Step 2 Click Add. Step 3 Configure user parameters. Figure 8-49 Add ONVIF user Table 8-27 Description of ONVIF user parameters Parameter Description Username...

  • Page 150: Configuring Serial Port

    Step 2 Select the heater type to be Unit Device Heater. This is supported by some select models. Step 3 Set the heating mode. ● Auto: Set the start temperature and stop temperature as the temperature range for heater to start, and then click Apply. When the sensor temperature is in the range, then heater works automatically.

  • Page 151: Manager

    Table 8-28 Description of serial port settings parameters Parameter Description Enter the corresponding device address, it is 1 by default. IP Address Make sure that the address is the same as the device address; otherwise you cannot control the device. Baud Rate Configure device baud rate, it is 9600 by default.

  • Page 152: Import/Export

    Figure 8-52 Maintenance Step 3 Click Apply. 8.5.4.3 Import/Export ● Export the system configuration file to back up the system configuration. ● Import system configuration file to make quick configuration or recover system configuration. Step 1 Select > System > Manager > Import/Export. Step 2 Import and export.

  • Page 153: Upgrade

    Be careful when doing operations such as “default” and “factory default”. The operations will result in data loss. Select > System > Manager > Default. ● Click Default, and then all the configurations except IP address and account are reset to default. ●...

  • Page 154: Viewing System Information

    Only when this thermal camera and your computer are both connected to network, can online upgrading be implemented. Detect your system version. ◇ to enable Auto Check for Updates. The version is Auto detection: Click detected automatically. ◇ Manual detection: Click Manual Check, and the system begins to check the version information.

  • Page 155: Remote Log

    mode. ● Event (records events such as video detection, smart plan, alarm and abnormality): includes event start and event end. ● Record: Includes file access, file access error, and file search. ● Account: Includes login, logout, adding user, deleting user, editing user, adding group, deleting group, and editing group.

  • Page 156: Security

    9 Security 9.1 Security Status Background Information Detect the user and service, and scan the security modules to check the security status of the camera, so that when abnormality appears, you can process it timely. ● User and service detection: Detect login authentication, user status, and configuration security to check whether the current configuration conforms to recommendation.

  • Page 157: System Service

    Figure 9-2 Security Status 9.2 System Service 9.2.1 802.1x Cameras can connect to LAN after passing 802.1x authentication. Step 1 Select Security > System Service > 802.1x. Step 2 Select the NIC name as needed, and click to enable it. Step 3 Select the authentication mode, and then configure parameters.

  • Page 158: Https

    navigation bar. For details, see "9.4.2 Installing Trusted CA Certificate". Figure 9-4 802.1x (TLS) Click Apply. Step 4 9.2.2 HTTPS Create a certificate or upload an authenticated certificate, and then you can log in through HTTPS with your PC. The HTTPS can protect page authenticity on all types of websites, secure accounts, and keep user communications, identity, and web browsing private.

  • Page 159: Attack Defense

    9.3 Attack Defense 9.3.1 Firewall Configure firewall to limit access to the camera. Step 1 Select Security > Attack Defense > Firewall. Step 2 Click to enable the firewall function. Figure 9-6 Firewall Step 3 Select the mode: Allowlist and Blocklist. ●...

  • Page 160: Anti-Dos Attack

    locked. Step 1 Select Security > Attack Defense > Account Lockout. Step 2 Configure the login attempt and lock time for device account and ONVIF user. ● Login attempt: Upper limit of login attempts. If you consecutively enter a wrong password more than the configured value, the account will be locked.

  • Page 161: Ca Certificate

    9.4 CA Certificate 9.4.1 Installing Device Certificate Create a certificate or upload an authenticated certificate, and then you can log in through HTTPS with your PC. 9.4.1.1 Creating Certificate Creating certificate in the device. Step 1 Select Security > CA Certificate > Device Certificate. Click Install Device Certificate.

  • Page 162: Installing Existing Certificate

    Step 2 Click Install Device Certificate. Select Apply for CA Certificate and Import (Recommended), and click Next. Step 3 Step 4 Enter the certificate information. Figure 9-11 Certificate information (2) Step 5 Click Create and Download. Save the request file to your PC. Step 6 Apply the CA certificate from the third-party certificate authority.

  • Page 163: Installing Trusted Ca Certificate

    Figure 9-12 Certificate and private key Step 5 Click Import and Install. After the certificate is created successfully, you can view the created certificate on the Device Certificate page. Related Operations ● Click Enter Edit Mode, you can edit the custom name of the certificate. ●...

  • Page 164: A/V Encryption

    9.5 A/V Encryption The device supports audio and video encryption during data transmission. You are recommended to enable A/V Encryption function. There might be safety risk if this function is disabled. Step 1 Select Security > A/V Encryption. Step 2 Configure the parameters.

  • Page 165: Security Warning

    9.6 Security Warning When security exception event is detected, the camera sends a warning to remind you to process it timely, to avoid security risk. Select Security > Security Warning. Step 1 Step 2 Click next to Enable to enable security warning. Step 3 Configure the parameters.

  • Page 166: Appendix 1 Cybersecurity Recommendations

    Appendix 1 Cybersecurity Recommendations Mandatory actions to be taken for basic device network security: 1. Use Strong Passwords Please refer to the following suggestions to set passwords: ● The length should not be less than 8 characters. ● Include at least two types of characters; character types include upper and lower case letters, numbers and symbols.
