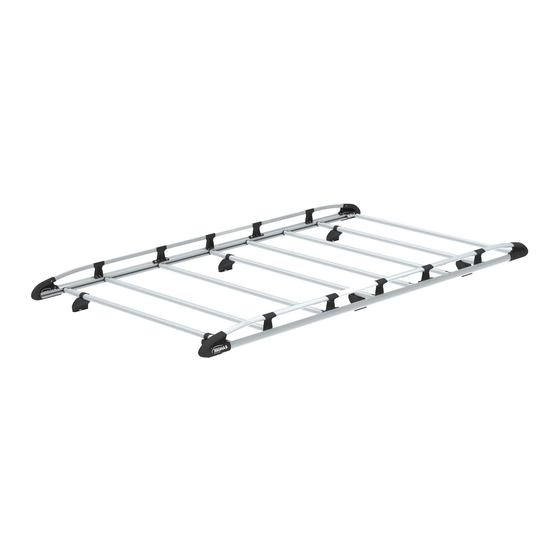

- Page 1 INSTALLATION GUIDE 1506-PHX Cargo Plus RAM Promaster 159" EX Wheelbase...
-
Page 2: Phase 1 - Assembly
PHASE 1 – ASSEMBLY 1.1 SETUP 1.1.2 Verify all parts are present. 15-U4009 BOX ×8 ×8 ×8 ×8 addle xtruSion uBBer paCer “r” ×1 “l” ×1 ×8 CFK - 1 ×1 CFK - 2 ×1 CFK - 3 ×1 oller upport oller upport... -
Page 3: Required Items
HARDWARE ( M8 × 65 ) ×16 ( M8 × 40 ) ×8 ( M8 ) ×32 ( M8 ) ×28 ( M8 ) ×22 ( M8 ) ×32 ( M8 ) ×16 ( M8 ) ×8 ( M8 ) ×1 REQUIRED ITEMS 13mm ×2 PERSONS... -
Page 4: Phase 2 - Installation
PHASE 2 – INSTALLATION 2.1 INSTALLATION 2.1.1 Install the feet. Use the 1st, 2nd, 4th, and 5th mounting points as shown below. Front Rear M8 × 40 1506-PHX Installation Guide | REV. A2 | Page 4 For technical support, contact us at 1-800-565-5321... - Page 5 2.1.2 Connect the 3 side rails parts. 2× STEP 1 STEP 2 10 NM STEP 3 STEP 4 1506-PHX Installation Guide | REV. A2 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 2.1.6 Attach the roller to the side rails using 2.1.3 Install 4 bars in the feet. the 2 last channel nuts from the front. 2.1.4 Slide 11pcs. of channel nuts in each 2.1.7 Slide the rack to the appropriate side rails. position.
- Page 7 2.1.9 Attach the 5 bar. 2.1.10 Attach the foot cowl to the foot. PHASE 3 – TIPS 3.1 SAFETY TIPS 1506-PHX Installation Guide | REV. A2 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 “You have successfully installed your 1506-PHX Cargo Plus Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 1506-PHX Installation Guide | REV. A2 | Page 8 For technical support, contact us at 1-800-565-5321...
