Summary of Contents for Schulthess proLite starLine

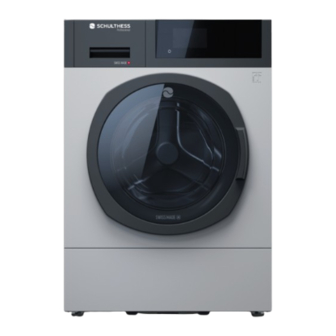

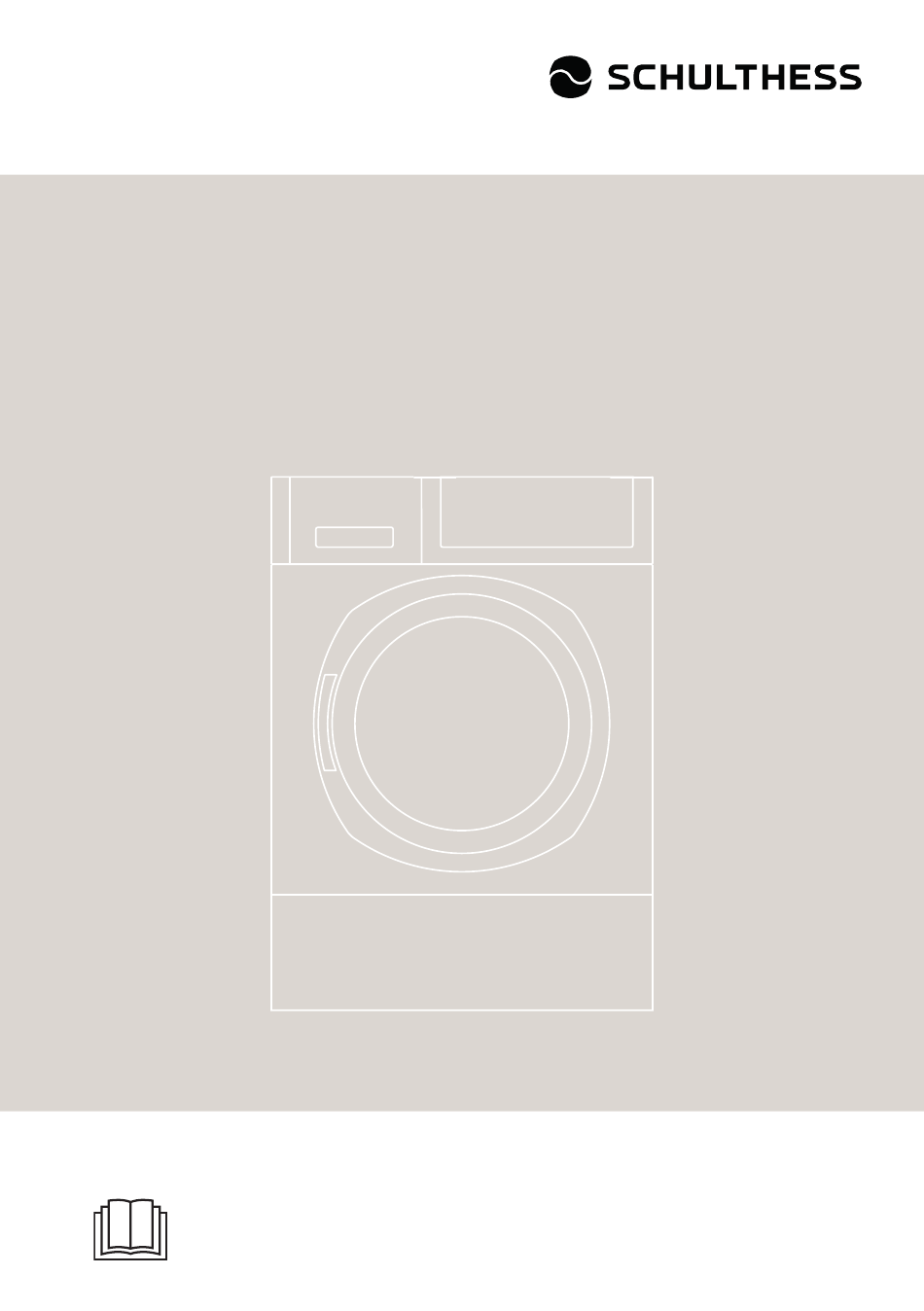

- Page 1 Washing machines proLite starLine / topLine Operating instructions 09/2024 Do not operate the appliance until you have read these instructions. Instruction number 563 398.AA...
- Page 2 Symbols Read the instructions. Warnings are marked with a warning triangle. The text gives information how a dangerous situation can be avoided. Signal words indicate the severity of the danger, if not avoided. WARNING means that possible personal injuries, and poten- tially life-threatening injuries may occur.
-
Page 3: Dear Customer
Dear Customer We are pleased that you have chosen a Schulthess washing machine. Your new washing machine is the result of many years of development work. The highest quality requirements, both in development and manufacture, guarantee a long lifetime. Its design meets all the demands of modern laundry care and offers you a varied and individual choice of programmes. -
Page 4: Table Of Contents
CONTENTS SAFETY AND SAFETY MEASURES ........6 DISPOSAL . - Page 5 SETTINGS ............31 Language (temporary) .
-
Page 6: Safety And Safety Measures
SAFETY AND SAFETY MEASURES Safety during operation and use WARNING Risk of electric shock! The enclosed instructions contain important • Do not operate an appliance with visible information on the installation, use and damage. safety of your washing machine. • Only touch the mains plug with dry hands. Keep them in a safe place for other users or •... - Page 7 WARNING Risk of injury! • Rinse fabrics containing solvent-based If you climb onto the washing machine, it cleaning agents or flammable chemicals may tip over and cause injury. thoroughly in clear water before washing • Do not climb onto the appliance. by hand.
- Page 8 • Keep detergents and laundry care addi- • When closing the loading door, ensure tives out of the reach of children. that your fingers do not get trapped. Children can choke on small parts. • Keep pets away from the appliance. •...
-
Page 9: Disposal
DISPOSAL Packaging from your new appliance The advance recycling fee (vRG) All packaging materials used are environ- The advance recycling fee is already included mentally friendly and reusable. Return the in the price of a new appliance. packaging to the specialist dealer or sup- plier. -
Page 10: Appliance Description
APPLIANCE DESCRIPTION Control and display panel CashCard/WashCard/USB interface (option) Detergent drawer Type plate (open plinth panel, type plate is located at the top on inside of plinth panel) Loading door Plinth cover Selection buttons Illustration may vary depending on model. -
Page 11: Control And Display Panel
Control and display panel Display and buttons Additional buttons On/Off Favourites Back Proficlean Scroll backwards Wetclean Scroll forwards Disinfect Connectivity / Start Card Reader Module (CRM) Language (temporary)/ Settings Page number in programme menu Not all buttons are available for all models. -
Page 12: Detergent Drawer
Detergent drawer Liquid detergent • Pull downwards. FLAP A Main detergent, modular detergent, bleach, starch, water softener • For washing powder and tablets, slide the flap Fabric softener and care additives for upwards and backwards. the final rinse cycle Pre-wash/soaking agent Notice Liquid detergent can thicken due to slow drain- Flap for liquid detergent... -
Page 13: Washing
WASHING Selecting the programme • Install the appliance in accordance with the installation instructions. • Do not connect an appliance with visible • Select the desired programme by pressing the damage. light bar. • Ensure that the transport securing devices The programme is displayed with programme have been removed. -
Page 14: Changing Programme Before The Programme Has Started
Interrupting the programme Close door • Press the door shut until you hear the lock click into place. • Press and hold the button until the ON/OFF • Ensure that no laundry items are trapped following window is displayed: between the loading door and the rubber seal. •... -
Page 15: Programme End
Programme end The programme end is displayed. When crease protection is switched on, the drum continues to rotate at short intervals at the end of the programme (see SETTINGS / CREASE PROTECTION • The door can be opened. Removing laundry •... -
Page 16: Wash Programmes
WASH PROGRAMMES This overview contains the programmes for all appliance types. You can find the programme and consumption data for your machine on our website in the download center www.schulthess.ch/ service/downloadcenter. Please always observe the care labelling of textiles Basic programmes 30°... - Page 17 Machine cleaning, without laundry and detergent • drum and caustic tank are cleaned hygienically and odours are prevented. • If you wish to use cleaning agents, we recommend using Schulthess Machine Cleaner R 163. This enables you to achieve optimal results.
-
Page 18: Retirement Homes Proficlean
Contract cleaners Proficlean Disinfection is not guaranteed with the “hot water” heating variant (without heating). Dose the disinfectant for a liquor ratio of 1:5, based on the maximum load quantity. Use listed disinfectants. 60° Mops cottons, blended fabrics or microfibres •... - Page 19 70° Incontinence laundry Cottons or blended fabrics • With pre-rinse and pre-wash • Only add the detergent for the pre-wash to after the water intake COMPARTMENT I for the pre-wash. 60° Mops Cottons, blended fabrics or microfibres • With pre-rinse 60°...
- Page 20 60° Mops Cottons, blended fabrics or microfibres • With pre-rinse 90° Flour soiling Laundry soiled with flour and grease • Cottons or blended fabrics • With pre-rinse and pre-wash • Only add the detergent for the pre-wash to after the water intake COMPARTMENT I for the pre-wash.
- Page 21 40° Flour soiling Laundry soiled with flour • Cottons or blended fabrics Finish, cold Condition, Starch or Impregnate • Fill compartment with liquid finishing agent (max. 200 ml) 60° Duvets, pillows Feather, down, synthetic or natural hair filling • With pre-rinse •...
- Page 22 Campsites, launderettes Proficlean 30° Quickwash Unsoiled, only slightly creased jeans, jumpers (sportswear), swimming trunks, towelling • Cottons, blended fabrics and synthetic fibres • New fabrics (removal of production residues) 60° Towelling Bath towels, hand towels, bathrobes • Cottons 60° Bed linen Duvet covers, fitted sheets, bedspreads •...
-
Page 23: Hospitals, Clinics Proficlean
Hospitals, clinics Proficlean 70° Incontinence laundry Cottons or blended fabrics • With pre-rinse and pre-wash • Only add the detergent for the pre-wash to after the water intake COMPARTMENT I for the pre-wash. 40° Patient laundry Cottons or blended fabrics 60°... - Page 24 Disinfection Disinfection is not guaranteed with the “hot water” heating variant (without heating). Dose the disinfectant for a liquor ratio of 1:5, based on the maximum load quantity. Use listed disinfectants. 40° Cotton Disinfection 20 min. • Additional pre-wash selectable 60°...
- Page 25 Wetclean 25° Wetclean 4.0 Suits, costumes, jackets, blouses, coats, etc., labelled with 40° Wetclean 4.0 Suits, costumes, jackets, blouses, coats, etc., labelled hand wash or washable. 40° Wetclean basic Suits, costumes, jackets, blouses, coats, etc., labelled hand wash or washable. 40°...
-
Page 26: Programme Groups
PROGRAMME GROUPS The programme groups described below are not Dose the disinfectant for a liquor ratio of 1:5, available for every appliance. based on the maximum load quantity. For highly water-absorbent laundry (e.g. terry Press the symbol buttons to call up the menu for towelling), increase the amount of disinfectant to the relevant programme group. -
Page 27: Proficlean
Proficlean The Proficlean sets include specialised pro- grammes for different areas of application: • Proficlean (customised, self-written programmes) • Contract cleaners • Retirement homes • Commercial enterprises • Catering • Wellness centres • Campsites, launderettes • Hospitals, clinics The desired group can be activated via the PROFI- setting (see CLEAN SET... -
Page 28: Programme Options
PROGRAMME OPTIONS Intensive The options described below are not available for every appliance. For heavily soiled fabrics, especially for bleachable By selecting one or more options, a wash pro- stains (e.g. fruit, coffee, tea, red wine, oil). gramme can be tailored to the specifics of the The washing time is extended. -
Page 29: Rinse Stop
Soak The speed can be reduced in steps of 100 rpm by pressing the light bar next to SPEED At 0 rpm there is no spin cycle and the laundry • Press the light bar next to SOAK can be removed wet. •... - Page 30 • First select the desired programme. • Press the symbol button. TIME PRESET • Input the date and time for the end of the programme by pressing the light bar (15 min increments, up to a maximum of 24 hours). •...
-
Page 31: Settings
SETTINGS Settings menu Your washing machine has a default factory set- ting. You can adjust the settings to your individual requirements during initial operation or later. Press and hold the light bar next to until the Settings can only be changed if no wash pro- Settings menu is displayed. -
Page 32: Additional Settings
Additional settings Volume signal sound • Off The settings described below are not available for • Volume 1 every appliance. • Volume 2 • Volume 3 Language (default language) • Volume 4 German • Volume 5 ..The buzzer can be regulated in 5 levels or muted. can be pressed to call up ARROW BUTTONS Button sound... - Page 33 Hygiene function You can display your saved favourite programmes • Off directly in the start menu when you switch on the • On appliance. If the hygiene function is switched on, you will be Your favourite programmes are visible at first prompted to clean the machine beforehand when glance and can be selected as quickly as you select a programme with low wash tempera-...
- Page 34 Factory settings The settings can be reset to the default factory settings (delivery status). • Confirm the reset with Yes. All settings are reset. The saved favourite pro- grammes are also deleted Proficlean set Proficlean (customised programmes) • Contract cleaners •...
-
Page 35: Prepaid Card / Washmaster Card
PREPAID CARD / WASHMASTER CARD Prepaid card Selecting the programme • Select the desired wash programme (see Prepaid cards cannot be topped up by the user alone. WASHING / SELECT AND START PROGRAMME • Please contact the caretaker or the The display shows the selected programme with management. -
Page 36: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning the appliance Checking the water inlet hose WARNING To prevent water damage, the condition of the Risk of electric shock! hoses should be checked by a specialist every • Switch off the power supply to the machine five years for appliances without an Aquastop before starting cleaning. -
Page 37: Cleaning The Detergent Drawer
Cleaning the detergent drawer Removing the detergent drawer • The drawer can be pulled out completely by pressing lightly on the coloured tab in the middle compartment. • Replace the insert in the middle compartment. Cleaning the inside (weekly) • Push the detergent drawer back in. Emergency emptying Only for machine with drain pump. -
Page 38: Emergency Release
Notice WARNING Risk of injury! Up to 20 litres of water can leak out when • Switch off the power supply to the machine emptying! Loosen the pump cover carefully and turn off the water tap. and only gradually. • Once all the remaining water has been drained, the pump cover can be unscrewed completely. - Page 39 Appliance with Aquastop Notice Before unscrewing the inlet hose, the pressure • Disconnect the power supply. in the hose must be relieved: • Unscrew the inlet hose from the tap. • Close the water tap. • Start any wash programme and cancel it again after approx.
-
Page 40: Problems
PROBLEMS WARNING Improper repairs can result in serious accidents, damage and operation malfunctions! Do not make any changes, manipulations or attempts at repair, especially not using tools such as screwdrivers or similar. ERROR MESSAGES Child lock active • Hold the bar in the upper right (is not lit!) and at the same time press the desired button. - Page 41 The laundry could not be spun, even after loosening. • Press the light bar next to CANCEL The wash programme is interrupted. Notice • Mix large and small laundry items. • Avoid loading the drum with individual heavy laundry items. Too much foam The washing machine has detected foam and taken adequate Programme extended...
-
Page 42: Machine Operation
MACHINE OPERATION Appliance does not • Check the power supply to the appliance (wall switch/mains plug). start when pressing the • Check whether all the fuses are intact or the safety switch has button tripped. ON/OFF Mains blocking (usually around midday) •... -
Page 43: Error Messages F
ERROR MESSAGES F –– «Error F ––» is • Acknowledge the error message with . Machine restarts. displayed • Press the door shut. • Select a programme again and press START «Error F ––» is dis- • Acknowledge the error message with played again despite •... - Page 44 Detergent residues on Detergent residues are not due to a poor rinsing result from your the laundry washing machine. Phosphate-free detergents can leave insolu- ble residues that tend to deposit as light-coloured stains on the laundry. • Brush out the detergent residues after drying or rinse the laundry again (see PROGRAMME OVERVIEW / PROGRAMMES MAIN MENU / RINSE SPIN...
- Page 45 FOAM AND LEAKAGE Some foam remains Some detergents tend to produce a lot of foam, but this does not at the end of the affect the rinse results. programme Too much foam visible Too much detergent was used. during washing •...
- Page 46 Poor spin result The appliance has detected an imbalance that could not be corrected. If the laundry is underloaded or critical laundry items, such as bathroom mats, are present, the laundry cannot be sufficiently distributed. In this case, the spin speed is specifically reduced to protect the appliance from overstraining.
-
Page 47: Customer Service
Monday to Friday, 08:00 to 12:00 and a proverbially long service life. It is for this rea- 13:00 to 17:00. son that Schulthess carefully selects, tests and assembles parts, components and materials. Please make a note of error message F –– as well as the product and appliance number. -
Page 48: Ec-Declaration Of Conformity
Direttive 2014/30/EU Directive relating to electromagnetic compatibility 2014/54/EU Radio Equipment Directive (RED) 2006/42/EC Machinery Directive Wolfhausen, 24-07-2024 Hersteller / Manufacturer / Fabricant / Il produttore Schulthess Maschinen AG Landstrasse 37 CH-8633 Wolfhausen Thomas Marder Thomas Marder Verantwortlich für die technische Dokumentation ist:... - Page 49 Direttive Supply of Machinery (Safety) Regulations 2008 Electromagnetic Compatibility Regulations 2016 Radio Equipment Regulations 2017 Wolfhausen, 24-07-2024 Inverkehrsbringer / Distributor / Distributeur / Distributore Schulthess Maschinen AG Alte Steinhauserstrasse 1 CH-6330 Cham Thomas Digital unterschrieben von Thomas Marder Marder Datum: 2024.07.31...
- Page 50 1. Modèle de produit/produit (produit, type, lot, modèle ou série): WA24-6X HXX.DXX.WXX.00; Eberhardt WS 660-2 2. Nom et adresse du producteur: Schulthess Maschinen AG, Landstrasse 37, CH-8633 Wolfbausen 3. La présente déclaration de confoimité est établie sous la seule responsabilité du producteur 4.
- Page 52 Further documents and information on your machines can be found in the download centre or in the informa- tion area of your machines at www.schulthess.ch (see QR code). Schulthess Maschinen AG Alte Steinhauserstrasse 1, 6330 Cham ZG Phone + 41 (0) 55 253 51 11...
