Replace with a new brake board, secure the brake board with the screws and connect

the previously disconnected wires, as shown in Figure 3-37:
Load the mounting sheet metal module back into the box, install 4 anti-loosen nuts,

connect the fan cable, and connect the teach pendant cable, as shown in Figure 3-38:
Figure 3-38 Install sheet metal, nuts, and reconnect cables
Turn on the power and test whether the functions can work properly through the teach

pendant.
Version 2.10.0

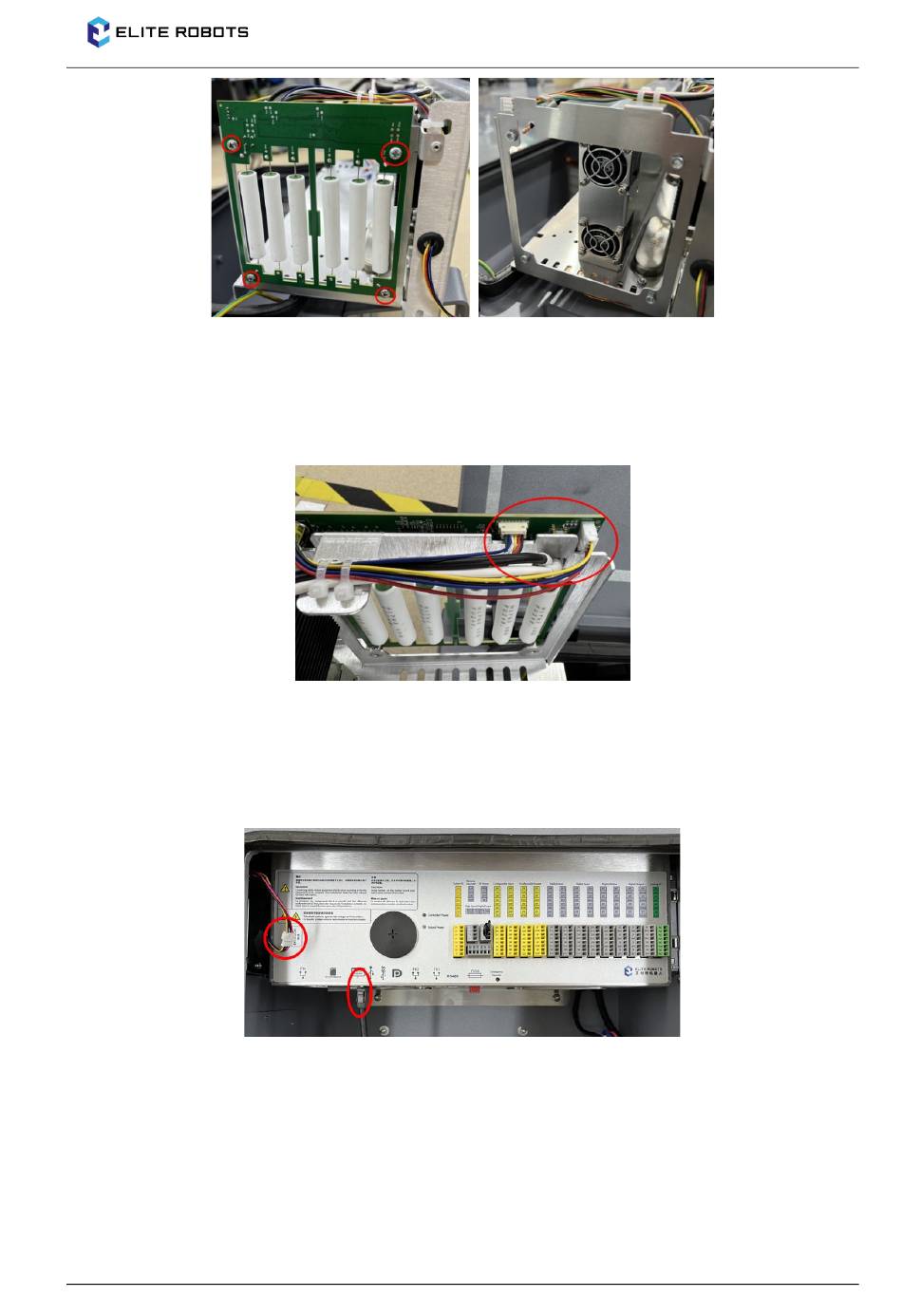

Figure 3-36 Remove the brake board
Figure 3-37 Reconnect the cable
