Mount the joint lids with 6 screws of M3×6, tighten them crosswise to 0.5Nm.


3.2.7 Upper Arm - Shoulder Joint

Disassembly:
For details and photos, please refer to Section 3.2.3.
Turn off the power;

Remove the joint lid;

Cut the cable tie and disconnect the wire between the upper arm and the shoulder

joint;

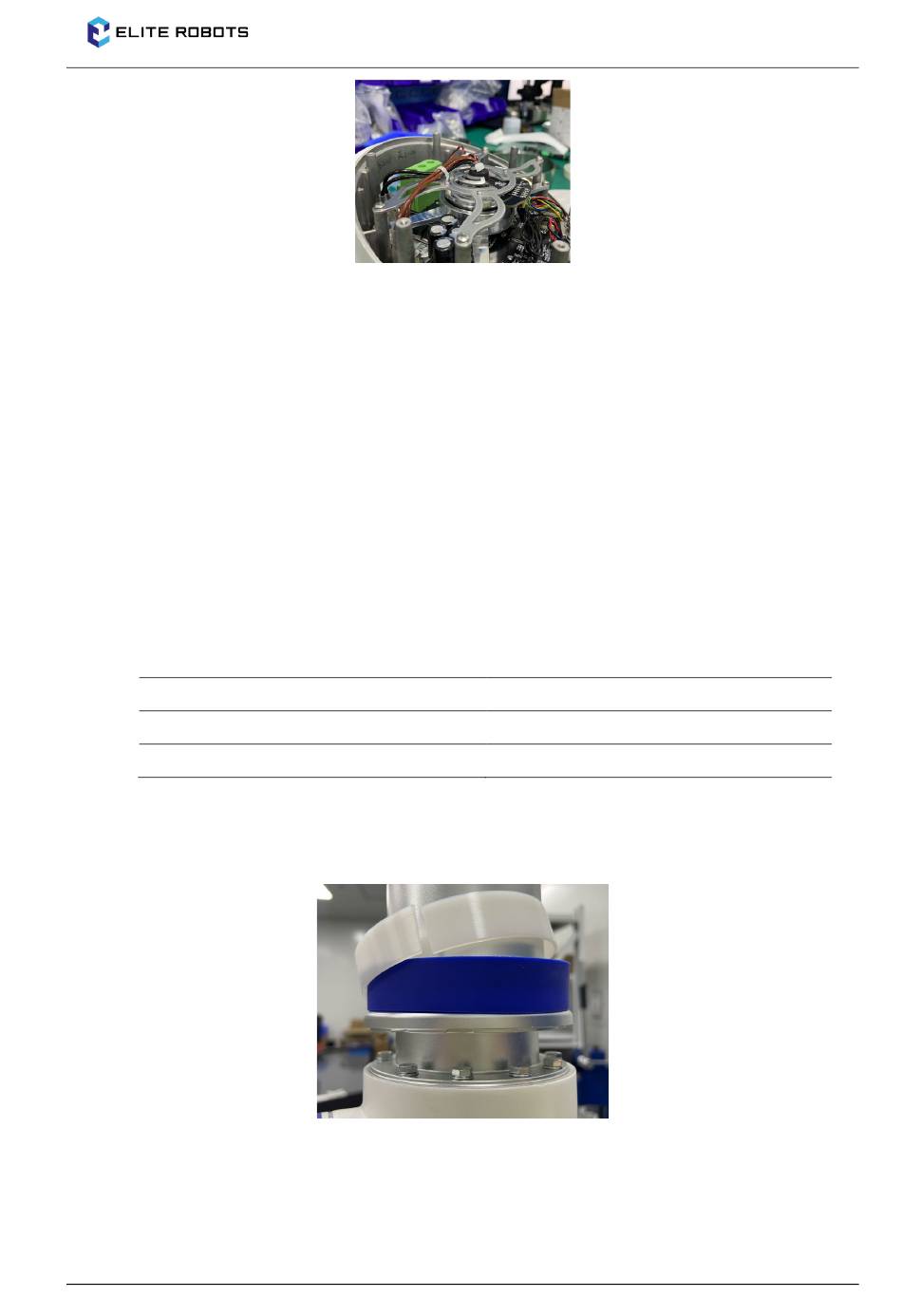

Gently remove the rubber ring and hang it around the upper arm. Then remove the

supporting ring as shown in Figure 3-11:
Figure 3-11 Remove the upper arm rubber ring and the supporting ring
Using an external hex wrench, loosen the 14 screws;

Pull the upper arm away from the shoulder joint.

