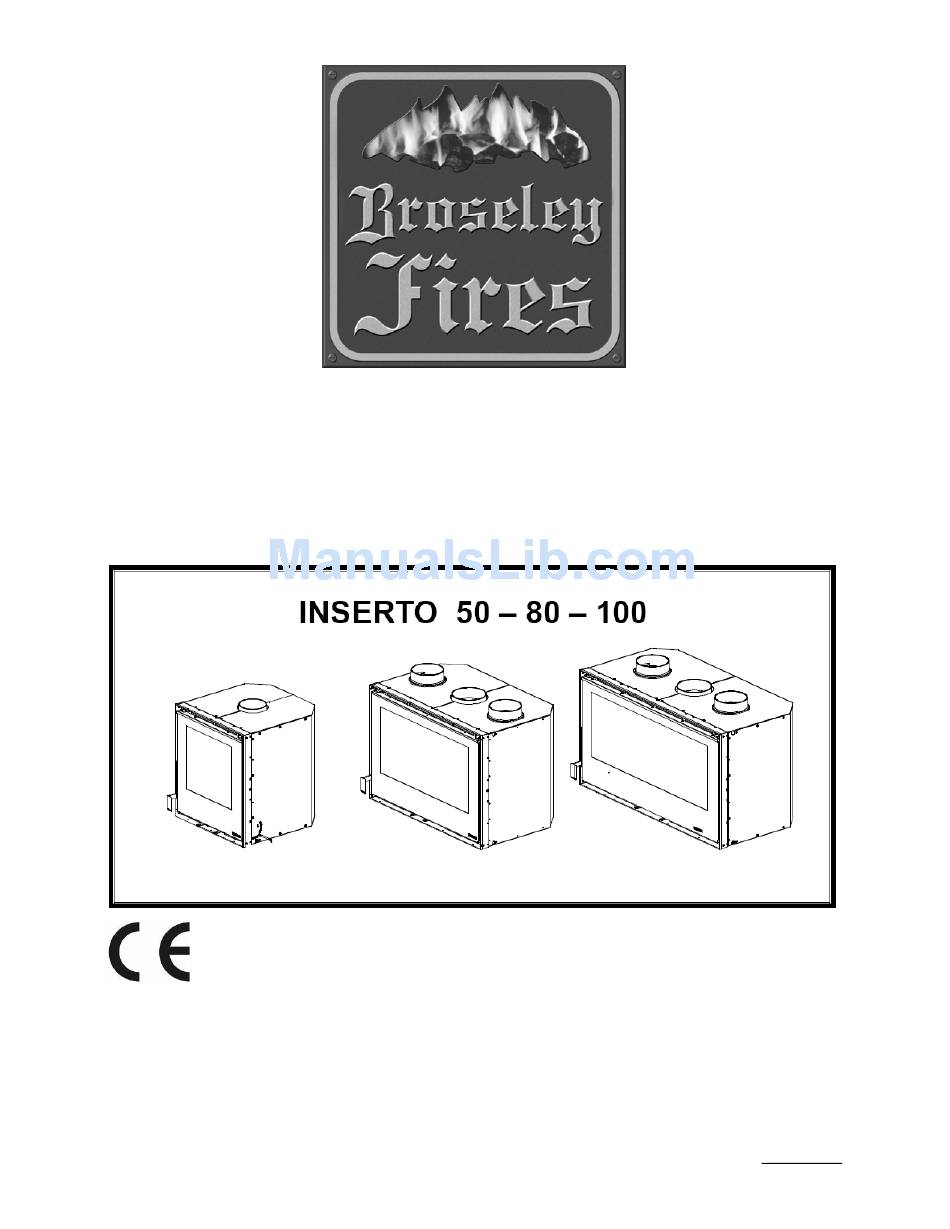

INSTALLATION AND OPERATION
INSTRUCTIONS FOR WOODBURNING:
Tested to EN 13229
This appliance must be installed and commissioned by a fully qualified, registered engineer. THESE
APPLIANCES ARE DESIGNED TO BURN WOOD ONLY
A "Declaration of Completion" Certificate must be obtained for the installation and retained by the end user.
Failure to comply with these requirements may void the warranty.
PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING, OPERATING OR SERVICING THIS APPLIANCE.
ISSUE-09-C
© 2007-2008 Broseley Fires Ltd
Advertisement
Table of Contents
Summary of Contents for Broseley INSETO 50
-
Page 1: Installation And Operation
A “Declaration of Completion” Certificate must be obtained for the installation and retained by the end user. Failure to comply with these requirements may void the warranty. PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING, OPERATING OR SERVICING THIS APPLIANCE. ISSUE-09-C © 2007-2008 Broseley Fires Ltd... - Page 2 The tar and creosote deposits in the chimney will fuel a chimney fire. Please note that it is a requirement under the Broseley Fires Ltd’s warranty system that the installation of the stove is carried out under by a Competent Person registered with a Government approved Competent Persons Scheme.
-
Page 3: Table Of Contents
VENTING THE HOUSING ADDITIONAL VENTILATION ADDITIONAL WARM AIR VENTS ISOLATING PLUG POSITION APPENDIX A TECHNICAL DRAWINGS OF THE APPLIANCES APPENDIX B TECHNICAL DRAWINGS OF THE OPTIONAL ‘DELUXE’ VENTILATION KIT ANNUAL SERVICE RECORD LIMITED WARRANTY © 2007-2008 Broseley Fires Ltd 3... -
Page 4: Technical Data
It is also important to ensure that the dwelling to be heated is well insulated and is as energy efficient as is practical before a heating appliance is chosen and installed. • The correct fuel must be used. © 2007-2008 Broseley Fires Ltd 4... -
Page 5: Technical Description
Having clean glass also improves the heat radiation through it. This control will be used when the fire is fully established. When the lever is pushed in it is open, to close, pull it out. © 2007-2008 Broseley Fires Ltd 5... - Page 6 USING YOUR STOVE – IMPORTANT NOTES This appliance must be installed and commissioned by a fully qualified, registered engineer. HETAS engineers are recommended by Broseley Fires. For your nearest search www.hetas.co.uk THE SURFACES OF THIS APPLIANCE GET HOT WHEN IN USE. PLEASE ENSURE THAT CHILDREN, THE ELDERLY AND THE INFIRM ARE MADE AWARE OF THIS •...
-
Page 7: Lighting And Maintaining A Log Fire
This will help to keep the chimney hot and working efficiently. Check that all the seals of the appliance are in good order and that the connections to the chimney are also sound. © 2007-2008 Broseley Fires Ltd 7... -
Page 8: Standard Ventilator Operation
This can be cleaned with a lint free, damp cloth. Do not leave this surface wet. If it is cleaned when the appliance is slightly warm, the damp surface will dry by itself. Otherwise, wipe the surface dry after cleaning. Another © 2007-2008 Broseley Fires Ltd 8... -
Page 9: C Glass Cleaning
SPARES THE APPARATUS MUST NOT BE MODIFIED IN ANY WAY. ONLY SPARE PARTS EXPRESSLY AUTHORISED OR SOLD BY BROSELEY FIRES LTD. MAY BE USED. CONSULT YOUR LOCAL AUTHORISED DEALER FOR ADVICE. © 2007-2008 Broseley Fires Ltd 9... -
Page 10: Chimney Fire
• Please comply with the technical data given in this instruction manual. • Illegal installations are not covered by any sort of guarantee. © 2007-2008 Broseley Fires Ltd 10... -
Page 11: Installation Of The Appliance
FIG. 5 The diameter of the ‘ADDITIONAL WARM AIR VENTS’ is shown below in FIG. 6 (below) INSERTO ØA ØB ØC OPTION NOT AVAILABLE FIG. 6 MAIN FLUE COLLAR FIG. 7 STOVE PIPE CONNECTIONS © 2007-2008 Broseley Fires Ltd 11... -
Page 12: Flue And Chimney Guidance
Document J may need to be increased and a special cowl may need to be fitted to help correct the issue. FIG. 8 © 2007-2008 Broseley Fires Ltd 12... -
Page 13: C Provision Of A Notice Plate
200 mm to the rear and 200 mm both sides. • In front of the appliance there must no flammable object or building material sensitive to heat within 1000mm. • Above the appliance, there must not be any flammable items within 630mm. © 2007-2008 Broseley Fires Ltd 13... -
Page 14: Venting The Housing
The gap generated between the top edge of the appliance and the housing will be less. The minimum recommended distance here is 5mm. The void behind the appliance, down each side and above it will be 60mm, as shown in the diagram above. © 2007-2008 Broseley Fires Ltd 14... -
Page 15: Additional Ventilation
MODEL 50, then the plug needs to be fitted onto the two left hand pegs. The picture here shows the plug on the two right hand pegs, this is suitable for the MODEL 80 and the MODEL 100. © 2007-2008 Broseley Fires Ltd 15... - Page 16 FIG. 12 APPENDIX A TECHNICAL DRAWINGS OF THE APPLIANCES INSERTO 50 INSERTO 80 © 2007-2008 Broseley Fires Ltd 16...
- Page 17 INSERTO 100 © 2007-2008 Broseley Fires Ltd 17...
- Page 18 APPENDIX B OPTIONAL ‘DELUXE’ VENTILATION KIT Please allow sufficient clearance below the fan for maintenance. INSERTO 80 INSERTO 100 ALL DIMENSIONS IN mm. Please refer to the drawing above. (Appendix B) © 2007-2008 Broseley Fires Ltd 18...
- Page 19 COMPANY ADDRESS: POSTCODE: 5TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: 6TH YEAR SERVICE completion date: SERVICE ENGINEER: . . REG. No. COMPANY NAME: COMPANY ADDRESS: POSTCODE: © 2007-2008 Broseley Fires Ltd 19...
- Page 20 Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, as they are unable to process any direct claim from an end user.
