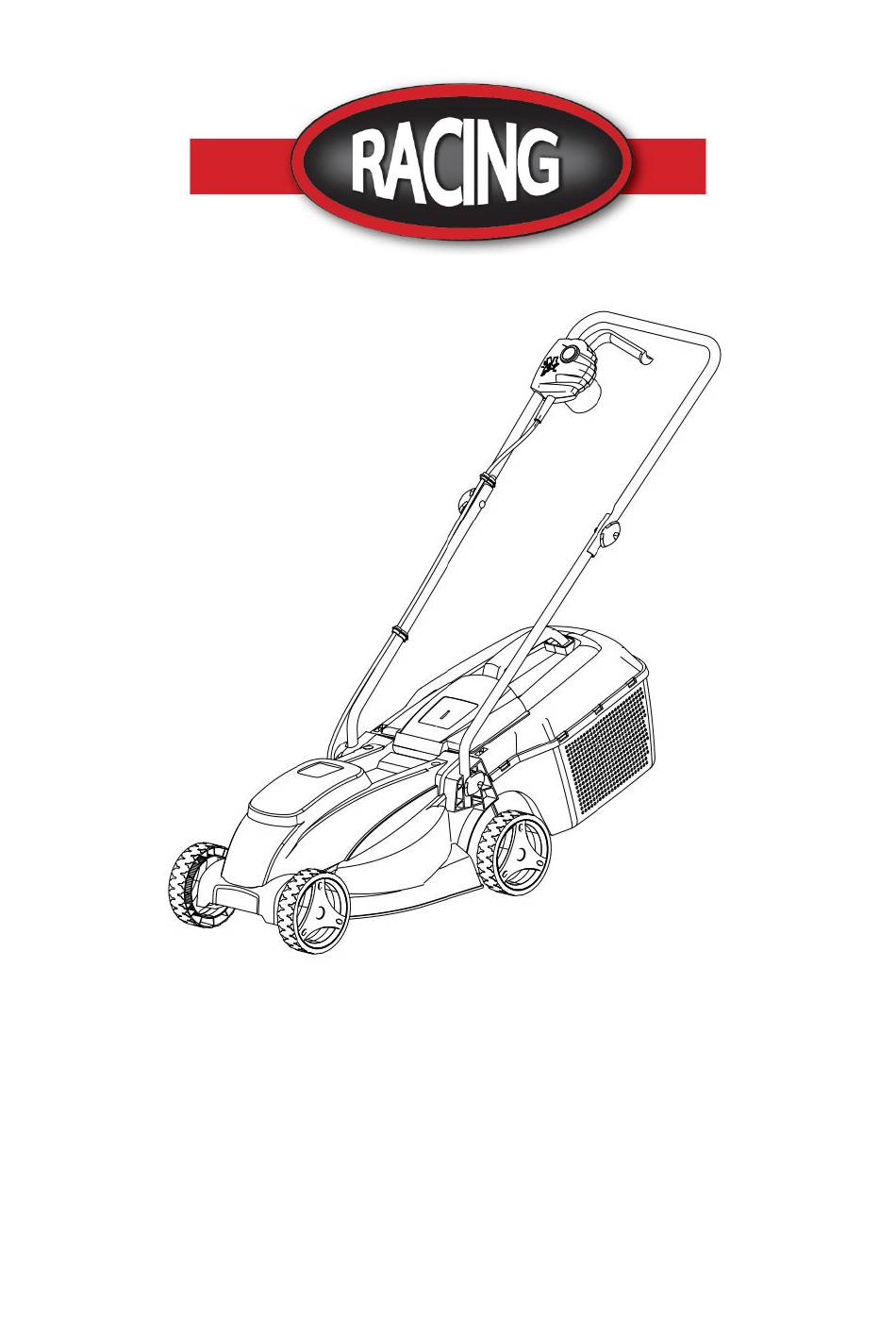

- Page 1 ORIGINAL INSTRUCTIONS ELECTRIC LAWNMOWER RAC1030ELA USER GUIDE CAUTION: Read the instructions before using the tool.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS 2. THE PRODUCT 3. ASSEMBLY 4. OPERATION 5. MAINTENANCE 6. DISPOSAL 7. DECLARATION OF CONFORMITY 8. WARRANTY 9. PRODUCT FAILURE 10. WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. Safe operating practices for electrically powered lawnmowers 1.1 TRAINING a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children or people unfamiliar with these instructions to use the machine. -
Page 4: Operation
or damaged. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels. d) Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. -
Page 5: Maintenance And Storage
l) Do not tilt the machine when switching on the motor, except if the machine has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part, which is away from the operator. m) Do not start the machine when standing in front of the discharge opening. - Page 6 c)On machines with multi blade, take care as rotating one blade can cause other blades to rotate d) Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine. 1.5 ADDITIONAL SAFETY RULES FOR LAWN MOWER - Read the instructions carefully.
- Page 7 grass, where feasible. Always be sure of your footing on slopes. Walk; never run. Always work across the face of slopes, never up and down. - Exercise extreme caution when reversing or pulling the appliance towards to you. - Do not operate the appliance on excessively steep slopes.
- Page 8 After striking a foreign object. Inspect the appliance for damage and make repairs as necessary. If the appliance starts to vibrate abnormally, check immediately. - When the machine is at work in the thick bushes or runs into obstacles it can’t cut down, the blade will be stalled so that the machine temperature and current will increase.
-
Page 9: Residual Risks
- Before connecting the appliance, check that the plugs and extension cords are in good condition. Do not use the appliance if the appliance is damaged or worn. - Never use the appliance if the guards are defective or without safety devices, for example the grass catcher in place. -
Page 10: Intended Use
attention. Symptoms "white finger" include numbness, loss of sensitivity, tingling, tingling, and pain, loss of strength, color changes or skin condition. These symptoms usually appear on the fingers, hands or wrists. Risk increases at low temperatures. 1.7 INTENDED USE This mower is designed for natural grass mowing. Any other use is prohibited. -
Page 11: The Product
2. THE PRODUCT 2.1 DESCRIPTION Upper handle 2. Lower handle 3. Switch box 4. Grass catcher 5. Wheels 6. Motor cover 2.2 TECHNICAL DATA Voltage 230-240V~ 50Hz Power rating 1000W No load speed 3450min Cutting height 25/45/65mm Max cutting width 320mm Declared guaranteed sound power level: 96 dB(A) Measured sound power level: 90,9 dB(A) K= 3,69 dB(A) -
Page 12: Assembly
3. ASSEMBLY 3.1 PREPARATION 1) Place the cable hook on the top handle (fig.1a). 2) Attach the top and bottom handles with the screws and bolts provided (fig.1b). 3) Insert the handles into the body of the mower. (fig.1c). Screw them with the provided screws. 4) Adjust each wheel to its axis, place the washer and secure with the pins "R"... - Page 13 To adjust the front wheel cutting height position o Turn the mower upside down. o Pull the wheel axle towards the front of the mower (1). o Locate the wheel axle into the desired cutting height adjustment position (2). Note: Make sure that both front right and left wheels are located in the same cutting height adjustment position.
-
Page 14: Operation
4. OPERATION 4.1 CONNECT TO POWER SUPPLY Warning! Before connecting to the main power supply, always check that the switch is off. o Use an extension cord that meets the requirements of this manual. o Connect this extension to the power socket of the tool. o Then connect the extension cord to a socket outlet. -
Page 15: Maintenance
5. MAINTENANCE 5.1 GENERAL MAINTENANCE Keep all nuts, bolts and screws tight to be sure the lawn mower is in a safe working condition. 1. Check the grass catcher frequently for wear or deterioration. 2. Replace worn or damaged parts for safety. 3. -
Page 16: Declaration Of Conformity
32, rue Aristide Bergès -Z1 31270 Cugnaux - France Tel. +33 (0) 5.34.502.502 Fax: +33 (0) 5.34.502.503 Declares that the machine named below ELECTRIC LAWNMOWER RAC1030ELA Serial number: 20210957149-20210957598 Complies with the following European Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU... -
Page 17: Warranty
8. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
