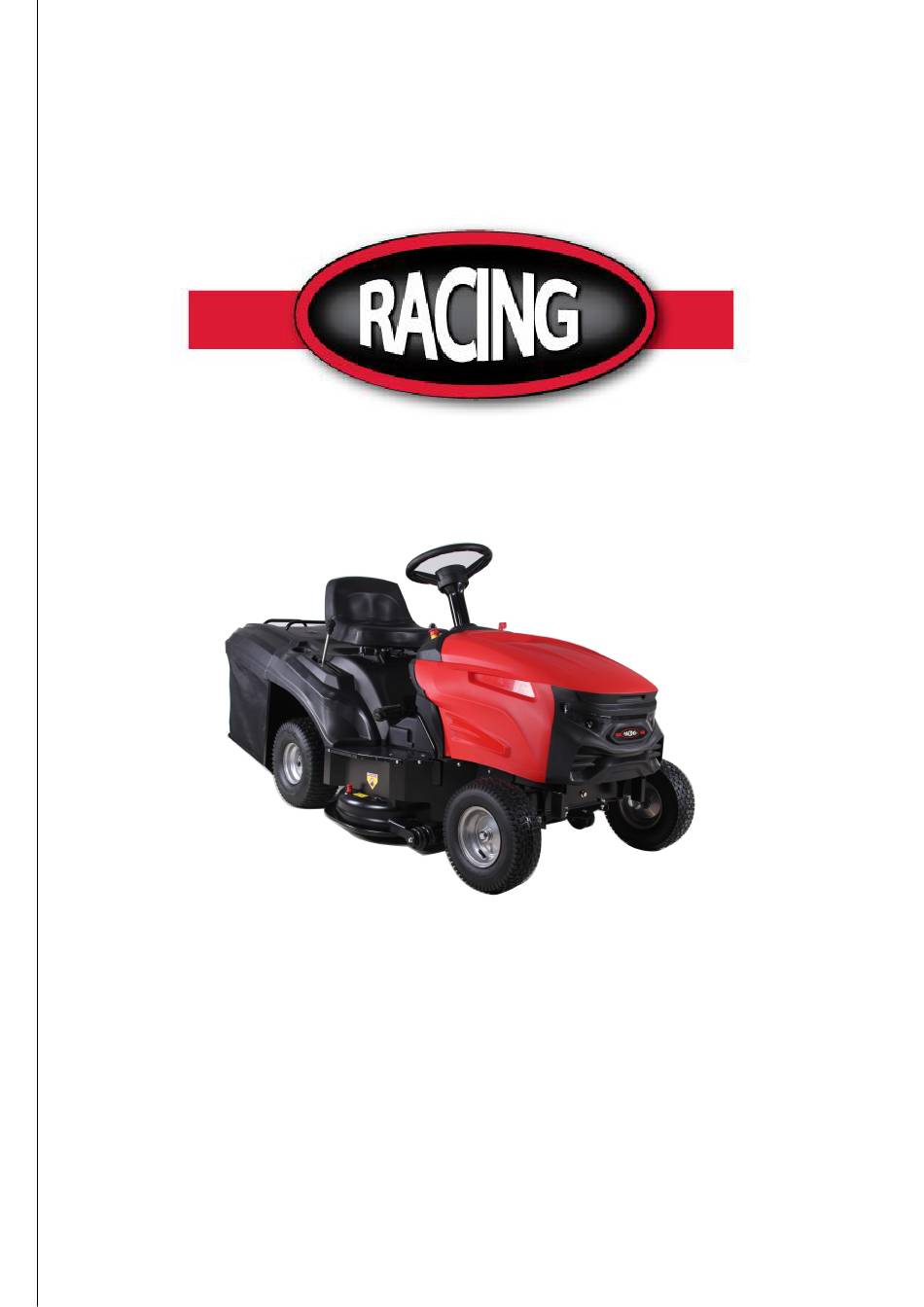

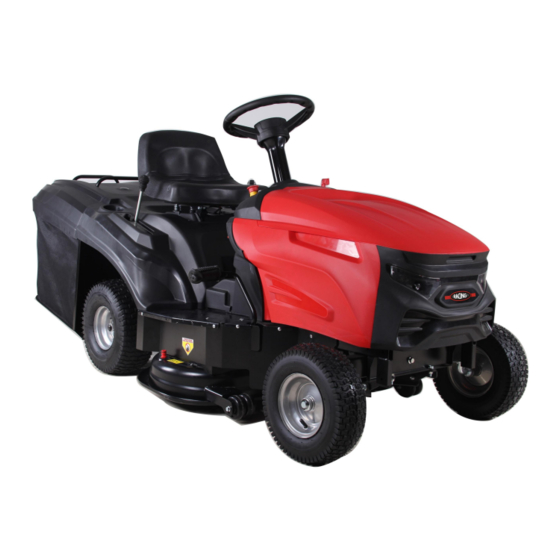

- Page 1 RIGINAL INSTRUCTIONS >EN SELF-PROPELLED PETROL LAWN TRACTOR RACT90EA-1 USER GUIDE CAUTION: Read this manual before using this machine!
- Page 2 Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been compiled in order that you may get to know your machine and to be able to use it safely and efficiently.
-
Page 3: Table Of Contents
1. SAFETY ........................4 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS........9 3. UNPACKING AND ASSEMBLY .................10 4. CONTROLS AND INSTRUMENTS ................12 5. HOW TO USE THE MACHINE ..................14 6. MAINTENANCE ......................25 7. ENVIRONMENTAL PROTECTION ................28 8. TROUBLESHOOTING....................28 9. ACCESSORIES ON REQUEST ................. 31 10. -
Page 4: How To Read The Manual
1.1 HOW TO READ THE MANUAL This manual describes various versions of the machine, which mainly differ in: – type of transmission: with either mechanical gear change or continuous speed converter. – the inclusion of components or accessories which may not be available in some areas; –... -
Page 5: General Safety Regulations
1.2 GENERAL SAFETY REGULATIONS Read carefully before using the machine. A) TRAINING 1) Read the instructions carefully. Be familiar with the controls and how to use the equipment properly. 2) Never let children or people unfamiliar with these instructions use the machine. Local regulations can restrict the age of the user. -
Page 6: Operation
C) OPERATION 1) Do not start the engine in a confined space where dangerous carbon monoxide fumes can collect. 2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral. 4) Do not use on slopes of more than 10°... - Page 7 5) Check the grass-catcher frequently for wear or deterioration. 6) Replace worn or damaged parts for safety purposes. 7) If the fuel tank has to be drained, this should be done outdoors. 8) When the machine is to be stored or left unattended, lower the cutting deck. Improper maintenance can reduce life of the tool and create accident and damages.
-
Page 8: Safety
Intended use This model of thermal mower is designed for natural grass mowing. Any other use is prohibited. It is suitable only for private use in a garden or plot. Lawnmowers designed for private plots or gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. -
Page 9: Identification Of The Machine
Danger! Away from the danger of combustible substances Danger! Do not near the operational machine WARNING! Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Danger ! Electrical shock ! The surface is very hot and not touching. - Page 10 3. Collector channel: this is the part connecting the cutting deck to the grass-catcher. 4. Grass-catcher: as well as collecting the grass cuttings, this is also a safety element in that it stops any objects drawn up by the blade from being thrown outside of the machine. 5.
-
Page 11: Fitting The Grass-Catcher
3.2 FITTING THE STEERING WHEEL Place the machine on a flat surface and straighten the front wheels. - Install steering wheel shaft (1) - Tap in elastic cylindrical pin (2), - Install casing (3), casing base (4), - Align steering wheel (5) on steering wheel shaft - Place flat washer (6) and spring washer (7) and tighten bolt (8). -
Page 12: Steering Wheel
Never start the engine until the battery is fully charged! Follow the battery manufacturer's instructions regarding safe handling and disposal. 4.1 STEERING WHEEL Turns the front wheels. 4.2 CLUTCH / BRAKE PEDAL It has a double function: during the first part of its travel it acts as a clutch, engaging and disengaging drive to the wheels, and in the second part it works the brake. -
Page 13: Key Ignition Switch
– The brake is engaged by pressing the pedal (☛4.2) right down and moving the lever to position «B». When you take your foot off the pedal it will be blocked by the lever in the down position. – To disengage the parking brake, press the pedal(☛4.2).The lever will return to position «A». -
Page 14: Accelerator Lever
ABRUPT STOP SWITCH This switch controls the pulling in and out of the electromagnetic clutch. A: When the emergency stop switch is lifted, the electromagnetic clutch is put ON. To make it powered ON, the key switch (4.6) must be in the ON position. "B": When the emergency stop switch is pressed, the electromagnetic clutch is disconnected and the blade stops rotating. -
Page 15: Why The Safety Devices Cut In
– transport people, children or animals on the machine or on a trailer; – tow or push loads; – use of the machine for moving over unstable, slippery, icy, stony, rough, marshy ground and puddles that do not allow for evaluation of the consistency of the ground;... -
Page 16: Preliminary Operations Before Starting Work
b) The engine stops when: – the operator leaves his seat when the blade is engaged; – the operator leaves his seat with a gear engaged; – the grass-catcher is lifted without disengaging the blade; – the blade is engaged without the grass-catcher in place; –... - Page 17 5.3.3 Filling with oil and fuel Refueling should be carried out in an open or well-ventilated area with engine stopped. Always remember that petrol fumes are inflammable. DO NOT TAKE A NAKED FLAME TO THE TANK’S OPENING IN ORDERS TO SEE THE TANK’S CONTENTS AND DO NOT SMOKE WHEN REFUELLING.
-
Page 18: Using The Machine
5.3.5 Checking machine safety and efficiency 1. Check that the safety devices function as described(☛5.2). 2. Check that the brake is in perfect working order. 3. Do not start mowing if the blade vibrates or if you are unsure whether they are sharp enough. -
Page 19: Starting And Moving Without Mowing
5.4.2 Starting and moving without mowing this machine has not been approved for use on public roads. It has to be used (as indicated by the Highway Code) in private areas closed to traffic. When moving the machine, the blade must be disengaged and the cutting deck put at its highest position. -
Page 20: Emptying The Grass-Catcher
following instructions. To start cutting: 1. remove any foreign objects that could be hit by the blade (stones, branches, bones, wire etc.) and mark off the position of hidden elements that cannot be moved (roots, sprinklers etc.); 2. check that the grass-catcher (☛3.4)is fitted properly; 3. -
Page 21: End Of Mowing
If the collector channel gets blocked (due to accumulated grass cuttings filling up the grass-catcher or an excessively high speed with relation to the quantity of grass cuttings), you need to: 1. stop forward movement immediately, disengage the blade and stop the engine; 2. - Page 22 Do not let debris and dry remains of grass accumulate in upper part of the cutting deck in order to keep maximum machine efficiency and safety levels. After each use, accurately clean the cutting deck to remove any grass remains or debris. Wear eye protection and keep people or animals away from the surrounding area when cleaning the cutting deck.
-
Page 23: Using On Slopes
Disconnect the connectors (2 and 3) of the battery (1). The battery must be kept in a cool and dry place. Before a long storage period (more than 1 month), always charge the battery, and then recharge before using again ( ☛... -
Page 24: Advice On How To Obtain A Good Cut
5.7 ADVICE ON HOW TO OBTAIN A GOOD CUT 1. To keep a lawn green and soft with a good appearance, it should be cut regularly without damaging the grass. 2. It is always better to cut the grass when dry. 3. - Page 25 3. Hang the left and right 2 springs on the small holes on the straw bag bracket to fix the cover plate. 4. Hung up the grass-catcher. 6.1 SAFETY RECOMMENDATIONS Disconnect the spark plug cap, remove the key (in the electric start models) or shift the accelerator lever to «OFF»...
-
Page 26: Maintenance
described in this manual must be carried out by your Dealer or a specialized Service Centre. Both have the necessary knowledge and equipment to ensure that the work is done correctly without affecting the safety of the machine. You must go to a specialized Service Centre or contact your Dealer of the following are malfunctioning: –... -
Page 27: Interventions On The Machine
constant voltage. Other recharging systems can irreversibly damage the battery. The machine comes with a charging interface that can be connected to the interface provided by the battery charger. This connector must only be used for connecting to the battery charger. For its use: 6.3 INTERVENTIONS ON THE MACHINE 6.3.1 Cutting deck alignment The cutting deck should be properly set to obtain a good cut. -
Page 28: Environmental Protection
1. remove the engine housing (1) using a hand; 2. replace the fuse (2) with another one with the same capacity; 3. remount the engine housing (1). The fuse capacity is indicated on the fuse. A blown fuse must always be replaced by one of the same type and ampere rating, and never with one of another rating. - Page 29 PROBLEM LIKELY CAUSE SOLUTION 1.With the key on «START» Electronic card blocked due to: Turn the key to «STOP» and look for the cause the starter motor of the problem: does not run – flat battery – recharge battery (☛6.2.3) –...
- Page 30 4. The engine does not start –earth connections of the micros witches –check connections disconnected – you are not ready for starting –check that the conditions allowing the start are met 5. Difficult to start -Carburetor failure –Clean or replace the air filter Unstable engine operation -Flush carburetor float chamber -Drain the tank and refill the fuel...
-
Page 31: Battery Charger
1. BATTERY-CHARGER Battery charger charges the battery when the machine is in storage. Note: The battery can be charged automatically if the motor is working. 2. Change Blade 1.Make sure there is no machine oil and gasoline in the tank, side lay the machine as the picture above. - Page 32 Model No. RACT90EA-1 84.5 dB(A) Sound pressure level, uncertainty K=3.0 dB 98.45 dB(A) Sound power level, uncertainty K=1.05 dB Guaranteed sound power level 100 dB(A) Vibration, uncertainty 4.159 m/s K=1.5 m/s Max. Engine power 6.5kW Max. Engine Speed 2900/min Engine displacement...
- Page 33 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: SELF-PROPELLED PETROL LAWN TRACTOR RACT90EA-1 Serial No.: 20221013831-20221014040 the people name holding the technical file：Mr. Olivier Patriarca have been designed in compliance with the following standards: EN-ISO 5395-1:2013+A1: 2018, EN-ISO 5395-3:2013+A1:2017+A2:2018 EN-ISO 14982：2009...
-
Page 34: Specifications
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 35: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 36: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 37 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
