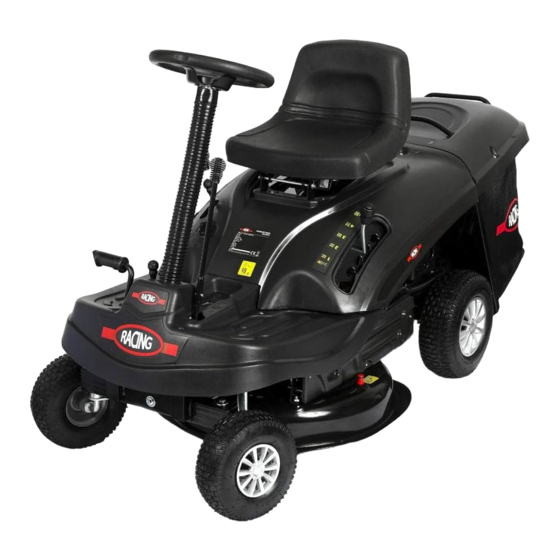

Ride-on lawn mower

Advertisement

Quick Links

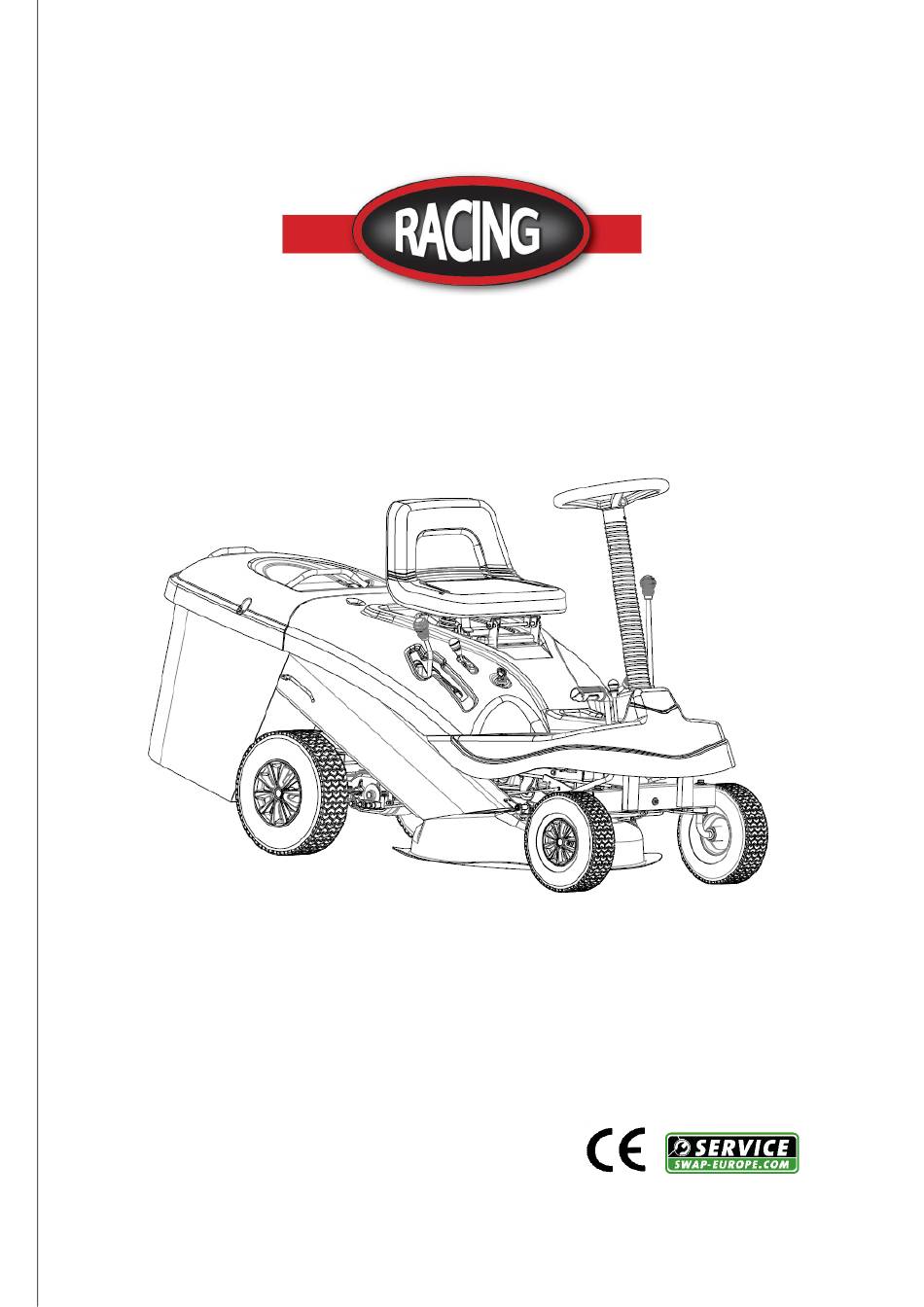

ORIGINAL INSTRUCTIONS
RIDE-ON LAWN MOWER
Modèle : RAC62PR
AVERTISSEMENT: Veuillez lire attentivement toutes les instructions et
consignes.
RACING
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAC62PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racing RAC62PR

  • Page 1 ORIGINAL INSTRUCTIONS RIDE-ON LAWN MOWER Modèle : RAC62PR AVERTISSEMENT: Veuillez lire attentivement toutes les instructions et consignes. RACING 32, rue Aristide Bergès - ZI 31270 Cugnaux – France - 1 -...
  • Page 2 Dear Customer, Thank you for having chosen one of our products. We hope that you will get complete satisfaction from using your new machine and that it will fully meet all your expectations. This manual has been compiled in order that you may get to know your machine and to be able to use it safely and efficiently.
  • Page 3 1. SAFETY .........................4 Regulations for using the machine safely 2. IDENTIFICATION OF THE MACHINE AND COMPONENTS........................8 Explanations on how to identify the machine and its main components 3. UNPACKING AND ASSEMBLY ...................8 Explanations on how to remove the packing and on how to assemble separated parts 4.
  • Page 4: How To Read The Manual

    1.1 HOW TO READ THE MANUAL This manual describes various versions of the machine, which mainly differ in: – type of transmission: with either mechanical gear change or continuous speed converter. – the inclusion of components or accessories which may not be available in some areas; –...
  • Page 5: Operation

    A) TRAINING 1) Read the instructions carefully. Be familiar with the controls and how to use the equipment properly. 2) Never let children or people unfamiliar with these instructions use the machine. Local regulations can restrict the age of the user. 3) Never mow while people, especially children, or pets are nearby.
  • Page 6: Maintenance And Storage

    2) Mow only in daylight or good artificial light. 3) Before starting the engine, disengage the blades and shift into neutral. 4) Do not use on slopes of more than 10° (17%). 5) Remember there is no such thing as a “safe” slope. Travelling on grass slopes requires particular care.
  • Page 7: Safety Labels

    7) If the fuel tank has to be drained, this should be done outdoors. 8) When the machine is to be stored or left unattended, lower the cutting deck. 1.3 SAFETY LABELS Your machine must be used with care. Therefore, labels have been placed on the machine to remind you pictorially of the main precautions to take during use.
  • Page 8: Identification Of The Machine

    Danger! Do not near the operational machine 2.1 IDENTIFICATION OF THE MACHINE The identification label located under the seat has the essential data of each machine. 2.2 NAME AND ADDRESS OF MANUFACTURER The machine is composed of a series of main component 11.
  • Page 9: Fitting The Steering Wheel

    Unpacking and completing the assembly should be done on a flat and stable surface, with enough space for machine handling and its packaging, always making use of suitable equipment. 3.1 UNPACKING When unpacking the machine, take care to gather all the individual parts, fittings and documentation.
  • Page 10: Fitting The Blade Engagement Lever

    3.4 FITTING THE BLADE ENGAGEMENT LEVER it the end of the lever (1) on the projecting part of the pin (2) and fix it all by tightening the screw (3) and nut (4) 3.5 CONNECTING THE BATTERY 1. Position the battery (1) in its compartment under the seat;...
  • Page 11: Steering Wheel

    4.21 4.6.1 4.11 4.12 4.1 STEERING WHEEL Turns the front wheels. 4.2 CLUTCH / BRAKE PEDAL This pedal has a double function: during the first part of its travel it acts as a clutch, engaging and disengaging drive to the wheels, and in the second part it works the brake. Do not keep the pedal half way of clutch engagement or disengagement, as this can cause overheating and damage the...
  • Page 12: Parking Brake Lever

    4.3 PARKING BRAKE LEVER This lever stops the machine from moving when it has been parked. There are two positions: 4.3 PARKING BRAKE LEVER This lever stops the machine from moving when it has been parked. There are two positions: –The brake is engaged by pressing the pedal (☛4.2) right down and moving the lever to position «B».
  • Page 13: Key Ignition Switch

    4.6 LEVER ENGAGEMENT AND BRAKE OF BLADE The lever has two positions, as shown on the plate: –If the blade is engaged when safety conditions have not been complied with, the engine shuts down and cannot be restarted ( ☛5.2). –...
  • Page 14 «CHOKE» (if fitted) = cold starting «FAST» for maximum engine speed «SLOW» for minimum engine speed –The «CHOKE» position (if fitted) enriches the mixture so must only be used for the necessary time for cold starting. – When moving from one area to another, put the lever in a position between «SLOW» and «FAST».
  • Page 15: Safety Recommendations

    – Disengage the blade. – Put the lever in a P parking block. – Hang up the grass-box 5.1 SAFETY RECOMMENDATIONS The machine must only be used for the purpose for which it was designed (cutting and collection of grass). Using the machine in any other way is considered "improper use"...
  • Page 16: Why The Safety Devices Cut In

    ☛ (17%) ( 5.5). All the references relating to the positions of controls are those described in chapter 4. 5.2 WHY THE SAFETY DEVICES CUT IN The safety devices work in two ways: – by preventing the engine from starting if all the safety requirements have not been met; –...
  • Page 17 5.3.2 Tire pressure Having the correct tire pressure is essential for ensuring that the cutting deck is perfectly horizontal and thus mows evenly. 1. Unscrew the valve caps; 2. Connect a compressed air line with a gauge to the valves and adjust the pressure to the indicated values.
  • Page 18 To refuel (to be done when the machine has stopped): 1. unscrew the plug (4) from the tank located behind the seat; 2. refuel using a funnel, but do not completely fill the tank. The tank's capacity is about 1.1 liters; 3.
  • Page 19: Using The Machine

    5.4 USING THE MACHINE 5.4.1 Starting the engine all starting operations have to be effected in an open or well-ventilated area! ALWAYS REMEMBER THAT EXHAUST GASES ARE TOXIC! To start the engine: 1. sit on the seat and press the brake pedal right down(☛4.3); 2.
  • Page 20 roads. It has to be used (as indicated by the Highway Code) in private areas closed to traffic. When moving the machine, the blade must be disengaged and the cutting deck put at its highest position. To start the forward movement: 1.
  • Page 21 5.4.5 Grass cutting The machine is not designed for heavy duty use or for mowing large quantities of grass. The blade is engaged by means of a clutch device. To avoid damage or premature wear of the friction elements, strictly observe the following instructions.
  • Page 22 5.4.6 Emptying the grass-catcher The grass-catcher is full when the grass cuttings remain on the lawn. If you continue mowing with the grass-catcher full, it may block the collector channel. To empty the grass-catcher: 1. lower the engine speed; 2. go into neutral (N) (☛4.4) and stop the machine’s forward movement;...
  • Page 23 «ON» position when the engine is not running. 1. shift the accelerator lever to «OFF». Always make sure that the accelerator level is in the «OFF» position before leaving the machine unattended 5.4.10 cleaning the machine After each mowing, clean the outside of the machine, empty the grass-catcher and shake it to remove residual grass and earth.
  • Page 24 Take off the grass-catcher, empty and rinse it, then put it in a position where it can dry quickly. b) To clean the upper part of the cutting deck: – lower the cutting deck completely (position «1»); – blow a jet of compressed air to remove any remains of grass. 5.4.11 Storage and inactivity for long periods If the machine is likely to be unused for a long period (more than 1 month),,follow the instructions in the engine manual.
  • Page 25: Using On Slopes

    5.5 USING ON SLOPES When mowing lawns on a slope, observe the maximum gradients already mentioned (max 10° - 17%) and move up and down but never across them. Take great care when changing direction that the highest wheels do not hit obstacles (such as stones, branches, roots, etc.) that may cause the machine to slide sideways, tip over or otherwise cause loss of control.
  • Page 26: Advice On How To Obtain A Good Cut

    5.7 ADVICE ON HOW TO OBTAIN A GOOD CUT 1. To keep a lawn green and soft with a good appearance, it should be cut regularly without damaging the grass. 2. It is always better to cut the grass when dry. 3.
  • Page 27: Routine Maintenance

    Never use the machine with worn or damaged parts. Faulty or worn-out parts must always be replaced and not repaired. Only use original spare parts: The use or non-original and/or incorrectly fitted parts will compromise the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible.
  • Page 28: Interventions On The Machine

    lubricated and this lubricant does not need changing or topping up. 6.2.3 Battery To ensure long life to the battery it is essential to keep it carefully maintained. The machine battery must always be charged: – before using the machine for the first time after purchase; –...
  • Page 29 of the alignment of the cutting deck. 6.3.2 Replacing wheels 1. Place the machine on a flat surface and put blocks under a load-bearing part of the frame on the side of the wheel to be changed; 2. using a screwdriver, remove the snap ring (1) and the washer (2);...
  • Page 30 A blown fuse must always be replaced by one of the same type and ampere rating, and never with one of another rating. If you cannot find out why the fuse has blown, consult a Licensed Service Centre. The electric system and the card are not protected by any fuses. If the safety system fails to work properly or there are engine problems due to the electric system, contact a Licensed Service Centre.
  • Page 31 PROBLEM LIKELY CAUSE SOLUTION 1.With the key on «START» Electronic card blocked due to: Turn the key to «STOP» and look for the cause the starter motor of the problem: does not run – flat battery – recharge battery (☛6.2.3) –...
  • Page 32 4. The engine does not start – earth connections of the micros witches –check connections disconnected – you are not ready for starting –check that the conditions allowing the start are met (☛5.2.a) The engine stops –earth connections of the micro switches –check connections Disconnected Starting is difficult or the...
  • Page 33 automatically voided and the manufacturer is not held responsible if repairs are done badly. 1. BATTERY-CHARGER (on request) Battery charger charges the battery when the machine is in storage. Note: The motor can be started manual (without battery) and the Battery will be charged automatically if the motor is working.
  • Page 34 Vibration level (according to the standard ISO 5395-1:2013, Annex F) ......m/s2 1.265 – Measurement uncertainty (2006/42/EC) ....m/s2 1.5 Engine type: Electrical system 12 V Battery................... 7 Ah Front tires.................10 x 3.50 Rear tires ................13 x 5.00 Front tire pressure............1.8 bar Rear tire pressure ............1.3 bar Net weight...............115kg Cutter width…………………………………………………...
  • Page 35 - 35 -...
  • Page 36: Declaration Of Conformity

    ZI, 32 rue Aristide Bergès – 31270 Cugnaux – France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 declares that the machines: RIDE-ON LAWN MOWER RAC62PR Serial No.: the people name holding the technical file:Mr. Olivier Patriarca have been designed in compliance with the following standards:...
