Summary of Contents for Racing RAC4000P-A3

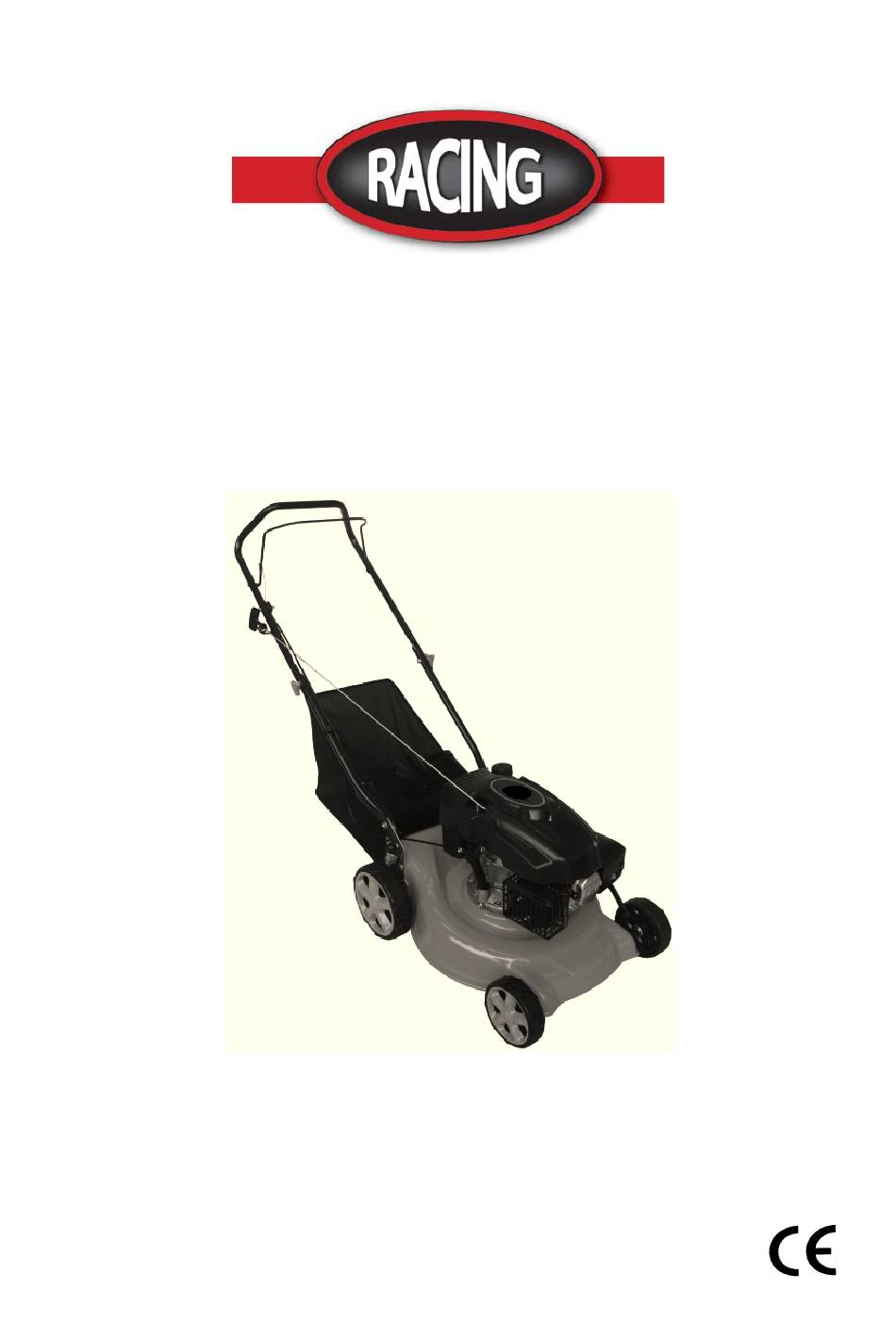

- Page 1 ORIGINAL INSTRUCTIONS GASOLINE LAWNMOWER RAC4000P-A3 WARNING: READ THE INSTRUCTIONS BEFORE USE THE TOOL. BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: General Safety Rules
GENERAL SAFETY RULES Instructions • Read the instructions carefully. Be familiar with the controls and proper use of the equipment. • Never allow children to use this mower. If the mower is given to another people, also give this manual. Also make sure that this person uses this device only after receiving the necessary instructions. - Page 3 • Use extreme caution when tipping or pulling the mower towards you. • Never use the mower with defective guards, or without safety devices such as baffles and or collection bins, which are not in place. • Do not change the motor configuration or increase the speed. •...
- Page 4 formation/ training with a professional or an experienced person. • Always use the mower with its pick-up bag and / or deflector in the intended position. • Switch off the engine before emptying the pick-up bag or before changing the cutting height.
- Page 5 Fuel Handling Use caution when handling fuels. They are flammable and the vapours are explosive. Use only an approved container. Never remove the fuel cap or add fuel while the machine is on. Turn off the unit and allow the engine and exhaust components to cool down before refuelling.
- Page 6 gardens are those used for the maintenance of grassy areas and private lawns and should not be used in public areas, parks, sports, agricultural or forest areas. CARE INSTRUCTIONS IMPORTANT - Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged in time.
- Page 7 - Take breaks. The following factors shorten the duration of use: - Personal tendency to suffer poor blood supply to (symptoms often cold fingers, tingling); - Use at low ambient temperatures; - Force exerted on the handles (a very firm grip discomfort irrigation blood). If you regularly use the machine for long periods and that symptoms listed above (e.g.
- Page 8 Symbols Read the instructions Watch out for projections! Keep viewers away from work area Danger! Keep your hands and feet away from the cutting element Toxic fumes; don’t operate inside house. Fuel is flammable, keep fire away. Do not add fuel with running machine. Caution –...
- Page 9 DESCRIPTION 1. Operator control lever 2. Upper bar 3. Lower bar 4. Fuel tank 5. Air filter 6. Primer bulb 7. Oil tank 8. Cutting height lever 9. Flap 10. Grass catcher 11. Starter rope...
- Page 10 Assembly Unpacking Remove all packing materials. Remove remaining packaging and transit supports (if existing). Check the completeness of the packing content. Check the appliance, the power cord, the power plug and all accessories for transportation damages. Keep the packing materials as long as possible till the end of the warranty period. Dispose it into your local waste disposal system afterwards.
- Page 11 Brake Cable Setup Put the brake cable to the hole of brake lever. (See the arrow mark) Brake Cable Grass Bag Assembly Slide the grass bag frame into the grass bag and attach the clips as shown. Open the flap. Install then the grass bar on the tool; put the hook on the bar to fix it.
-
Page 12: Before Operation
Before Operation Engine Oil The mower is shipped without oil in the engine. All engines are run at the factory prior to packaging. Most of the oil is removed prior to shipment; however, some oil remains in the engine. The amount of oil left in the engine varies. - Page 13 Tighten the fuel tank cap Tank Capacity: 1.2 L, Essence: 95 or 98 oct. WARNING! Gasoline is extremely flammable. Store fuel in specially designed cans for this purpose. Fill the fuel tank only outdoors and before starting the engine. Do not smoke when filling the fuel tank or handling fuel.
- Page 14 tting Heig ht Adjustm ment Acco ording opera ation to be pe erformed, ad djust the des ired cutting h height; Grasp p the lever, p pull it to th he right and then lower i t to decreas e the cutting g height or ra aise it to inc rease the cu...
-
Page 15: Operation
Operation Starting the Engine Primer In cold condition, it’s necessary to push the primer bulb before pulling the starter rope. Primer only for cool engine use Temperature Push time <0℃ 0℃~10℃ 10℃~20℃ PRIMER >20℃ BULB Pull back on the operator control lever and hold it against the handle. Operator control lever... -
Page 16: Stop Engine
The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended. Take the starter rope with your right hand and pull slowly as far as to have resistance, then pull... -
Page 17: Maintenance
The blade will continue to rotate for a few seconds after the engine has stopped. Disconnect the spark plug cap if the lawnmower is to be left unattended. Maintenance IMPORTANT Regular, careful maintenance is essential for keeping the safety level and original performance of the machine unchanged in time. Lack of maintenance or improper maintenance can quickly damage the machine and give poor work results. - Page 18 Whenever the machine is to be handled, transported or tilted you must: -Wear strong working gloves; -Grasp the machine at the points that offer a safe grip, taking account of the weight and its distribution. Blade Inspection Tilt the mower to the right, so the air cleaner side is up. This will help to prevent fuel leakage and hard starting.
-
Page 19: Grass Bag Cleaning And Replacement
Removal and installation Wear heavy gloves to protect your hands. Remove the bolt with a socket wrench. Use a wooden block to prevent the blade from turning when removing the bolt. Then remove the blade. Install the blade using the blade bolt and special washers. Be sure to install the special washers with the concave side toward the blade and the convex side toward the bolt. -
Page 20: Engine Maintenance
Replacement Unclip the plastic edges of the bag from the frame; remove the frame from the bag. Insert the frame into the bag; clip the plastic edges of the bag onto the frame. Engine Maintenance Change Engine Oil Drain the used oil while the engine is warm. Warm oil drains quickly and completely. Wipe the oil filler area clean, and then remove the oil filler cap/dipstick. - Page 21 Wipe dirt from the inside of the air cleaner base and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburettor. Reinstall the filter and cover. Spark Plug Service For good performance, the spark plug must be properly gapped and free of deposits.
- Page 22 Operator control lever cable adjustment If the operator control lever is loose, you should turn the brake cable adjustment to tighten. (please see the picture) Maintenance Schedule REGULAR SERVICE Every PERIOD(4) First Every 3 Every 6 Every Before Month Months Months Year ITEM...
-
Page 23: Troubleshooting
Trouble Shooting ENGINE WILL NOT START Possible Cause Correction Out of fuel. Refuel Bad fuel; engine stored Drain the fuel tank and 1. Check fuel. without treating or draining carburettor. Refuel with fresh gasoline, of refuelled with gasoline. bad gasoline Spark plug faulty, fouled, or Replace the spark plug. - Page 24 Storage The same petrol must not remain in the tank for more than one month. Thoroughly clean the mower and store it indoors in a dry place. Never store the lawnmower with fuel in the tank inside a building where can reach an open flame or spark.
-
Page 25: Technical Data
Clean the air filter according to directions. When, after many years of service, your machine needs to be replaced or is no longer required, we recommend that the machine is returned to you distributor for recycling. TECHNICAL DATA Dimensions L x l x h 660*510*425 Dry weight 40.4... - Page 26 - France Tel. +33 3 (0) 5.34.50 2.502 Fax: + +33 (0) 5.34. .502.503 Declares that the machine named below GASOLINE LAWNMOWER RAC4000P-A3 rial number: 20201251254-20201251667 Complie es with the f following Eu uropean Dir rectives: Machinery y Directive 2...
-
Page 27: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 28: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 29: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
