Summary of Contents for Ryobi REEDGA20

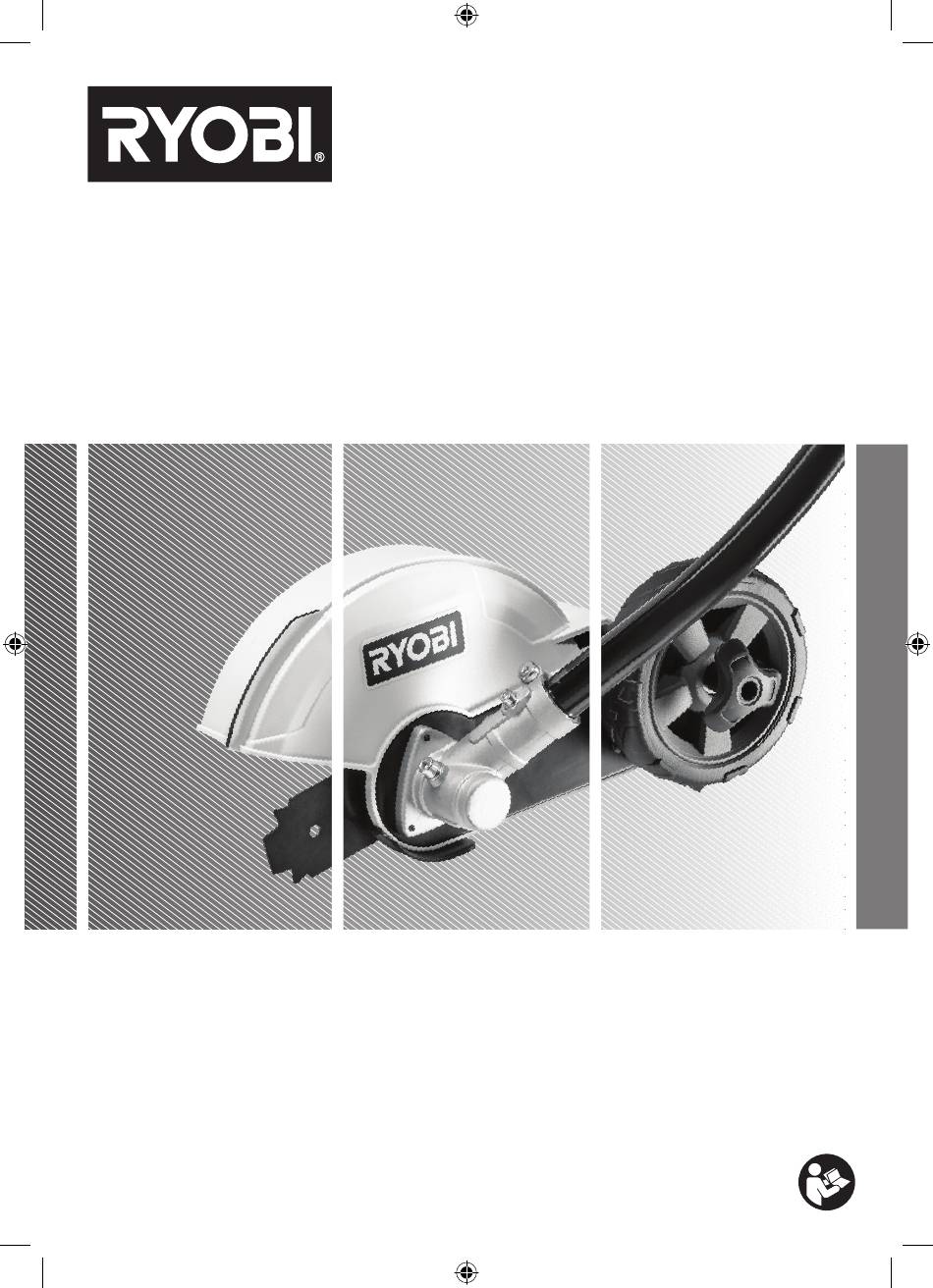

  • Page 1 REEDGA20...
  • Page 2 The edger attachment is approved for use with the following ■ If operating a power tool in a damp location is RYOBI power heads: unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of ■...
  • Page 3 Disconnect the plug from the power source and/ ■ SERVICE or remove the battery pack, if detachable, from ■ Have your power tool serviced by a qualified repair the power tool before making any adjustments, person using only identical replacement parts. This changing accessories, or storing power tools.

  • Page 4: Overload Protection

    0 °C and 40 °C. SYMBOLS ON THE PRODUCT OVERLOAD PROTECTION RYOBI 18 V lithium-ion batteries are designed with features Safety alert that protect the lithium-ion cells and maximise battery life. If the product stops during use, the following may be the...

  • Page 5: Symbols In This Manual

    Regulatory Compliance Mark (RCM). Wear eye, ear, and head protection. The product meets applicable regulatory requirements. Wear non-slip safety footwear when Waste electrical products should not using the product. be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
  • Page 6 REEDGA20 Hanger cap Lock button Lower shaft Blade guard Blade Depth adjustment knob Operator's manual Lock pin Know your product...
  • Page 7 Push the lock button and remove the hanger cap from the lower shaft. Always wear full eye, ear, and head protection, non-slip heavy-duty gloves, appropriate respiratory mask, substantial footwear while operating the product. Do not operate the product when barefoot or wearing open sandals. Insert the lower shaft to the upper shaft and tighten the coupler to secure the drive shafts.
  • Page 8 Operating the product Replacing the Cleaning the Storing the p.10 p.11 p.12 blade product product...

  • Page 9: Operating The Product

    OPERATING THE PRODUCT WARNING: Beware of objects thrown by the cutting means. Remove debris like small stones, gravel, and other foreign objects from the work area before starting operation. Wires or string may become entangled with the cutting means. WARNING: Keep hands and feet away from the blade at all times and especially when turning on the motor.

  • Page 10: Replacing The Blade

    REPLACING THE BLADE WARNING: Place the product on a level surface. Position the product with the motor side down and the blade guard side up. 1. Align the slot in the inner flange with the slot in the motor ring. Insert the locking pin through both slots to lock the inner flange and motor ring.

  • Page 11: Cleaning The Product

    CLEANING THE PRODUCT 1. Place the product on a level surface. Position the product with the motor side down and the blade guard side up. 2. Remove all foreign materials from the product using a soft, dry brush. WARNING: Do not use water to clean the product.

  • Page 12: Storing The Product

    STORING THE PRODUCT NOTE: Clean the product before storing. 1. Push the lock button, and turn the knob counterclockwise to remove the lower shaft from the upper shaft. 2. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children and away from sources of ignition.

  • Page 13: Product Specifications

    Weight (without battery pack) 5.2 kg Weight (with the heaviest battery 7.96 kg Edger attachment pack) Vibration level (in accordance with IEC 62841-1) Model REEDGA20 Front handle = 2.0 m/s Weight 2.06 kg Rear handle = 3.8 m/s Blade length...

  • Page 14: Replacement Part

    NOTE: Visit your local special orders desk or contact RYOBI collected. TECHTRONIC does not, and will not, recommend customer service for replacement parts.
  • Page 16 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961480339-02...
