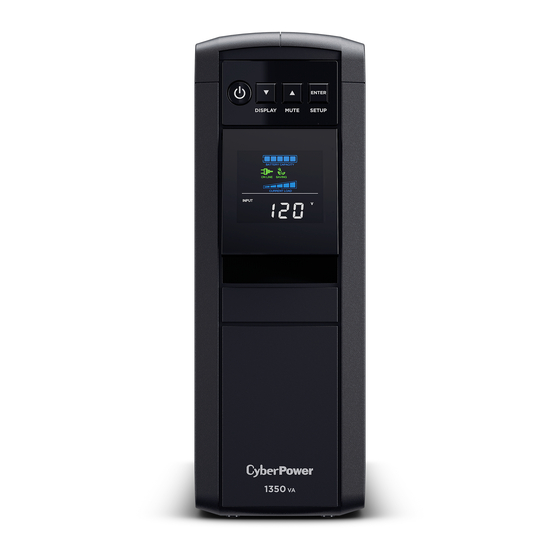

CyberPower CP1350PFCLCD User Manual

Pfc sinewave ups
Hide thumbs Also See for CP1350PFCLCD:
Table of Contents

Advertisement

Quick Links

FEATURES
1.
Power Switch
2. Power On Indicator
3. LCD Module Display
4. Down/Display Button
5. Up/Mute Button
6. Enter/Setup Button
7. USB charge ports
(Except for CP1350PFCLCD)
8. Battery and Surge Protected Outlets
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
YOUR ULTIMATE ALLY IN POWER
PFC SINEWAVE UPS SERIES
CP1350PFCLCD/1500PFCLCD
USER MANUAL
Cyber Power Systems (USA), Inc.
9. Full-Time Surge Protection Outlets
10. Circuit Breaker
11. DB9/USB Ports to PC
12. Wiring Fault Indicator (red)
13. Communication Protection Ports (RJ45)
14. SNMP/HTTP Network Slot
(Except for CP1350PFCLCD)
15. Widely-Spaced Outlets Designed
for AC Adapters

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP1350PFCLCD and is the answer not in the manual?

Questions and answers

Related Manuals for CyberPower CP1350PFCLCD

Summary of Contents for CyberPower CP1350PFCLCD

  • Page 1 12. Wiring Fault Indicator (red) 5. Up/Mute Button 13. Communication Protection Ports (RJ45) 6. Enter/Setup Button 14. SNMP/HTTP Network Slot (Except for CP1350PFCLCD) 7. USB charge ports (Except for CP1350PFCLCD) 15. Widely-Spaced Outlets Designed for AC Adapters 8. Battery and Surge Protected Outlets Cyber Power Systems (USA), Inc.

  • Page 2: Product Registration

    PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support.

  • Page 3: Installing Your Ups System

    80% of the unit’s rated capacity. SUPPORTS Active PFC POWER SUPPLIES This CyberPower UPS system supports High HARDWARE INSTALLATION GUIDE Efficiency power supplies with Active Power 1. Your new UPS may be used immediately Factor Correction (Active PFC).
  • Page 4 CYBERPOWER GREENPOWER UPS™ TECHNOLOGY Advanced Energy-Saving Patented Bypass Technology CyberPower’s patented GreenPower UPS™ with Bypass Technology reduces UPS energy costs by up to 75% compared to conventional UPS models. Even when utility power is normal, conventional UPS models constantly pass power through a transform- er.

  • Page 5: Basic Operation

    Press the button for 2 seconds to enter the 14. SNMP/HTTP Network Slot setup menu and then select the functions (Except for CP1350PFCLCD) for configuration. For more information Remove the cover panel to install an about the Enter/Setup Button, please refer optional RMCARD provides remote to the Function Setup Guide.

  • Page 6: Replacing The Battery

    1. When replacing batteries, replace with the 5. CAUTION: A battery can present a risk same number of the following battery: CyberPower / RB1270X2C for the of electrical shock and high short circuit CP1350PFCLCD; CyberPower / RB1290X2 current. The following precautions should for the CP1500PFCLCD.

  • Page 7: Definitions For Illuminated Lcd Indicators

    UPS system is receiving from the utility E01: Charger Fault – Overcharge wall outlet. The UPS is designed, through (Contact CyberPower Systems for support.) the use of automatic voltage regulation, to continuously correct output voltage to E02: Charger Fault – No Charge connected equipment to a safe 110/120 (Contact CyberPower Systems for support.)

  • Page 8: Troubleshooting

    The UPS will not turn on. Contact CyberPower Systems The battery is worn out. about replacement batteries at: cyberpowersystems.com/support. Contact CyberPower Systems at: Mechanical problem. cyberpowersystems.com/support. Connect the USB / serial cable to the UPS unit and an open USB The USB cable is not connected.

  • Page 9: Technical Specifications

    TROUBLESHOOTING Problem Possible Cause Solution Shutdown your computer and turn The unit is not providing battery the UPS off. Wait 10 seconds and power. turn the UPS back on. This should PowerPanel® is inactive reset the unit. (all icons are gray). Please use the serial cable The serial cable is not the cable that came with the unit for...

  • Page 10: Fcc Compliance Statement

    State of California to cause reproductive harm and cancer. For more information, go to www.P65Warnings.ca.gov. © 2021 CyberPower Systems (USA), Inc. PowerPanel® Personal is a trademark of Cyber Power Systems(USA) Inc. All rights reserved. All other trademarks are the property of their respective owners.

This manual is also suitable for:

Cp1500pfclcdPfc series1500pfclcd
