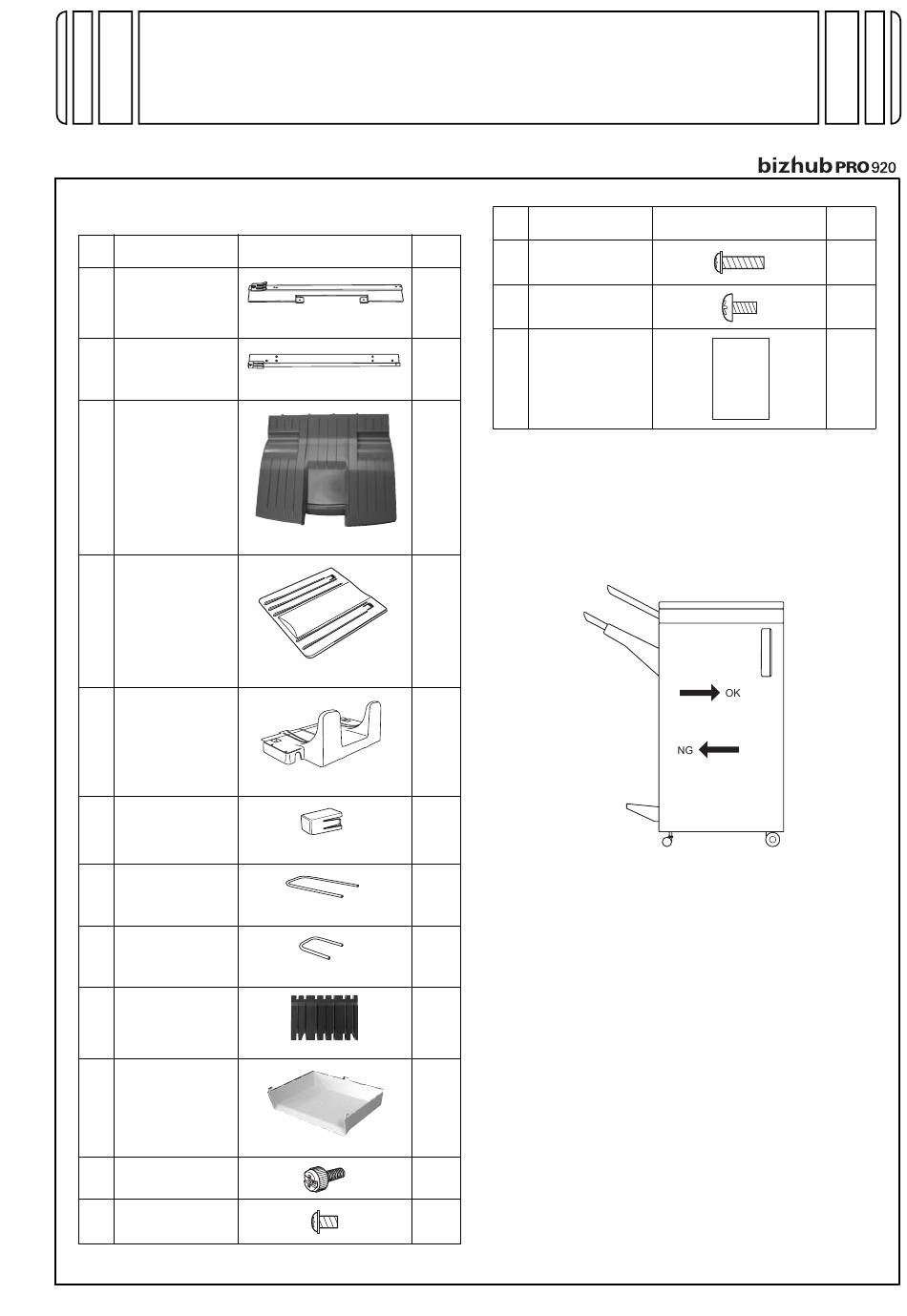

I. Accessory parts
No.
Name
1. Main body
installation
plate/lower
2. Main body
installation
plate/upper
3. Paper exit
up-down tray
4. Paper exit
tray /1
5. Paper exit tray/
lower
6. Stopper block
7. Guide axis
8. Rear end
stopper
9. Paper exit guide
* Refer to the
User's guide
10. Paper exit guide
holder
11. Knob screw
12. TP screw
M4x6
FS-604
INSTALLATION MANUAL
Shape
Q'ty
1
15JMIXC001SA
1
15JMIXC002SA
1
15JMIXC003SA
1
15JMIXC004SA
1
15JMIXC005SA
1
15JMIXC006SA
2
15JMIXC007SA
1
15JMIXC008SA
1
15SJIXC001SA
1
15SJIXC002SA
2
2
Finisher
Applied Machine:
No.
Name
13. TP screw
M4x14
14. Truss screw
M4x8
15. Installation
manual
II. Confirmation before installation
Note:
1. When transporting the Finisher, be sure to move
it in the direction illustrated below so as not to
deform the casters on the paper exit tray side.
2. Choose a horizontal and stable floor for installing
the machine.
3. Be sure to have two persons or more for handling
or carrying the machine.
4. The packaging material should not be reused for
repacking.
5. When installing optional Post Inserter/Punch kit to
the Finisher, be sure to install it beforehand, then
install the finisher to the main body.
E-1
Shape
Q'ty
2
2
1
15JMIXC009SA
15SJ97010
