Konica Minolta FS-533 Installation Manual

Applied Machines: C558/C458/C368/C308/C258/C554e/C454e/C364e/C284e/C224e/C554/C454/C364/C284/
C224/554e/454e/364e/284e/224e
COLOR MFP: 55 ppm/45 ppm/36 ppm/30 ppm/28 ppm/25 ppm/22 ppm
MFP: 55 ppm/45 ppm/36 ppm/28 ppm/22 ppm
Product Code: A79K/A79M/A7PU/A7PY/A7R0/A5AY/A5C0/A5C1/A5C2/A5C4/A2XK/A4FJ/A161/A4FK/A4FM/
A61D/A61E/A61F/A61G/A61H

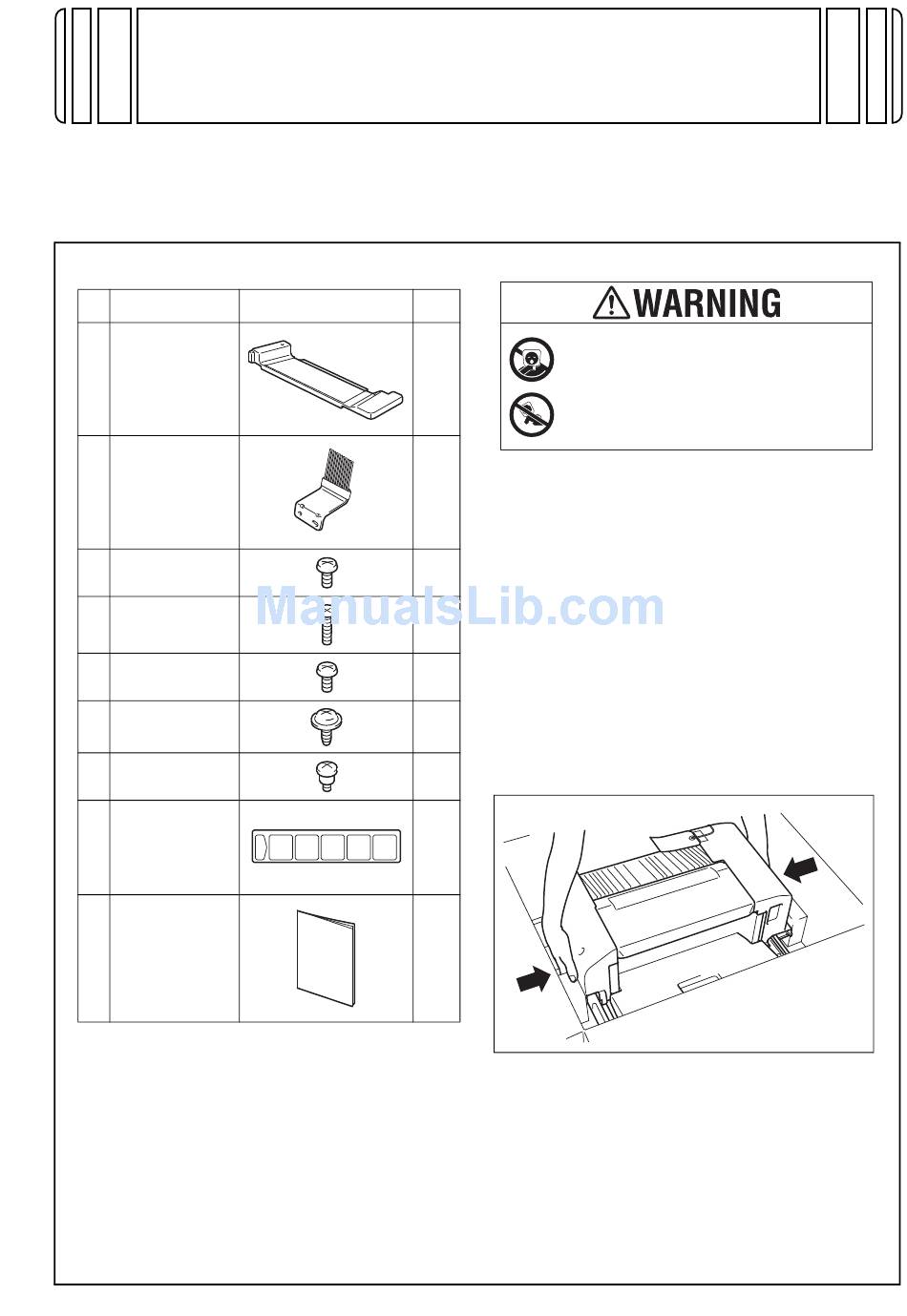

1. Accessory parts

No. Name
1. Rail cover
2. Mounting
bracket (anti-
*
static brush)
3. Screw A
(4 x 8 mm)
4. Screw B
(3 x 25 mm)
5. Screw C
(3 x 6 mm)
6. Screw D
*
(3 x 6 mm)
7. Shoulder screw
8. Label
9. Installation
manual
* This part is used only when the Finisher is
installed to C554e/C454e/C364e/C284e/C224e/
C554/C454/C364/C284/C224/554e/454e/364e/
284e/224e.
FS-533
INSTALLATION MANUAL
Shape Q'ty
1
1
1
1
1
2
1
1
1
set
Finisher
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
Note:
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
• When removing the finisher from the carton, be
sure to hold the finisher by the sides as shown
in the illustration.
E-1
A2YU-9553-02
