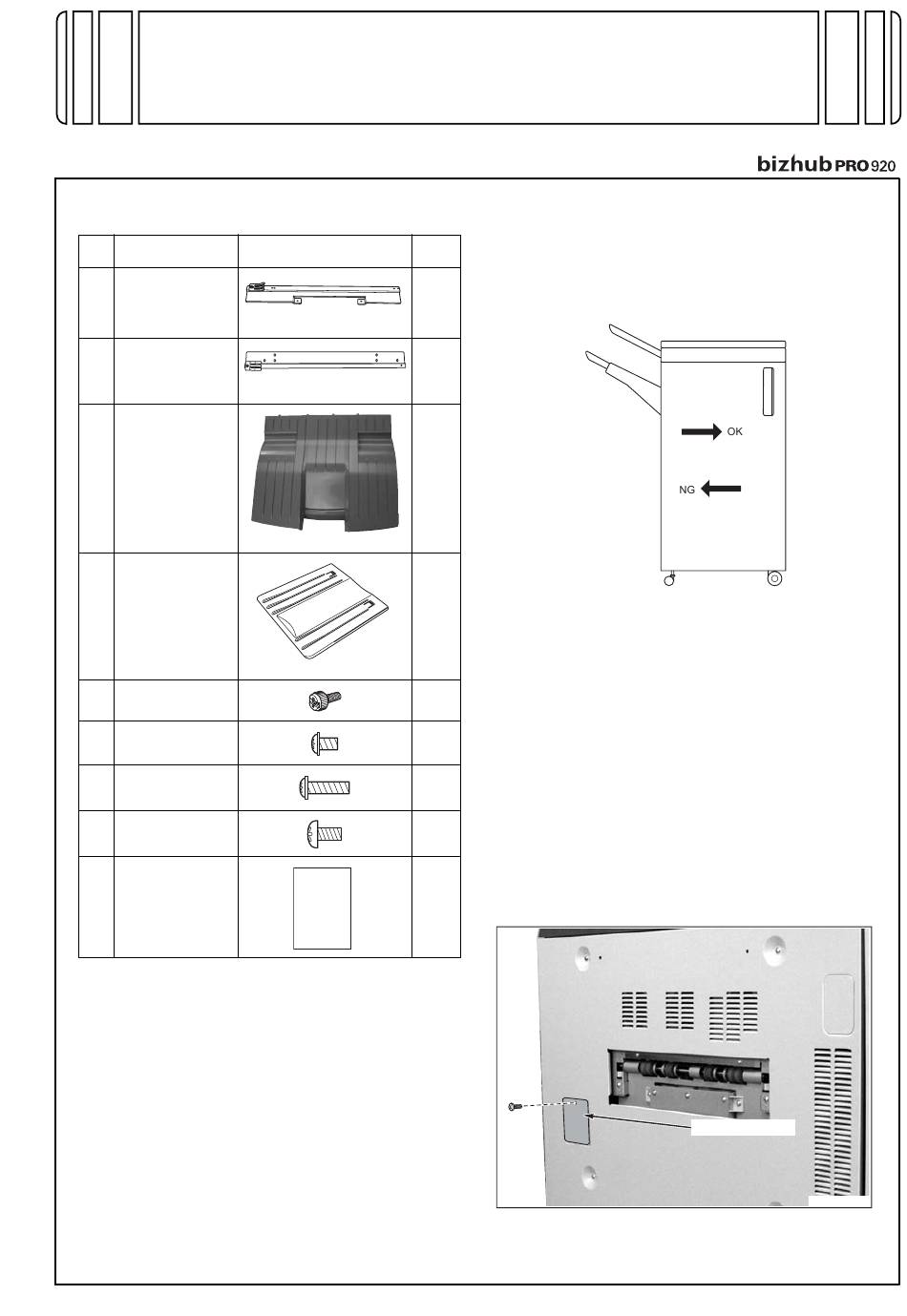

I. Accessory parts
No.
Name
1. Main body
installation
plate/lower
2. Main body
installation
plate/upper
3. Paper exit
up-down tray
4. Paper exit
tray /1
5. Knob screw
6. TP screw M4x6
7. TP screw
M4x14
8. Truss screw
M4x8
9. Installation
manual
FS-509
INSTALLATION MANUAL
Shape
Q'ty
1
15JMIXC001SA
1
15JMIXC002SA
1
15JMIXC003SA
1
15JMIXC004SA
2
2
2
2
1
Finisher
Applied Machine:
II. Confirmation before installation
Note:
1. When transporting the Finisher, be sure to move
it in the direction illustrated below so as not to
deform the casters on the paper exit tray side.
2. Choose a horizontal and stable floor for installing
the machine.
3. Be sure to have two persons or more for handling
or carrying the machine.
4. The packaging material should not be reused for
repacking.
5. When installing optional Post Inserter/Punch kit to
the Finisher, be sure to install it beforehand, then
install the finisher to the copier main body.
III. Installation procedure
1. Turn the Sub and Main power switches OFF, and
unplug the power cord from the outlet.
2. Remove the connector cover on the left side
cover of the main body. (1 screw)
E-1
15JKIXC001SA
Connector cover
15SJIXE003SA
15SF97010

Advertisement

loading
Need help?

Need help?

Do you have a question about the FS-509 and is the answer not in the manual?

Questions and answers

Summary of Contents for Konica Minolta FS-509

  • Page 1 FS-509 Finisher INSTALLATION MANUAL Applied Machine: I. Accessory parts II. Confirmation before installation Note: Name Shape Q’ty 1. When transporting the Finisher, be sure to move 1. Main body it in the direction illustrated below so as not to installation deform the casters on the paper exit tray side.
  • Page 2 3. Install the main body installation plate (lower) on 5. Visually inspect the Finisher. the lower left side of main body. (TP screw M4x6: 6. Remove the locking tapes and the locking protec- 2 pcs.) tion materials from the front door and the left side of the Finisher.
  • Page 3 9. Pull out the stacker, then remove the locking 12. Install the Finisher on the main body. tapes, and remove the locking materials and the (1) Fit the hooks on the main body installation locking protection materials from inside the plates (upper and lower) into the upper and stacker.
  • Page 4 IV. Confirmation of operation (2) Fix the Finisher to the main body. (Knob screw: 2 pcs.) 1. Turn ON the Main and Sub power switches. 2. Execute the printing in the Sort mode to check if it operated correctly. 3. Execute the printing in the Staple mode to check if it stapled correctly.
