Summary of Contents for VINKA DR25

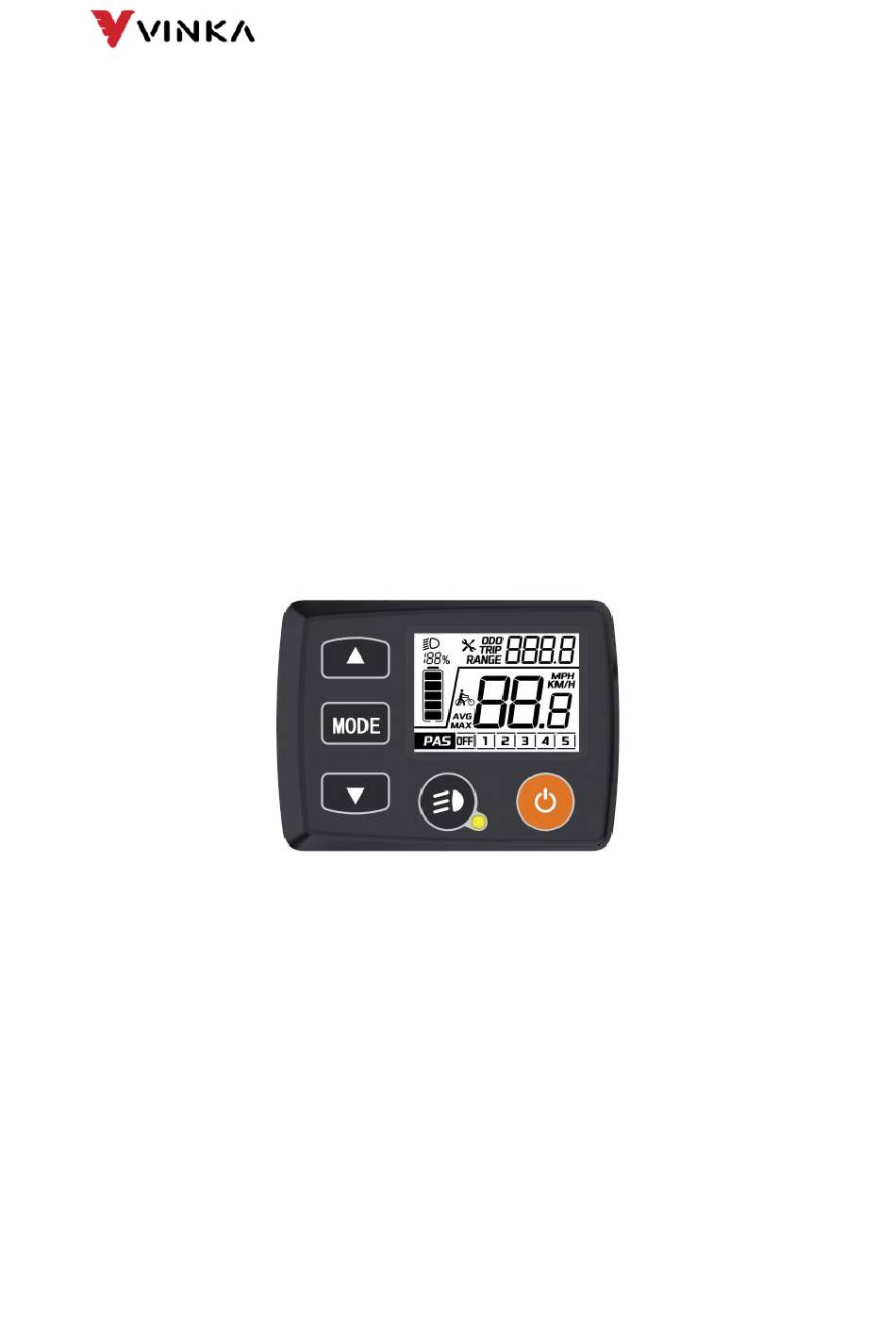

- Page 1 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd VINKA EBIKE Display User Manual DR25...
-
Page 2: Table Of Contents
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Catalogue Product introduction .................... 1 1.Product name and model ............... 1 2.Specifications.................... 1 3.Appearance and Size ................1 Function Summary And Key Definition ............2 1.Function Area Distribution ..............2 2.Function Summary ................... 2 3.Button definition ..................3 General Operation .................... -
Page 3: Product Introduction
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Product introduction 1.Product name and model Product name: E-Bike intelligent LCD instrument Product Model: DR25 2.Specifications ●Rated voltage: 36V/48V ●Rated working current: 12mA ●Off-state leakage current: <1uA ●Supply the operating current to the controller：50mA ●Operating temperature: -20℃~ 60℃... -
Page 4: Function Summary And Key Definition
AVG,MAX Speed Assist Level DR25 Functional Area Distribution 2.Function Summary DR25 has many functions to meet the riders’ needs. The indicating elements are as follows: ●Smart battery indication ●Speed indication (incl. Current speed, max. speed and avg. speed) ●ODO and Trip ●6km/h push-assistance function... -
Page 5: Button Definition
Plus key MODE key Minus key/push key Power key Headlight key DR25 instrument has 5 keys: power key, MODE key, plus key, headlight key, minus key/push key; The manual uses "ON/OFF", "i", "+", "Light" and "-" to indicate these five keys. -
Page 6: General Operation
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Operation 1. Switch ON/OFF After long pressing the power button " ON/OFF ", the display starts to work and provides the working power of the controller. In the power on state, long press the power button "... -
Page 7: Switching Push-Assist Mode On/Off
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 3. Switching Push-assist Mode On/Off To activate the push-assistance function, press and hold the " - " button on the remote. After 1 seconds, the E-bike is activated to go at a uniform speed of 6 Km/h while the screen shows ‘... -
Page 8: Assist Level Interface
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 5. Assist Level Interface Short press the " + " or " - " button, switch the e-bike assist level, change the motor output power, the default output power range of the display is level 0-5, level 0 is stop power output, level 1is the lowest power, level 5 is the highest power. -
Page 9: Error Code Indication
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd battery power The percentage of remaining battery power and the corresponding ICONS are displayed as follows: Battery Battery Detailed introduction percentage indicator 80% ≤SOC Show Full grids（5 bars） Show 4 bars 60% ≤SOC < 80% Show 3 bars 40% ≤SOC <... -
Page 10: General Settings
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Settings Press and hold the " i " and " - " buttons 1S and above at the same time to enter the general parameter setting state. 1. Wheel DIA stands for wheel size, The wheel size can be 16, 18, 20, 22, 24, 26, 700C/27.5, 28, 29. -
Page 11: Controller Boot Version Number
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 3. Controller BOOT Version Number CLB represents the controller BOOT version number. Go to the next setting interface with " + " or " - ". Controller BOOT Version Number Interface 4. Display Software Version Number DPS represents the display software version number. -
Page 12: Unit
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 6. Unit UNT means imperial and metric unit conversion, short press the " i " key to enter the setting, you can select "km/h" (km/h) / "mph" (miles) through the " + " or " - " button, long press the "... -
Page 13: Speed Limit
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 8. Speed Limit The maximum speed can be selected from 5Km/h to 46Km/h. Press " + " or " - " to add/subtract. The maximum cycling speed of the instrument factory is uploaded by the controller. Press" + " or " - " to increase or decrease the speed limit value until the required speed limit value is displayed;... -
Page 14: Installation
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Installation DR25 meter is mounted on the left handlebar. Adjust the angle for a good screen view. Cut off the power before connecting the corresponding connectors between the display and controller. Quality assurance and warranty scope Ⅰ... -
Page 15: Attached List 1: Error Code Definition
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Attached list 1: Error code definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Gear Sensor Error Speed Sensor Error Cadence Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error...
