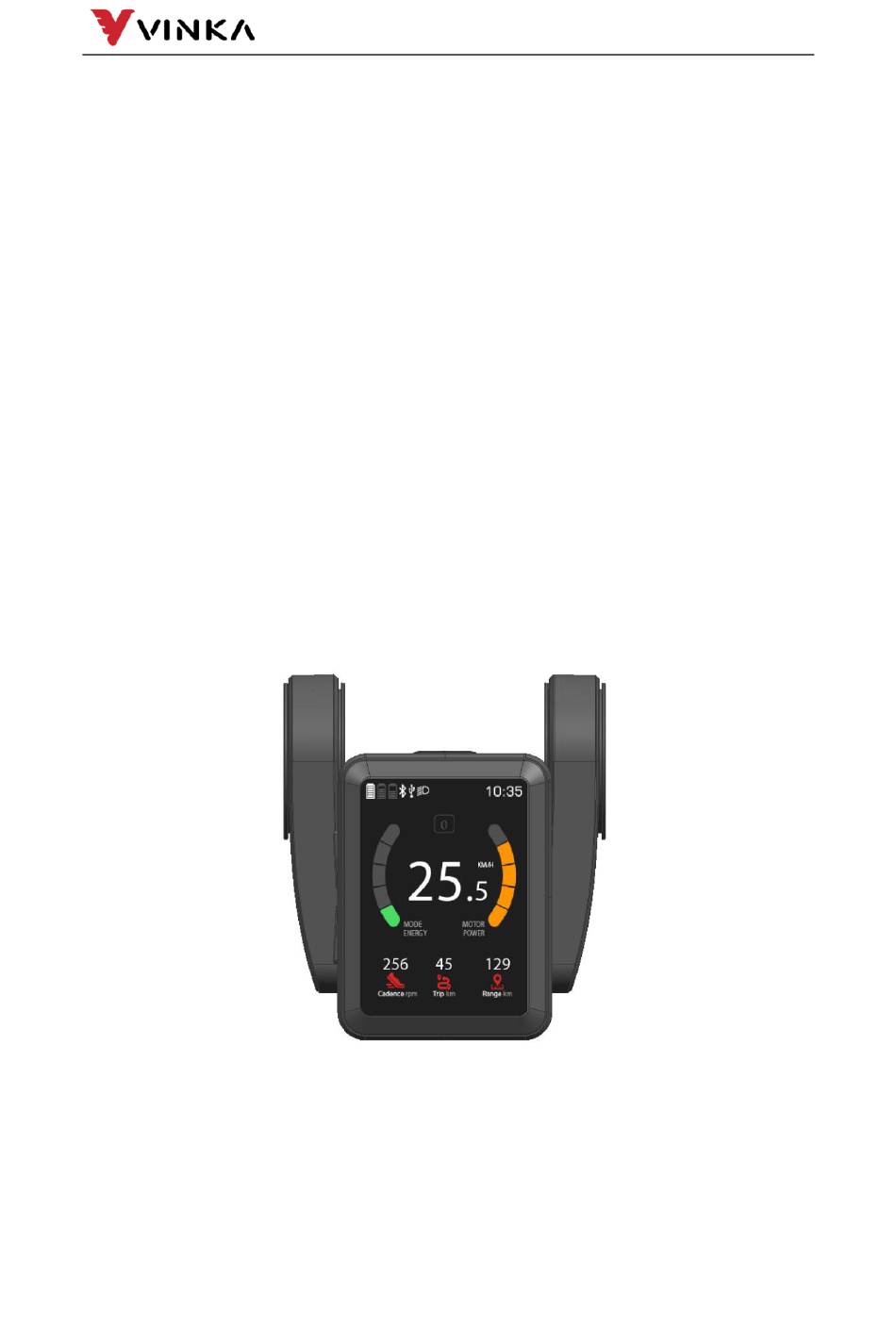

- Page 1 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd VINKA EBIKE Display User Manual DC35...
-
Page 2: Table Of Contents
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Contents Product introduction ........................4 1. Product Name And Model .................... 4 2. Specifications ........................4 3. Appearance And Size...................... 4 Function Overview And Button Definition ................5 Function Area Distribution ..................5 2. Function Summary ......................6 3. - Page 3 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 12. Charging Function ....................... 15 General Settings ......................... 16 1. Setting interface ......................16 （1）Wheel Size ......................17 （3）Walk Speed ......................18 （4）Speed Limitation ....................19 （5）Brightness ......................20 （6）Maintenance ...................... 21 （7）Unit Type ......................22 （8）Time ........................
-
Page 4: Product Introduction
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Product introduction 1. Product Name And Model Product name: E-Bike intelligent LCD instrument Product Model：DC35 2. Specifications 36V/48V Power Supply Rated working current :10mA Maximum working current: 30mA Off-state leakage current: <1Μa ... -
Page 5: Function Overview And Button Definition
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Function Overview And Button Definition 1. Function Area Distribution Bluetooth Headlights Battery level Time Assist level Real-time Speed Motor output power Manpower output power DC35 Function Area Distribution Interface... -
Page 6: Function Summary
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 2. Function Summary DC35 display has many functions to meet the user’s needs. Ergonomic design with independent left button Boot provides a customized interface, and the UI supports customization Supports metric/imperial unit switching ... -
Page 7: Button Definition
“MODE” button Down button“-” “WALK” button RM01 RM05 The DC35 meter itself has 3 buttons:Power button, Light/up button “+”, Down button“-”. DC35 external RM01 button：Light/up button “+”、 Down button“-”、 “MODE” button、 “WALK” button. DC35 external RM05 button：Up button “+”、 Down button“-”. -
Page 8: General Operation
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Operation 1. Switch ON/OFF Under normal power-on, press and hold the "ON/OFF" button for more than 2 seconds, the instrument is turned on, and the battery provides power to the vehicle system; Press and hold the "ON/OFF" button for more than 2 seconds, the meter is turned off, and the instrument system no longer uses the power supply. -
Page 9: Push-Assistance Function
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 3. Push-assistance Function The instrument is in the power on state, first press the "M" button shortly, and then press the "W" button long and long within 3S, and after 1S, the electric vehicle enters the electric power promotion state. At the same time the screen displays " ". -
Page 10: Assist Level Selection
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 4. Assist Level Selection The instrument is in the power on state, short press the "+" or "-" button, switch the electric bicycle power assist gear, change the motor output power, the default output power of the instrument is 0, 1, 2, 3, 4, 5 gear, 0 gear is the stop power output, 1 gear is the lowest power, 5 gear is the highest power. -
Page 11: Motor Power Indication/Manpower Output Indication
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 6. Motor Power Indication/Manpower Output Indication Through the instrument, the manpower output power and motor output power can be known. The display mode is shown in the following figure in the energy bar. (Green on the left is the human output power energy display bar, and yellow on the right is the motor output power energy display bar) Power Interface... -
Page 12: Battery Indication
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 7. Battery Indication The battery power is displayed in the way of 5 bars, when the battery voltage is high, 5 bars are on, when the battery shows 0 bars and the outer frame of the battery flashes at the frequency of 1HZ, it means that the battery has been undervoltage and needs to be charged immediately! This display supports access to up to 3 batteries, when three batteries are... - Page 13 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd The remaining battery power percentage and the corresponding battery level are displayed as follows: Percentage of charge 36V System Voltage 48V system voltage range (Communication with Range (Batteryless (Battery-free Detailed introduction battery) Communication) communication) 80% ≤ SOC ≥39.5V ≥...
-
Page 14: Navigation Function
2 for the specific instruction manual of the APP) 9. Heart Rate Display Function DC35 display connects to the App through Bluetooth, and when the user uses the APP to display the heart rate, the meter will also display the heart rate. (See Annex 2 for the specific instruction manual of the APP) 10. -
Page 15: Error Code Indication
When the diaplay has an error code, please troubleshoot it in time The faulty electric vehicle will not be able to drive normally。 12. Charging Function DC35 display adopts Type-C interface charging, supports 5V 1A to charge mobile phones, charging adaptability, wide application, convenient and fast. -
Page 16: General Settings
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Settings 1. Setting interface Press the power button to turn on the vehicle system. When the instrument is turned on normally, press and hold the "ON/OFF" and "-" buttons or the "M" and "-" buttons 1S and above at the same time to enter the user configuration interface. -
Page 17: 1）Wheel Size
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （1）Wheel Size Wheel Size indicates the wheel diameter setting, and the European wheel diameter setting cannot be adjusted. Press "+" or "-" to enter the next setting interface. Wheel interface... -
Page 18: 3）Walk Speed
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （3）Walk Speed Walk Speed means to promote speed setting, short press "ON/OFF" or "M" key to enter the setting, short press the "+" key or "-" key to select the promotion speed, setting range: 3-6km/h, then press and hold "ON/OFF" or "M" key to confirm the storage of changed settings and return to the user configuration page. -
Page 19: 4）Speed Limitation
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （4）Speed Limitation Speed Limit means the speed limit setting, and the European version of the speed limit setting is not adjustable. Press "+" or "-" to enter the next setting interface。 Speed Limitation Interface... -
Page 20: 5）Brightness
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （5）Brightness Brightness means backlight brightness setting, short press the "ON/OFF" or "M" key to enter the setting, short press the "+" key or "-" key to select the required backlight brightness, setting range: "1-2-3-4-5", 5 stops brightness is the highest, 1 gear brightness is the lowest. -
Page 21: 6）Maintenance
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （6）Maintenance Maintenance means maintenance settings, short press the "ON/OFF" or "M" key to enter the view, maintenance settings are not adjustable, the main interface will automatically send you maintenance reminders after each 100,000 kilometers Maintenance Interface... -
Page 22: 7）Unit Type
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （7）Unit Type Unit Type indicates the metric and imperial unit switching settings, and the default unit is metric. Press the "ON/OFF" or "M" keys to enter the settings, and press the "+" or "-" keys to select "km/h" (metric)/"mph" (imperial). Then press and hold the "ON/OFF"... -
Page 23: 8）Time
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （8）Time Time represents the time setting. Press the "ON/OFF" or "M" key to enter the settings, the default is to modify the hour first, and after pressing the "ON/OFF" or "M" key, you can change the hour (0-23) or minute (0-59). After the time setting is complete, press and hold the "ON/OFF"... -
Page 24: 9）Assist Indicator
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （9）Assist Indicator Assist Indicator indicates the gear type display. Press the "ON/OFF" or "M" keys to enter to view all gear types of the meter, and the gear type selected for this meter is Type C. Then press and hold the "ON/OFF" or "M" key to confirm the stored changed settings and return to the user configuration page. -
Page 25: 10）Iot Vbox
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （10）IoT Vbox Press the "ON/OFF" or "M" keys to enter the IoT Vbox IMEI information, support Vbox activation (requires Vbox device support) IoT Vbox Interface... -
Page 26: 11）About
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd （11）About Press the "ON/OFF" or "M" key to enter to view the version number, press the "+" key or "-" key to select the instrument version or controller version, and press the "ON/OFF" or "M" key to return to the previous interface... -
Page 27: Quality Assurance And Warranty Scope
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Quality assurance and warranty scope 1. Warranty 1. The warranty will be valid only for products used in normal usage and conditions. 2. The warranty is valid for 24 months after the shipment or delivery to the customer. - Page 28 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd ■This manual instruction is a universal version for VINKA DC53 display. Software specific, features of this display may be different. Please always refer to the actual version.
-
Page 29: Attached List 1: Error Code Definition
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Attached List 1: Error Code Definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Speed Sensor Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error Communication Lost LORA Communication Lost...
