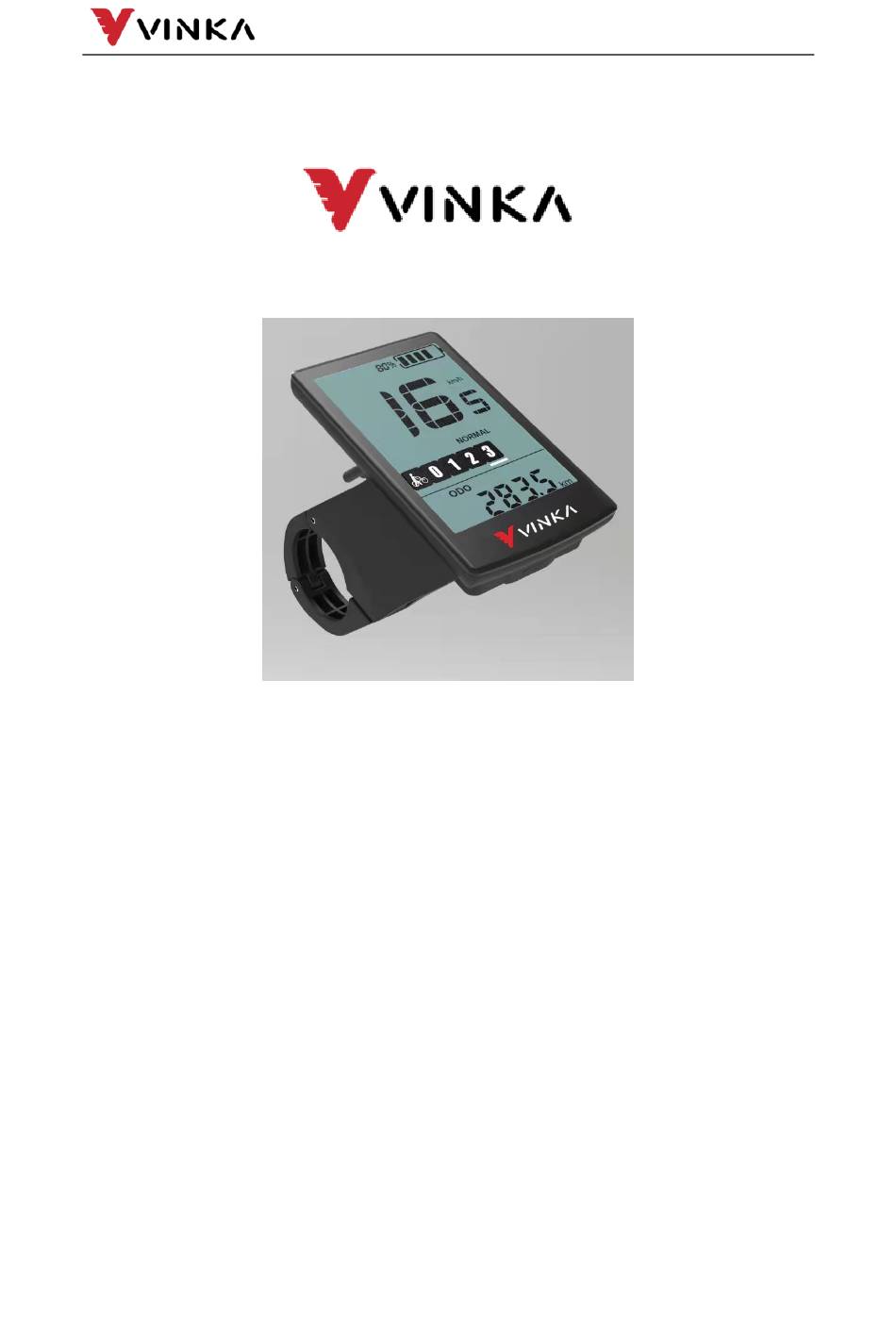

  • Page 1 苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd DC22 The E-bike Dispaly User Manual...

  • Page 2: Table Of Contents

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Contents 1. Product name and model ..............1 2. Specifications ..................1 3. Appearance and Size ................1 4. Function Summary ................1 5. Function Area Distribution ..............2 6. Button Definition................... 2 7. Installation ..................... 3 8.

  • Page 3: Product Name And Model

    3. Appearance and Size Product appearance and dimensional drawing (unit: mm) DC22 4. Function Summary DC22 display has many functions to meet the user’s needs. The indicating contents are as follows:  Smart battery SOC, real-time voltage or percentage, optional ...

  • Page 4: Function Area Distribution

    PAS level/Push assist 6. Button definition There are four buttons on DC22 display: MODE (power) button, light button, plus button and push-assist/minus button. In this manual we use words “MODE”,”LIGHT”, “UP” and “DOWN” to represent these 4 buttons. + button...

  • Page 5: Installation

    Suzhou wanjia Electric Co.,Ltd 7. Installation DC22 can be mounted on the left side of handlebar close to its grip. Adjust the angle for a good screen view. Cut off the power before connecting the corresponding connectors between display and controller.

  • Page 6: Switching Push-Assistance Mode On/Off

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd  Switching Push-assist Mode On/Off To activate the push-assistance function, short press MODE and hold the DOWN button between 3S. E-bike is activated with a uniform speed of 6 km/h while the screen displays shown “ ”.

  • Page 7: Assist Level Selection

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Switching the Lighting Mode On/Off Interface  Assist Level Selection Press UP or DOWN button to switch between the assist levels and change the motor output power, The default assist level ranges from level “0”to level “5”, The output power is zero on Level “0”. Level “1” is the minimum power.

  • Page 8: Motor Power Indicator

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Battery percentage Battery bar indicator Detailed introduction 80% ≤SOC Show Full grids（5 grids） Show 4 grids 60% ≤SOC < 80% Show 3 grids 40% ≤SOC < 60% Show 2 grids 20% ≤SOC < 40% Show 1 grids 10% ≤SOC<...

  • Page 9: General Setting

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Error Code Indication  Have the display inspected and repaired when an error code appears. Or else, you will not be able to ride the bike normally. Please always refer to an authorized bicycle dealer. 9.

  • Page 10: Push Assistant Speed Settings

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd  Push assistant speed settings PSH refers to push assistant speed settings. The settable range is 3km/h to 6km/h. Press UP/DOWN to increase or decrease the speed limit to your desired value. Hold the MODE button 1s to confirm and exit the settings status.

  • Page 11: Toggle Unit Settings

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd decided by the controller when the display leaves factory. Press UP/DOWN to change the brightness levels. Hold the MODE button to confirm and exit the settings. Backlight settings  Toggle Unit settings Unt represents change unit between Metric and Imperial. The default is “Metric”.

  • Page 12: Controller Software Version

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Display software version interface Controller software version  CLS refers to controller software version number. The version number is reported by the controller. It can not be adjusted from display side Controller version number reading interface ...

  • Page 13: Quality Assurance And Warranty Scope

    3． Don’t modify system parameters to avoid parameter disorder. 4． Make the display repaired when error code appears. ■ This manual instruction is a universal version for VINKA DC22 display. Software specific, versions of this display may be different. Please always refer to an actual version.

  • Page 14: Attached List 1: Error Code Definition

    苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd Attached list 1: Error code definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Gear Sensor Error Speed Sensor Error Cadence Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error...
