Summary of Contents for VINKA DR25

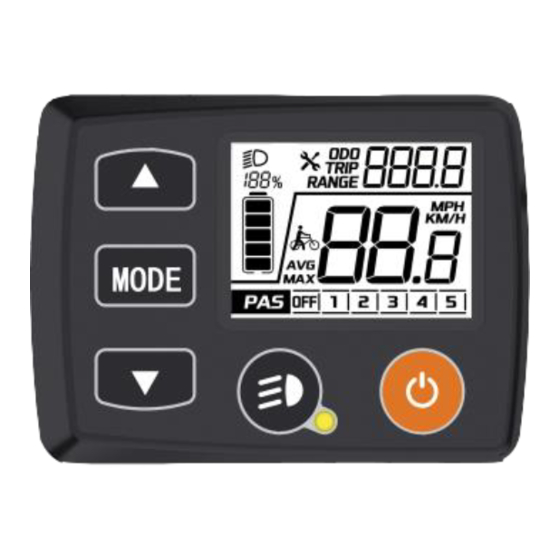

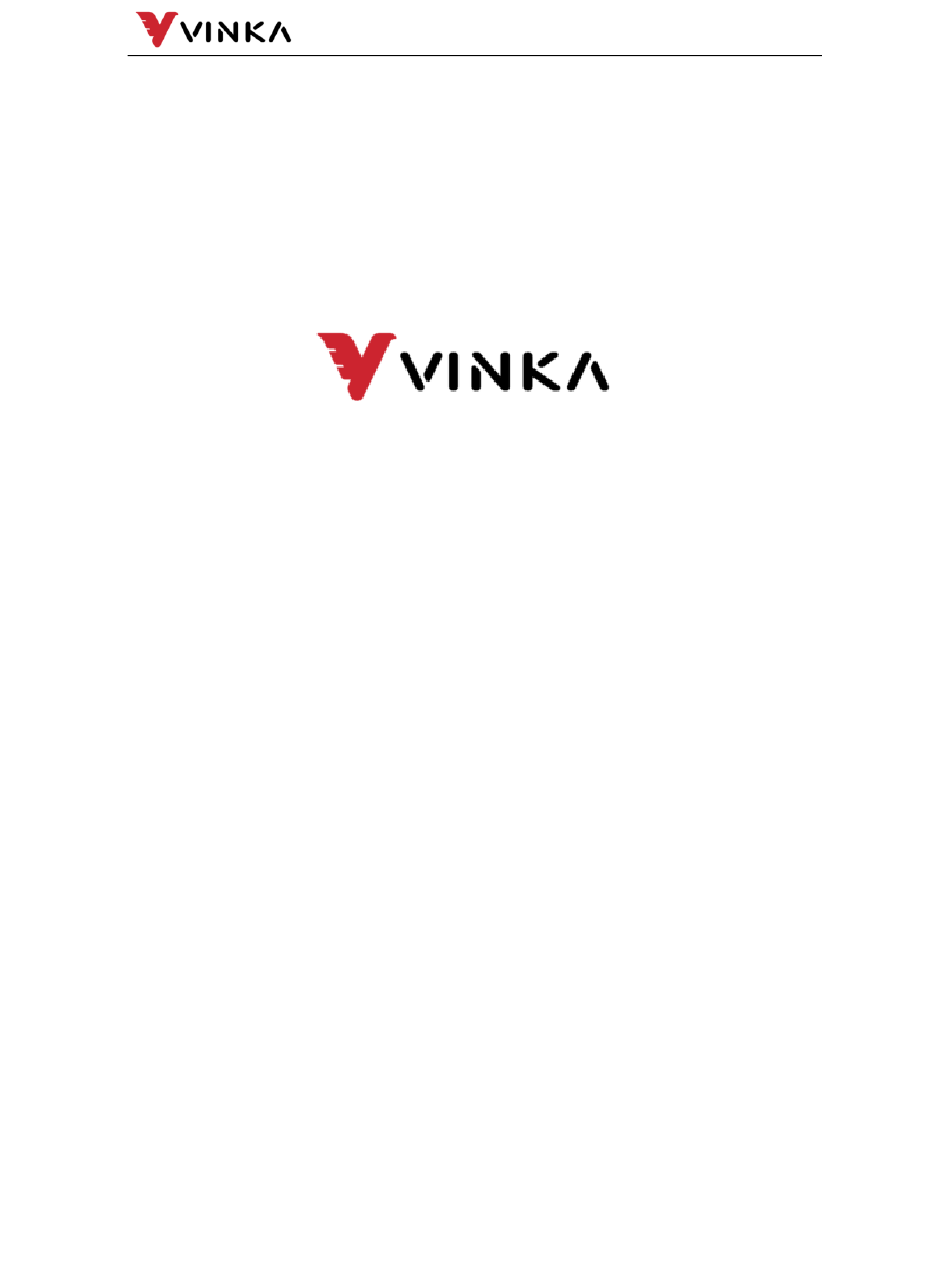

- Page 1 苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . DR25 VINKA Display User Manual ...
-
Page 2: Table Of Contents
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Contents 1. Product name and model ................ 1 2. Specifications ..................1 3. Appearance and Size ................1 4. Functuion Summary................1 5. Function Area Distribution ............... 2 6. Button Definition ..................2 7. -
Page 3: Product Name And Model
3. Apperance and Size Product appearance and dimensional drawing (unit: mm) 4. Function Summary DR25 display has many functions to meet the user’s needs. The indicating contents are as follows: Smart battery SOC, real-time voltage or percentage, optional ... -
Page 4: Function Area Distribution
“ON/OFF”, “Light” , ”MODE”, “UP”and “DOWN” to represent these 5 buttons. 7. Installation DR25 can be mounted on the left side of handlebar close to its grip. Adjust the angle for a good screen view. Cut off the power before connecting the corresponding connectors between display and controller. -
Page 5: Switching The E-Bike System Mode On/Off
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Press the “MODE” button and switch between: TRIP(Km)→ODO(Km)→ RANGE(Km) →Trip (Km) Display interface Switching Push-assist Mode On/Off To activate the push-assistance function, short press MODE button and hold the DOWN button between 3S. -
Page 6: Assist Level Selection
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Press UP or DOWN button to switch between the assist levels and change the motor output power, The default assist level ranges from level “OFF” to level “5”, The output power is zero on Level “OFF”. Level “1” is the minimum power. Level “5”... -
Page 7: General Setting
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Or else, you will not be able to ride the bike normally. Please always refer to an authorized bicycle dealer. 9. General Settings Press the ON/OFF button to switch on the display. To access Setting interface , hold both the “MODE” button and the “DOWN” button simultaneously for 1S. -
Page 8: Wheel Size Settings
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Speed Limitation Interface Wheel Size Interface Push-assist Interface Unit Interface Software version of Display Interface LCD Brightness Interface Software version of Controller Interface Version of Controller Interface Version of Controller Boot Interface Wheel Size Interface ... -
Page 9: Software Version Of Controller
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Software version of Controller CLS represents the software version of controller. The software version of controller is uploaded by the controller, and the display can’t be adjusted. Software version of Controller Info ... -
Page 10: Lcd Brightness
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . LCD Brightness BLG represents Backlight level settings. The settable range is Level 1, Level 2 , Level 3 , Level 4 , Level 5. Level 1 is the darkest, Level 3 is standard and Level 5 is the brightest. -
Page 11: Trip Clear Function
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . TRIP clear function In TRIP mode and Trip is not 0, press the UP and DOWN buttons at the same time for more than 1 second to clear the trip data information. Exit settings ... -
Page 12: Quality Assurance And Warranty Scope
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Quality assurance and warranty scope Ⅰ Warranty 1) The warranty will be valid only for products used in normal usage and conditions. 2) The warranty is valid for 24 months after the shipment or delivery to the customer. Ⅱ... -
Page 13: Warnings
3． Don’t modify system parameters to avoid parameter disorder. 4． Make the display repaired when error code appears. ■ This manual instruction is a universal version for VINKA DR25 display. Software specific, versions of this display may be different. Please always refer to an actual version. 11 ... -
Page 14: Attached List 1: Error Code Definition
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Attached list 1: Error code definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Gear Sensor Error Speed Sensor Error Cadence Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error... -
Page 15: Attached List 2: Display Character Corresponding Function
苏州万佳电器有限公司 Suzhou wanjia Electric Co.,Ltd . Attached list 2: Display character corresponding function Character Definition Wheel Size SoftWare of Controller Controller boot version Software of Display Toggle Unit settings Brightness Level Speed Limitation Push-assistance Speed 13 ...
