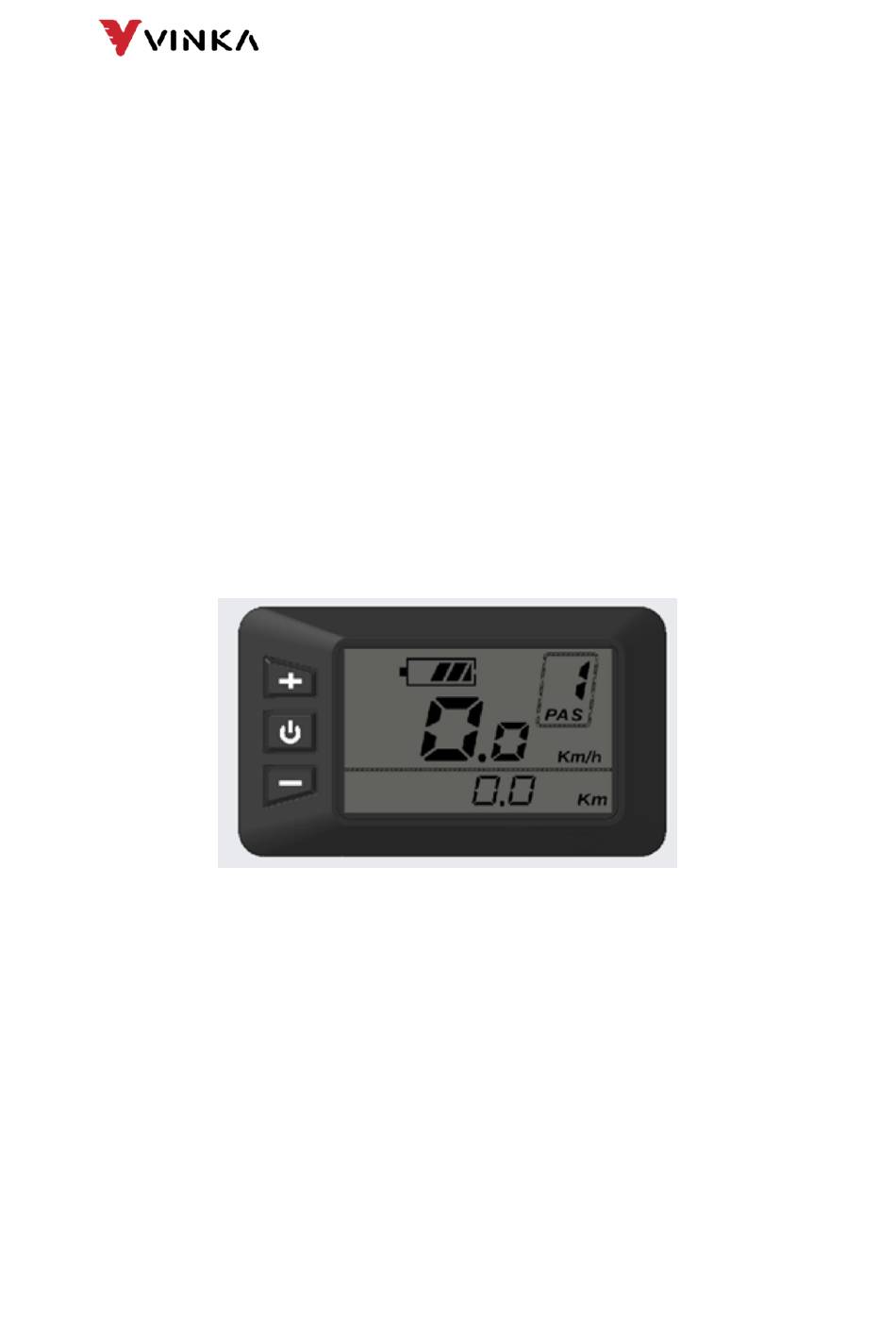

- Page 1 苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd VINKA EBIKE Display User Manual DR23...
-
Page 2: Table Of Contents
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Catalogue Product introduction .................... 3 1.Product name and model ............... 3 2.Specifications.................... 3 3.Appearance and Size ................3 Function Summary And Key Definition ............4 1.Function Area Distribution ..............4 2.Function Summary ................... 4 3.Button definition ..................4 General Operation .................... -
Page 3: Product Introduction
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Product introduction 1.Product name and model Product name: E-Bike intelligent LCD instrument Product Model: DR23 2.Specifications 36V/48V power supply Display rated working current：10mA Display maximum working current：30mA Off-state leak current：＜1uA ... -
Page 4: Function Summary And Key Definition
Bluetooth function is not optional, USB function is optional TYPE A 3.Button definition The DR23 instrument is a side key:ON/OFF key, +/lighting key, -/walk mode key. In this manual, we use words " ON/OFF " + "and " - " to represent these 3buttons. -
Page 5: General Operation
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Operation 1. Switch ON/OFF To switch on the E-bike system and provide the power supply to the controller, hold the " ON/OFF " button for 1s. To switch off E-bike system, hold the " ON/OFF " button for 1s. The E-bike system no longer uses the battery power. -
Page 6: Switching Push-Assist Mode On/Off
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 3. Switching Push-assist Mode On/Off To activate the push-assistance function, first, short press the " ON/OFF " button, and then within 3s, keep holding " - " button. The E-bike is activated with a uniform speed while the screen displays shown “... -
Page 7: Assist Level Interface
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 5. Assist Level Interface Short press " +/- " to change the assist levels and change the motor output power. The default assist level ranges from 0 to 5. 0 is no power. 1 is the minimum power and 5 is the maximum power. -
Page 8: Battery Display
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 7. Battery Display The five-segment indicate of battery SOC, when the battery voltage is high, the five- segment LCD is all on. When the percentage is 0, the battery needs to be charged immediately. Battery Display The default voltage of display battery is 36V. -
Page 9: Error Code Indication
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 8. Error Code Indication The components of the E-bike system are continuously and automatically monitored. When an error is detected, the respective error code is indicated in text indication area. Refer to detailed definition of the error codes in Attached list 1. err code interface ... -
Page 10: General Settings
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd General Settings Press and hold the " ON/OFF " and " - " buttons 1S and above at the same time to enter the general parameter setting state. 1. Wheel DIA for wheel size. The wheel size can be 16, 18, 20, 22, 24, 26, 700C/27.5, 28, 29. Short press the “... -
Page 11: Display Software Version Number
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 3. Display Software Version Number DPS represents the display software version number. Go to the next setting interface with " +/- ". Display Software Version Number Interface 4. Unit UNIT means imperial and metric unit conversion, short press the " ON/OFF " key to enter the setting, you can select "km/h"... -
Page 12: Backlight
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd 5. Backlight BLG means backlight brightness setting, short press the " ON/OFF " key to enter the setting, you can set the backlight brightness level through the " +/- " button, the setting range is: "5-4-3-2-1" 5 levels of brightness, 5 corresponds to the highest brightness, 1 corresponds to the lowest brightness. -
Page 13: Push Assistance Speed
1 second, and the riding data information will be cleared to zero. Installation The DR23 can be mounted on the left side of the handle, angled to get a good view of the screen, and the power should be cut off before connecting the appropriate... -
Page 14: Quality Assurance And Warranty Scope
3. Don’t modify system parameters to avoid parameter disorder. 4. Make the display repaired when an error code appears. ■This manual instruction is a universal version for VINKA DR23 display. Software specific, features of this display may be different. Please always... -
Page 15: Attached List 1: Error Code Definition
苏州万佳电器有限公司 Suzhou Wanjia Electric Co.,Ltd Attached list 1: Error code definition Error code Definition Torque Zero Error Torque Out Range Torque Sensor Fault Gear Sensor Error Speed Sensor Error Cadence Error PCB Over-Temp Warning PCB Over-Temp Error PCB Sensor Fault Motor Over-Temp Warning Motor Over-Temp Error Flash Error...
