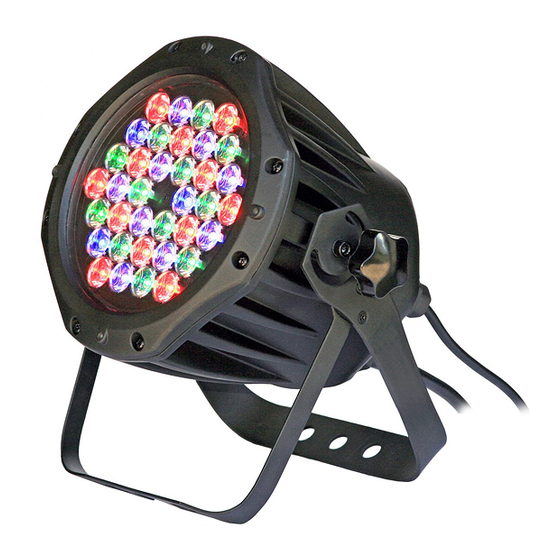

- Page 1 Snapshot EXPOLITE TourLED 36 WP OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. BEFORE YOU BEGIN............................... 3 ................................3 HAT IS INCLUDED ..............................3 NPACKING NSTRUCTIONS AC P ..................................3 OWER ..................................3 ONTACT ................................ 4 AFETY NSTRUCTIONS 2. INTRODUCTION ................................5 ..................................5 EATURES DMX C ..............................5 HANNEL UMMARY ................................ -
Page 3: Before You Begin
1. B EFORE EGIN What is included 1 x TourLED 36 WP 1 x Power cable with plug 1 x IP65 power extension cable 1 x IP65 signal extension cable 1 x DMX input cable 1 x DMX output cable... -
Page 4: Safety Instructions
Safety Instructions Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product. Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture. -
Page 5: Introduction
2. I NTRODUCTION Features 9-channel DMX-512 LED PAR can (with ID addressing) Blackout/static/dimmer/strobe/pulse RGB color mixing with or without DMX controller Built-in automated programs via master/slave, DMX or COLOR-CON Program and recall custom programs via master/slave, DMX or COLOR-CON RGB fade delay channel for snapping or fading Ad d i t i o n a l F e a t u r e s Available in black or silver Durable and weather resistant IP65 rated... -
Page 6: Product Overview
Product Overview Power In Power Out Connector Connector DMX In DMX Out Connector Connector Control Panel Hanging Bracket Gel frame Tilt (optional Adjustment accessory) Knob User Manual 2008-01-18/16:45... -
Page 7: Setup
3. S ETUP Disconnect the power cord before replacing a fuse and always replace with the same type fuse. Fuse Replacement The fuse for this fixture is located inside the chassis. Remove the damaged fuse from its holder and replace with exact same type fuse. Reconnect power. Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. -
Page 8: Cable Connectors
CAB LE C ONN ECTORS CAB LE C ONN ECTORS Cabling must have a male XLR connector on one end and a female XLR connector on the other end. Cabling must have a male XLR connector on one end and a female XLR connector on the other end. Resistance 120 DMX connector configuration ohm 1/4w between... -
Page 9: Master/Slave Fixture Linking
Master/Slave Fixture Linking 1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. 2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to the input connector of the next fixture consisting of a (male) 3 pin connector. -
Page 10: Operating Instructions
4. O PERATING NSTRUCTIONS Navigating the Control Panel Access control panel functions using the four panel buttons located directly underneath the LCD Display. Button Function Used to access the menu or to return to a <MENU> previous menu option Used to select and store the current menu <SET>... -
Page 11: Menu Map
Menu Map AT.01 – AT.10 AUTO When navigating the menu: (Automatic 1-10) Use the “UP” button to move up. PR.C1 - PR.10 (Custom 1-10) Use the “DOWN” button to move down. Use the “SET” button to move right. d001 – d512 Use the “MENU”... -
Page 12: Menu Functions
“Master” otherwise nothing will happen. ID Address: Sets the ID address of the fixture, which allows up to 3,696 (66 per DMX address) TourLED 36 WP fixtures to be independently controlled on one universe. Used to create and edit custom programs. Up to 10 custom Edit programs with up to 30 steps (scenes) each can be programmed. -
Page 13: Upload Custom Programs To Another Fixture
UPLOAD CUSTOM PROGRAMS TO ANOTHER FIXTURE: On all fixtures that are going to receive the custom programs from the source unit, set them for DMX operation; address does not matter for the purpose of this operation. On the Master unit, press <MENU> until “SET” is displayed, and press <SET>. Scroll through until “UPLd”... -
Page 14: Master/Slave Mode (Master Auto)
DMX-512 control without “ID” address The TourLED 36 WP operates on 3-9 channels of DMX. Address each fixture in increments of 3-9 channels. (I.e. 1, 10, 19, 28 etc…) To save time you can use the same DMX address for each fixture. -
Page 15: Example Configurations Dmx Channel Values
Example Configurations Single Row ID Address: 01 ID Address: 02 ID Address: 03 ID Address: 04 ID Address: 05 ID Address: 06 Application The figure above shows 6 fixtures connected in series with corresponding addresses. You must set the {Range} settings in the controller to [006] before accessing {Effect} programs. -
Page 16: Dmx Channel Values
DMX Channel Values (ARC Mode) HANNEL ALUE UNCTION Red (or step time when PR. 01 – PR. 10 is activated) 0 – 100% Green (or fade time when PR. 01 – PR. 10 is activated) 0 – 100% Blue 0 – 100% DMX Channel Values (ARCd Mode) HANNEL ALUE... - Page 17 Color changing pulse with fadeout (slow > fast) Color changing pulse with fade-in/out (slow > fast) Programs No function Auto 1 Auto 2 Auto 3 Auto 4 Auto 5 Auto 6 Auto 7 Auto 8 Auto 9 Auto 10 (Cycle Auto 1 – 9 for 5 minutes each) Custom 1 Custom 2 Custom 3...
- Page 18 ID 43 ID 44 ID 45 ID 46 ID 47 ID 48 ID 49 ID 50 ID 51 ID 52 ID 53 ID 54 ID 55 ID 56 ID 57 ID 58 ID 59 ID 60 ID 61 ID 62 ID 63 ID 64 ID 65...
-
Page 19: Controller
ONTROLLER Overview LCD Display Panel MODE SETUP DOWN MODE Accesses main menu or backs out of sub-menu SETUP Selects the currently displayed menu or confirms the current function value Use to navigate upwards through menu items or increment function values DOWN Use to navigate downwards through menu items or decrement function values Setup... -
Page 20: Menu Map
Vary the [Speed] of the effect between 1 and 255. Note: effect programs were designed primarily for the TourLED 108. They will work with the TourLED 36 WP, but they may react differently from time to time. User Manual 2008-01-18/16:45... -
Page 21: Custom Program
Color/Effects combination for different IDs is allowed. Specify the [Module] or modules to run active. Note: this option is intended for use with the TourLED 108; for the TourLED 36 WP, it will function as if [Module] is set to one. -
Page 22: Activating Password Mode
[Reset to factory settings] This function will reset all the settings to the factory defaults except for [Custom] programs. Factory Default Settings Setting Default [Schedule] All times in schedule are reset to [00:00] [Wash program] Step times and fade times are reset to [001] [Effect program] Speeds are reset to [001] [DMX address]... - Page 23 Effect [7] Blackout Effect [8] Blackout Custom [1] Blackout Custom [2] Blackout Custom [3] Blackout Custom [4] Blackout Custom [5] Blackout Custom [6] Blackout Custom [7] Blackout Custom [8] User Manual 2008-01-18/16:45...
-
Page 24: General Troubleshooting
General Troubleshooting Applies to Foggers Dimmers Symptom Solution(s) Lights & Snow Controllers & Chaser Auto shut off Check fan thermal switch reset Beam is very dim or Clean optical system or check dimmer value not bright Breaker/Fuse keeps Check total load placed on device blowing Chase is too slow Check users manual for speed adjustment... -
Page 25: Technical Support
6. A PPENDIX DMX Primer There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A fixture capable of receiving DMX 512 will require one or a number of sequential channels. The user must assign a starting address on the fixture that indicates the first channel reserved in the controller. There are many different types of DMX controllable fixtures and they all may vary in the total number of channels required. -
Page 26: Photometrics
Photometrics W H I TE 7 0 0 3 2 0 1 9 0 1 4 5 LU X 2 7 5 0 Dis t a n c e ( m) 2 . 6 0 2 . 1 0 Dia m e t e r ( m) 0 . -
Page 27: General Maintenance
Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the customer’s responsibility.EXPOLITE reserves the right to use its own discretion to repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use. -
Page 28: Technical Specifications
Technical Specifications WEIGHT & DIMENSIONS Length..........................6.5 in (165 mm) Width ..........................9.5 in (240 mm) Height ..........................10 in (255 mm) Weight ..........................8.8 lbs (4 kg) POWER Operating Voltage ....................100V ~ 240V 50/60 Hz Fuse............................2A 250V Power Consumption ..................
