Summary of Contents for Expolite TourLED 28 MKIII

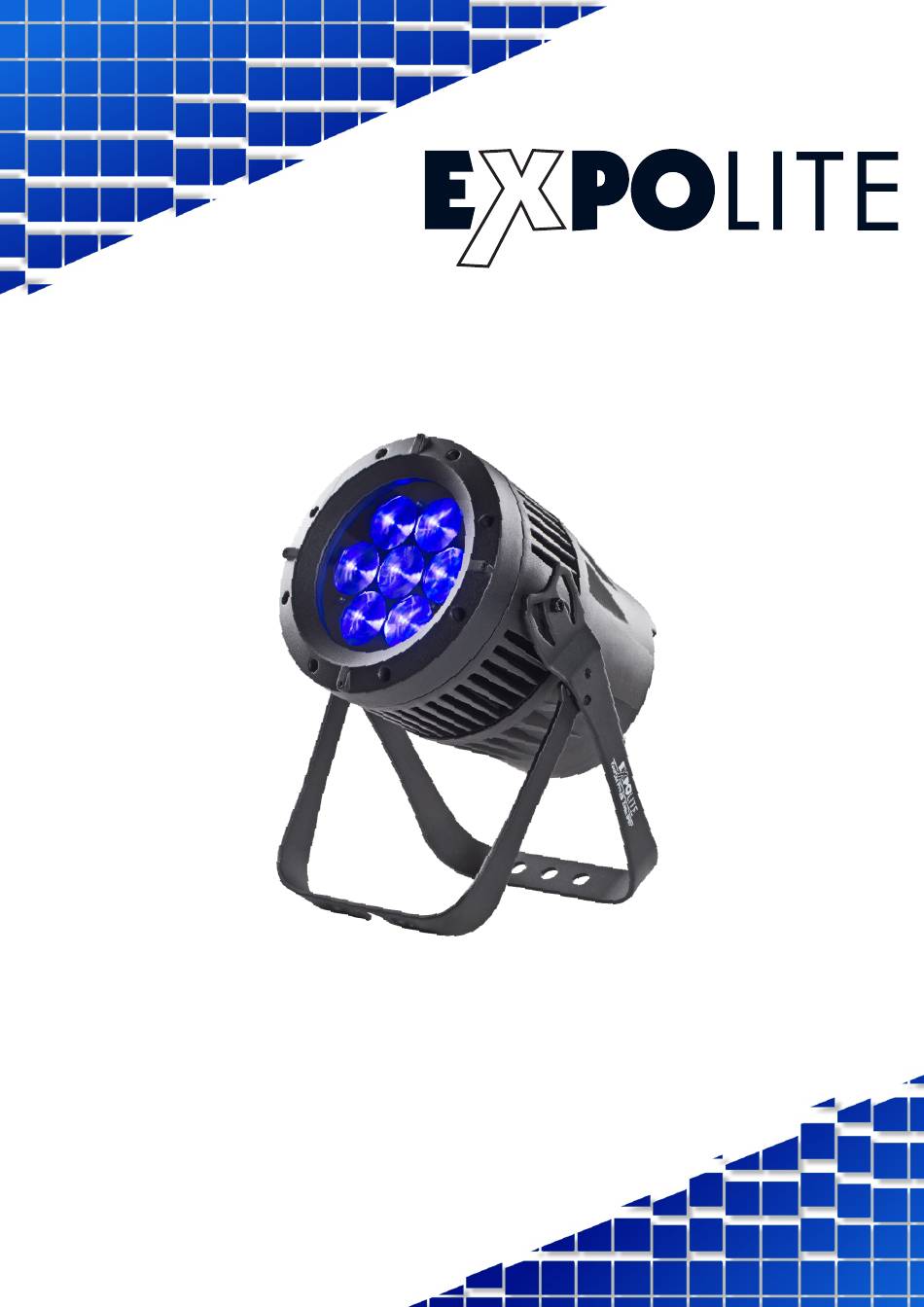

- Page 1 TourLED 28 MKIII User Manual...
- Page 2 The enclosed General Informations for Expolite Units are part of these user manual. Read them carefully before operating the device. FOCON SHOWTECHNIC Vertriebsgesellschaft mbH Teichweg 4+6 D-49504 Lotte/Wersen Telefon: +49 (0) 541-77095-0 Fax: +49 (0) 541-77095-27 info@focon-showtechnic.com www.focon-showtechnic.com...
- Page 3 Inhalt - Content Content Page Delivery E-04 E-05 Product Information E-06 Dimensions E-07 Installation Operation E-08 Using DMX512 Controler E-13...

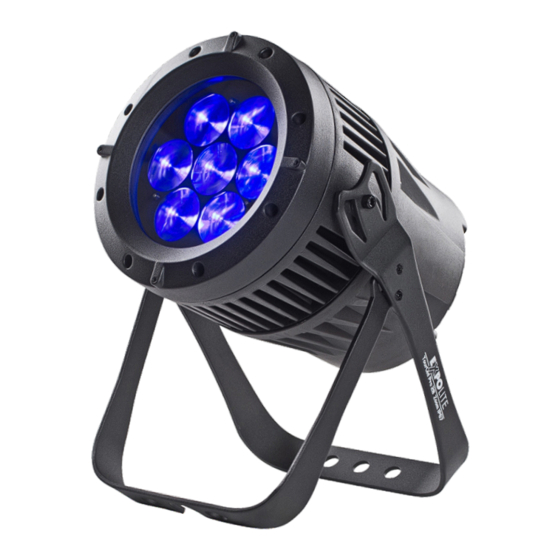

- Page 4 Delivery - Expolite TourLed 28 Pro Zoom CM+W MKIII - Displaycover - Powercord - General Information for Expolite Units - User Manual Expolite units are checked before shipping. If items are missing, please contact your Expolite distributor E-04...
-
Page 5: Specifications
Stand-Alone / Master-Slave / DMX512 DMX-Channels 3 - 25 (3/4/5/6/7/12/17/25) 0.73 2.18 3.64 5.10 7.28 40° 0.98 1.40 0.14 0.42 0.70 8° 78250 8694 3130 1597 8° 10000 1111 40° * See general information for Expolite Units - Condensation inside Housing E-05... - Page 6 Dimensions E-06...
- Page 7 DMX Addr.1 Addr.(Nx1)+1 Addr.(Nx2)+1 ... . DMX512 CONTROLLER E-07...
-
Page 8: Display Panel Operation
Display Panel operation Display operation MENU: Back Enter or Save ENTER: DOWN: Down MENU ENTER DOWN Menumap MENU STAT (0~255) (0~255) (0~255) (0~255) (0~20) AUTO AT.01 AT.02 AT.10 PR.01 PR.02 PR.10 SLAV D.(001~512) PERS TOUR TR16 AR1.D 8BIT RGBW 16BI ARC.2 AR2.D AR2.S... - Page 9 Edit static color MENU STAT (0~255) (0~255) (0~255) (0~255) (0~20) In the Menu „STAT“ values of each function for Stand-Alone operation can be set. Set and combine the range (0-255) for Red, Green, Blue, White an Zoom for 0-100%, also Strobe for 0-20Hz. Activate auto programs MENU AUTO...
- Page 10 Personality In the Menu „PERS“ the DMX-Personality will be set. Choose and select the personality. Benutzerprogramme editieren In the Manu „EDIT“ custom auto programms „PR01" to „PR10" can be edited. Each program has 30 steps that can be edited. Each step contains the values for RGBW, Zoom, Strobe (0-20Hz), step-time and fade-time.
- Page 11 „COLO“: In the Menu Color the color-kalibration can be selected or deactivated. If „RGBW“ is selected the maximum DMX-value (255) will be limited to the stored value in „CAL2". If „UC“ (Uniform-Color) is selected the factory-calibration will be used. RGBW output is balanced to differend generations of units.
- Page 12 Calibration and whitebalance Password „UP“-“DOWN“-“UP“-“DOWN“ MENU CAL1 R(0~255) WT.01 **** G(0~255) B(0~255) W(0~255) WT.11 R(0~255) CAL2 RGBW G(0~255) B(0~255) CALR CALR **** „CAL1" select WH.01 to WH.1 to calibrate the pre-programmed whitecolors. RGBW is used to mix pre-programmed colors. „CAL2" adjusts the output when the DMX-controller sends 255 on RGBW. „CALR“...
-
Page 13: Channel Assignment
Using DMX512 CHANNEL ASSIGNMENT This unit has different DMX-Personalities with different amount of DMX-channels. 10 DMX-Personalities with 3, 4, 5, 6, 7, 12, 17 und 25 channels are available. E-13... - Page 14 E-14...
- Page 15 E-15...
- Page 16 E-16...
- Page 17 E-17...
- Page 18 E-18...
- Page 19 E-19...
- Page 20 E-20...
- Page 21 E-21...
- Page 22 © 2021 by Focon Showtechnic Vertriebsgesellschaft mbH...
