Summary of Contents for senseca ECO 230

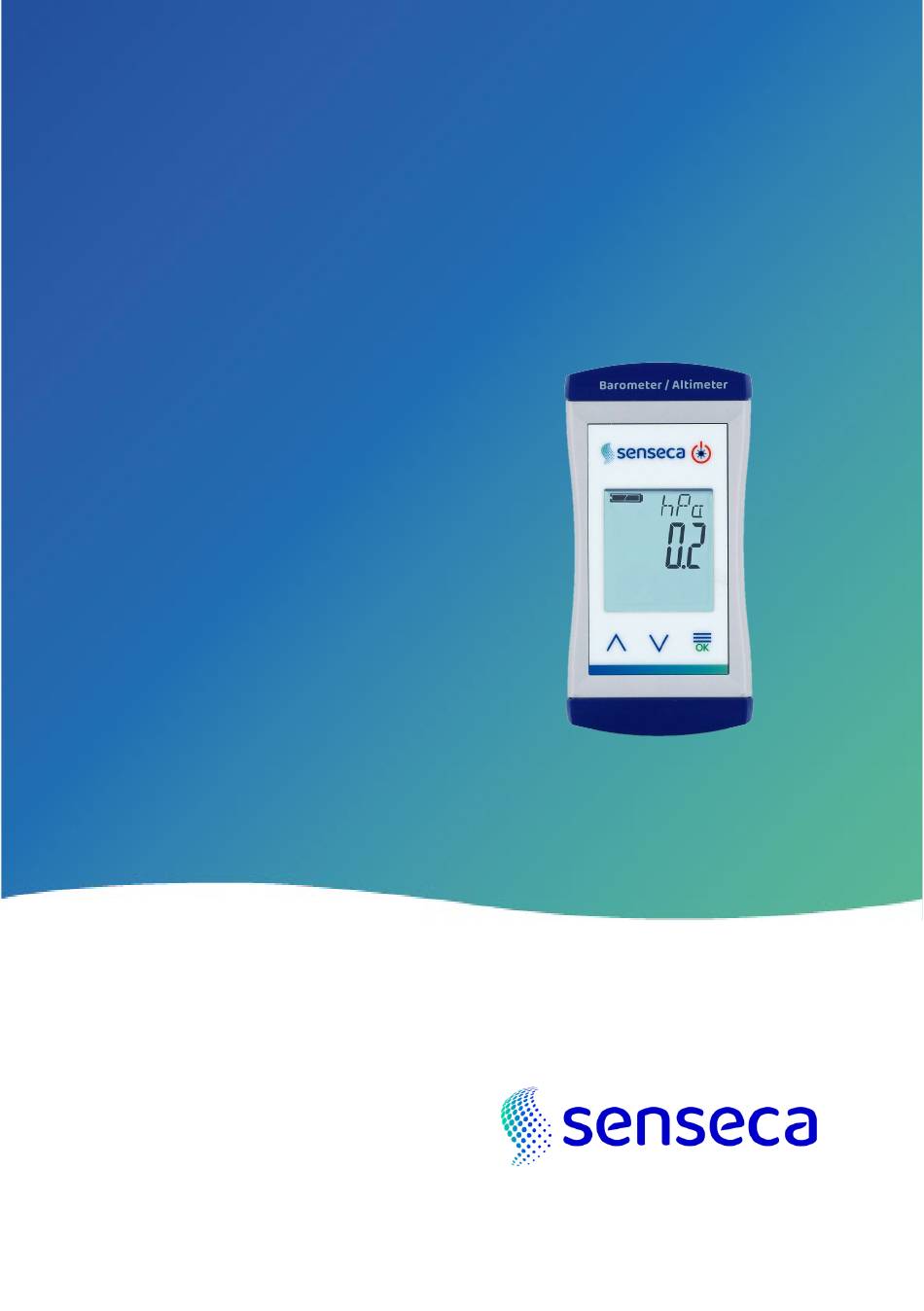

- Page 1 OPERATING MANUAL ECO 230 barometer | altimeter B-H88.0.01.DK2-2.0...
-
Page 2: Table Of Contents
ECO 230 barometer | altimeter Table of contents Table of contents About this documentation .......................4 Purpose of the document ......................... 4 Legal notices............................4 Further information ........................... 4 Safety ..............................5 Explanation of safety symbols ....................... 5 Foreseeable misuse ..........................5 Safety instructions .......................... - Page 3 ECO 230 barometer | altimeter Table of contents Disposal ............................16 Error and system messages ....................17 Technical data ........................... 18 B-H88.0.01.DK2-2.0 Page 3 of 20...
-
Page 4: About This Documentation
ECO 230 barometer | altimeter About this documentation About this documentation Purpose of the document Read this document carefully and familiarize yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 230 barometer | altimeter Safety Safety Explanation of safety symbols Danger! This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Caution! This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
ECO 230 barometer | altimeter Safety Safety instructions Note This product does not belong in children's hands! Intended use The device measures the absolute pressure in the air. The ambient pressure is measured directly via the integrated sensor. Pressure equalization between the unit and the environment takes place via a water-impermeable membrane on the front side. -
Page 7: The Product At A Glance

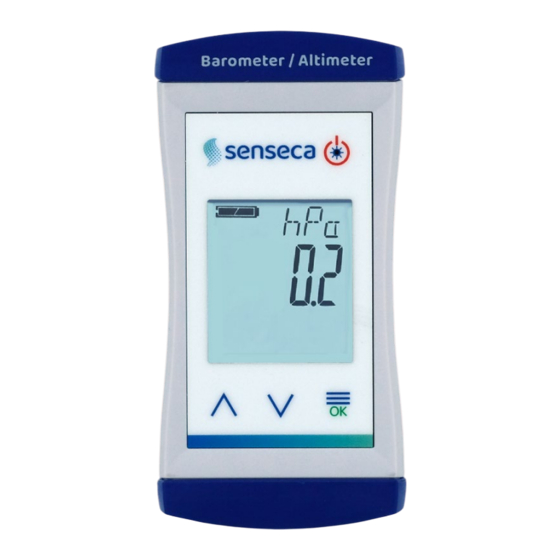

ECO 230 barometer | altimeter The product at a glance The product at a glance Top view with LCD Display pressure equalization opening Front view Display elements Display Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text... -
Page 8: Operating Elements
ECO 230 barometer | altimeter The product at a glance Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button... -
Page 9: Operation
ECO 230 barometer | altimeter Operation Operation Opening the configuration menu 1 Press the Function key for 2 seconds to open the Configuration menu. 2 (ONF appears in the display. Release the Function key. Parameter Values Meaning UN,T Display unit... - Page 10 ECO 230 barometer | altimeter Operation Parameter Values Meaning I_S / 60_S Time base for bar display 1 second (0.2 hPa / bar level corresponds to ~1.7 m / 5 ft at sea level) or 60 seconds (12 hPa / bar level corresponds to ~100 m /...
-
Page 11: Open The Adjustment Menu
ECO 230 barometer | altimeter Operation Parameter Values Meaning IN,T Factory settings Use current configuration Reset device to factory settings. After confirming with the function-button, the display shows: IN,T DONE Open the adjustment menu The sensor adjustment can be adjusted with the zero point correction and the gradient correction. -
Page 12: Measurement Basics
ECO 230 barometer | altimeter Measurement Basics Measurement Basics General information about absolute pressure measurement The device measures absolute pressure. However, this should not be confused with the "sea level air pressure" indicated by weather stations. The altitude-based air pressure decrease is calculated for these pressure specifications. -
Page 13: Use Of The Trend Indicator
ECO 230 barometer | altimeter Measurement Basics Note The tare function is independent of the zero point correction accessible via the adjustment menu. Use of the trend indicator Note For the trend display, it is necessary that the device has collected a sufficiently large number of measured values. -
Page 14: Hiking, Cycling, Flying, Motor Sports: Use As A Variometer
ECO 230 barometer | altimeter Measurement Basics 5.4.2 Hiking, cycling, flying, motor sports: use as a variometer A variometer or inclinometer indicates the change in altitude per unit of time, i.e. the rate of ascent or descent. Common units are [ft/min] or [m/s] for flight and motor sports, or [m/h] for example in hiking/running. -
Page 15: Operation And Maintenance
ECO 230 barometer | altimeter Operation and maintenance Operation and maintenance Battery 6.1.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. However, the device will still operate for a certain length of time. - Page 16 ECO 230 barometer | altimeter Disposal 1 Unscrews the Phillips screws (A)and remove the cover. 2 Carefully replace the two Mignon AA batteries (B). Ensure that the polarity is correct! It must be possible to insert the batteries in the correct position without using force.
-
Page 17: Error And System Messages
ECO 230 barometer | altimeter Error and system messages Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data • possible acquisition is running collection No display, unclear Battery depleted Battery depleted Replace battery •... -
Page 18: Technical Data
ECO 230 barometer | altimeter Technical data Technical data Measuring Barometer 300.0 .. 1100.0 hPa (mbar) abs. range 4.350 .. 15.950 PSI abs. 225.0 .. 825.0 mmHg (Torr) abs. Altimeter -500.0 .. 9000.0 m -1640 .. 19999 ft. Temperature -20.0 .. 50.0 °C -4.0 .. - Page 19 ECO 230 barometer | altimeter Technical data Housing Break-proof ABS housing Protection rating IP67 Measurements 108 * 54 * 28 mm Weight 140 g, incl. batteries Nominal temperature 25 °C Operating conditions -20 bis 50 °C; 0 to 95 %RH (short-term condensation possible) Storage temperature -20 bis 70 °C...
- Page 20 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE reg. no.: DE 93889386...
