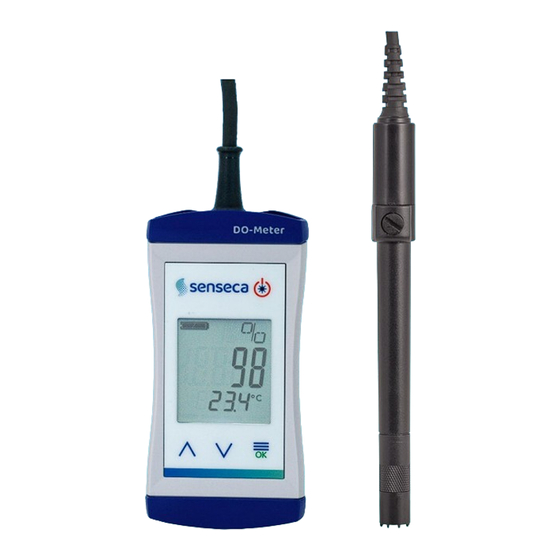

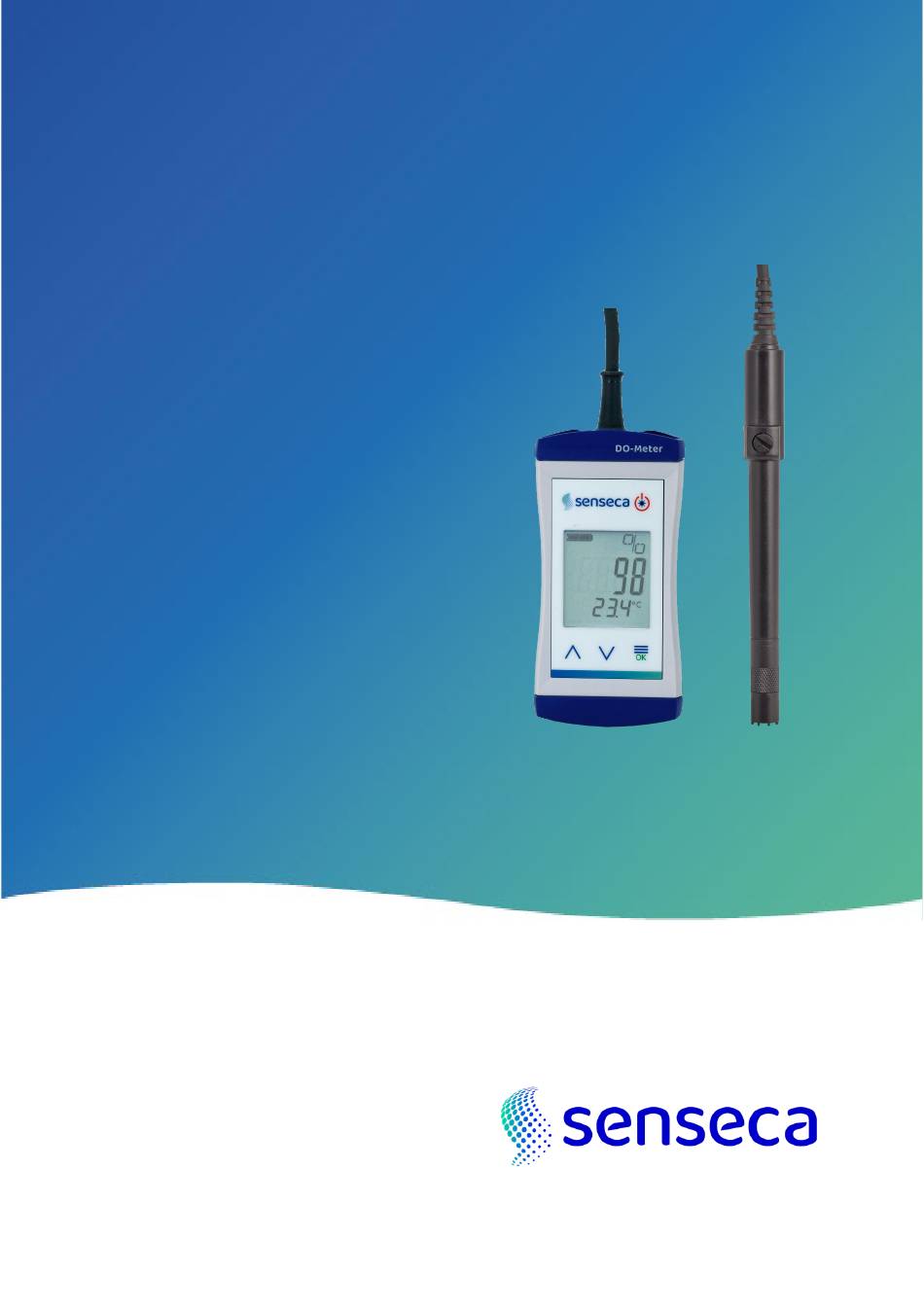

- Page 1 OPERATING MANUAL ECO 531 Dissolved oxygen measuring device B-H86.0.2X.DK2-3.1...
-
Page 2: Table Of Contents
ECO 531 - Dissolved oxygen measuring device Table of contents Table of contents About this documentation .......................4 Foreword ..............................4 Legal notices............................4 Further information ........................... 4 Safety ..............................5 Explanation of safety symbols ....................... 5 Foreseeable misuse ..........................6 Safety instructions ..........................6 Intended use ............................ - Page 3 ECO 531 - Dissolved oxygen measuring device Table of contents 6.3.2 Changing battery ......................19 Error and system messages ....................21 Technical data ........................... 22 Disposal ............................23 Service ............................23 B-H86.0.2X.DK2-4.0 Page 3 of 24...
-
Page 4: About This Documentation
ECO 531 - Dissolved oxygen measuring device About this documentation About this documentation Foreword Read this document carefully and familiarize yourself with the operation of the device before you use it. Keep this document ready to hand and in the immediate vicinity of the device so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 531 - Dissolved oxygen measuring device Safety Safety Explanation of safety symbols Danger This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Danger This symbol indicates danger for living tissue as well as a variety of materials, which can be damaged or destroyed when coming into contact with this chemical. -
Page 6: Foreseeable Misuse
ECO 531 - Dissolved oxygen measuring device Safety Foreseeable misuse The fault-free function and operational safety of the device can only be guaran-teed if applicable safety precautions and the device-specific safety instructions for this document are observed. If these notices are disregarded, personal injury or death, as well as property damage can occur. -
Page 7: Intended Use
ECO 531 - Dissolved oxygen measuring device Safety Caution For a reliable determination of the measured value, it is important that the device with the oxygen measuring cell are in good condition (no deposits on the electrode, ...). In addition, it is important to carry out a correct calibration on a regular basis. -
Page 8: The Device At A Glance
ECO 531 - Dissolved oxygen measuring device The device at a glance The device at a glance LCD Display Front view Display elements Display Battery indicator Evaluation of the battery status Display of units or type of mode, Unit display... -
Page 9: Operating Elements
ECO 531 - Dissolved oxygen measuring device The device at a glance Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button... -
Page 10: Operation
ECO 531 - Dissolved oxygen measuring device Operation Operation Opening the configuration menu 1 Press the Function key for 2 seconds to open the Configuration menu. 2 (ONF appears in the display. Release the Function key. Parameter Values Meaning Measuring unit... -
Page 11: Adjustment Of The Temperature Measuring Input
ECO 531 - Dissolved oxygen measuring device Operation Parameter Values Meaning IN,T Factory settings Use current configuration Reset device to factory settings. After confirming with the function-button, the display shows: IN,T DONE Adjustment of the temperature measuring input The temperature input can be adjusted with the zero point correction and the gradient correction. -
Page 12: Measurement Basics
ECO 531 - Dissolved oxygen measuring device Measurement Basics Measurement Basics The oxygen sensor 5.1.1 Explanation The oxygen sensor is an active sensor. It consists of a platinum cathode, a lead anode and potassium hydroxide (KOH) as an electrolyte. If oxygen is present, it is reduced on the platinum cathode and the sensor delivers a signal. - Page 13 ECO 531 - Dissolved oxygen measuring device Measurement Basics Note Protective gloves must be worn when commissioning, filling and servicing the sensor. Design α Filling hole: If the electrode is used at high temperatures or if it has been stored without its protective flask for a longer period of time, some electrolyte will be lost due to evaporation.
-
Page 14: Service Life
ECO 531 - Dissolved oxygen measuring device Measurement Basics 5.1.2 Service life Expected life is 3 years or more and is application and maintenance dependent. The sensor signal deteriorates relatively quickly at the end of the service life of the sensors. -
Page 15: Instructions For Oxygen Measurement
ECO 531 - Dissolved oxygen measuring device Measurement Basics A fast occurrence shortly after first filling or an unusual high amount of them (e.g. within some days) may be a sign of air in the sensor – either because of incorrect filling (bubbles), not sufficiently closing membrane head or filling screw or a leaking membrane. -
Page 16: Environmental Pressure, Water Depth And Air Pressure
ECO 531 - Dissolved oxygen measuring device Measurement Basics 5.2.2 Environmental pressure, water depth and air pressure The environmental pressure, water depth and air pressure play an important role at the place of measurement for the following points: Calculation of oxygen saturation in %. Clean water can achieve 100 % saturation in air. - Page 17 ECO 531 - Dissolved oxygen measuring device Measurement Basics Filling pipette Required material: Electrolyte KOH Flat blade screw driver Paper towel Polishing foil (pink) Suitable gloves *), Safety goggles Wash basin eventually spare membrane head GWOK 02 ...
-
Page 18: Operation And Maintenance
ECO 531 - Dissolved oxygen measuring device Operation and maintenance Operation and maintenance Operating and maintenance notices Note If the device is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. Leaks from the batteries are avoid-ed as a result. -
Page 19: Battery
ECO 531 - Dissolved oxygen measuring device Operation and maintenance Battery 6.3.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be replaced. However, the device will still operate for a certain length of time. - Page 20 ECO 531 - Dissolved oxygen measuring device Operation and maintenance 1 Unscrews the Phillips screws (A)and remove the cover. 2 Carefully replace the two Mignon AA batteries (B). Ensure that the polarity is correct! It must be possible to insert the batteries in the correct position without using force.
-
Page 21: Error And System Messages
ECO 531 - Dissolved oxygen measuring device Error and system messages Error and system messages Display Meaning Possible causes Remedy ---- Sensor cable defect • Cable breakage Send in for repair Sensor or device defect • Sensor or device defect Send in for repair ... -
Page 22: Technical Data
ECO 531 - Dissolved oxygen measuring device Technical data Technical data Sensor Permanently connected oxygen sensor Measuring range concentration 0.0 .. 20.0 mg/l 0.0 .. 20.0 ppm saturation 0 .. 200 % Temperature 0.0 .. 50.0 °C (32.0 .. 122.0 °F) -
Page 23: Disposal
ECO 531 - Dissolved oxygen measuring device Disposal battery life Service life > 3000 hours with alkaline batteries (without backlighting) Battery indicator 4-stage battery status indicator, Replacement indicator for depleted batteries: "BAT" Auto-power-OFF function The device switches off automatically if this is activated... - Page 24 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE reg. no.: DE 93889386...
