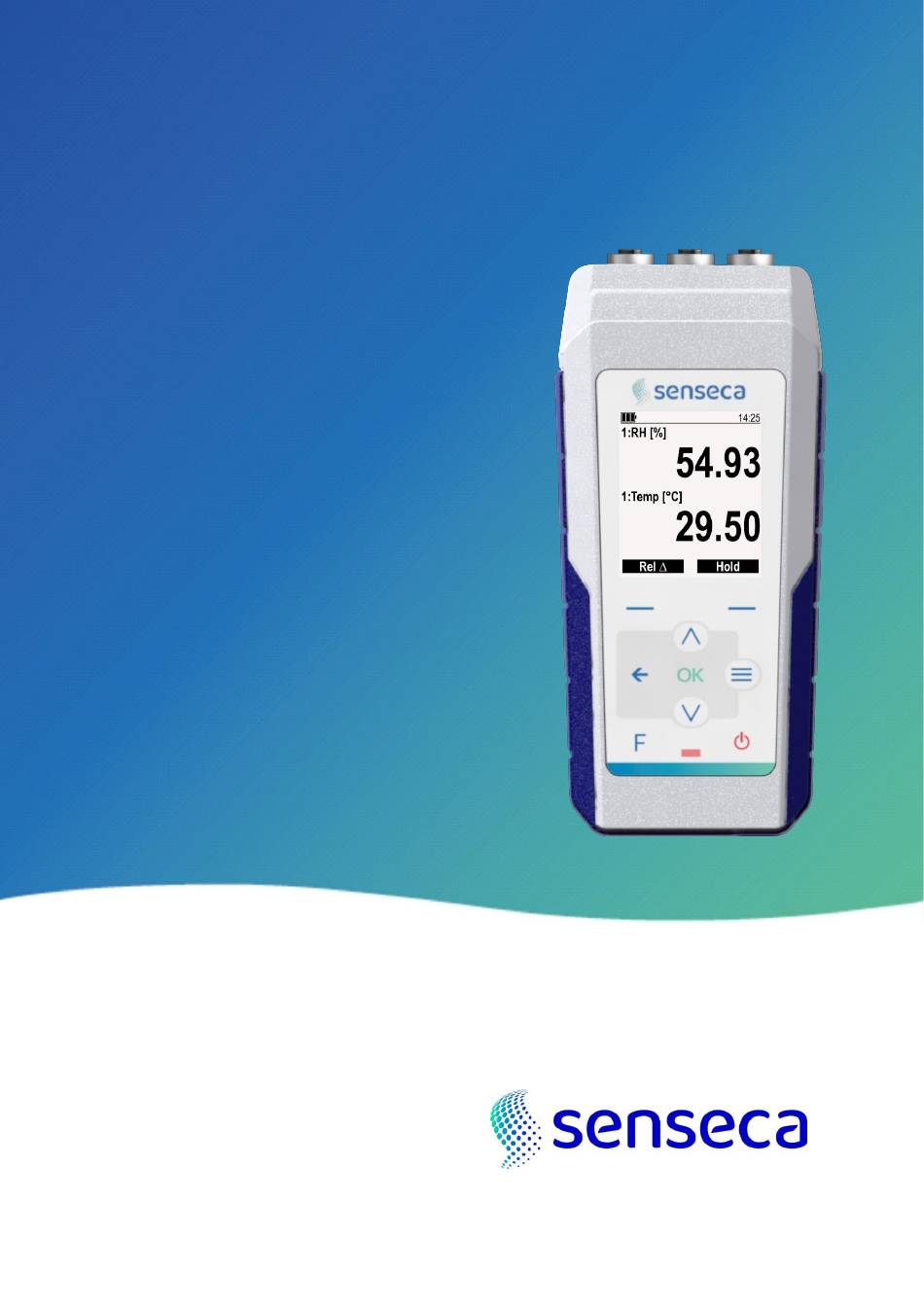

- Page 1 OPERATING MANUAL PRO D01 PRO D05 Multifunction meters / loggers P-000100-10-EN 06/2024...
-
Page 2: Table Of Contents
PRO D01 / PRO D05 – Multifunction meters / loggers Contents General information ..........................4 1.1 Safety information ..........................5 Overview ..............................6 2.1 Scope of delivery ............................ 6 Description............................. 7 Preparing the instrument ........................9 Measurement mode ......................... 10 5.1 Hold function ............................11 5.2 Rel function ............................11 5.3 Reset of the statistical values ......................12... - Page 3 PRO D01 / PRO D05 – Multifunction meters / loggers 12.2 Storage ..............................27 12.3 Disposal..............................27 13 Technical specifications ........................28 14 Attachable probes and accessories ..................... 29 Page 3 of 30...
-
Page 4: General Information
PRO D01 / PRO D05 – Multifunction meters / loggers 1 General information Read this document carefully and familiarize yourself with the operation of the device before using it. Keep this document ready to hand and in the immediate vicinity of the device so that it is always avail- able to the personnel/user in case of doubt. -
Page 5: Safety Information
PRO D01 / PRO D05 – Multifunction meters / loggers 1.1 Safety information Fault-free operation and operational safety of the device can only be guaranteed if the general safety requirements and the specific safety requirements in this document are observed. Do not use the device in climatic conditions other than those specified in this document. -
Page 6: Overview
PRO D01 is supplied with: • Quick start guide • 4 alkaline batteries, AA size • Test report PRO D05 is additionally supplied with a USB cable. The ProXware application software is downloadable from Senseca website. Page 6 of 30... -
Page 7: Description
PRO D01 / PRO D05 – Multifunction meters / loggers 3 Description Inputs with M12 connector. Left function key: runs the command shown at the bottom left on display. OK key: confirms the selection. key: in measurement display cycles through the various available visualization modes; in the menu goes up one level, cancelling any unconfirmed changes. - Page 8 PRO D01 / PRO D05 – Multifunction meters / loggers 12. Right function key: runs the command shown at the bottom right on display. 13. Foldable stand: pull to open the stand. 14. Magnet, for attachment to metal surfaces. 15. Battery compartment fixing screw. DISPLAY Symbols in the status bar: Battery charge level...
-
Page 9: Preparing The Instrument
PRO D01 / PRO D05 – Multifunction meters / loggers 4 Preparing the instrument Power supply The instrument is powered by 4 AA size batteries: • Alkaline for PRO D01 • rechargeable NiMH for PRO D05 already assembled in the device as standard. If for some reason (e.g., shipping rules) the batteries are not already assembled, unscrew the battery cover fixing screw and remove the cover, then insert the batteries as shown below. -
Page 10: Measurement Mode
PRO D01 / PRO D05 – Multifunction meters / loggers 5 Measurement mode To switch on the instrument, press the ON/OFF key. At startup, the instrument checks which probes are connected and, after a few seconds, displays the measured values. Note: when the instrument is turned on for the first time, it automatically enters the menu displaying some factory settings (language, date/time, etc.);... -
Page 11: Hold Function
PRO D01 / PRO D05 – Multifunction meters / loggers One parameter displayed numerically and graphically. Up to 3 parameters can be displayed graphically, selectable in the Chart setup → Channel select menu. The left function key Settings is a shortcut to the Chart setup menu. A graph for each of the chosen parameters is displayed. -
Page 12: Reset Of The Statistical Values
PRO D01 / PRO D05 – Multifunction meters / loggers 5.3 Reset of the statistical values To reset the statistical values, press the left function key (Select) in the measurement screen with the maximum/medium/minimum values, select with the down/up arrow keys the meas- urement whose statistical values should be reset (the selected measurement is highlighted in negative), then press the left function key (Clear). -
Page 13: Configuration
PRO D01 / PRO D05 – Multifunction meters / loggers 6 Configuration Press the MENU key to enter the configuration menu. The menu is structured in levels. The current level is indicated by the number of overlapping bars in the menu header: Header Level Menu items... -
Page 14: Menu Structure
PRO D01 / PRO D05 – Multifunction meters / loggers 6.1 Menu structure The menu structure is shown below; each item is preceded by the level according to the bar symbology shown on the display. MENU DESCRIPTION Measures list Selection of the quantities to display and log ‒... -
Page 15: Configuring A Parameter
PRO D01 / PRO D05 – Multifunction meters / loggers To go back up one level within the menu, press the key. The MENU key allows exiting the menu directly and return to measurement mode from any level (except from parameter set- ting screens, from which you can exit only with ). -
Page 16: Selecting And Sorting The Quantities To Be Displayed
PRO D01 / PRO D05 – Multifunction meters / loggers 6.3 Selecting and sorting the quantities to be displayed The Measures list menu item allows choosing which quantities to display and in which order. Enabled quantities are marked by the check mark. To enable or disable a quantity, select it with the down/up arrow keys, then press the right function key (Select or Unselect depending on whether the quantity is disabled or enabled). -
Page 17: Favorite Functions (Menu Shortcuts)
PRO D01 / PRO D05 – Multifunction meters / loggers 6.4 Favorite functions (menu shortcuts) Frequently used menu items can be added to a list of favorite functions so that they are easily accessible without the need to navigate the menu structure. To add a menu item to the list of favorite functions, select it in the menu and press the F key. -
Page 18: Measurement Basics
PRO D01 / PRO D05 – Multifunction meters / loggers 7 Measurement basics The type of probe connected is automatically recognized by the instrument. The probe is fac- tory calibrated and the calibration data are stored in the probe, which sends the measured value directly to the instrument. -
Page 19: Pressure Measurement
PRO D01 / PRO D05 – Multifunction meters / loggers 7.3 Pressure measurement Depending on the probe connected, the instrument measures absolute, relative or differential pressure. Attention! Use hoses with a diameter compatible with the probe pressure ports. The inner diameter of the hose should not be too large to avoid pressure loss and should not be too small to avoid mechanically forcing the ports when inserting the hose. -
Page 20: General Warnings On Probes Usage
PRO D01 / PRO D05 – Multifunction meters / loggers 7.6 General warnings on probes usage For temperature or other measurements that are automatically temperature compensated, wait for thermal equilibrium between the sensitive part of the probe and the area to be meas- ured before taking the measurement. -
Page 21: Measurement Adjustment
PRO D01 / PRO D05 – Multifunction meters / loggers 8 Measurement adjustment For some quantities (temperature and relative humidity) it is possible to apply a correction to the measurement or calibrate the probe at one or multiple points. Correction/calibration is possible only if the user calibration type is set in the instrument (Port x →... -
Page 22: Relative Humidity
PRO D01 / PRO D05 – Multifunction meters / loggers In the upper part of the display, the current temperature measurement is shown. In the middle part of the display, the exact calibration value should be set. Select the various digits using the function keys (< >). To change a digit, use the down/up ar- row keys. - Page 23 PRO D01 / PRO D05 – Multifunction meters / loggers Pressing the key it is possible to exit by canceling changes not yet confirmed. Attention! • For an accurate calibration, wait until the probe housing reaches thermal equilibrium and the measurement is stable before calibrating a point.
-
Page 24: Logging (Pro D05 Only)
PRO D01 / PRO D05 – Multifunction meters / loggers 9 Logging (PRO D05 only) The logging function stores in the memory of the instrument the detected measurement, along with the date and time of each sample. The data are stored in CSV format. Logging is automatic according to the set interval. -
Page 25: Serial Communication
PRO D01 / PRO D05 – Multifunction meters / loggers 10 Serial communication Serial commands can be sent to the instrument, to read the instrument information and the measurements. To send serial commands to the instrument, the USB mode menu item must be set to COM interface. -
Page 26: Battery Management
PRO D01 / PRO D05 – Multifunction meters / loggers 11 Battery management If the external power supply is not connected, the battery symbol on the display indicates the battery charge level. If the battery charge is insufficient to ensure a correct measurement, the instrument turns off. The data remains stored even with low batteries. -
Page 27: Maintenance
PRO D01 / PRO D05 – Multifunction meters / loggers 12 Maintenance It is recommended to perform a calibration check of the instrument and connected probes an- nually at accredited laboratories. 12.1 Cleaning Do not use aggressive cleaning agents or incompatible with the materials indicated in the technical specifications. -
Page 28: Technical Specifications
PRO D01 / PRO D05 – Multifunction meters / loggers 13 Technical specifications Input channels PRO D01: 1 PRO D05: 2 (PRO D05.2) or 3 (PRO D05.3) M12 connector Storage capacity (only PRO D05) Up to 1 million data sets, file system based (CVS files). Each data set includes measurements of all channels and date/time stamp. -
Page 29: Attachable Probes And Accessories
PRO D01 / PRO D05 – Multifunction meters / loggers 14 Attachable probes and accessories For the available DX series digital probes, please visit Senseca website. Accessories: CASE PRO-400 Case for PRO Line. Recess for one instrument, space for accessories, car- rying handle, zipper. - Page 30 Senseca Germany GmbH Hans-Sachs-Strasse 26 93128 Regenstauf GERMANY info@senseca.com...
