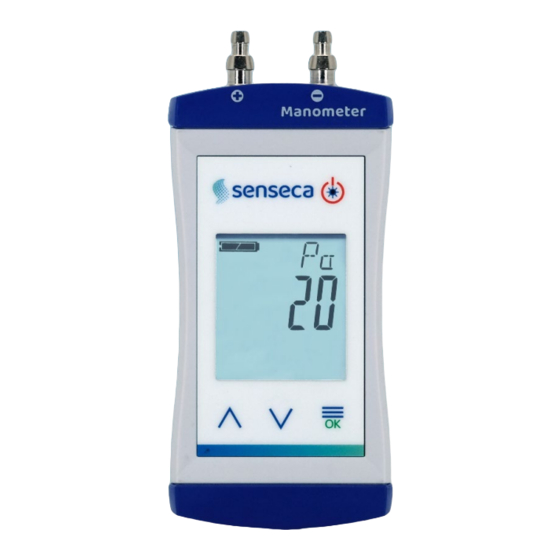

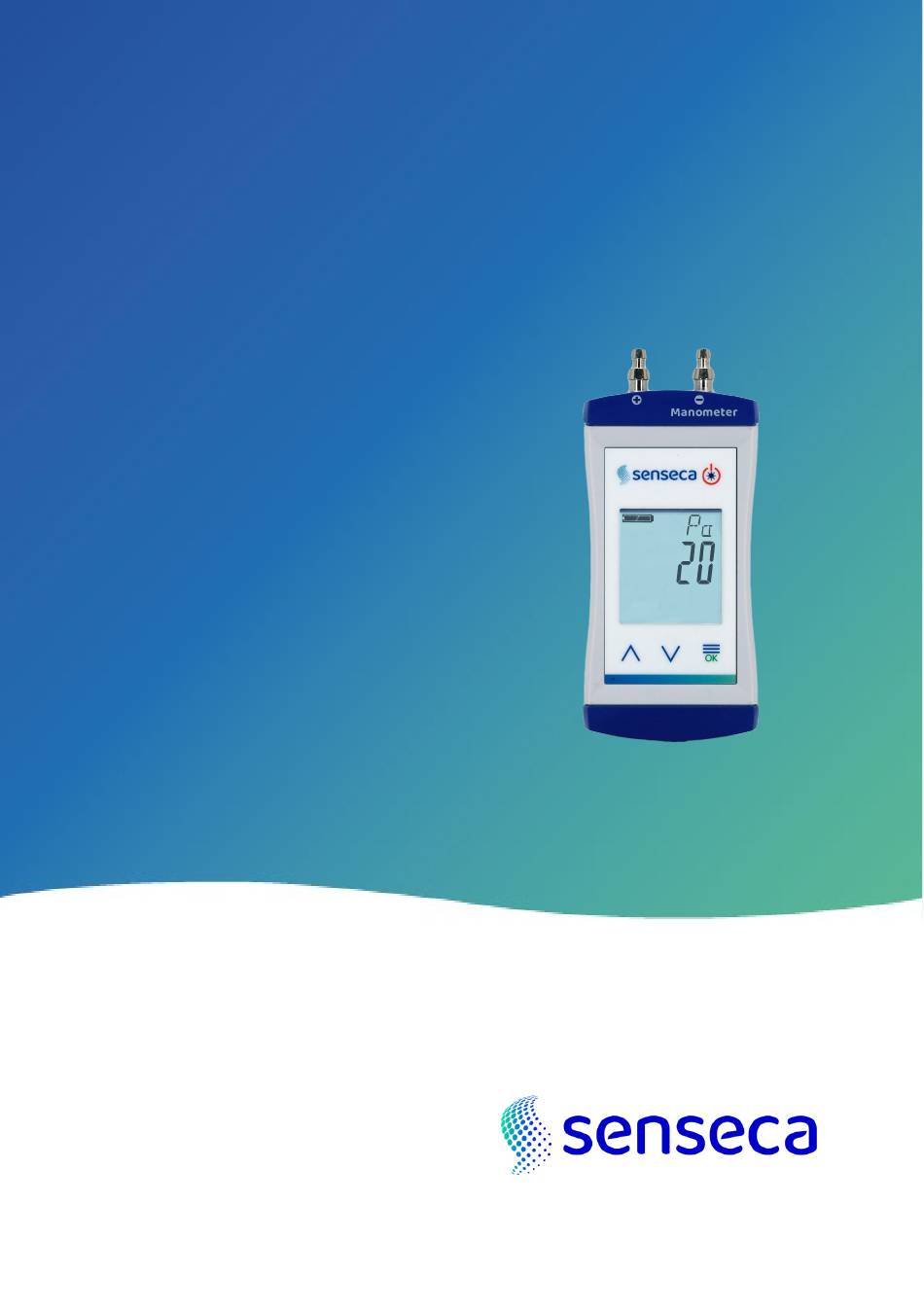

- Page 1 OPERATING MANUAL ECO 210-3 / ECO 210-5 Fine manometer | manometer Picture shows ECO 210-3 with UT B-H88.0.2X.DK2-1.4...
-
Page 2: Table Of Contents
Special functions ..........................12 NVLL Tare function ......................12 5.1.1 F,NE High-resolution measurement with 0.1 Pa 5.1.2 or 1 Pa (ECO 210-3) (ECO 210-5) AVR 0:02 / AVR 0:05 / AVR 0: 10 ................. 13 5.1.3 Pressure Connection ........................14 5.2.1 Replacement of pressure hoses ................ - Page 3 ECO 210-... - Fine manometer | manometer Table of contents Disposal ............................18 Error and system messages ....................19 Technical data ........................... 20 Service ............................22 10.1 Manufacturer ............................ 22 10.2 Calibration and adjustment service ..................22 B-H88.0.2X.DK2-2.0 Page 3 from 24...
-
Page 4: About This Documentation
ECO 210-... - Fine manometer | manometer About this documentation About this documentation Foreword Read this document carefully and familiarize yourself with the operation of the product be- fore you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 210-... - Fine manometer | manometer Safety Safety Danger This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Caution This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
Intended use The device is designed as a manometer and measures even the ECO 210-3 smallest pressure differential pressures of up to ±200 hPa with a maximum resolution of up to 0.1 Pa (at RANG = Slo and FVNC = FINE) in air or in non-corrosive/non-ionising gases between the two pressure connections. -
Page 7: The Product At A Glance
ECO 210-... - Fine manometer | manometer The product at a glance The product at a glance LCD Display+ Front view Connection variants Top view Display elements Battery indicator Evaluation of the battery status Unit display Display of the units or Min/Max/Hold information text Main display Measurement of the current pressure or value... -
Page 8: Operating Elements
ECO 210-... - Fine manometer | manometer The product at a glance Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button Press briefly Display of the min/max value Change value of the selected parameter... -
Page 9: Operation
1 Press the Function key for 2 seconds to open the Configuration menu. 2 (ONF appears in the display. Release the Function key. Parameter Values Meaning UN,T Display unit (only available at ECO 210-3) mBaR (only available at ECO 210-5) mmKG FVN< Activate able special functions NVLL... - Page 10 ECO 210-... - Fine manometer | manometer Operation Parameter Values Meaning No automatic shut-off 0:15, 0:30, 1:00, 4:00, Automatic shut-off after a selected time in 12:00 hours:minutes, during which no buttons have been pressed L,TE Backlight Backlight deactivated 0:15, 0:30, 1:00, 2:00, Automatic shut-off of the backlight after a select-ed 4:00 time in minutes:seconds, during which no buttons...
-
Page 11: Open The Adjustment Menu
PR.OF Zero point correction 0.00 No zero point correction -5.00 … 5.00 Zero point correction [in selected display unit] (e.g. at ECO 210-3: ± 5.00 hPa) PR.SL Gradient correction 0.00 No gradient correction of the temperature -5.00 … 5.00 Gradient correction in % Formula: Zero point correction: Displayed value = measured value - PR.OF... -
Page 12: Measurement Basics
The tare function is independent of the zero point correction accessible via the adjustment menu. 5.1.2 F,NE High-resolution measurement with 0.1 Pa or 1 Pa (ECO 210-3) (ECO 210-5) ECO 210-3 High-resolution measurement for the finest adjustment work, 4 Pascal Test (test of chimney draft with living-space-independent single combustion) and many other finely adjusted pressure applications. -
Page 13: Avr 0:02 / Avr 0:05 / Avr 0: 10
ECO 210-... - Fine manometer | manometer Measurement Basics Note The increased current consumption in this mode decreases battery life. The quickly determined measurement replaces other devices, such as a U-tube manometer. The four bars in the lower display provide additional support. The two middle bars appear: Measurement is stable ... -
Page 14: Pressure Connection
ECO 210-... - Fine manometer | manometer Measurement Basics Pressure Connection The device measures the pressure difference between the two connection ports. [+] higher pressure • [-] lower pressure • Measurement takes place against ambient air for relative pressure measurements, for which purpose the pressure hose is connected to [+], [-] remains free. - Page 15 ECO 210-... - Fine manometer | manometer Measurement Basics Supplied connection: Picture Description .. - UT Universal hose connection for 6 x 1 mm (4 mm inside) and 8 x 1 mm (6 mm inside) hoses. The universal hose connection is suitable for plastic and •...
-
Page 16: Operation And Maintenance
ECO 210-... - Fine manometer | manometer Operation and maintenance Operation and maintenance Operating and maintenance notices Note Pressure connections must be protected from soiling. Battery 6.2.1 Battery indicator If the empty frame in the battery display blinks, the batteries are depleted and must be re- placed. - Page 17 ECO 210-... - Fine manometer | manometer Operation and maintenance 1 Unscrews the Phillips screws (A)and remove the cover. 2 Carefully replace the two Mignon AA batteries (B). Ensure that the polarity is correct! It must be possible to insert the batteries in the correct position without using force.
-
Page 18: Disposal
ECO 210-... - Fine manometer | manometer Disposal Disposal Separation by material and recycling of device components and packaging must take place at the time of disposal. The valid regional statutory regulations and directives applicable at the time must be observed. Note The device must not be disposed of with household waste. -
Page 19: Error And System Messages
ECO 210-... - Fine manometer | manometer Error and system messages Error and system messages Display Meaning Possible causes Remedy ---- Calculation not Measurement data Waiting for data • possible acquisition is collection running No display, Battery depleted Battery depleted Replace battery •... -
Page 20: Technical Data
Standard function Min/Max/Hold NVLL: Activatable special Tare function functions F,NE: Measurement resolution 0.1 Pa (ECO 210-3) / 1 Pa (ECO 210-5) AVR: Averaging over 2 s / 5 s / 10 s Adjustment Zero point and gradient adjustment B-H88.0.2X.DK2-2.0 Page 20 from 24... - Page 21 ECO 210-... - Fine manometer | manometer Technical data Housing Break-proof ABS housing Protection rating IP67 (pressure connections must be protected from soiling and moisture) Dimensions 108 * 54 * 28 mm without pressure connection Weight 150 g, incl. batteries Nominal temperature 25 °C Operating conditions...
-
Page 22: Service
The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. Both ISO calibration certificates and DAkkS calibration certificates are available from Senseca. Note The ISO standard 9001 is applied for the iso-calibration certificates. - Page 23 ECO 210-... - Fine manometer | manometer Service B-H88.0.2X.DK2-2.0 Page 23 from 24...
- Page 24 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE reg. no.: DE 93889386...
