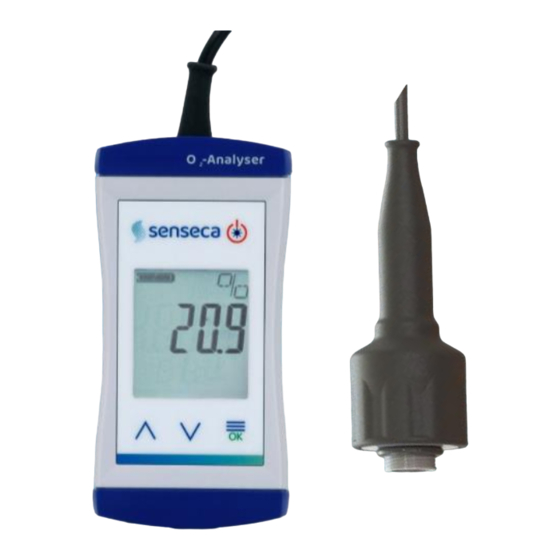

- Page 1 OPERATING MANUAL ECO 410 / ECO 410T -Analyser / oxygen meter B-H86.0.31.DK2-2.0...
-
Page 2: Table Of Contents
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Table of contents Table of contents About this documentation .......................4 Foreword ..............................4 Legal notices............................4 Further information ........................... 4 Safety ..............................5 Explanation of safety symbols ....................... 5 Foreseeable misuse ..........................5 Safety instructions .......................... - Page 3 ECO 410 / ECO 410T - O2-Analyser / oxygen meter Table of contents Error and system messages ....................17 Disposal ............................18 Technical data ........................... 19 Service ............................21 10.1 Manufacturer ............................ 21 10.2 Accessoires ................. Fehler! Textmarke nicht definiert.
-
Page 4: About This Documentation
ECO 410 / ECO 410T - O2-Analyser / oxygen meter About this documentation About this documentation Foreword Read this document carefully and familiarize yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Safety Safety Explanation of safety symbols Danger! This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Caution! This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
Note This device does not belong in children's hands! Danger! The sensor contains potassium hydroxide (GOEL 381 at ECO 410..-MAX) or acid (GOEL 370 at ECO 410..-35). Potassium hydroxide and acids cause chemical burns! In case of leaking liquid, avoid contact at all costs! ... -
Page 7: Intended Use
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Safety Intended use The device is to be used exclusively for measuring the oxygen concentration in gas mixtures and air. The measurement is made at the sensor opening. The device must be calibrated regularly (in fresh air =20.95% vol. % O2) to obtain accurate readings. -
Page 8: Qualified Personnel
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Qualified personnel Qualified personnel LCD Display Device Sensor in Sensor (top) T-piece (mounted) protective cover flowdiverter (bottom) Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units or min*/max*/hold... -
Page 9: Operating Elements
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Qualified personnel Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button... -
Page 10: Operation
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation Operation Opening the configuration menu 1 Press the Function button for 2 seconds to open the Configuration menu. 2 (ONF appears in the display. Release the Function button. Parameter... -
Page 11: Changing The Sensor
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation Parameter Values Meaning No automatic shut off of the backlight Factory settings IN,T Use current configuration Reset device to factory settings. After confirming with the function-button, the display shows: IN,T DONE... -
Page 12: Adjustment To The Sensor Signal
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation Caution! Risk of injury! The lid of the opened tin can is sharp-edged! Note The sensor, in particular the sensor membrane, must be protected from dirt and moisture. If the sensor gets wet or falls into water, the sensor should be pulled out of the protective sensor cover to dry. -
Page 13: Measurement On Immersion Gas Cylinders
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation Measurement on immersion gas cylinders Note The combination adapter for compressed air and NITROX (GZ-5826) as well as the T-piece are not included in the standard accessories of every instrument version, but can be purchased separately (see chapter 10.2 Accessories on page 22). -
Page 14: Measurement Basics
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Measurement Basics Measurement Basics Oxygen principles The sensor provides a signal which is proportional to the oxygen partial pressure (p 5.1.1 Oxygen partial pressure and oxygen concentration The partial pressure is the pressure of one component in a mixture of different components. -
Page 15: Operation And Maintenance
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation and maintenance Operation and maintenance Operating and maintenance notices Note The device and sensor must be handled with care and used in accordance with the technical data. Do not throw or strike. - Page 16 ECO 410 / ECO 410T - O2-Analyser / oxygen meter Operation and maintenance Note Unnecessary unscrewing endangers the protection against moisture and should therefore be avoided. Read the following handling instructions before replacing batteries and follow them step by step.
-
Page 17: Error And System Messages
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Error and system messages Error and system messages Display Meaning Possible causes Remedy Sensor contact not Sensor not plugged Check sensor SENS ERRO • present. in correctly connection or strongly... -
Page 18: Disposal
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Disposal Display Meaning Possible causes Remedy Calibration failed: Sensor not Check sensor • value to high connected correctly, connection. ERR.4 used up or defective Replace sensor Incorrect air •... -
Page 19: Technical Data
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Technical data Technical data Measuring range device ECO 410(T)-35 ECO 410(T)-MAX O2 concentration 0.0 … 100.0 Vol.-% O 0.0 … 100.0 Vol.-% O recommended for 0.2 … 35 (also for values <=0.2 and above vol. - Page 20 ECO 410 / ECO 410T - O2-Analyser / oxygen meter Technical data Operating conditions -20 to 50 °C; 0 to 95 %RH (temporarily 100 %RH) device Operating conditions 0 to 45 °C (recommended 5 to 30 °C), 600 ... 1750 hPa abs.
-
Page 21: Service
ECO 410 / ECO 410T - O2-Analyser / oxygen meter Service 10 Service 10.1 Manufacturer If you have any questions, please do not hesitate to contact us. 10.2 Accessories Spare parts: GB-AA-2 art. no. 479249 Spare batteries AA (2 pcs.) GOEL 370 art. - Page 22 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE REG. NO.: DE 93889386...
