- Page 1 OPERATING MANUAL ECO 130.2 Quick response 2 channel-alarm-thermometer for exchangeable Type K thermocouple sensors B-H89.0.1X.DK2-2.0...
-
Page 2: Table Of Contents
ECO 130.2 - Quick response 2 channel-alarm-thermometer Table of contents Table of contents About this documentation .......................4 Foreword ..............................4 Legal notices............................4 Further information ........................... 4 Safety ..............................5 Explanation of safety symbols ....................... 5 -Foreseeable misuse .......................... 5 Safety instructions ..........................6 Intended use ............................ - Page 3 ECO 130.2 - Quick response 2 channel-alarm-thermometer Table of contents Error and system messages ....................17 Technical data ........................... 18 Disposal ............................19 Service ............................20 10.1 Manufacturer ............................ 20 10.2 Calibration and adjustment service ..................20 10.3 Accessories ............................21 10.3.1...
-
Page 4: About This Documentation
ECO 130.2 - Quick response 2 channel-alarm-thermometer About this documentation About this documentation Foreword Read this document carefully and familiarize yourself with the operation of the device before you use it. Keep this document ready to hand and in the immediate vicinity of the device so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 5: Safety
ECO 130.2 - Quick response 2 channel-alarm-thermometer Safety Safety Explanation of safety symbols Danger! This symbol warns of imminent danger, which can result in death, severe bodily injury, or severe property damage in case of non-observance. Caution! This symbol warns of potential dangers or harmful situations, which can cause damage to the device or to the environment in case of non-observance. -
Page 6: Safety Instructions
ECO 130.2 - Quick response 2 channel-alarm-thermometer Safety Safety instructions Caution! Risk of injury at the temperature sensor! Devices with insertion probes entail the risk of stab injuries due to the pointed probe design. There is a risk of burns when measuring in high (and very low) temperatures. Use gloves ... -
Page 7: The Device At A Glance

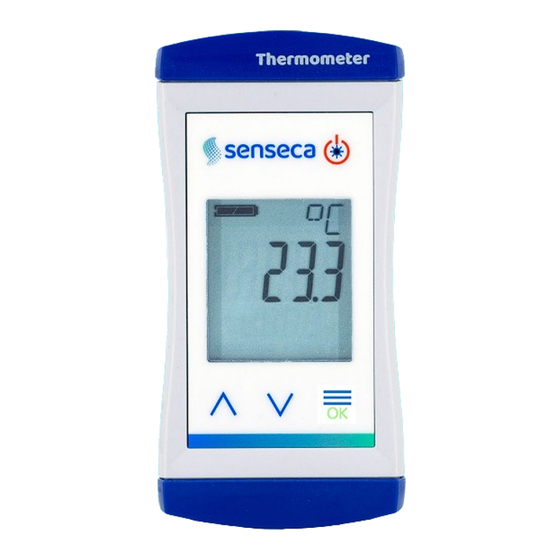

ECO 130.2 - Quick response 2 channel-alarm-thermometer The device at a glance The device at a glance LCD Display Top view Front view Display elements Battery indicator Evaluation of the battery status Unit display Display of units or min/max/hold/diff Main display... -
Page 8: Operating Elements
ECO 130.2 - Quick response 2 channel-alarm-thermometer The device at a glance Operating elements On / Off button Press briefly Switch on the device Activate / deactivate lighting Long press Switch off the device Reject changes in a menu Up / Down button... -
Page 9: Operation
ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation Operation Opening the configuration menu 1 Press the Function button for 2 seconds to open the Configuration menu. 2 (ONF appears in the display. Release the Function button. Parameter Values Meaning Measuring channel (H.1... - Page 10 ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation Parameter Values Meaning L,TE Backlight Backlight deactivated 0:15, 0:30, 1:00, 2:00, Automatic shut-off of the backlight after a select-ed 4:00 time in minutes:seconds, during which no buttons have been pressed No automatic shut off of the backlight °(...
-
Page 11: Adjustment Of The Measuring Input
ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation Adjustment of the measuring input The temperature input can be adjusted with the zero point correction and the gradient correction. If an adjustment is made, you change the pre-adjusted factory settings. This is signaled with the display text T.OF or T.SL when switching on. - Page 12 ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation Zero point: Set the temperature probe to 0 °C and let it adjust. Start the adjustment menu and enter the display value at 0 °C for t.oF After leaving the menu, the device should now display 0.0 °C.
-
Page 13: Measurement Basics
ECO 130.2 - Quick response 2 channel-alarm-thermometer Measurement Basics Measurement Basics Sensor/device accuracy The device can be equipped with different interchangeable sensors. The temperature sensors are divided into the following classes according to EN 60584-2. class deviation Temperature range ±1.5 °C or ±0.4 % of measured value * -40 …... -
Page 14: Response Time
ECO 130.2 - Quick response 2 channel-alarm-thermometer Measurement Basics 5.2.4 Response time An adequate wait time must be observed for the measuring process before reading the measured value. The response time T describes the time in which the displayed measured value reached 90% of the end value. -
Page 15: Operation And Maintenance
ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation and maintenance Operation and maintenance Operating and maintenance notices Note The device and temperature probe must be handled with care and used in accordance with the technical data. Do not throw or strike. - Page 16 ECO 130.2 - Quick response 2 channel-alarm-thermometer Operation and maintenance Note Unnecessary unscrewing endangers the protection against moisture and should therefore be avoided. Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the device could be damaged or the protection from moisture could be ...
-
Page 17: Error And System Messages
ECO 130.2 - Quick response 2 channel-alarm-thermometer Error and system messages Error and system messages Display Meaning Possible causes Remedy ---- No suitable Incorrect measuring Connect suitable • measuring probe probe measuring probe(s) connected No 2 probes Measurement leaves the •... -
Page 18: Technical Data
ECO 130.2 - Quick response 2 channel-alarm-thermometer Technical data Technical data Sensor connection Connection sockets for miniature flat plug Supported sensor type Thermocouple type K (NiCr-Ni) Measuring ranges -65.0 … +1200.0 °C (-85.0 ... +2192 °F) Accuracy Note The system accuracy depends on the accuracy... -
Page 19: Disposal
ECO 130.2 - Quick response 2 channel-alarm-thermometer Disposal Directives and standards The devices conform to the following Directives of the Council for the harmonization of legal regulations of the Member States: 2014/30/EU EMC Directive • 2011/65/EU RoHS • Applied harmonized standards: EN 61326-1:2013 Emission limits: Class B •... -
Page 20: Service
ECO 130.2 - Quick response 2 channel-alarm-thermometer Service 10 Service 10.1 Manufacturer If you have any questions, please do not hesitate to contact us. 10.2 Calibration and adjustment service The purpose of the calibration is to verify the precision of the measuring device by comparing it with a traceable reference. -
Page 21: Accessories
ECO 130.2 - Quick response 2 channel-alarm-thermometer Service 10.3 Accessories 10.3.1 Spare parts: GB-AA-2 art. no. 479249 Spare batteries AA (2 pcs.) 10.3.2 Suitable sensors: GTE 130 OK art. no. 601483 Insertion probe without cable, Ø1.5 GF 1TK-T3 art. no. 609695 Compact immersion probe with silicone handle, Ø3 mm... - Page 22 Senseca Germany GmbH Hans-Sachs-Straße 26 93128 Regenstauf GERMANY INFO@SENSECA.COM WEEE reg. no.: DE 93889386...
