Summary of Contents for ElectrIQ AQUA-DRY

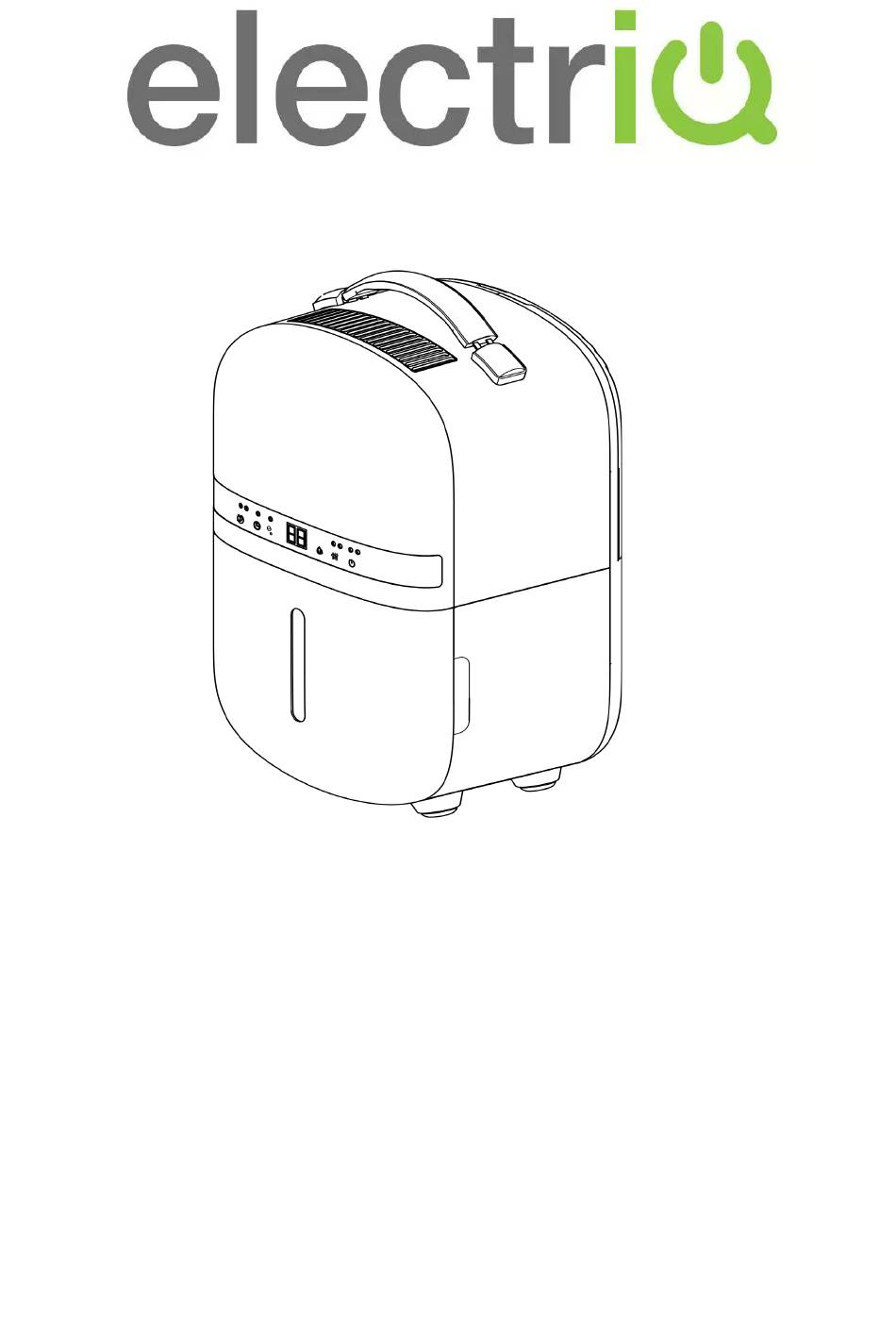

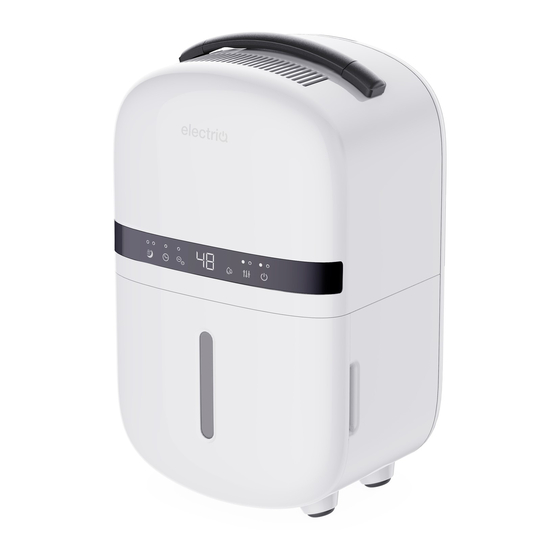

- Page 1 USER MANUAL AQUA-DRY AQUA-DRYB 5-LITRE COMPRESSOR DEHUMIDIFIER Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our entire range of Intelligent Electricals.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS VISUAL SAFETY GUIDE FEATURES INSTALLATION POSITIONING THE DEHUMIDIFIER PARTS CONTROL PANEL WATER DRAINAGE CARE AND MAINTENANCE SUPPORT TROUBLESHOOTING TECHNICAL DATA... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS use by those with a lack of experience and knowledge unless they have IMPORTANT been given supervision or instruction • Carefully read the instructions before concerning the use of the appliance operating the unit. by a person responsible for their •... - Page 5 appliance. Do not use dehumidifiers • Unintended use or damage to the where flammable gases or VOC can casing may result in the escape of be released or accumulate. dangerous UV-C radiation. UV-C radiation may, even in small doses, • Do not use or store the unit in a room cause harm to the eyes and skin.
-
Page 6: Warning Symbols
QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER Exposed to the Near water If the power cable wires are Where small children may be weather outdoors frayed or cut. left unattended If an extension lead Where chemicals Where the power cable may be Where there is a risk of... -
Page 7: Features
Place a piece of carpet or a rubber mat under the unit to reduce vibrations while it is running. The AQUA-DRY dehumidifier uses compressor technology to extract water from the environment. Compressor dehumidifiers are ideal for normal domestic or office environments, which are heated during the winter months and maintain a temperature above 12-15⁰C. -
Page 8: Parts
Your electriQ dehumidifier will begin to protect your space from the harmful effects of excessive moisture as soon as it is turned on. Excess moisture is dispersed throughout your home. For this reason, the dehumidifier should be positioned in a central and clear location so that it can draw this moist air towards it from all over the home. - Page 9 OPTIONAL To fit the filters, remove the filter frame from the air inlet and place it flush with the air inlet. If both the carbon and HEPA filters are used in combination, the carbon filter should be inserted first. CARBON FILTER (Supplied) HEPA FILTER (Not Supplied) Used for the removal of Used for the removal of...
-
Page 10: Control Panel
CONTROL PANEL POWER BUTTON Turn the appliance on/off. Note: When the power light is flashing, the unit is in defrost mode MODE BUTTON Select the unit's operating mode between Smart and Air Purifier. SMART MODE: The unit will start dehumidifying when the humidity increases to 5% above the desired humidity and will stop when the humidity drops to 5% below the desired humidity. -
Page 11: Other Features And Indicators
DISPLAY During normal operation, the current humidity of the room is shown. Shows the desired humidity when the HUMIDITY button is pressed. Shows the timer duration when the TIMER button is pressed. NOTES If a permanent drainage pipe is fitted, the unit will not stop operating. Setting the desired humidity •... -
Page 12: Water Drainage
WATER DRAINAGE When the water tank is full, the unit will stop automatically. When this happens, the TANK FULL indicator will illuminate NOTE: Only empty the water tank when it is full or before moving or storing the unit. There are two ways to dispense collected water. USE THE TANK When the tank is full, the unit automatically stops running, and the TANK FULL indicator illuminates. -
Page 13: Frequently Asked Questions
1. CLEAN THE GRILLE AND CASE Use water and a mild detergent to clean the washable filter frame. Do not use bleach or abrasives. Do not splash water directly onto the main unit. Doing so may cause an electric shock, deteriorate the insulation, or cause the unit to rust. The air intake and outlet grilles get soiled easily, so use a vacuum attachment or soft brush to clean them. -
Page 14: Support
During the cold cycle, cold air should come out of the unit. During the hot cycle, hot, dry air should come out of the outlet grill. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. -
Page 15: Troubleshooting
The tank is full or is not in the right position. Empty the indicator notification tank and replace it in the right position. light Any other malfunctions must be reported to the electriQ service centre. Do not attempt unauthorised repairs, as these may invalidate the warranty. -
Page 16: Technical Data
TECHNICAL DATA Model AQUA-DRY / AQUA-DRYB Voltage 220-240V～50Hz Dehumidifying capacity 5L / day (at 30⁰ C / 80%RH) Fan Speeds Electrical Equipment Type Class 1 Ingress Protection IPX1 Rated Input Power 155W Running Amps 0.75 Amps Tank Capacity 1.5 litres Desired Humidity Range 35 –...
