Summary of Contents for ElectrIQ DESD9L

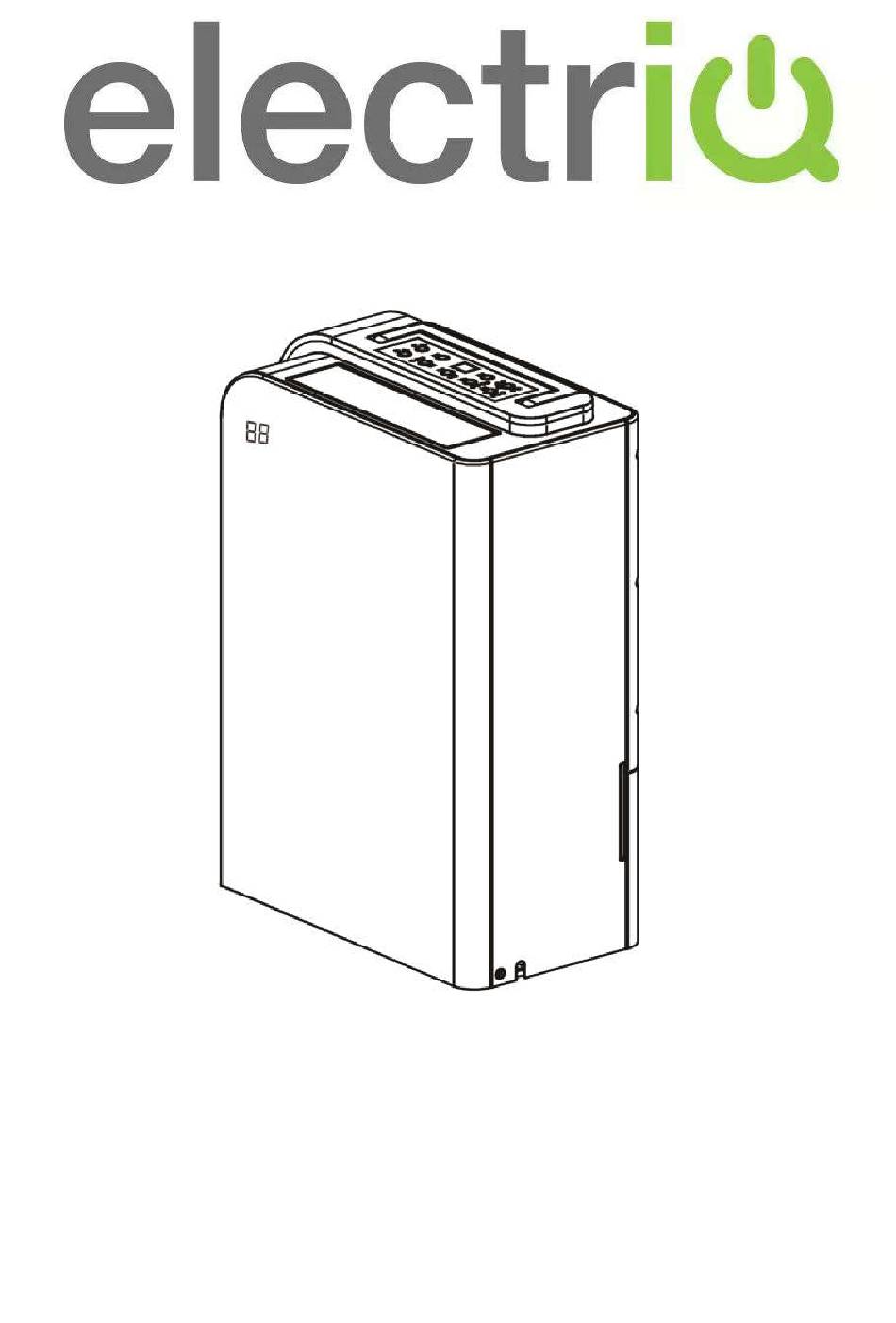

- Page 1 USER MANUAL DESD9L PREMIUM DESICCANT DEHUMIDIFIER Thank you for choosing electriQ Please read this user manual before using this innovative Dehumidifier and keep it safe for future reference...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS FEATURES INSTALLATION PARTS ACCESSORIES CONTROL PANEL QUICK REFERENCE GUIDE LAUNDRY MODE OTHER FEATURES AND INDICATORS POSITIONING THE DEHUMIDIFIER WATER DRAINAGE CARE AND MAINTENANCE FREQUENTLY ASKED QUESTIONS TROUBLESHOOTING electriQ UK SUPPORT TECHNICAL DATA... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit. This appliance only intended for use in an indoor domestic environment. Any other use is not recommended by the manufacturer and may cause fire, electrical shock or other injury to person or damage to property. - Page 4 A damaged power supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid a hazard. Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to comply could result in a voided warranty.
- Page 5 ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS Do not cover or restrict the airflow from the outlet or inlet grills. For maximum performance the unit should be operated at least 20 cm away from walls and 50 cm from other objects within the room. Keep the filters and grills of the appliance clean.
-
Page 6: Features
It features an intelligent digital humidistat with variable humidity settings between 35-80% RH ensuring your room is not dried too much and power is not wasted. The DESD9L also features a powerful laundry mode and a sleep mode giving the user the ability to select maximum dehumidification, or quieter operation. -
Page 7: Parts
PARTS Top Display... -
Page 8: Accessories
ACCESSORIES (OPTIONAL) (OPTIONAL) -
Page 9: Control Panel
CONTROL PANEL POWER BUTTON Turn the appliance ON/OFF. Please note following turning off the unit will take around 3 minutes to dry the zeolite disk before operation stops. MODE BUTTON Change the mode between: Smart / Heater / Dehumidifier / Air Purifier SMART MODE: The unit will default to Smart mode the first time it is switched on and remains in this mode until another program is chosen. - Page 10 OSC. (OSCILLATION FUNCTION) There are three different option for the outer louver on the unit. It can be set at 45 or 90 degrees, or alternatively to swing. Set the louvre at a 45 degree angle or swing when drying clothes. UV LIGHT (FOR AIR PURIFIER FUNCTION) To activate the UV function press the UV button and the indicator light will illuminate.
- Page 11 HUMIDITY LEVEL & TIMER 2 DIGIT DISPLAY The led indicator performs the following functions: WHEN THE UNIT IS PLUGGED IN: It will indicate the humidity level of the room. WHEN ONE OF THE HUMIDITY SETTING BUTTONS ARE PRESSED: It will indicate the desired humidity, before reverting to showing the current humidity after a few seconds.
-
Page 12: Quick Reference Guide
QUICK REFERENCE GUIDE POWER BUTTON: Press the power button to turn the dehumidifier on and off. SWING CONTROL BUTTON: Press once to make the louvres swing and press again to lock at 45 degrees, press again to lock at 90 degrees. Do not operate the unit if the self-opening louvers do not open when the unit is powered on. -
Page 13: Laundry Mode
AIR PURIFIER MODE: No moisture will be extracted in this mode, which when used with filters will purify the air. The UV and plasma ioniser can also be used in this mode to further improve the quality of air processed. WHEN THE APPLIANCE IS RUNNING IN HEATING, DEHUMIDIFYING OR SMART MODE: If the unit works continuously more than 8 hours without reaching the desired... -
Page 14: Other Features And Indicators
When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement, and ensure it is placed on a dry flat surface. -
Page 15: Water Drainage
WATER DRAINAGE When the water tank is full, the unit will stop operating. When this happens the TANK FULL light will show on the control panel, and the unit will bleep. Note: Only empty the water tank when it is full or before moving or storing the unit. There are two ways to dispense collected water. - Page 16 SET UP CONTINUOUS DRAINAGE The dehumidifier has a continuous drain hole that can be connected to a plastic pipe with a 15 mm inner diameter (Not Supplied). Water can be plumbed in or drained into a sink, a larger receptacle or through the wall into an outside drain. Please follow the steps below to set your unit up for continuous drainage.
-
Page 17: Care And Maintenance
CARE AND MAINTENANCE Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit. -
Page 18: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS WHY DOESN’T THE UNIT WORK /OR STOPS SUDDENLY? The water tank may be full or displaced. Empty the tank and carefully replace in the unit to rectify. WHY DOES IT REQUIRE EMPTYING VERY REGULARILY? When you first use your dehumidifier, it will work harder to reduce the room humidity down to 50%RH (SMART mode or the desired humidity set in dehumidifier mode). -
Page 19: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Power is abnormal Contact an electrician to perform a repair. The unit does Water tank displaced or full Check water tank placement or empty water tank not work Room temperature is too Lower room temperature, clear air outlet high or air-outlet is covered Filter is dirty Clean the filter... -
Page 20: Electriq Uk Support
Note: when the fault cannot be solved by the solutions above, please contact service centre for help, do not attempt repairs. electriQ UK SUPPORT For your own convenience, make these simple checks before calling the service line. Has the unit been standing upright? (for at least 2 hrs) Is the unit plugged into the mains? Is the fuse OK? Switch the unit on and wait three minutes to see if the issue is resolved. -
Page 21: Technical Data
TECHNICAL DATA DESD9L Model No. Rated Voltage 220-240V~ 50Hz Dehumidify Capacity max 10 L/Day* (20 ⁰ C RH60%) Max Rated Input Power 755 W Tank Capacity 6.5 litres Air Volume 190 m Noise level 40 dB(A) Net Weight 9.1 kg...
