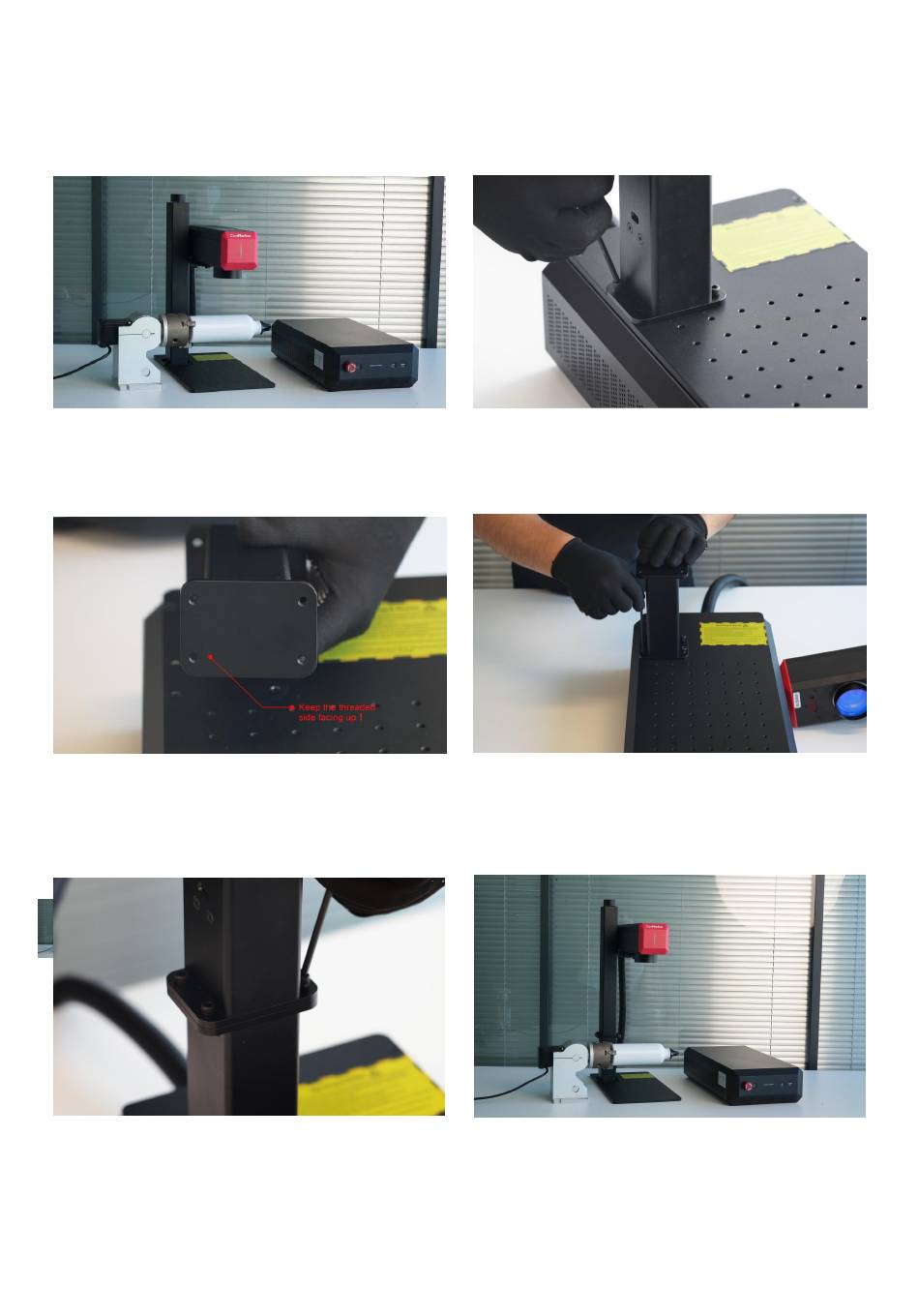

Assembly of Auxiliary Riser (Optional)
1. In case of engraving a big object, the supporting
pole needs to be extended with a riser
3. Make sure the side with the threaded holes
face upwards.
5. Connect the riser with the original pole with
screws
Note:
1) It takes about 1 second of pressing the switch button before the machine starts to run.
2. Disassemble the supporting pole
4. Fix the riser on the base board.
6. The laser head is raised with enough focus
length for bigger objects
