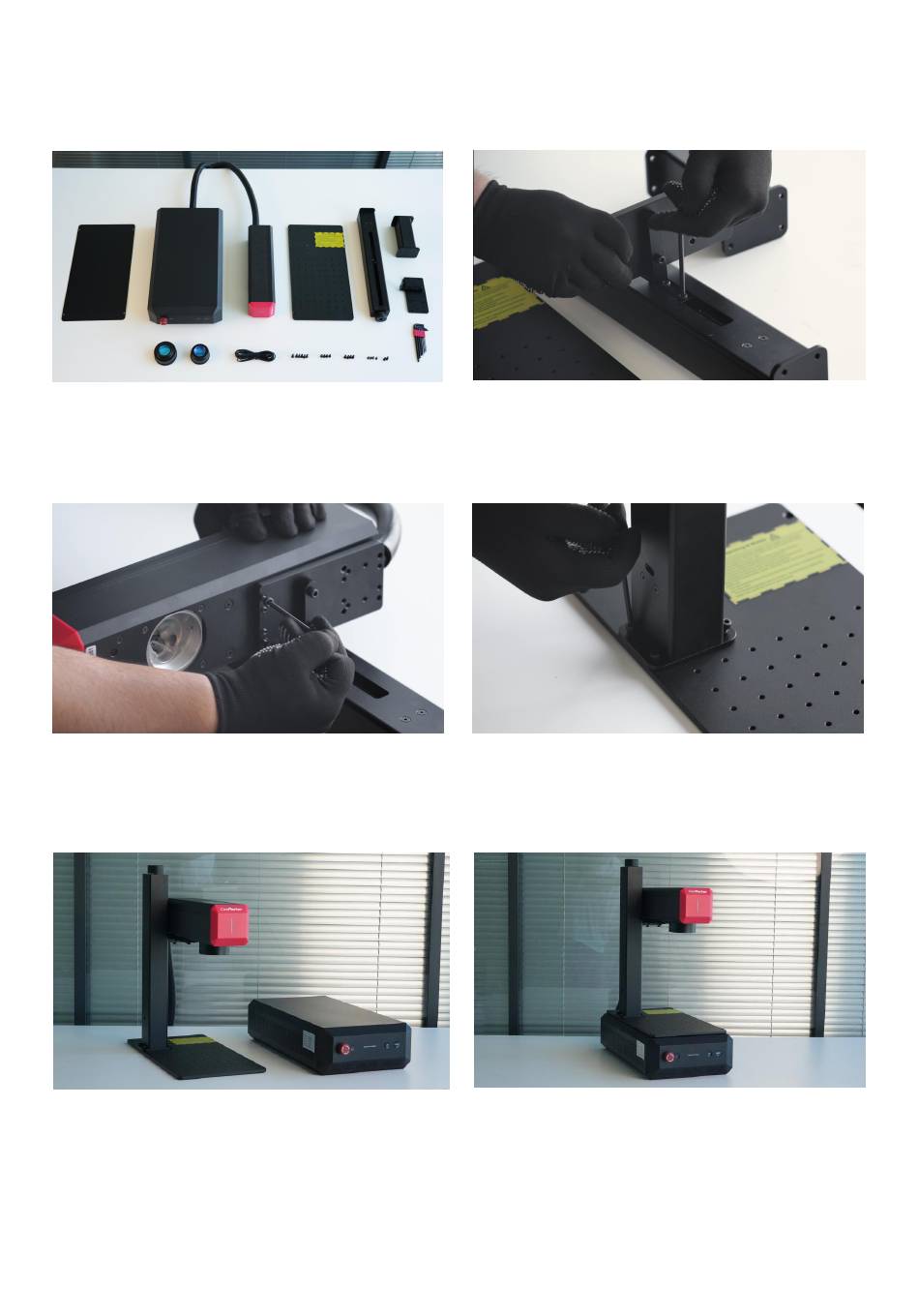

Assembly of Machine
1. Place the parts on the table
3. Put the laser head on the supporting shelf
and fasten the screws to fix the laser head
4 Screws M5 x 14
5. Put the split machine on the table. The
machine can be used at this state.
Note:
1) Adjusting the focus is a necessary prerequisite for laser engraving, please press the "Auto" button or manually move
the laser head to adjust focus after placing the engraving material
2) Make sure to remove the plastic protective cover of the field lens before engraving to avoid damage to the field lens
caused by laser burning.
2. Fix the supporting shelf onto the supporting pole
2 Screws M5 x 12
4. Fasten the supporting pole with the screws
4 Screws M5 x 10
6. It can also be assembled as an integrated
machine with screws
4 Screws M4 x 12
