ComMarker B6 Manual page 13

Speed: Input Number from 1 to 10, with 1 as the fastest, 10 as the slowest. Suggest inputting 10 for B6
Screw pitch: input the distance between two adjacent threads on a screw. It is 8mm for ComMarker B6
Pulse count：Input the number of pulses required for the stepper motor to complete one revolution. It is 200 for B6
Focal length：the distance from the inner sensor to the engraving surface, the laser head will go up or down according to
this focal length number when pressing "Auto" button the focal length number can be input by press the button "Send
focus"
Real focal length: display the current focal distance while the laser head goes up or down
Send focus: Input the number displayed on "Real Focal length" onto "Focus Length"
OK: parameters will be stored by the control board by clicking "OK". The Auto button will run according the parameters
EN/中：change the language into Chinese or English
Lift up: the laser head will continuously go up when pressing the button when tapping the button
Auto focus: the laser head will move the right focal length according to the setting parameters above
Stop: the laser head will stop when it is continuously moving
Lift down: the laser head will continuously go down when pressing the button when tapping the button

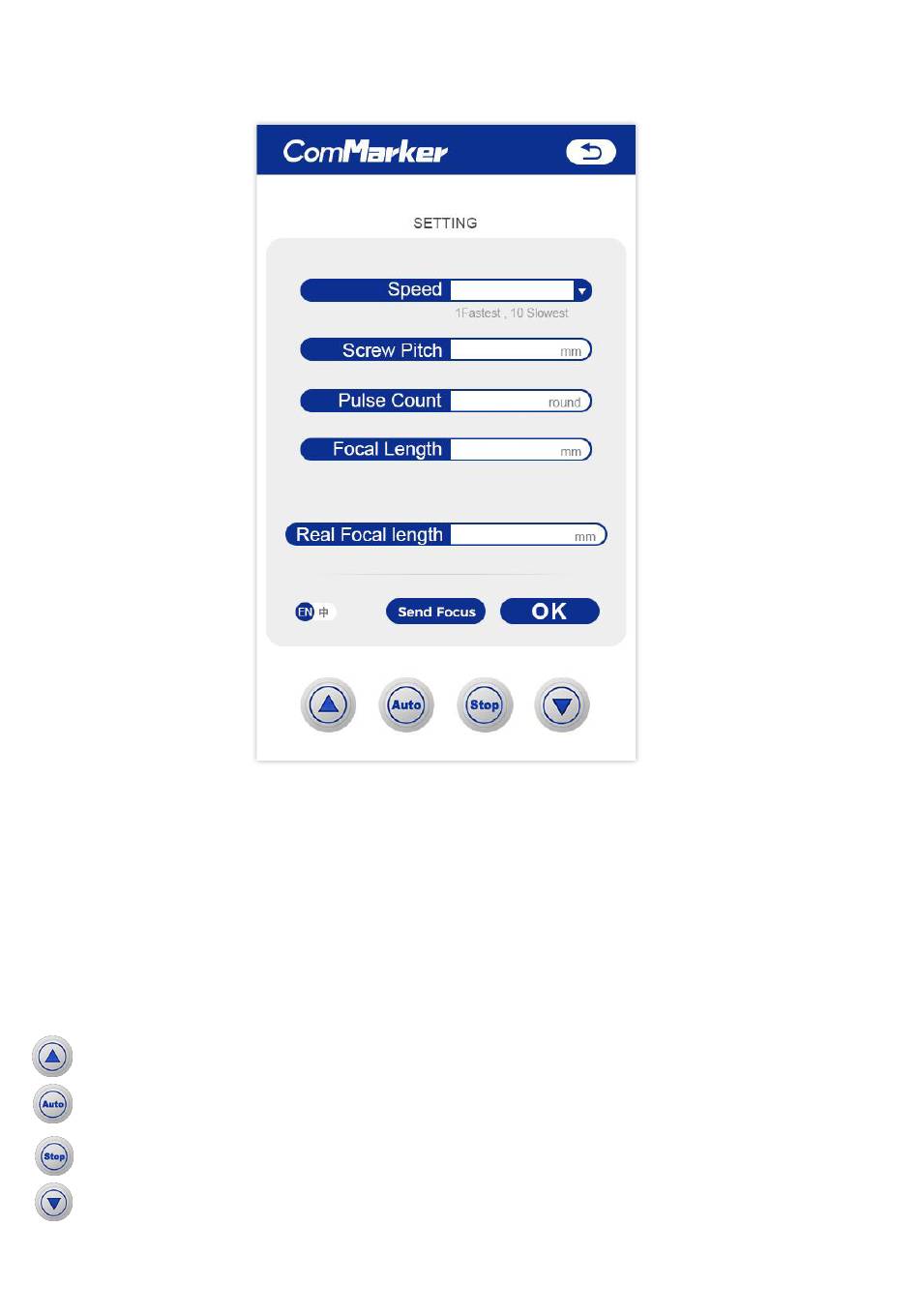

Setting Page
- 12 -
