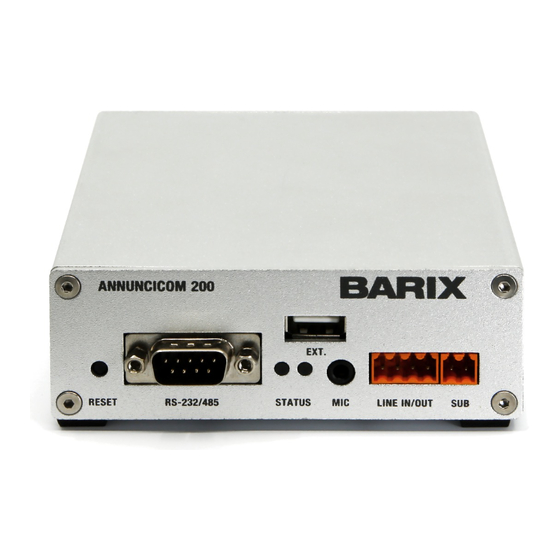

BARIX Annuncicom 200 Quick Install Manual

Network intercom and pa component with poe support

Hide thumbs Also See for Annuncicom 200:

Download this manual

A N N U N C I C O M

2 0 0

Quick Install Guide Version 1.2

Network intercom and PA component

with PoE support

Package contents

a Annuncicom 200

b Power supply (not included in POE package)

c Screw block terminals

Cable Set AUDIO (not included)

d Earphone

e RCA stereo cable

Network cable

g Serial cable

Firmware

This device comes preloaded with the Annuncicom standard firmware.

Alternative firmwares can be downloaded from www.barix.com.

Support

For support please contact your local dealer or visit www.barix.com.

without notice. All mentioned trademarks belong to their respective owners

and are used for reference only. Barix, Exstreamer and SonicIP are trade-

marks of Barix AG, Switzerland, and are registered in certain countries.

Need help?

Do you have a question about the Annuncicom 200 and is the answer not in the manual?

Page 1 Support For support please contact your local dealer or visit www.barix.com. © Barix AG 5/2011, all rights reserved.All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only. Barix, Exstreamer and SonicIP are trade-...
Page 2 Front view Rear view Reset button Mic & Speaker A brief press of the button will reset the device. Pin Description Holding the reset button pressed in for Microphone input approximately 10 seconds will reset the device Mic Power (Bias) and restore the factory default settings when the Ground [G] button is released.
Page 3 ARP command • static IP address (the default “0.0.0.0” sets automatic procedure, or use the “Barix Discovery Tool” Java discovery: BootP, DHCP) and netmask application (download the latest version from If you your devices are connected via routers also: www.barix.com) on your computer (Windows, Mac...
Page 4 -s 192.168.0.6 00:08:E1:00:B1:77 and hit the “Enter” key (replace the digits according to the user forum please visit www.barix.com. your devices MAC address).You must have administra- tive rights to be able to do so (sudo on OSX / Linux).
