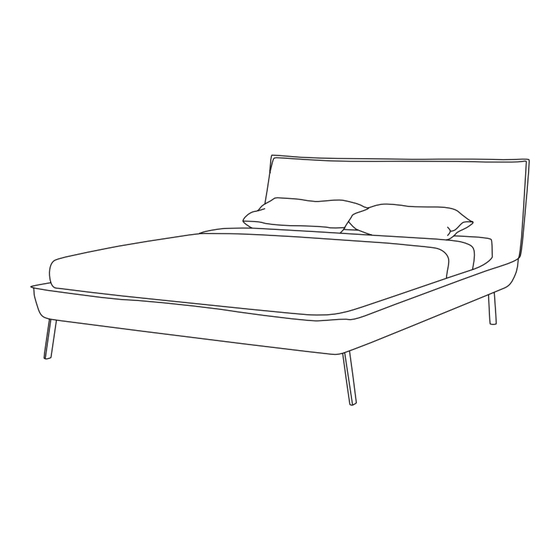

- Page 1 Lewis Bed Assembly Instructions Lewis Bed jardan.com.au...
- Page 2 Lewis Assembly Instructions Components Required A 1 x Headboard 1 x Cordless Torque Drill on low B 2 x Side rails setting (to prevent damage) C 1 x Foot rail 1 x 5/16 Hex nut socket drive D 1 x Center rail...
- Page 3 Lewis Assembly Instructions Unwrap and familiarise yourself with all the components. Both the side rails B will have legs, corner brackets G and slat supports H pre-fixed at each end. Align components as shown in figure 1. Loosen the screws which fasten each slat support H to the corner bracket G until each slat support can be slid out of place.
- Page 4 Lewis Assembly Instructions Lower the center rail E onto the bed frame until it locks into the central attachments on the headboard A and foot rail C . Roll out the slat rolls, securing in place at each end using the velcro attachments.
-
Page 5: Care And Maintenance
Our philosophy is simple, we only make furniture that lasts. Over their lifetime our products will need a little care and attention to ensure they can be enjoyed by generations to come. The following information will help you care for your Jardan products in the best possible way.
