Nook Bed
Assembly Instructions
jardan.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nook Bed and is the answer not in the manual?

Questions and answers

Related Manuals for JARDAN Nook Bed

Summary of Contents for JARDAN Nook Bed

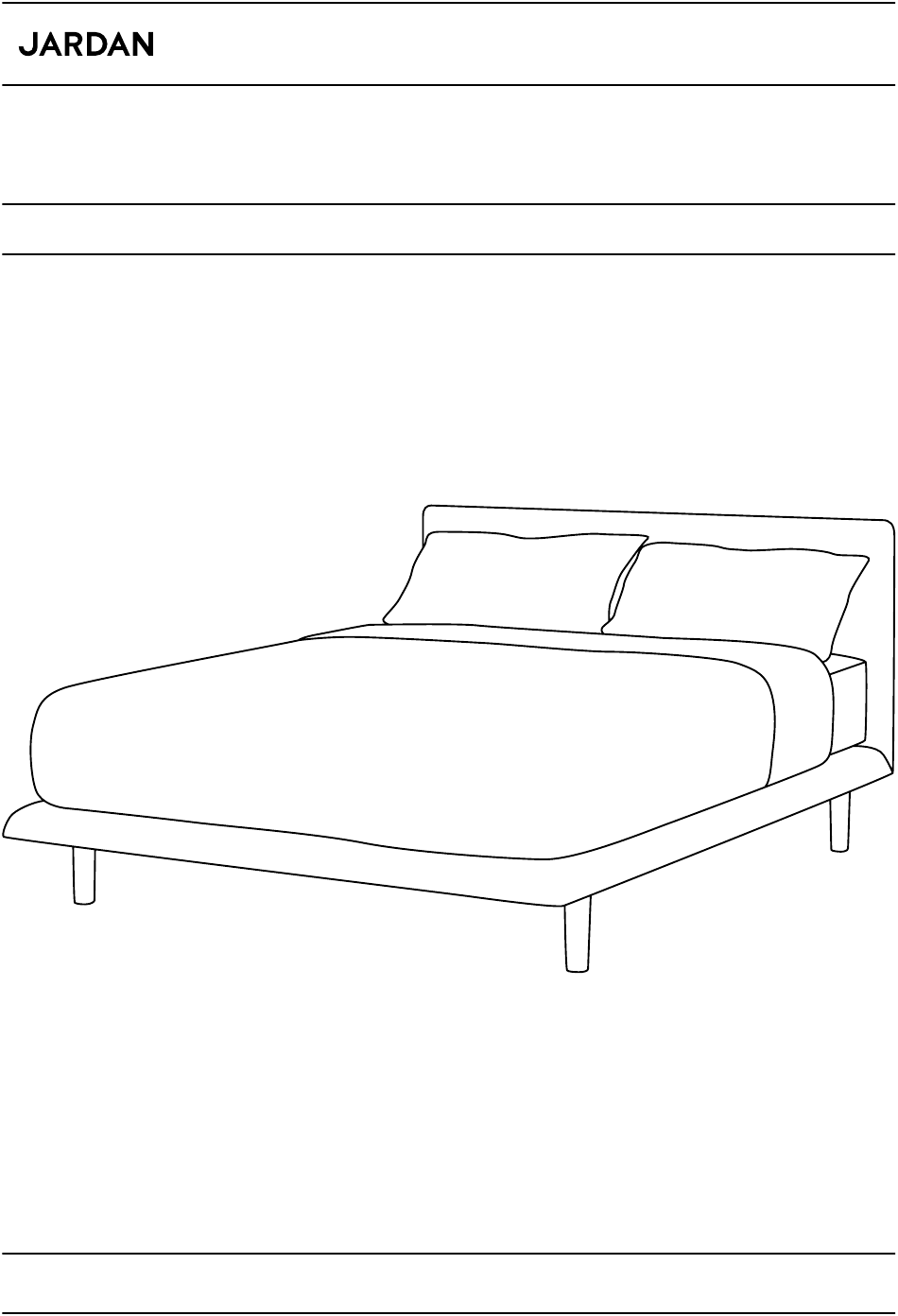

  • Page 1 Nook Bed Assembly Instructions jardan.com.au...
  • Page 2 Nook Bed Assembly Instructions Components Required A 1 x Headboard A 1 x Cordless Torque Drill on low setting B 2 x Side rails (to prevent damage) C 1 x Foot rail B 1 x 5/16 Hex nut socket drive...
  • Page 3 Nook Bed Assembly Instructions Unwrap and familiarise yourself with all the components. Both the headboard A and foot rail C will have corner brackets pre-fixed at each end. Push side rails B to headboard A at a 90° angle. Loosely fix three hex head screws H through each corner bracket I using a cordless drill with a 5/16 hex nut socket drive.
  • Page 4 Nook Bed Assembly Instructions Using the velcro, fit the cover to the inside of foot rail C. Continue fitting the velcro along the inside of side rails B. Make sure to align the velcro to the timber rail as shown with the dotted line. Remove the remaining velcro protecting strips.

  • Page 5: Care And Maintenance

    Our philosophy is simple, we only make furniture that lasts. Over their lifetime our products will need a little care and attention to ensure they can be enjoyed by generations to come. The following information will help you care for your Jardan products in the best possible way.
