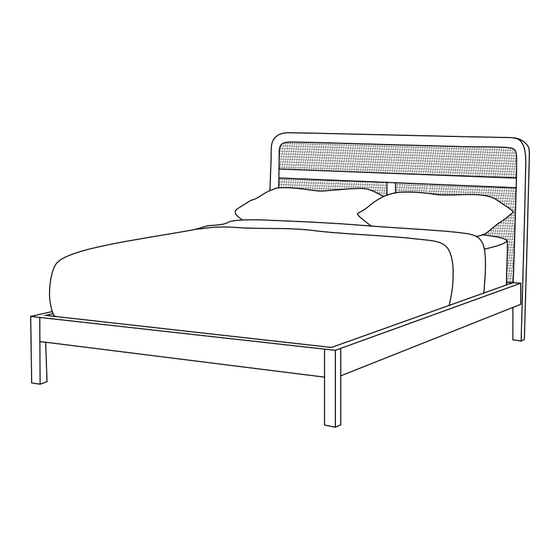

- Page 1 Willow Bed Assembly Instructions jardan.com.au...
- Page 2 Willow Bed Assembly Instructions Components Required A 1 x Headboard 1 x 4mm Allen key B 2 x Side rails 1 x 5mm Allen key C 1 x Foot rail 2 x People (minimum) D 2 x Slat rolls E 1 x Center rail F 4 x Rail bolt fasteners jardan.com.au...
- Page 3 Willow Bed Assembly Instructions Unwrap and familiarise yourself with all the components. Both the headboard A and the foot rail C will have brackets pre-fixed to align and fasten the center rail. When arranging the frame please note the side rails B and center rail E are directional. Align so all the threaded inserts G are at the headboard end.
- Page 4 Willow Bed Assembly Instructions Headboard A and the foot rail C are now fastened together. If required tighten rail bolt fasteners F at each corner of the bed frame using the 5mm Alen key. Place the center rail E by aligning the holes on the underside of the rail to the pins on the bracket attached to the bed frame at A and C.
- Page 5 Willow Bed Assembly Instructions Unroll the slats D using the dowel attachments at each end of the frame as locators to hold the first and last slat in place. Repeat for the second slat roll. jardan.com.au...
-
Page 6: Care And Maintenance
Our philosophy is simple, we only make furniture that lasts. Over their lifetime our products will need a little care and attention to ensure they can be enjoyed by generations to come. The following information will help you care for your Jardan products in the best possible way.
