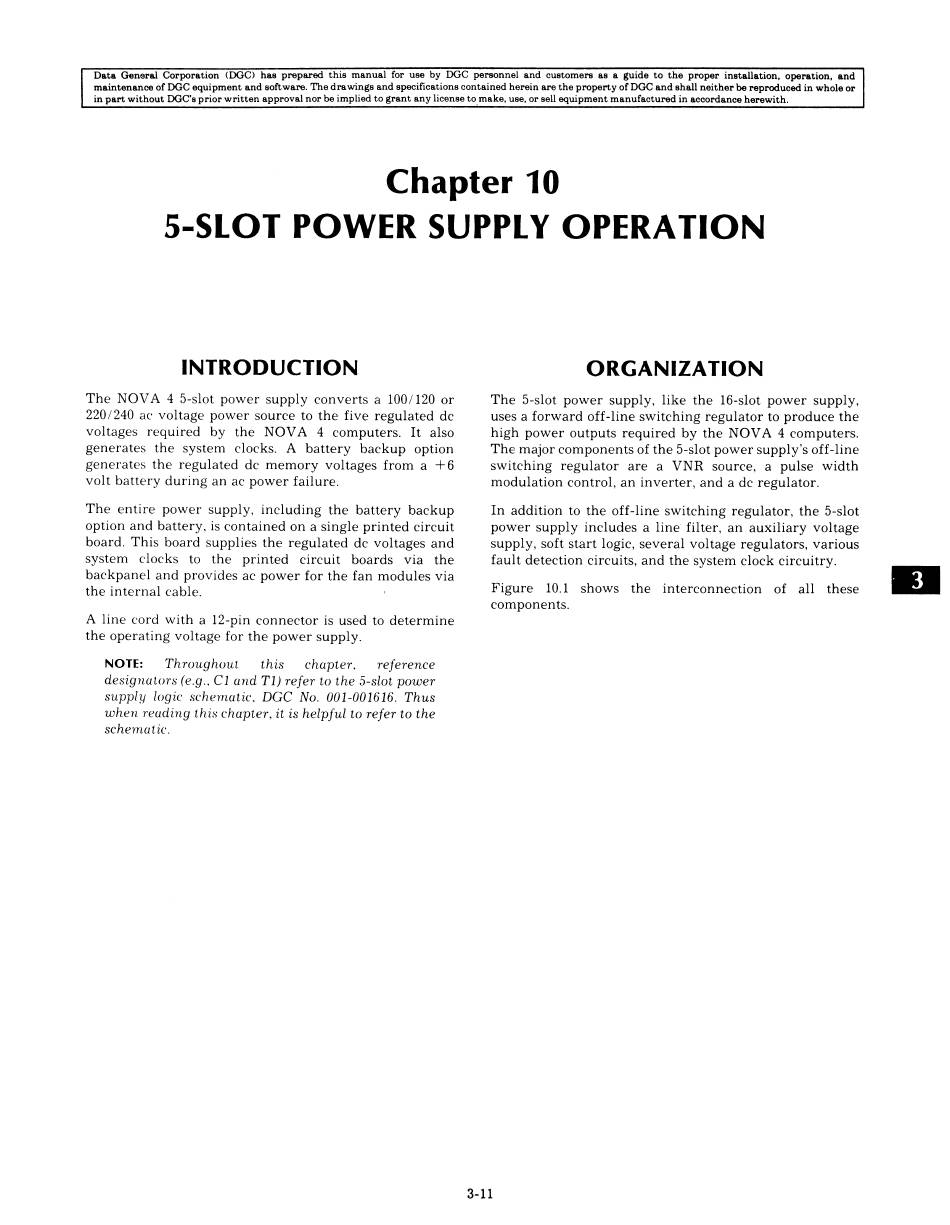

Chapter 10
5-SLOT POWER SUPPLY OPERATION
INTRODUCTION
The NOVA 4 5-slot power supply converts a 100/120 or
220/240 ac voltage power source to the five regulated dc
voltages required by the NOVA 4 computers. It also
generates the system clocks. A battery backup option
generates the regulated dc memory voltages from a +6
volt battery during an ac power failure.
option and battery, is contained on a single printed circuit
system clocks to the printed circuit boards via the
backpanel and provides ac power for the fan modules via
A line cord with a 12-pin connector is used to determine
designators (e.g., C1 and T1) refer to the 5-slot power
supply logic schematic, DGC No. 001-001616. Thus
when reading this chapter, it is helpful to refer to the
ORGANIZATION
The 95-slot power supply, like the 16-slot power supply,
uses a forward off-line switching regulator to produce the
high power outputs required by the NOVA 4 computers.
The major components of the 5-slot power supply's off-line
switching regulator are a VNR source, a pulse width
modulation control, an inverter, and a dc regulator.
In addition to the off-line switching regulator, the 5-slot
power supply includes a line filter, an auxiliary voltage
supply, soft start logic, several voltage regulators, various
fault detection circuits, and the system clock circuitry.
Figure 10.1 shows the interconnection of all these
components.
3-11
