1 MAIN
q VIRTUAL
TO 1/0
A —-—- —A— ——
5 DEVICE
QQ )
Y
20 mA CURRENT LOOP OR
EIA RS-232 COMMUNICATIONS LINE

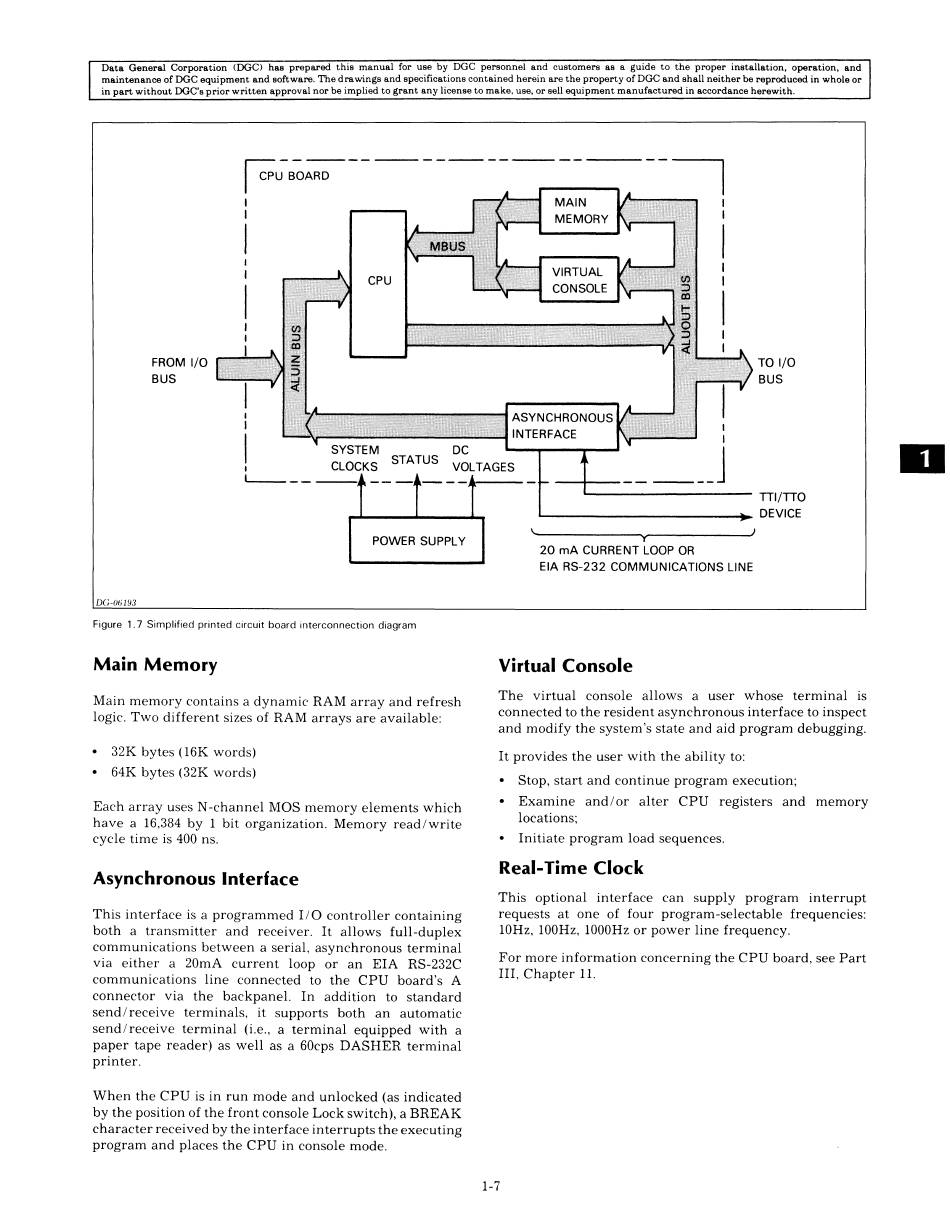

Figure 1.7 Simplified printed circuit board interconnection diagram
Main memory contains a dynamic RAM array and refresh
logic. Two different sizes of RAM arrays are available:
cycle time is 400 ns.
both a transmitter and receiver. It allows full-duplex
communications between a serial, asynchronous terminal
send/receive terminals, it supports both an automatic
paper tape reader) as well as a 60cps DASHER terminal
printer.
by the position of the front console Lock switch), a BREAK
character received by the interface interrupts the executing
Virtual Console
The virtual console allows a user whose terminal is
connected to the resident asynchronous interface to inspect
and modify the system's state and aid program debugging.
It provides the user with the ability to:
e Stop, start and continue program execution;
e Examine and/or alter CPU registers and memory
locations;
e Initiate program load sequences.
Real-Time Clock
This optional interface can supply program interrupt
requests at one of four program-selectable frequencies:
10Hz, 100Hz, 1000Hz or power line frequency.
For more information concerning the CPU board, see Part
III, Chapter 11.
1-7
