NOVA 4/C with 32K byte Memory
NOVA 4/C with 32K byte Memory
& Real-Time Clock option
NOVA 4/C with 32K byte Memory ,
& Multiply/Divide option
NOVA 4/C with 32K byte Memory
& Real-Time Clock & Multiply/Divide options
NOVA 4/C with 64K byte Memory
_ — _
NOVA 4/C with 64K byte Memory
& Real-Time Clock option
NOVA 4/C with 64K byte Memory
& Multiply/Divide option
NOVA 4/C with 64K byte Memory
& Real-Time Clock & Multiply/Divide options
Bus terminator, ''A'' side
SHAS
Power supply board

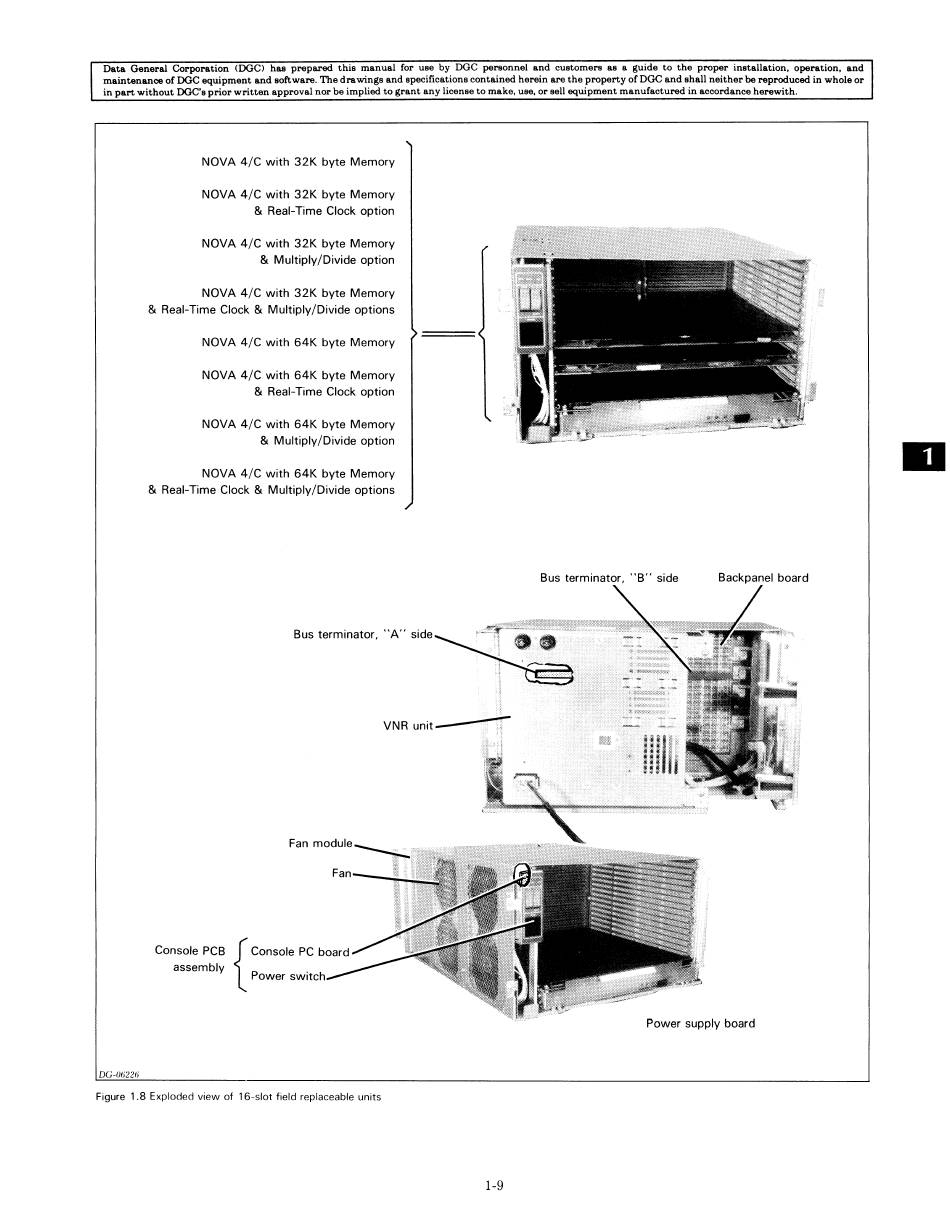

Figure 1.8 Exploded view of 16-slot field replaceable units
