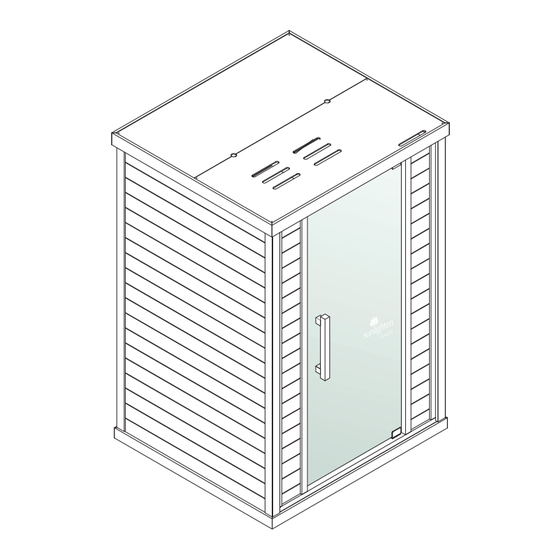

AU ASSEMBLY INSTRUCTIONS
1
2
3
2x
5x
7
8
9
12x
12x
A
B
5x
1x
F
1x
Back Wall
J
1x
Bench
1
sunlighten.com.au | sunlighten.co.nz
Amplify II
4
5
4x
4x
8x
10
11
12x
12x
2x
C
1x
G
1x
Right Wall
K
2x
Full Spectrum (FS) Heater
6
12x
12
13
1x
1x
Allen wrench
Philips screw
driver
D
1x
Roof
H
1x
Front Wall with glass panel
L
2x
FS Heater Covers
E
1x
Floor
I
1x
Left Wall
M
2x
FS Heater Top Panel
N
4x
FS Heater brackets

Advertisement

loading
Need help?

Need help?

Do you have a question about the Amplify II and is the answer not in the manual?

Questions and answers

Related Manuals for Sunlighten Amplify II

Summary of Contents for Sunlighten Amplify II

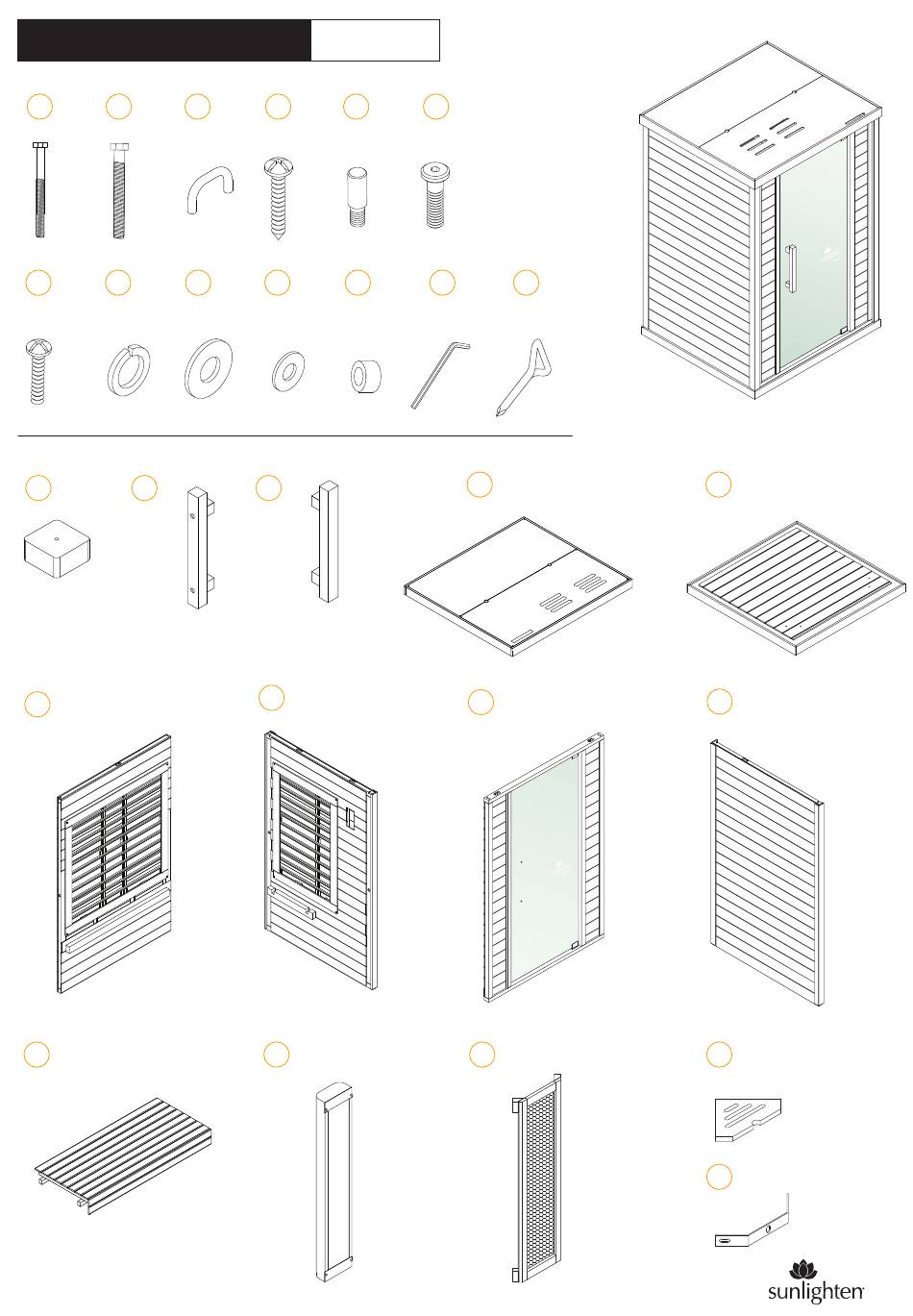

  • Page 1 Amplify II AU ASSEMBLY INSTRUCTIONS Allen wrench Philips screw driver Roof Floor Right Wall Front Wall with glass panel Left Wall Back Wall Bench Full Spectrum (FS) Heater FS Heater Covers FS Heater Top Panel FS Heater brackets sunlighten.com.au | sunlighten.co.nz...
  • Page 2 PRE-STEPS 220–240V, 2231 watts. Maximum Amperage 11A. Sunlighten recommends all new installations adhere You will want two or more people to assemble your to AS3000 and a circuit that is RCD protected, sauna. Unpack each wall segment from the shipping material.
  • Page 3 As you insert each wall segment, you will insert the U-clips in the pre-drilled holes in the corner This will keep the walls sealed together. The front wall will be inserted next. Be careful of the glass door & panel as you insert the wall. sunlighten.com.au | sunlighten.co.nz...
  • Page 4 STEP 6 Once all the U-clips have been inserted in the corners, the next step will be to place the roof on top. Make sure the side the main powercord receptacle faces the back. sunlighten.com.au | sunlighten.co.nz...
  • Page 5 NOTE: Screws should be visible from interior only. A second person should hold the handle while the other screws the bolts in with the Allen wrench. The dust cover should also be replaced. heater frame sunlighten.com.au | sunlighten.co.nz...
  • Page 6 Repeat Steps 9-11 for the second FS Heater on front left inside corner sauna walls. TIP: for best alignment, locate pre-drilled holes behind fabric cover with hands and then lift up heater with your foot so metal brackets align with the screw locations. sunlighten.com.au | sunlighten.co.nz...
  • Page 7 STEP 13 STEP 14 Add FS heater top panel to both FS heaters. Insert into pre-drilled holes on walls for the FS heater top panel Screw into pre-drilled holes to secure brackets using a Philips screw driver. sunlighten.com.au | sunlighten.co.nz...
  • Page 8 STEP 15 Make sure that screws and washers fully secure in their pre-drilled holes using a Phillips screwdriver. CONGRATULATIONS your sauna is now ready to enjoy! If you have any queries please call Sunlighten Customer Support at 1800 786 544.
